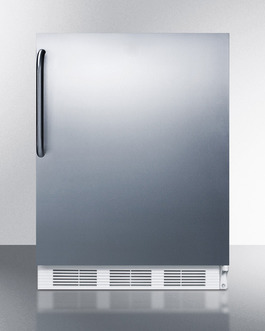

24" Wide Built-In All-Freezer, ADA Compliant
(82cm H x 60cm W x 60cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Height of Cabinet | 32.0" (81 cm) |
Height to Hinge Cap | 32.25" (82 cm) |
Width | 23.75" (60 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 25.75" (65 cm) |
Depth with door at 90° | 45.5" (116 cm) |
Capacity | 3.2 cu.ft. (91 L) |
Defrost Type | Manual |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101012018 |
Freezer
|
|
Door Swing | RHD |
Reversible | Factory Reversible |
Interior Height | 24.25" (62 cm) |
Interior Width | 17.75" (45 cm) |
Interior Depth | 16.5" (42 cm) |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 2.7 oz. |
High Side PSI | 235.0 |
Low Side PSI | 70.0 |
Level Legs | 4 |
Interior Drawers | Yes |
Drawers Qty | 3 |
Compressor Step Height | 6.5" (17 cm) |
Compressor Step Width | 17.5" (44 cm) |
Compressor Step Depth | 5.5" (14 cm) |
AVAILABLE UPGRADES
Exterior | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
Lock | ||||||||||
|
||||||||||
Door | ||||||||||
|
FEATURES
32 inch height is designed to fit under ADA compliant counters
Less than 24 inches wide to fit tight spaces
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Allows the unit to be used freestanding
Doors and cabinet are fully wrapped in 304 grade stainless steel
A curved handle in brushed stainless steel provides generous room for a comfortable grip
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials
Static cooling system
Conveniently organize your items while keeping the temperature stable when the door is opened
Static cooling system reduces temperature fluctuations
Manage the temperature with ease and accuracy
Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Environmentally friendly design does not contain ozone-damaging chemicals
DESCRIPTION
Accucold ALFB621 medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under lower ADA compliant counters. The 32” high ALFB621CSS can be used built-in or freestanding in any 24” space, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup. This medical unit has a 304 grade stainless steel wrapped cabinet and door. A curved towel bar handle completes the look. NOTE: ALL ALFB621 FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
