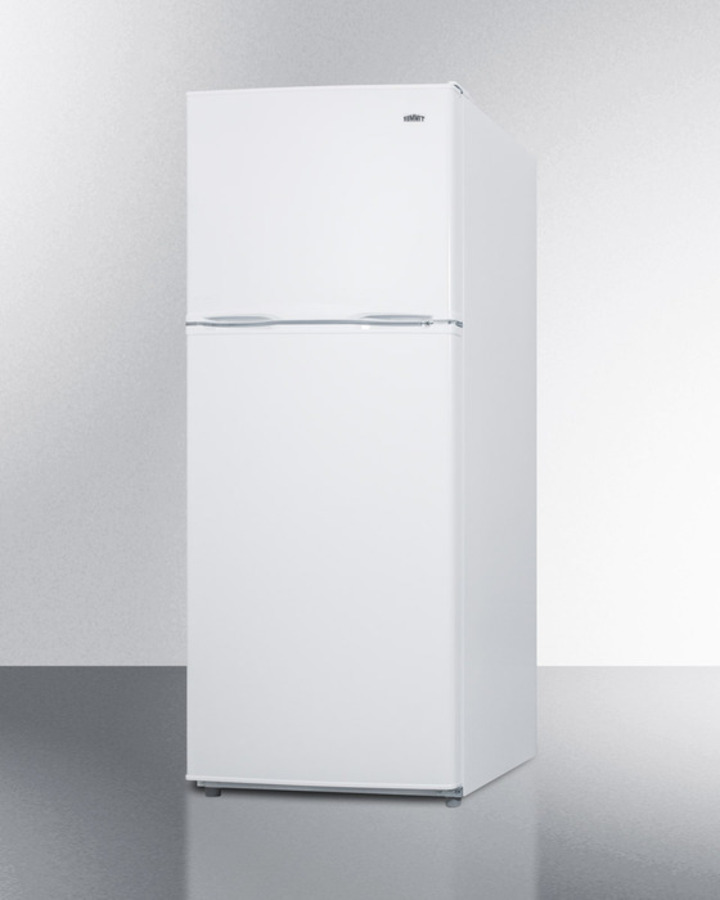

24" Wide Top Mount Refrigerator-Freezer

SKU: FF1386W
ENERGY STAR qualified with a deluxe interior
DISCONTINUED- REPLACED BY FF1427W
59.88" H x 24.0" W x 28.75" D
(152cm H x 61cm W x 73cm D)

Overview
Height of Cabinet 59.38" (151 cm)
Height to Hinge Cap 59.88" (152 cm)
Width 24.0" (61 cm)
Depth 28.75" (73 cm)
Depth with door at 90° 50.5" (128 cm)
Capacity 11.5 cu.ft. (326 L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety CSA
Energy Usage/Year 311.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 131.0 lbs. (59 kg)
Shipping Weight 136.0 lbs. (62 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101043715
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 34.75" (88 cm)
Refrigerator - Interior Width 19.75" (50 cm)
Refrigerator - Interior Depth 22.75" (58 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 15.5" (39 cm)
Freezer - Interior Width 18.5" (47 cm)
Freezer - Interior Depth 18.75" (48 cm)
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 2
Gallon Door Storage Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.48 oz.
High Side PSI 201.0
Low Side PSI 103.0
Level Legs 2
Compressor Step Height 9.5" (24 cm)
Compressor Step Width 19.75" (50 cm)
Compressor Step Depth 7.0" (18 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Handle
TBC Copper Towel Bar Handles
Factory-installed towel bar handles made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handles
Factory-installed full-length handles made from pure copper for antimicrobial protection

ENERGY STAR Most Efficient 2016 recognition

This unit has been recognized as the Most Efficient of ENERGY STAR 2016, helping to prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency

ENERGY STAR qualified

Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Frost-free operation

No-frost convenience for reduced user maintenance

Thin-line design

Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

Large capacity

11.5 cu.ft. interior offers generous storage in a slim fit

Two clear crispers

Twin crisper drawers offer the ideal storage conditions for produce, helping you to keep your fruits and vegetables separated

Adjustable glass shelves (refrigerator section)

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door storage

Store tall bottles and condiments right on the door for convenient access

Gallon door storage

Lower refrigerator door shelf can hold gallon-sized containers

Adjustable touch control thermostat (refrigerator section)

Easy electronic controls lets you manage the interior temperature at the touch of a button

Interior light

Automatically illuminates when you open the door

Adjustable freezer thermostat

Dial thermostat located inside for easy temperature management

Adjustable freezer shelf

Wire shelf includes several glide positions to best suit your storage

ADA compliant design

Accessible design meets ADA guidelines for top freezer refrigerators

Reversible doors

User-reversible door swing for added flexibility

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT carries one of the industry's most extensive lines of frost-free refrigerator-freezers in unique footprints for apartments and smaller kitchens.

The ENERGY STAR qualified FF1386W is sized just under 24" wide and 60" high for an easy fit in space-challenged kitchens. With an 11.5 cu.ft. interior, it still offers plenty of frost-free storage for full kitchen needs. This model has a white exterior finish. Reversible doors offer added flexibility when placing the unit.

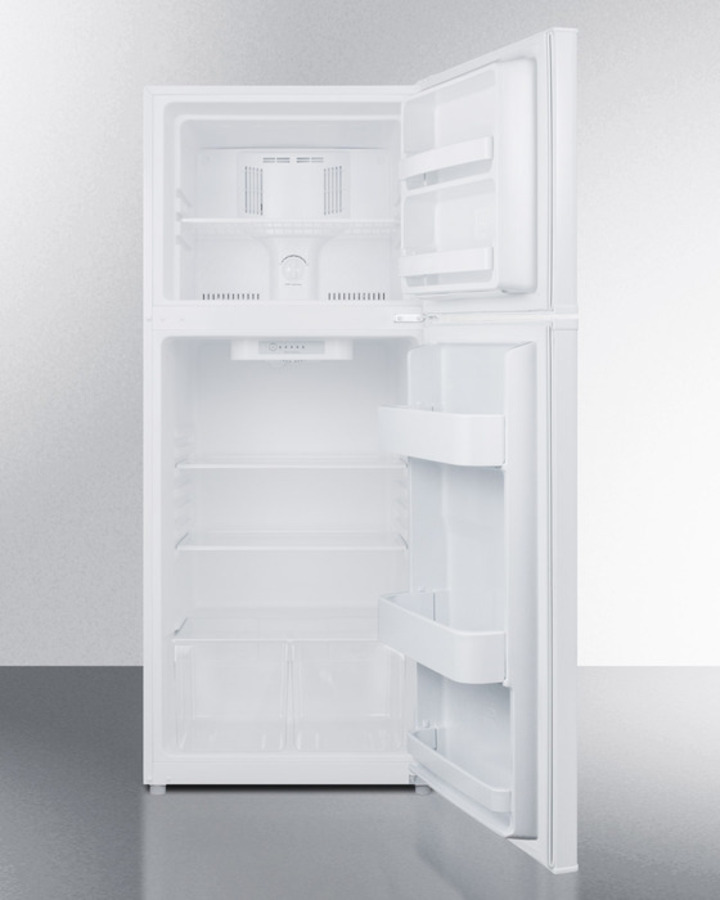

Inside, the FF1386W comes fully featured for convenient storage. The refrigerator section includes adjustable spill-proof glass shelves and two clear crispers for optimum produce storage. Door storage includes a large rack sized to hold gallon containers. The fresh food section features digital temperature controls and an automatic interior light. The large freezer compartment includes its own dial thermostat, two door shelves, and an adjustable wire shelf. To order this unit with a factory installed icemaker, see the FF1386WIM.

With its advanced features, unique size, and energy efficient performance, the FF1386W is the perfect refrigerator for smaller kitchen spaces.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
