22" Wide All-Freezer

SKU: FS60MLPLUS

DISCONTINUED- REPLACED BY ADA305AF

33.63" H x 24.0" W x 25.75" D
(85cm H x 61cm W x 65cm D)

Overview
Height of Cabinet	33.13" (84 cm)
Height to Hinge Cap	33.63" (85 cm)
Width	24.0" (61 cm)
Depth	25.75" (65 cm)
Capacity	5.0 cu.ft. (142 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.1
Weight	90.0 lbs. (41 kg)
Shipping Weight	95.0 lbs. (43 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101047492
Freezer
Door Swing	RHD
Reversible	No
Interior Height	29.5" (75 cm)
Interior Width	18.63" (47 cm)
Interior Depth	19.0" (48 cm)
Shelf Type	Wire
Shelf Qty	2
Full Door Shelves	3
Thermostat Type	Dial
Refrigerant Type	R134a
Refrigerant Amount	2.5 oz.
High Side PSI	235.0
Low Side PSI	130.0
Compressor Step Height	7.5" (19 cm)
Compressor Step Width	4.0" (10 cm)
Compressor Step Depth	18.63" (47 cm)

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad - AC powered keypad lock

KEYPAD - Battery-powered keypad door lock

Slim counter height dimensions

Just 22" wide with a full 5 cu.ft. capacity

Thermometer

Thermometer provides external readout of current and high/low temperatures

Manual defrost

Efficient performance with reliable temperature stability

Side lock

Keyed lock for secure interior

Door storage

Store items right on the door for easy access

Fixed shelves

Wire shelving for optimal air flow

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

SUMMIT’s PLUS Series refrigeration is designed to provide greater temperature uniformity for general purpose and institutional use.

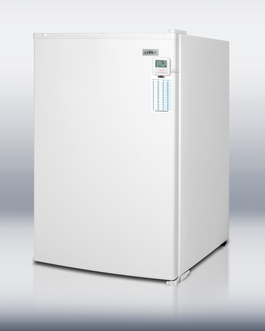

The FS60MLPLUS is a counter height all-freezer with a full 5 cu.ft. capacity. At just 22” wide, it fits easily in most settings. This manual defrost unit features fixed wire shelves for optimal cooling, with door racks to store extra items. The door includes a side-mounted lock and thermometer that displays the current and high/low temperatures.

The FS60MLPLUS is designed for freestanding use.

BROCHURE
FS60MLPLUS.pdf

USE & CARE
MED_PLUS_manual_Engl_French_rvsd_071916.pdf

MSDS INFORMATION
Propylene_Glycol_SDS.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
