SBC490BIBFTWIN

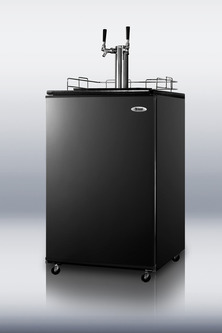

24" Wide Built-In Kegerator

SKU: SBC490BIBFTWIN
DISCONTINUED- REPLACED BY SBC682PNRTWIN
This unit is designed for commercial use. It meets the U.S. Department of Energy (DOE) commercial energy standards but may not meet DOE residential standards.
34.5" H x 23.63" W x 24.88" D
(88cm H x 60cm W x 63cm D)

Overview
Height of Cabinet 34.5" (88 cm)
Width 23.63" (60 cm)
Depth 24.88" (63 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 6.4 cu.ft. (181 L)
Defrost Type Automatic
Door Brass Frame
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 152.0 lbs. (69 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Kegerator
Door Swing RHD
Reversible No
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Fan Type Exterior
Refrigerant R134a
Refrigerant Amount 2.1 oz.
High Side PSI 280.0
Low Side PSI 88.0
Inter Height 29.0" (74 cm)
Interior Width 21.25" (54 cm)
Interior Depth 18.75" (48 cm)
Level Legs Qty 4

Full-sized beer dispenser

Interior accommodates half, quarter, or mini (pony) kegs

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Fully finished black cabinet

Allows the unit to be used freestanding

KIT 490 included

Complete tap system with 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, connection hardware, and cleaning kit

Dual tap system

Twin taps let you serve two different types of beer from two quarter kegs

Brass draft tower

Striking style fit for any setting

Reversible door

Keep placement options flexible with a reversible door swing that is easy to switch when your arrangement changes

Brass door frame

Slide a panel into this two-piece exposed brass door frame to match the unit to other cabinetry (panel size: 31" H x 23 3/8" W)

Automatic defrost

Reduced user maintenance with auto defrost operation

Adjustable thermostat

Manage the temperature with ease and accuracy

Casters included (ship unassembled)

To make the unit portable, install this sturdy set of casters to the base of the unit

Top guard rail (ships unassembled)

If using the beer dispenser freestanding, install this black rail on top to catch spills and neaten service

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

DISCONTINUED: For a similar unit with a stainless steel frame and tap, see the SBC490BIFRTWIN

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
