36" Wide Electric Coil Top Range

SKU: WEM430KW
Made in the USA
Estimated Time to Ship:

Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
44.0" H x 36.0" W x 24.0" D
(112cm H x 91cm W x 61cm D)

Overview
Height of Cabinet 44.0" (112 cm)
Width 36.0" (91 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
US Electrical Safety CSA
Voltage/Frequency 220 V AC/60 Hz
Weight 200.0 lbs. (91 kg)
Shipping Weight 210.0 lbs. (95 kg)
Parts & Labor Warranty 1 Year
UPC 761101003733
Electric Range
Oven Capacity 2.9 cu.ft. (82 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 675.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 950.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cooking Timer Yes
Backguard Yes
Backguard Display Yes
Cleaning Type Manual
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 19.0" (48 cm)
Storage Compartment Yes
Broiler Location Inside Oven
Oven Door White/Window

36 inch wide range

Uniquely sized to fit many older kitchen spaces

Made in the USA

Designed and constructed domestically

24 inch depth

Shallower fit is ideal for L-shaped and galley kitchens

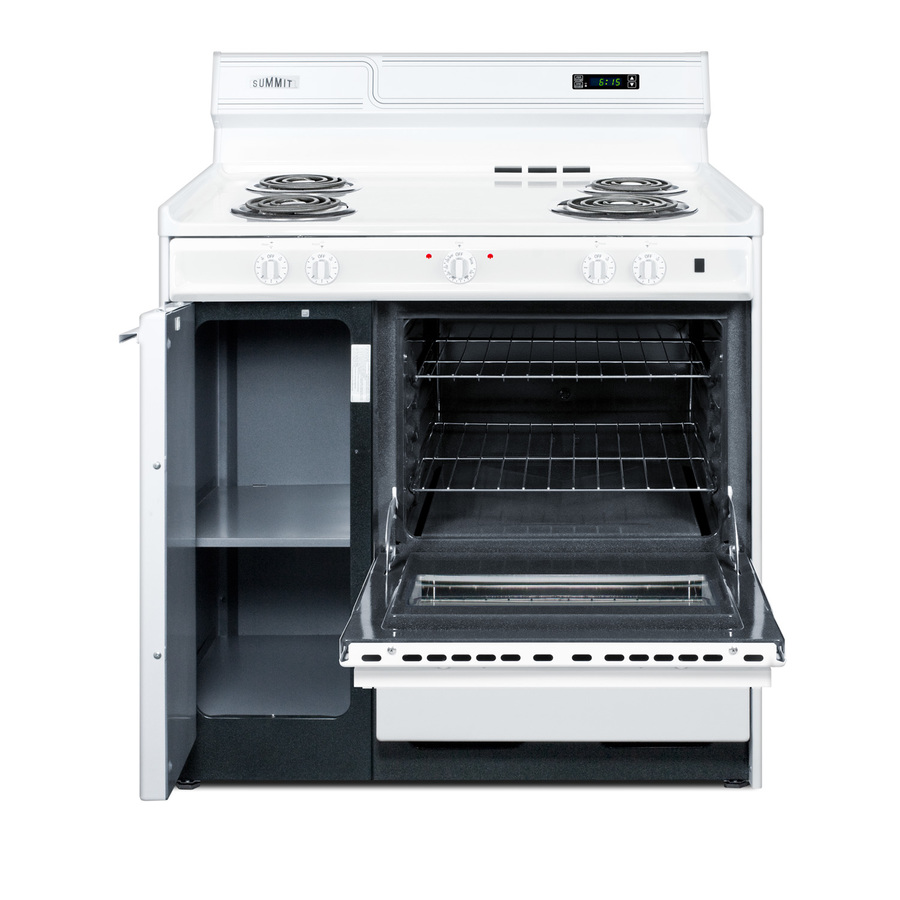

Storage compartments

12" wide storage cabinet included in body, with a removable shelf to help store cookware, smaller appliances, non-perishable food, and other items, with a lower drop-down compartment also included

Four coil elements

Includes one 8" and three 6" coil elements

Safety burners with low wattage outputs

Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip pans

Each coil element includes a removable chrome pan for easier cleaning

Oven window and light

Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Waist-high broiler

Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor

Adjustable oven racks

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Porcelain and steel construction

Solid construction built to hold up to everyday use

Deluxe backguard

8" high backguard helps to protect your walls from spills and splashes

Digital clock and timer

Backguard includes time readout

Recessed oven door

Smart design limits the depth and protects adjacent cabinetry

Upfront controls

All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners

Push-to-turn knobs

Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Indicator lights

Control panel includes an 'on' light for the oven and burners for added safety when using the range

Broiler pan included

Two-piece porcelain broiler tray with grease well

Anti-tip bracket

Included for user installation to help prevent tipping

Cord not included

Compatible with standard 40 amp 3 or 4-wire range cords

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

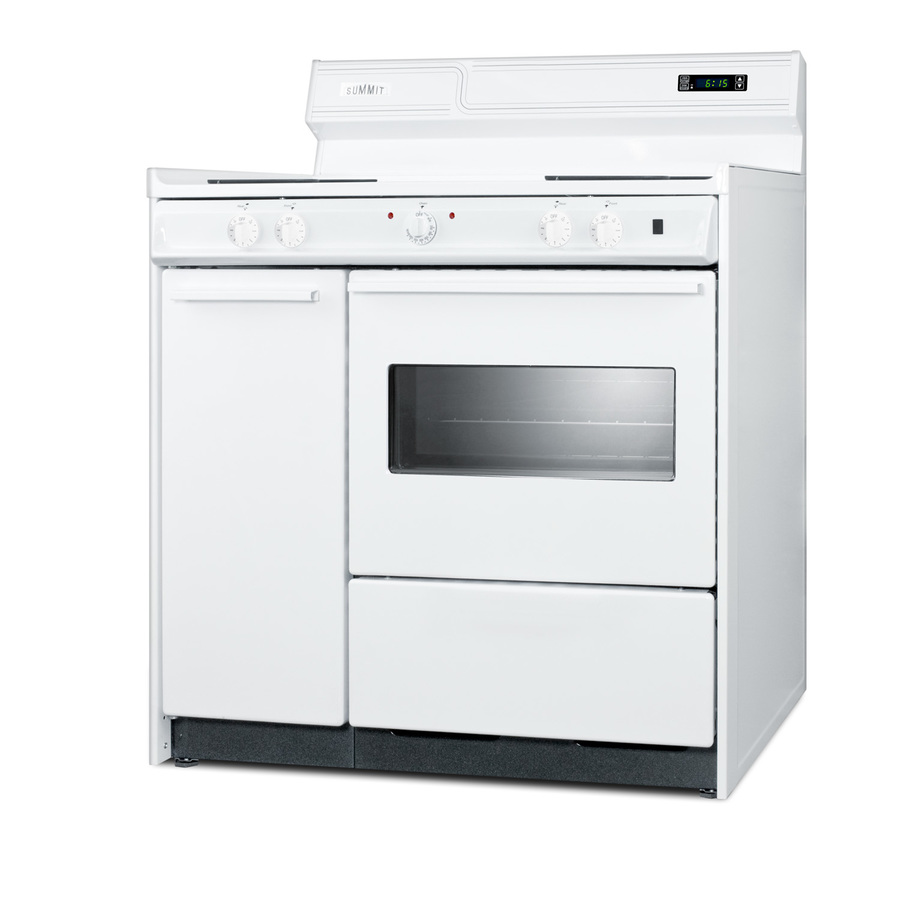

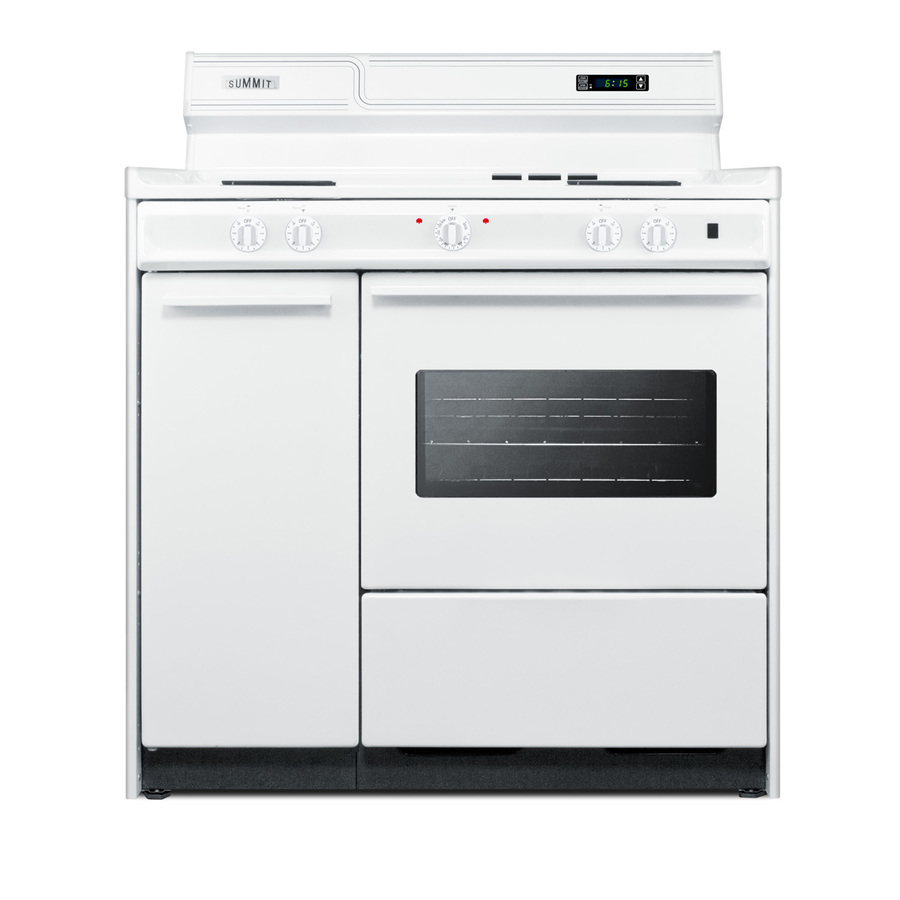

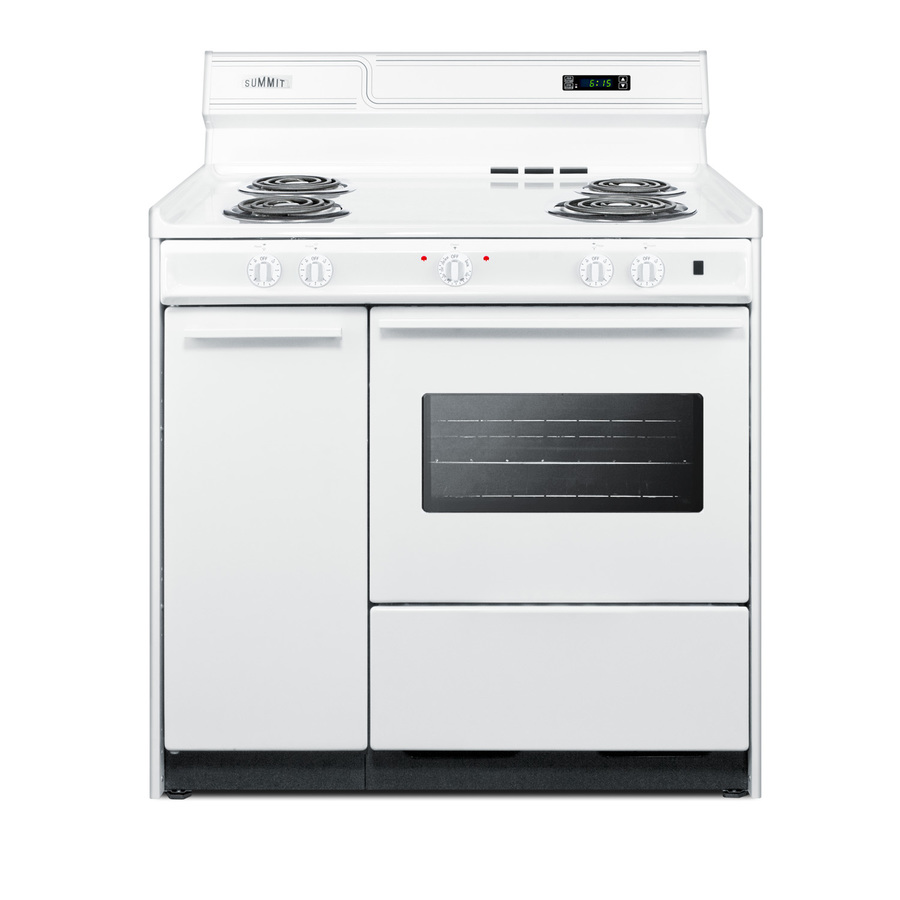

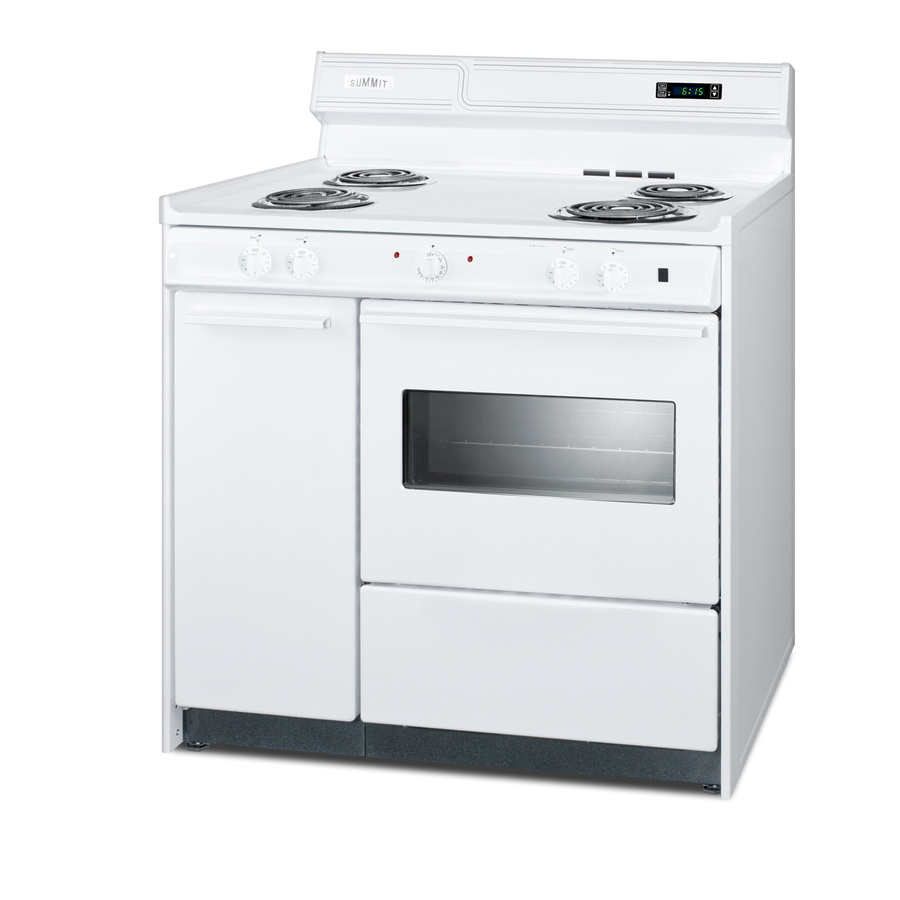

The WEM430KW is a 220V electric range uniquely sized at 36" wide, with a 2.46 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. This unit has a side storage compartment with a removable shelf and a lower drop-down section for cookware.

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

The WEM430KW comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician).

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 30" wide fits.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
