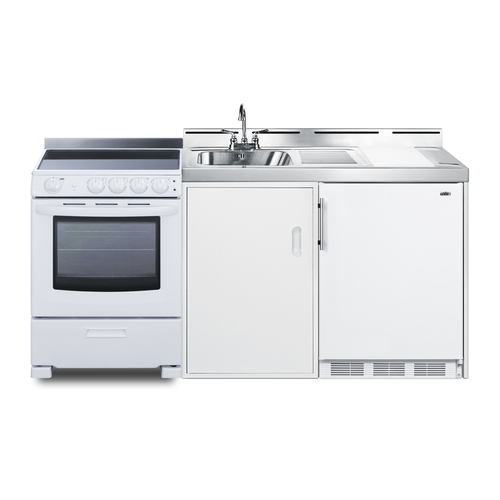

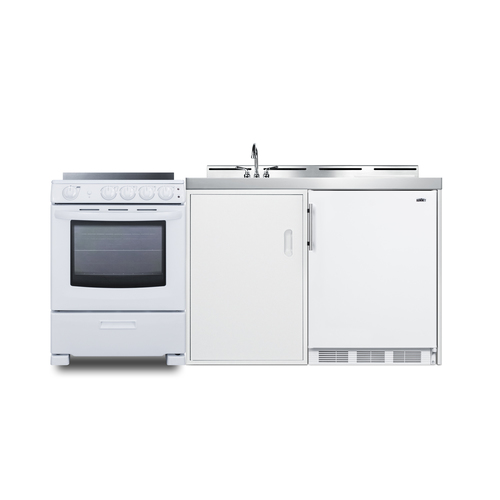

72" Wide All-in-One Kitchenette with Electric Range

SKU: ACK72ELSTW
Complete kitchen convenience in just 72" of width, with a refrigerator-freezer and 4-burner smooth-top range with oven included
Estimated Time to Ship:

5 to 7 days

Color: White

*Additional features may vary

40.0" H x 71.75" W x 24.25" D
(102cm H x 182cm W x 62cm D)

Overview
Nominal Height 40.0" (102 cm)
Height of Cabinet 40.0" (102 cm)
Nominal Width 72.0" (183 cm)
Width 71.75" (182 cm)
Nominal Depth 25.0" (64 cm)
Depth 24.25" (62 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Other Energy Info 40 amp range; 1.2 amp refrigerator
Weight 350.0 lbs. (159 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101075631
Kitchenette
Refrigerator Included CT661W
Refrigerator Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Glass
Shelf Qty 3
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Full Door Shelves 3
Thermostat Type Dial
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
Cooking Type Smooth-Top Range
Number of Burners 4
Cooktop Controls Dial
Range Included REX2421WRT
Oven Included Yes

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
RangeCord4P - Installed 4-pronged cord
4-pronged NEMA 14-50P cord installed on stove
RangeCord3P - Installed 3-pronged cord
3-pronged NEMA 10-50P cord installed on stove

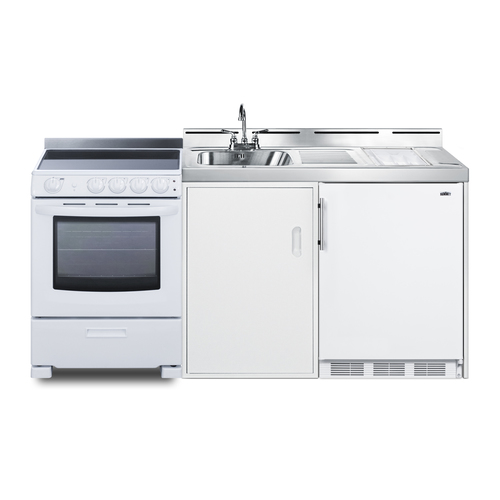

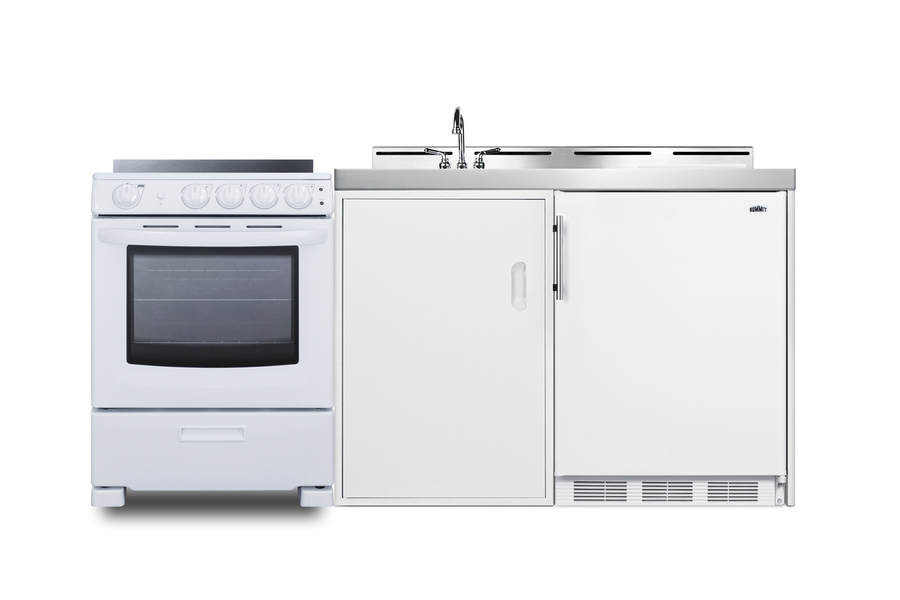

Complete one-piece kitchenette

All-in-one kitchen is built with virtually everything you need for meal preparation

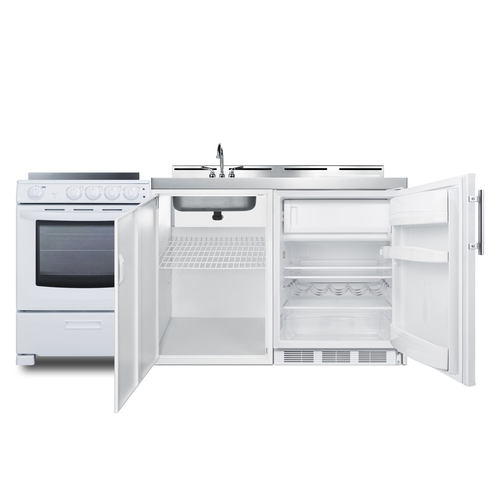

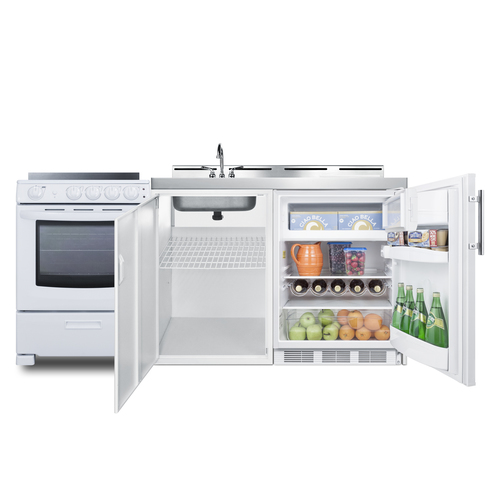

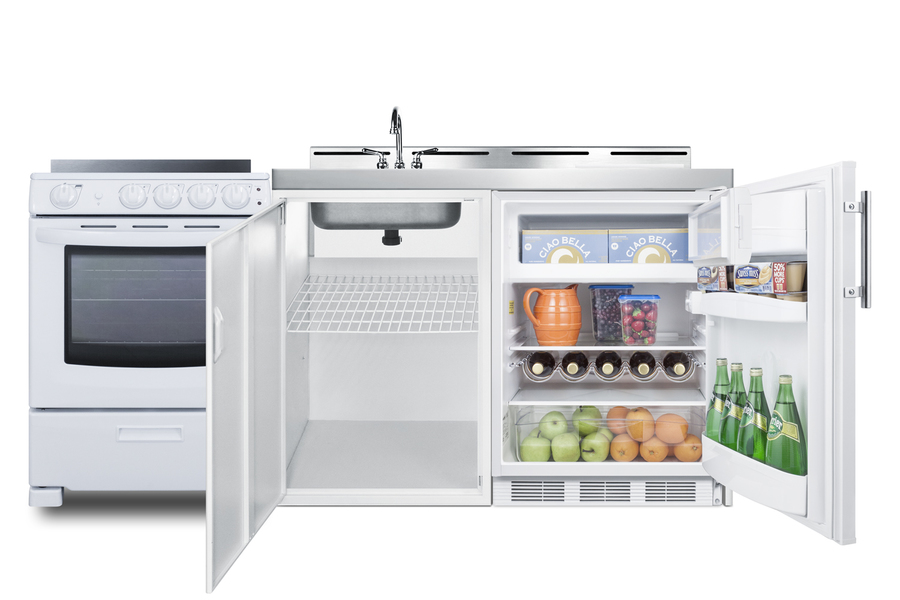

Refrigerator-freezer included

CT661W is packaged inside the kitchenette. This 5.1 cu.ft. refrigerator-freezer includes adjustable glass shelves, door storage, and a crisper

Sink and faucet

Stainless steel sink with ready-to-use faucet included

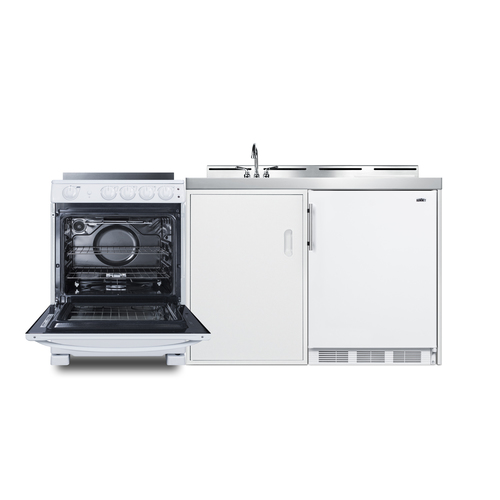

Electric range included

REX2421WRT is packed with the kitchenette. This 220V electric smooth top range includes two 8" 2000W and two 6" 1500W elements, 2.9 cu.ft. oven with adjustable racks, oven window, and interior lighting

Push-to-turn knobs

Range knobs require a small amount of force to turn the elements on, helping to prevent accidents

Indicator lights

Operating indicators light up to show which burner is in use for added safety

One piece stainless steel countertop

Easy-to-clean surface with a professional look

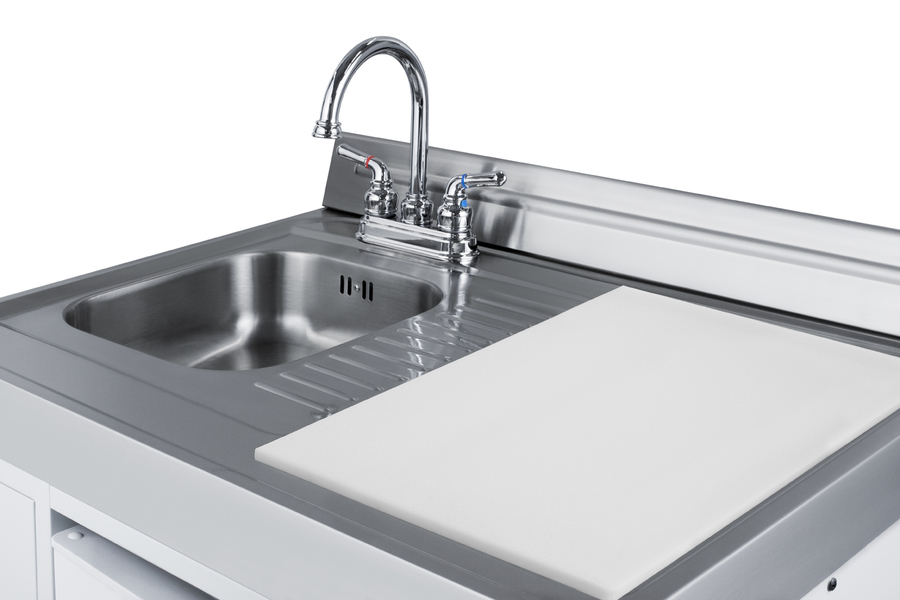

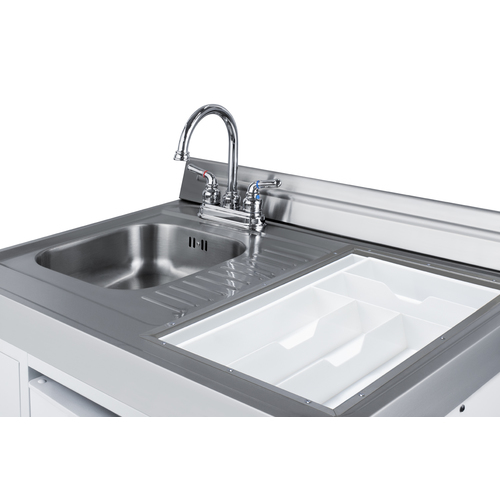

Removable cutting board surface

Plastic cutting board provides a durable, easy-to-clean space for food preparation

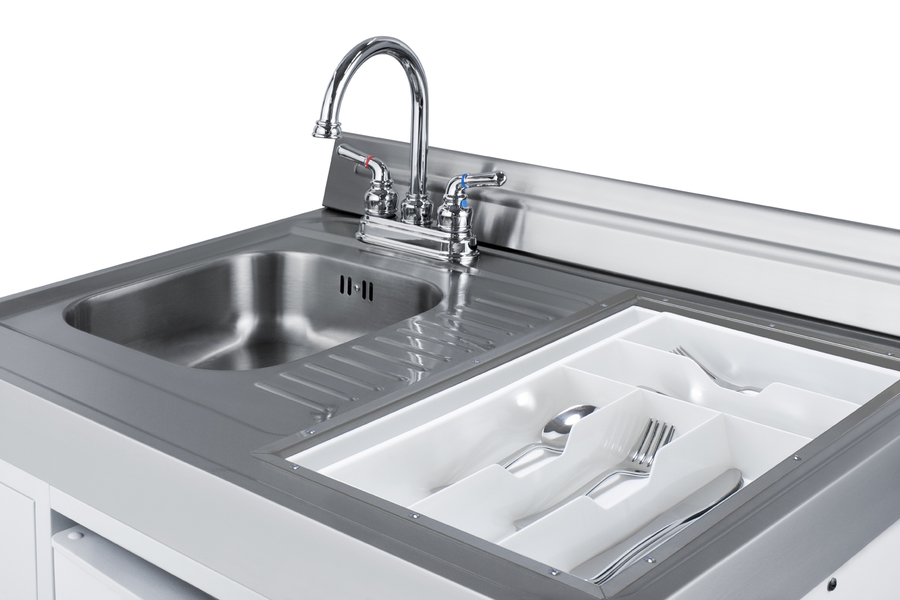

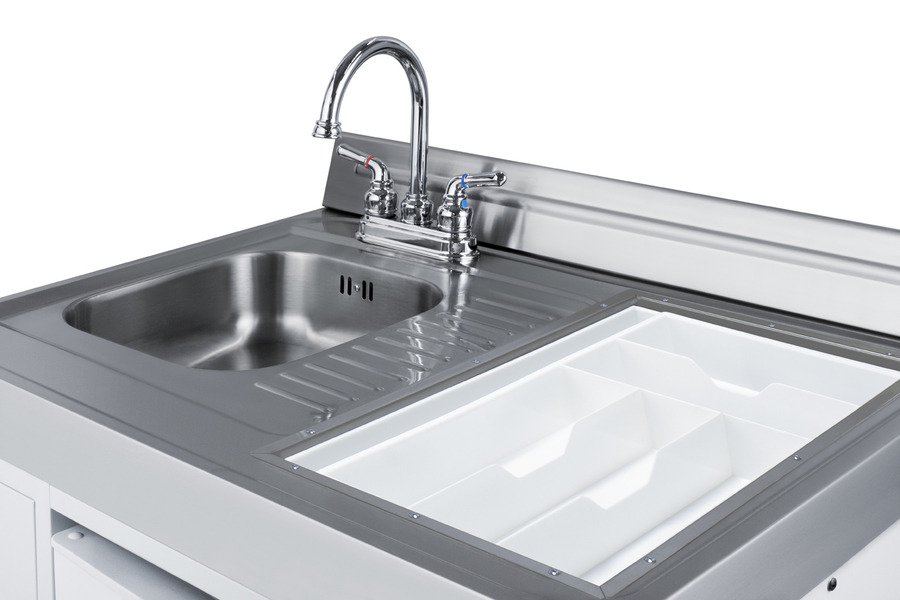

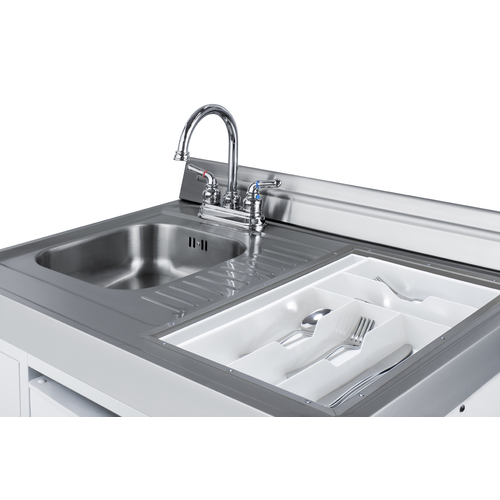

Cutlery bin

Located under the cutting board, allows for easy storage of cutlery and utensils

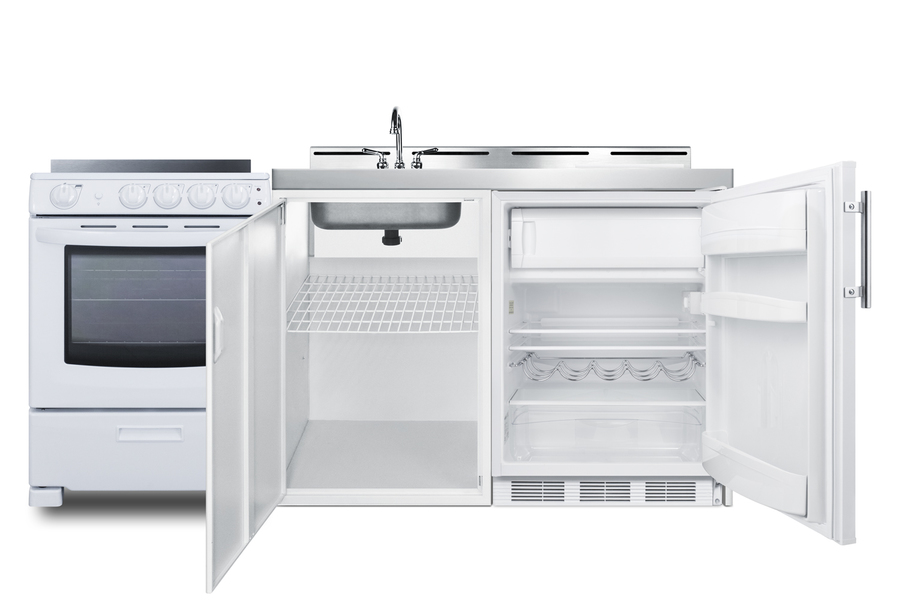

Storage compartment

Convenient lower cabinet with adjustable shelf lets you store dry goods

Stainless steel backguard

Includes a 4" high backguard to complete the look and offer added protection to your walls

Reversible door

User-reversible door swing on the refrigerator for added flexibility

Optional storage shelf

Add more storage convenience with the APSS48 Appliance Station, a stainless steel shelving system designed for easy installation on this unit

Ships on one pallet

Kitchenette and range ship together on one oversized pallet for easier shipping, with reinforced packaging for added protection

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Summit's line of all-in-one combination kitchenettes brings complete kitchen convenience in a slim-fitting design. These units come fully featured with everything you need for the home foodservice experience, including a refrigerator with a freezer compartment, 4-burner smooth top range with oven, sink with faucet, cutlery bin with a removable cutting board cover, and storage cabinet for dry goods.

The ACK72ELSTW is a 54" wide kitchenette with an easy-fitting 24.25" depth. This unit comes with a stainless steel countertop offering durability in a professional look. The surface includes a small cutlery bin, with a removable cutting board cover to ensure easy food prep. The compact sink features a ready-to-use faucet. Underneath the sink is a large cabinet with a removable shelf for added storage convenience.

Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The ACK72ELSTW includes the CT661W, with 5.1 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model includes adjustable glass shelves, door storage, a scalloped wine shelf, and crisper. The ACK72ELSTW also ships with Summit REX2421WRT, a 24" wide 220V electric range complete with a smooth-top 4-element cooking surface and a full oven compartment with a bake and broil function. This range includes a large window with interior oven light, adjustable slide-out oven racks, hot surface indicator lights for added safety, and a pull-out drawer for storage as needed. The range can be installed on the left or right side of the kitchenette.

The ACK72ELSTW is shipped on one pallet, with the kitchenette and refrigerator fully assembled and the range packaged separately. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a low maintenance, fully-featured compact kitchenette.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
