71" Wide All-In-One Kitchenette with Dishwasher

SKU: ACKDW72
Complete kitchen functionality with a full-sized refrigerator-freezer, 2-burner cooktop, European dishwasher, and sink
Estimated Time to Ship:

1 to 2 days

Color: White

*Additional features may vary

40.0" H x 71.0" W x 26.0" D
(102cm H x 180cm W x 66cm D)

Overview
Nominal Height 40.0" (102 cm)
Height of Cabinet 40.0" (102 cm)
Nominal Width 71.0" (180 cm)
Width 71.0" (180 cm)
Nominal Depth 26.0" (66 cm)
Depth 26.0" (66 cm)
Depth with door at 90° 44.25" (112 cm)
Capacity 8.8 cu.ft. (249 L)
Dishwasher Standard
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Weight 300.0 lbs. (136 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101086910
Kitchenette
Refrigerator Included FF946W
Refrigerator Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Glass
Shelf Qty 3
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Full Door Shelves 5
Thermostat Type Dial
Interior Light Yes
Refrigerant Type R134a
Refrigerant Amount 3.53 oz.
Cooking Type Coil Cooktop
Number of Burners 2
Cooktop Controls Dial
Interior Height 1 40.5" (103 cm)
Interior Width 1 17.0" (43 cm)
Interior Depth 1 17.0" (43 cm)
Interior Height 2 16.0" (41 cm)
Interior Width 2 16.25" (41 cm)
Interior Depth 2 13.25" (34 cm)
Compressor Step Height 9.75" (25 cm)
Compressor Step With 17.0" (43 cm)
Compressor Step Depth 4.0" (10 cm)
Sink Height 5.88" (15 cm)
Sink Width 16.75" (43 cm)
Sink Depth 14.88" (38 cm)

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

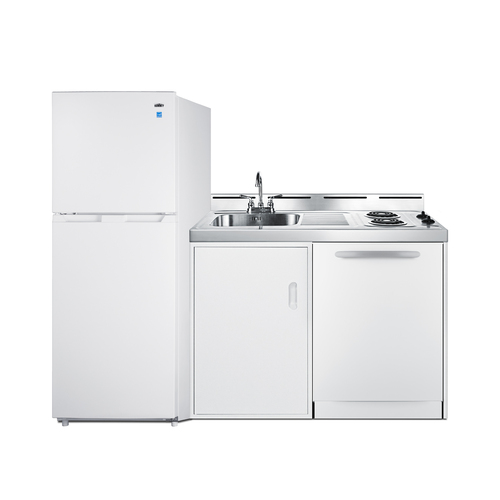

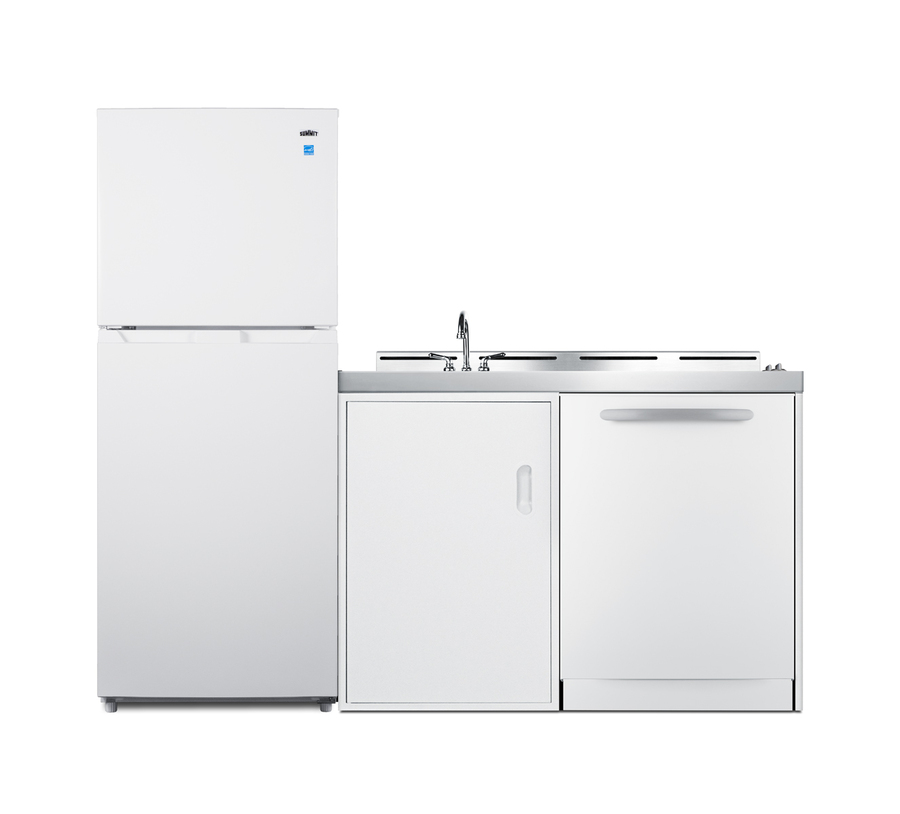

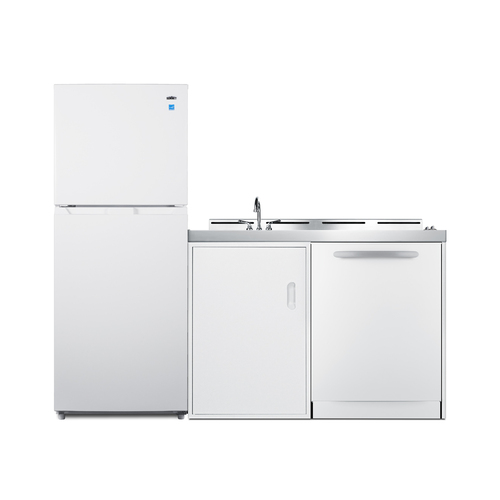

Complete all-in-one kitchenette

Includes a full-sized refrigerator-freezer, 24" dishwasher, 2-burner cooktop, sink with faucet, and storage cabinet

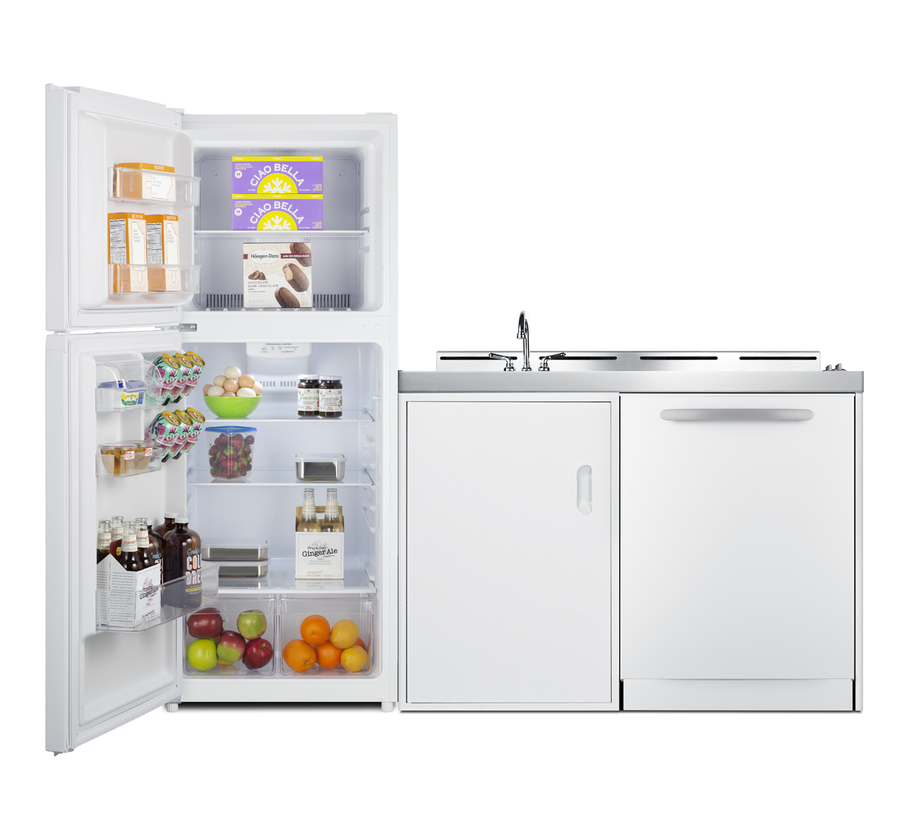

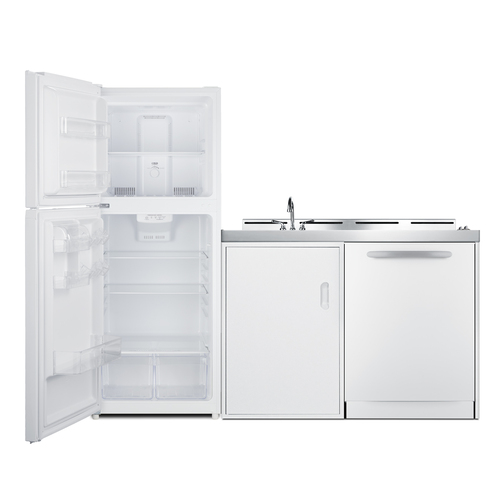

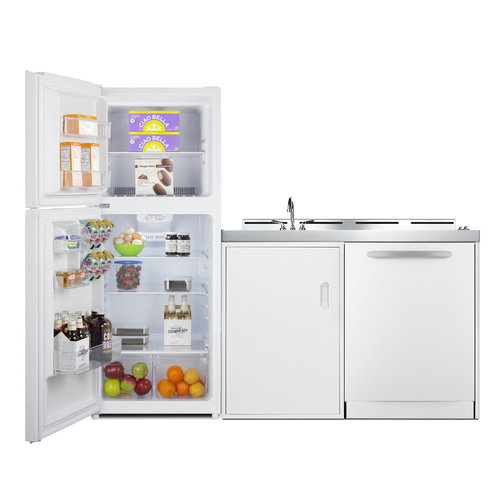

Full-sized refrigerator-freezer included

Ships with Summit FF946W, a frost-free refrigerator-freezer with an 8.8 cu.ft. capacity, adjustable glass shelves, door storage, and a large crisper

Reversible doors

Refrigerator and freezer door swing can be switched to best accommodate your setup

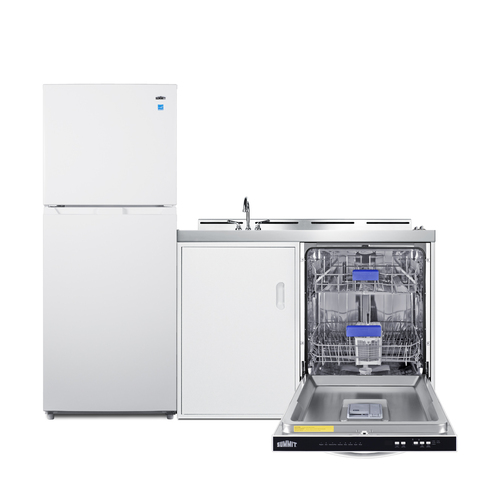

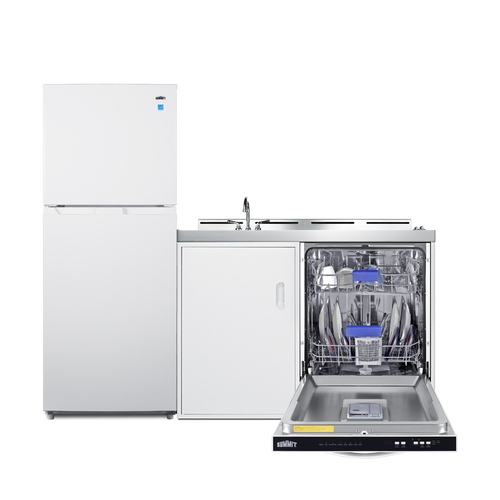

Dishwasher included

Includes Summit DW242WADA, a European ENERGY STAR certified dishwasher with top-located digital controls, 8 wash programs, two slide-out racks, and an ultra quiet 47 dB performance

ENERGY STAR certified dishwasher

DW242WADA features an efficient, water-saving performance, with a half-load function for added savings on water use

Two electric burners

120V coil elements for easy cooking

Sink and faucet

Stainless steel sink comes ready to wash

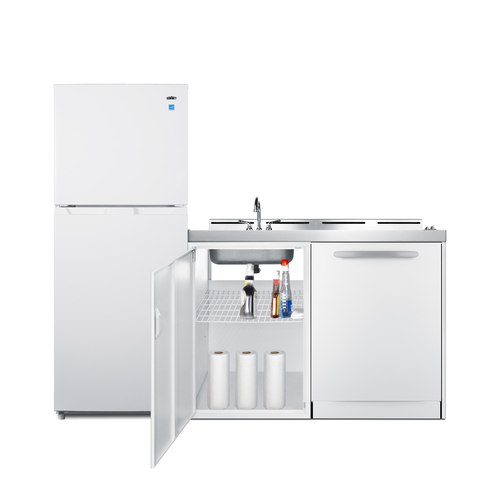

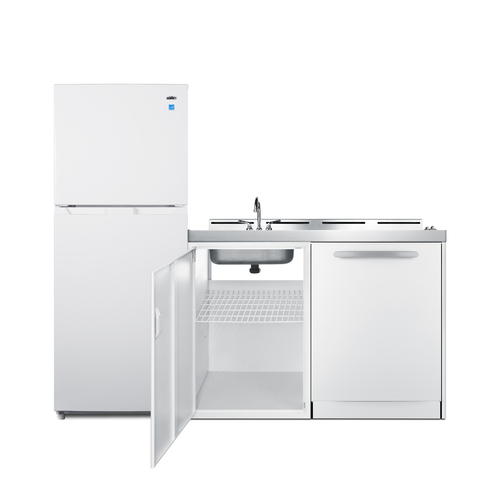

Storage compartment

Large convenient cabinet with center shelf lets you store dry goods behind a door

One piece stainless steel countertop

Easy to clean and built to last

Fast assembly

Each unit includes its own pre-installed power cord for easy setup. This item ships in three boxes

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

SUMMIT brings innovative value into the kitchen with all-in-one combination units for full-service use. Our ACKDW series features a full-sized refrigerator-freezer, dishwasher, 2-burner cooktop, sink, and storage cabinet to create a complete one-wall kitchenette.

Model ACKDW72 is comprised of three pieces: our North American made frost-free FF946W refrigerator-freezer; our C48EL kitchenette with sink, cabinet, and cooktop; and our DW242WADA 24" dishwasher. The exterior features a clean white finish, with stainless steel accents on the kitchenette work surface and dishwasher handle to elevate your kitchen style.

The FF946W refrigerator offers 8.8 cu.ft. of storage capacity. Frost-free operation ensures minimum user maintenance. The refrigerator section includes adjustable glass shelves, a large crisper drawer, and door storage, while the large freezer includes a removable shelf and door rack. This unit has a user-reversible door swing and can be installed to the left or right of your kitchenette.

The C48EL kitchenette includes a 2-burner coil cooktop with a pre-installed 115V 3-prong power cord for easy setup. The stainless steel sink features a hot and cold water faucet. A large storage cabinet includes a removable shelf. The ACKDW72 ships with our European DW242WADA dishwasher, with an ENERGY STAR certified ultra quiet performance that runs at just 47 dB. This dishwasher is designed with a fully featured stainless steel interior for versatile loading. The intuitive top-located digital controls let you choose between 8 wash programs with 5 auxiliary functions, including a half-load setting for added water savings. The dishwasher also includes its own pre-installed 3-prong cord.

In addition to the ACKDW72, Summit's expanded selection of all-in-one kitchenettes includes choices with full-sized ranges, washer/dryer laundry combos, water pumps for no-plumbing applications, and much more. Explore the full lineup or contact our product specialists for more information.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
