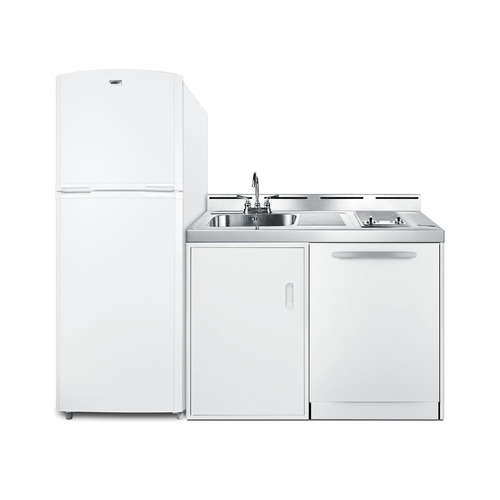

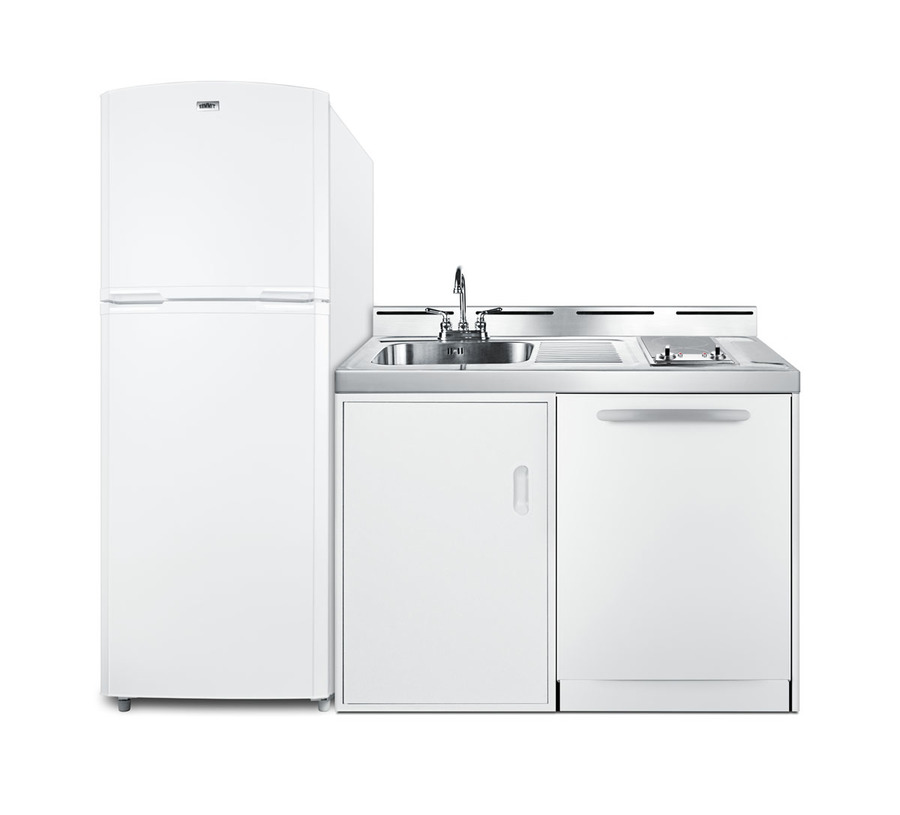

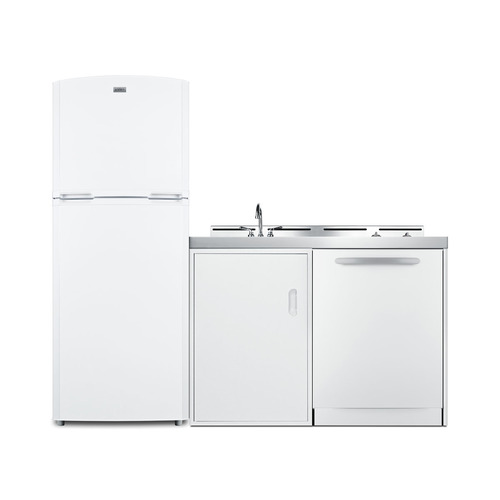

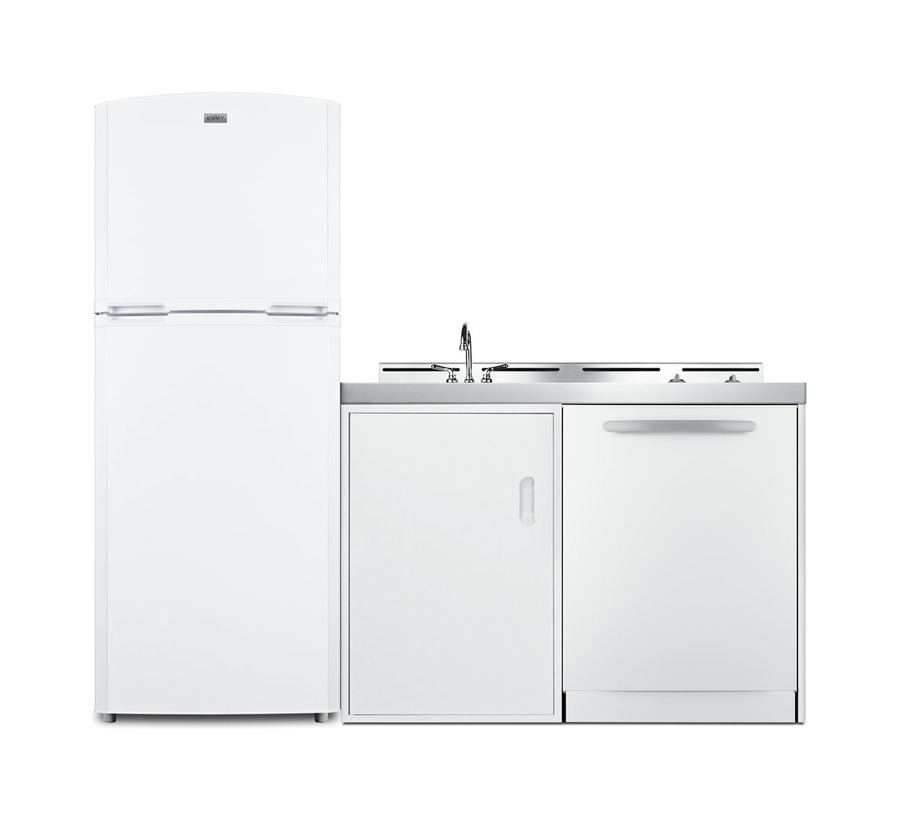

75" Wide All-In-One Kitchenette with Dishwasher
(102cm H x 190cm W x 66cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 40.0" (102 cm) |
| Width | 74.75" (190 cm) |
| Depth | 26.0" (66 cm) |
| Depth with door at 90° | 49.5" (126 cm) |
| Capacity | 12.9 cu.ft. (365 L) |
| Dishwasher | Standard |
| Defrost Type | Frost-Free |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 300.0 lbs. (136 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101086941 |
|
Kitchenette
|
|
| Refrigerator Included | FF1427W |
| Refrigerator Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Full Door Shelves | 5 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.5 oz. |
| Cooking Type | Smooth-Top Cooktop |
| Number of Burners | 2 |
| Cooktop Controls | Dial |
| Interior Height 1 | 37.88" (96 cm) |
| Interior Width 1 | 21.0" (53 cm) |
| Interior Depth 1 | 19.63" (50 cm) |
| Interior Height 2 | 18.5" (47 cm) |
| Interior Width 2 | 20.75" (53 cm) |
| Interior Depth 2 | 16.0" (41 cm) |
| Compressor Step Height | 10.5" (27 cm) |
| Compressor Step With | 21.0" (53 cm) |
| Compressor Step Depth | 7.0" (18 cm) |
| Sink Height | 5.88" (15 cm) |
| Sink Width | 16.75" (43 cm) |
| Sink Depth | 14.88" (38 cm) |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES
Includes a full-sized refrigerator-freezer, 24" dishwasher, 2-burner cooktop, sink with faucet, and storage cabinet

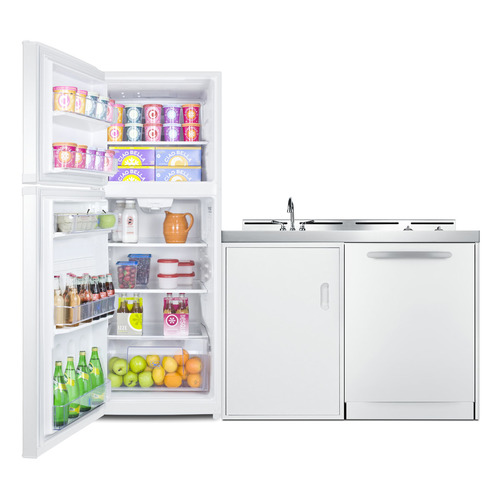

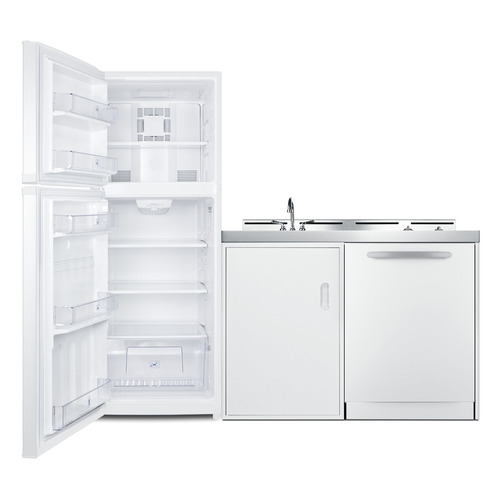

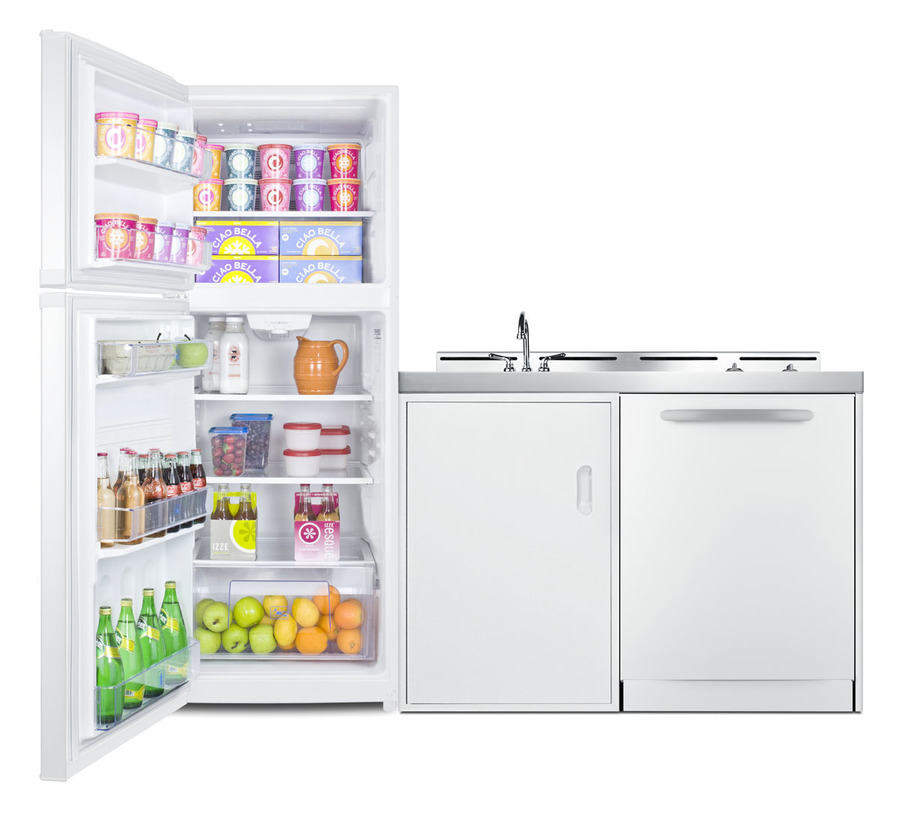

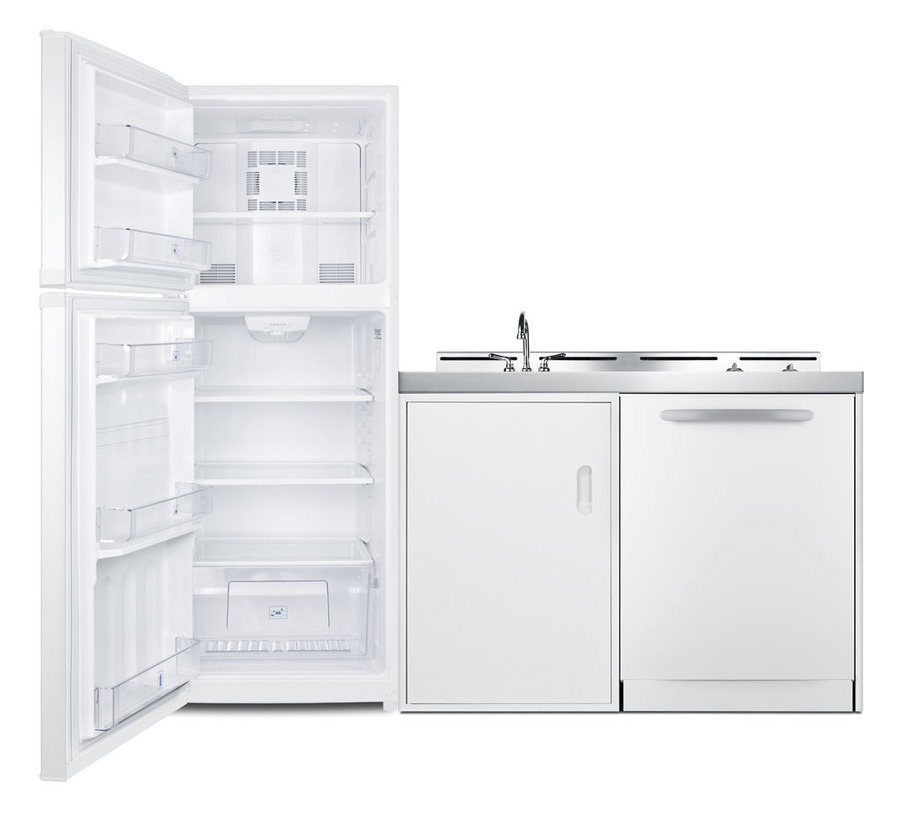

Ships with Summit FF1427W, a frost-free refrigerator-freezer with an 12.9 cu.ft. capacity, adjustable glass shelves, door storage, and a large crisper
Refrigerator and freezer door swing can be switched to best accommodate your setup

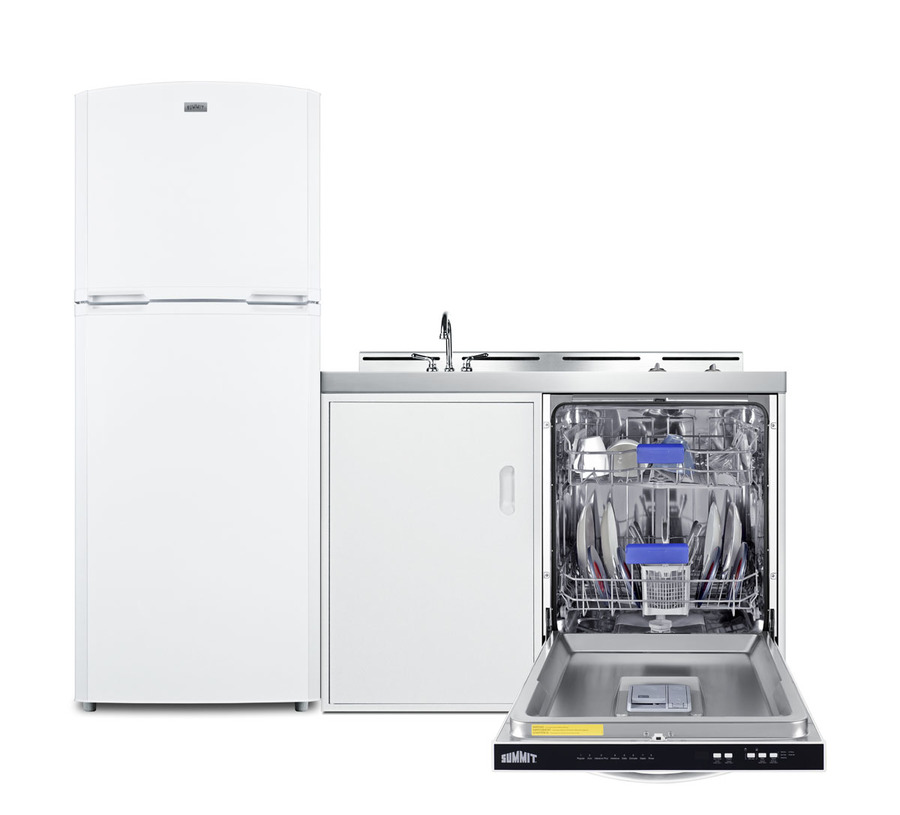

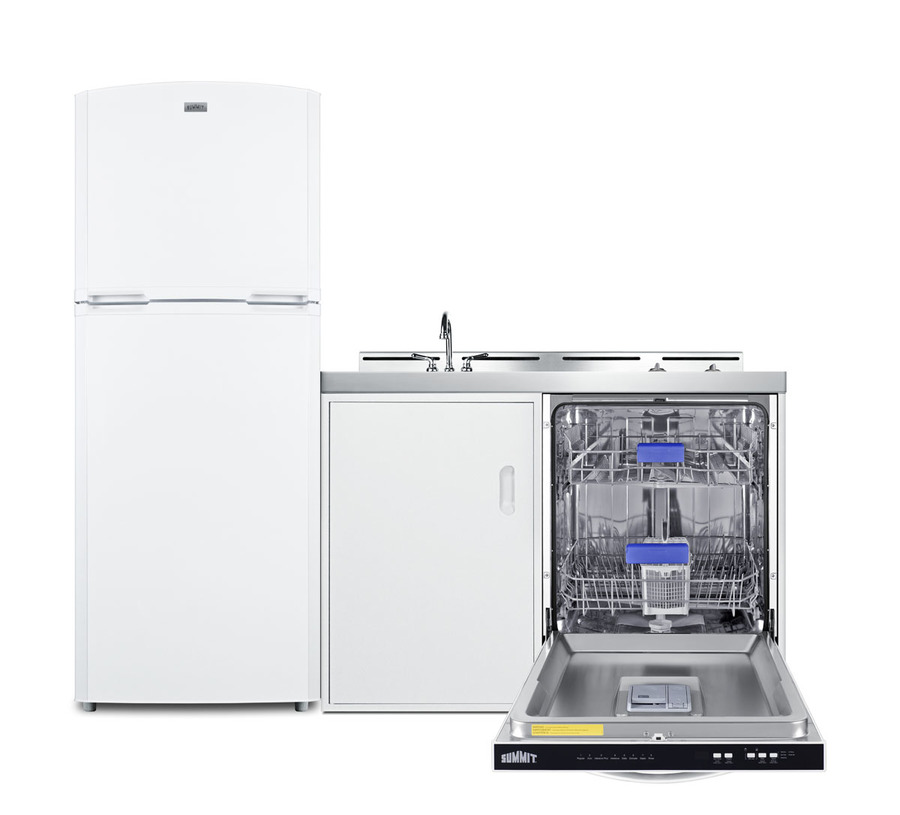

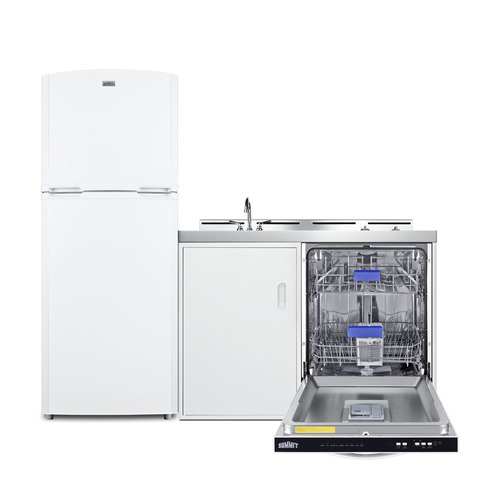

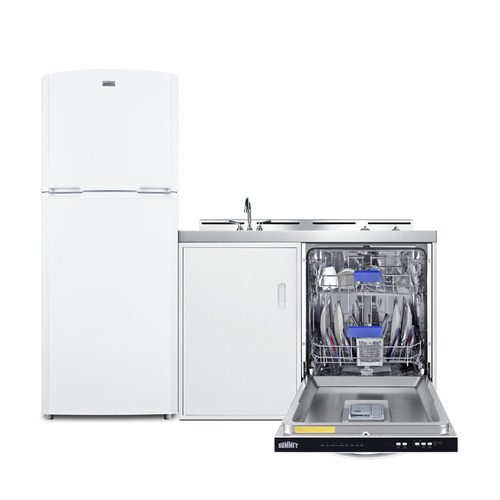

Includes Summit DW242WADA, a European ENERGY STAR certified dishwasher with top-located digital controls, 8 wash programs, two slide-out racks, and an ultra quiet 47 dB performance
DW242WADA features an efficient, water-saving performance, with a half-load function for added savings on water use
Smooth glass cooktop offers easy cleanability and safer cooking, with a 115V 3-prong power cord included
Stainless steel sink comes ready to wash

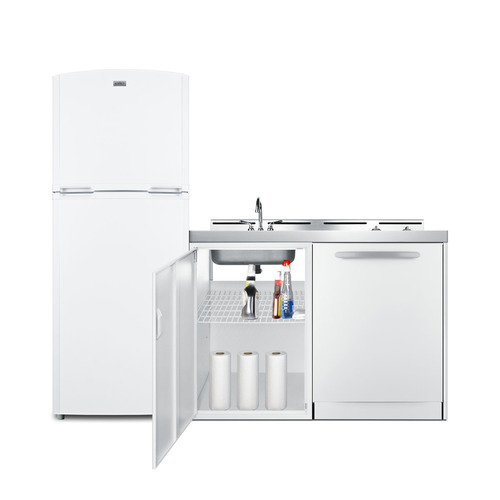

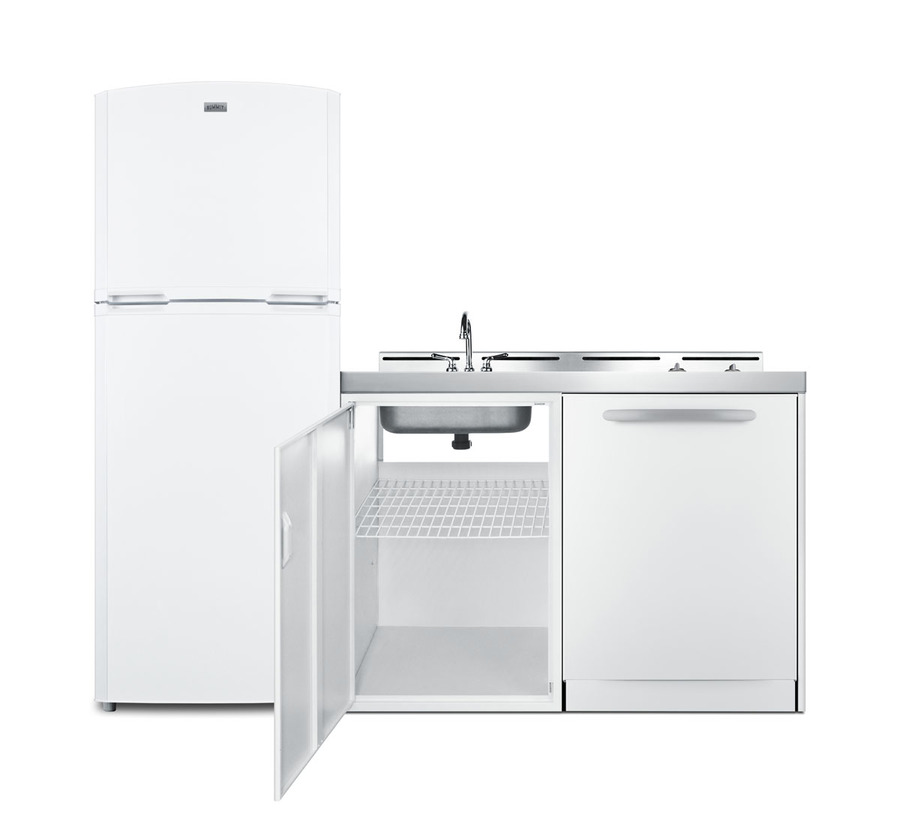

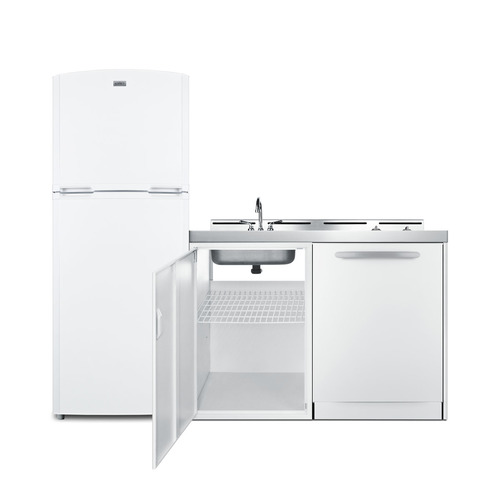

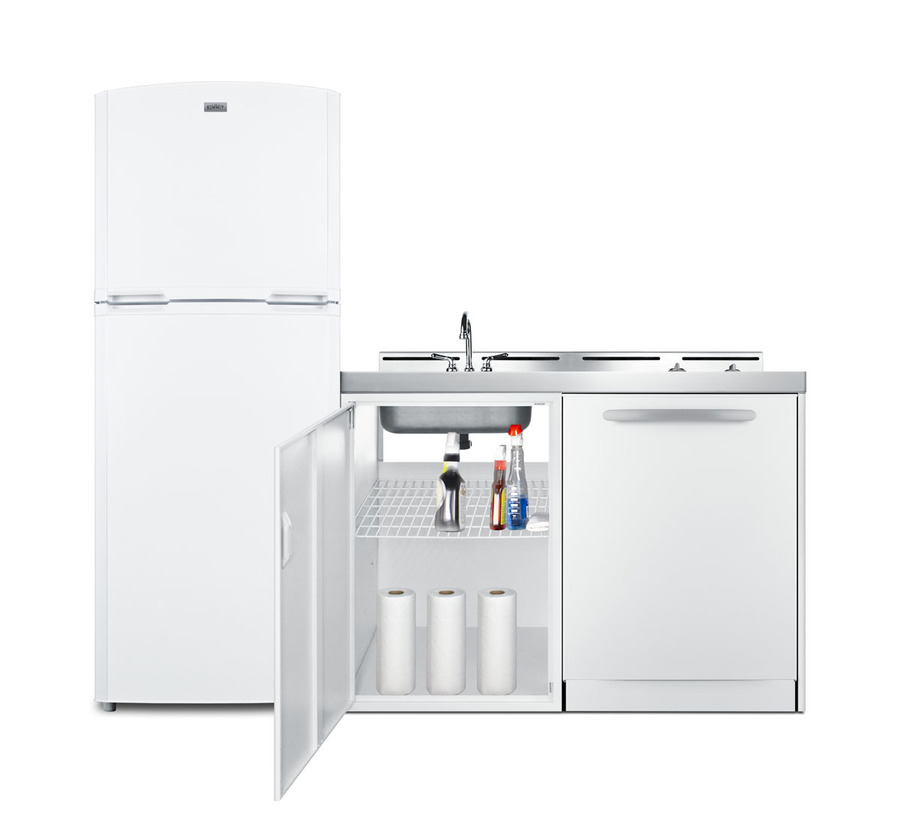

Large convenient cabinet with center shelf lets you store dry goods behind a door
Easy to clean and built to last
Each unit includes its own pre-installed power cord for easy setup. This item ships in three boxes
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION
SUMMIT brings innovative value into the kitchen with all-in-one combination units for full-service use. Our ACKDW series features a full-sized refrigerator-freezer, dishwasher, 2-burner cooktop, sink, and storage cabinet to create a complete one-wall kitchenette. Model ACKDW751G is comprised of three pieces: our North American made frost-free FF1427W refrigerator-freezer; our C48EL kitchenette with sink, cabinet, and cooktop; and our DW242WADA 24" dishwasher. The exterior features a clean white finish, with stainless steel accents on the kitchenette work surface and dishwasher handle to elevate your kitchen style. The FF1427W refrigerator offers 12.9 cu.ft. of storage capacity. Frost-free operation ensures minimum user maintenance. The refrigerator section includes adjustable glass shelves, a large crisper drawer, and door storage, while the large freezer includes a removable shelf and two door racks. This unit has a user-reversible door swing and can be installed to the left or right of your kitchenette. The C48ELGLASS kitchenette includes a 2-burner radiant cooktop in black glass with a pre-installed 115V 3-prong power cord for easy setup. The stainless steel sink features a hot and cold water faucet. A large storage cabinet includes a removable shelf. A large storage cabinet includes a removable shelf. The ACKDW751G ships with our European DW242WADA dishwasher, with an ENERGY STAR certified ultra quiet performance that runs at just 47 dB. This dishwasher is designed with a fully featured stainless steel interior for versatile loading. The intuitive top-located digital controls let you choose between 8 wash programs with 5 auxiliary functions, including a half-load setting for added water savings. The dishwasher also includes its own pre-installed 3-prong cord. In addition to the ACKDW751G, Summit's expanded selection of all-in-one kitchenettes includes choices with full-sized ranges, washer/dryer laundry combos, water pumps for no-plumbing applications, and much more. Explore the full lineup or contact our product specialists for more information.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
