24" Wide Built-In Beverage Center, ADA Compliant

SKU: ADA72G

Made in Europe with a double pane tempered glass door for reliable storage in commercial settings

DISCONTINUED- REPLACED BY SCR600BGLCSSADA

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

32.25" H x 23.63" W x 22.25" D
(82cm H x 60cm W x 57cm D)

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	22.25" (57 cm)
Depth with Handle	23.75" (60 cm)
Depth with door at 90°	44.5" (113 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.8
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101062068
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Height Adjustable	1
Shelf Type	Glass
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.67oz.
High Side PSI	124.0
Low Side PSI	30.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	26.0" (66 cm)
Interior Width	20.75" (53 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	6.0" (15 cm)
Compressor Step Width	20.75" (53 cm)
Compressor Step Depth	5.0" (13 cm)

Interior

LockBox24 - Interior locking compartment Interior lift-up compartment with combination lock for use in FF7 and FFAR10 models

Exterior

Red DT - Digital thermostat for red wine Upgrade to a digital thermostat with a warmer temperature range (48ºF to 65ºF) to best store red wine	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
Legs to raise unit height 6" high leveling legs	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings

Handle

HH Add a stainless steel handle with sleek 14mm diameter placed horizontally across the top	HV Add a stainless steel handle with sleek 14mm diameter placed vertically on the side
TB - Stainless steel towel bar style handle Install a 12" handle with curved towel bar design in brushed stainless steel	TBC Copper Towel Bar Handle Upgrade Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

ADA Compliant

Sized at 32" high (32.25" to hinge cap) for installation under lower ADA compliant counters with height guidelines

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Slim undercounter dimensions

Less than 24 inches wide to fit tight spaces

Built-in capable

Front-breathing design allows you to install the unit under counters with minimum clearance

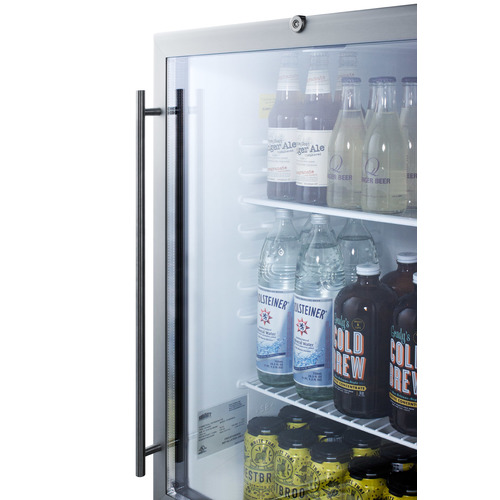

Double pane tempered glass door

Heat resistant design provides clear display to promote impulse buys

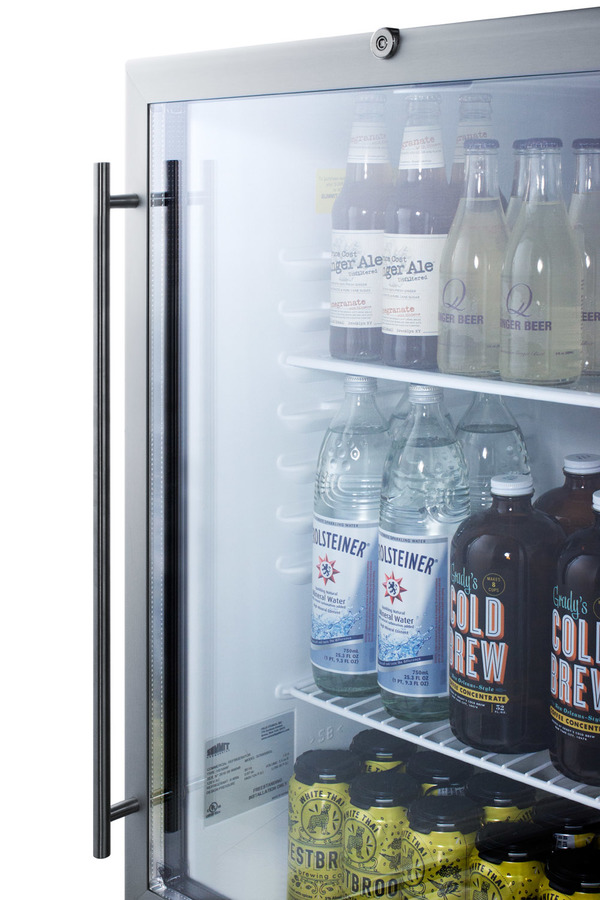

Professional handle

Vertically mounted thin handle (14mm) in brushed stainless steel matches many popular styles of cabinetry

Factory installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Automatic defrost

Reduced user maintenance with automatic defrost

Internal fan

Fan-forced cooling helps to maintain a more evenly cooled interior

White interior finish

Interior offers more visibility with a brighter look

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Half-sized wire shelf

Sits on top of the compressor and features wire slots ideal for holding bottles on their sides

Interior light on rocker switch

Turn the light on when you need it and off when you're done with a convenient rocker switch

Hidden evaporator

SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable thermostat

Dial thermostat for easy and intuitive temperature management

Fully finished black cabinet

Allows the unit to be used freestanding

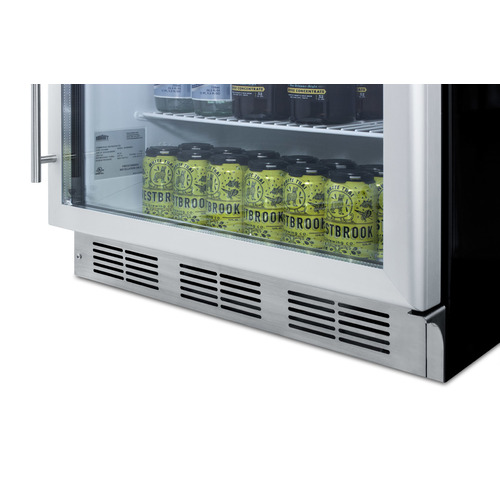

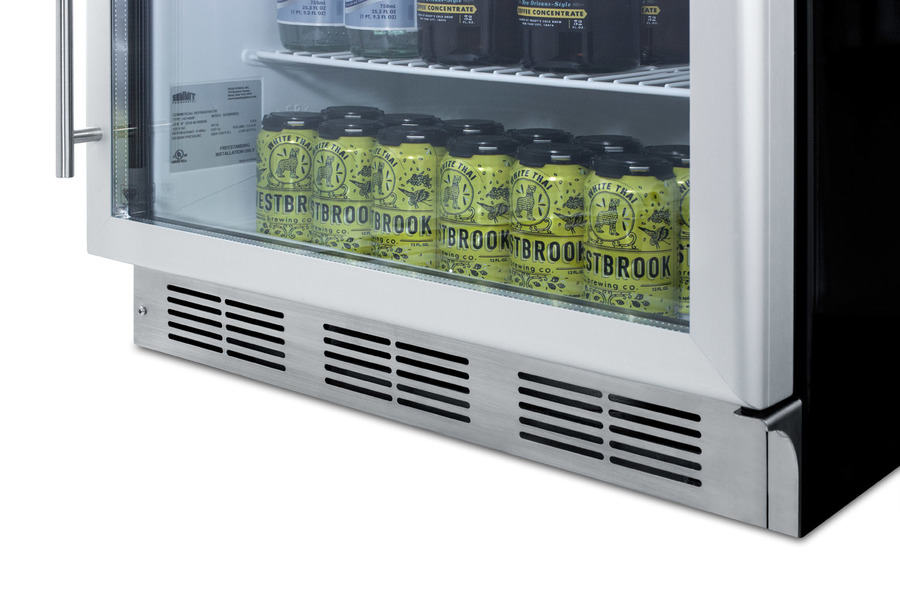

Stainless steel kickplate

Added touch of elegance with a stainless steel toe kick

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit’s commercial product line includes quality beverage centers made in Europe for optimum product storage and display.

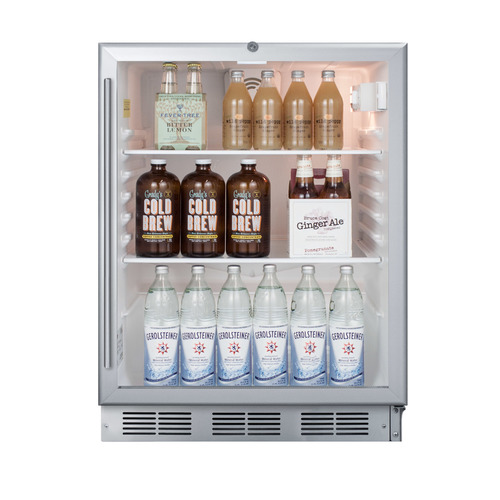

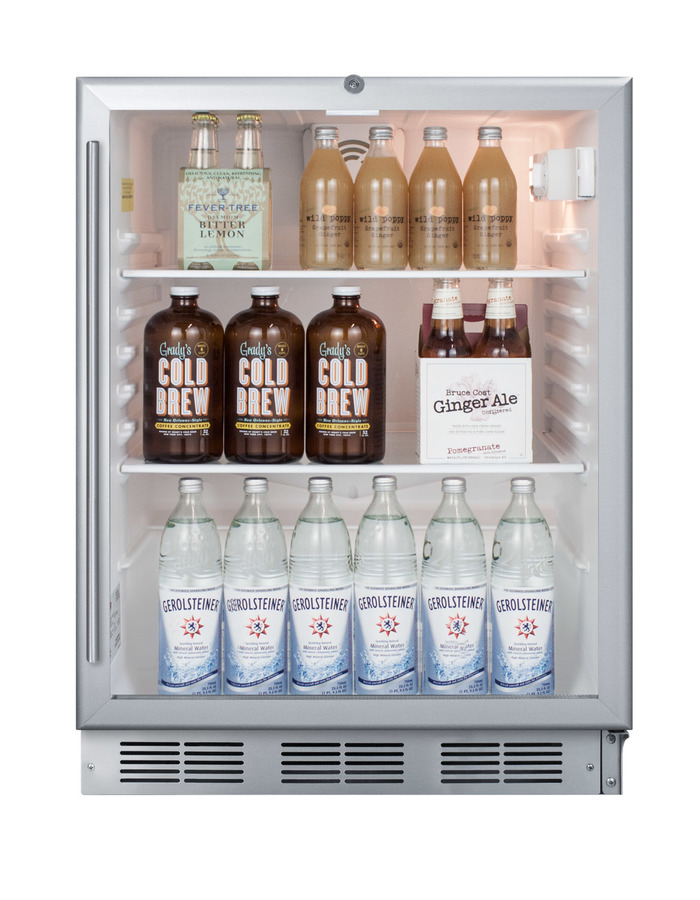

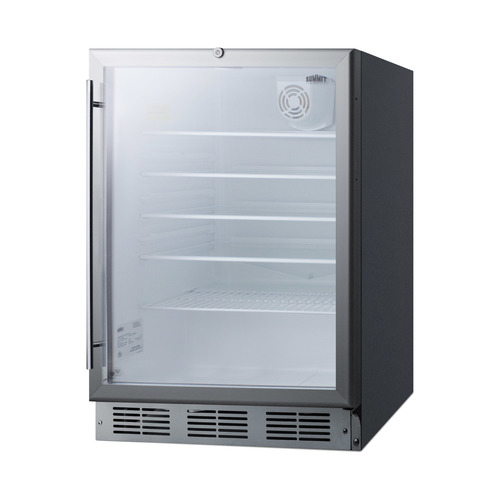

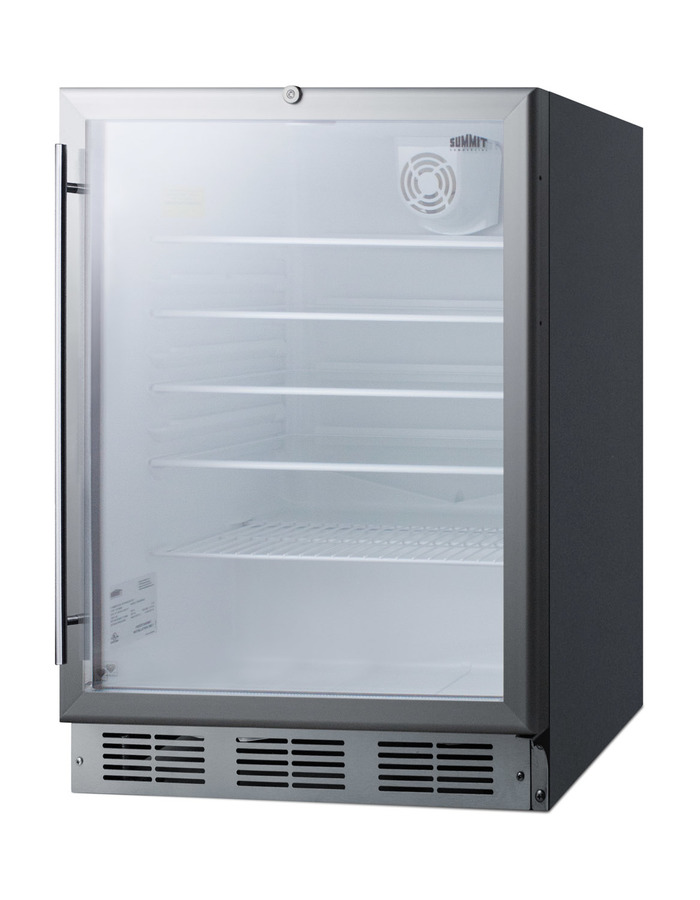

The ADA72G is specially sized to fit under lower ADA compliant counters. This 24" wide 5.5 cu.ft. all-refrigerator features a double pane tempered glass door. A factory-installed lock is located towards the top for convenient security. This model has a right hand door swing with a pro style stainless steel handle vertically mounted on the aluminum door frame. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The stainless steel kick plate completes the look.

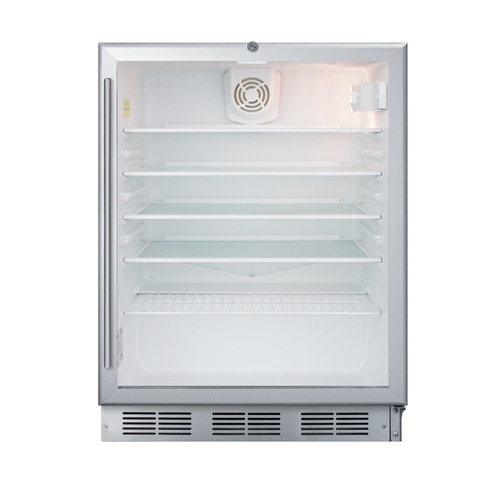

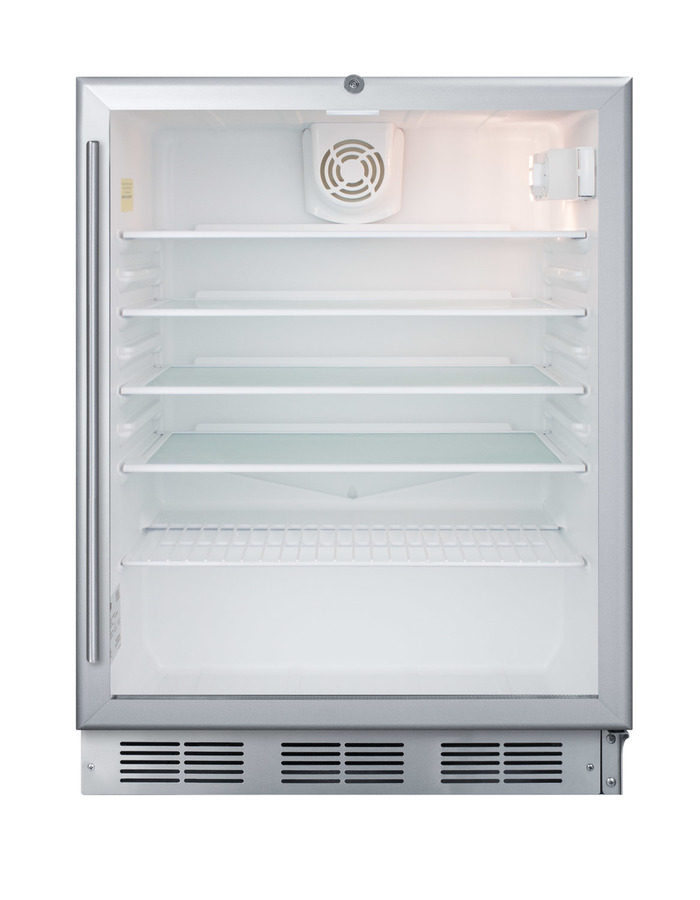

Inside, the ADA72G features a seamless white interior liner to better display stored items. The interior light has an on/off rocker switch located near the dial thermostat. Adjustable glass shelves offer spill-proof storage, with one extra half wire shelf included. Fan-forced cooling helps to keep the interior evenly chilled and automatic defrost ensures easy maintenance.

This model is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant choices are available in 15", 20", and 36" wide sizes. Browse Summit's line for more options.

BROCHURE w/ DRAWINGS
ADA72G.pdf

TECHNICAL DRAWING (.dwg)
ADA72G_REFRIGERATOR__A-C_2010_.dwg

USE & CARE
BAR77S_ADA77S_BAR72G_ADA72G_BAR72GLH_ADA72GLH_User_Manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
