36" Under Cabinet Ductless Range Hood, ADA Compliant
Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss
(13cm H x 91cm W x 46cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 5.0" (13 cm) |
| Height of Cabinet | 5.0" (13 cm) |
| Nominal Width | 36.0" (91 cm) |
| Width | 36.0" (91 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 18.0" (46 cm) |
| Cabinet | White |
| US Electrical Safety | UL |
| Weight | 22.0 lbs. (10 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101064109 |
|
Range Hood
|
|
| Installation | Under Cabinet |
| Venting | Recirculating |
| Number of Fan Speeds | 2 |
| Maximum Air Movement | 160.0 CFM |
FEATURES

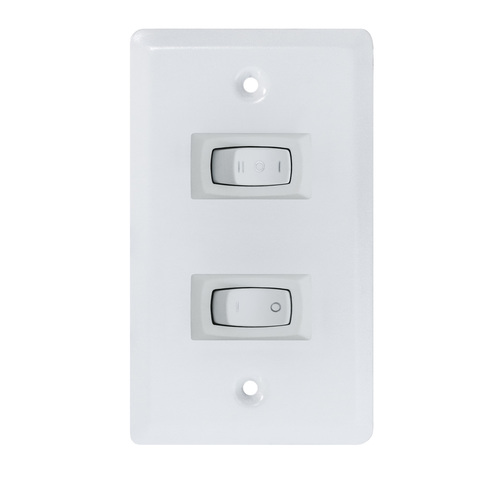

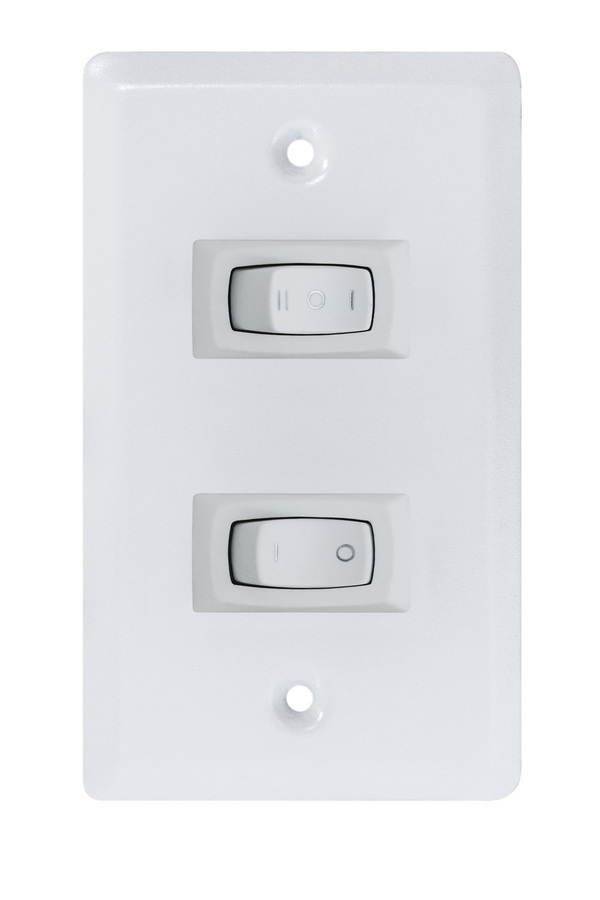

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
Designed to fit over commonly sized ranges and cooktops
Use for recirculating operation where no ducting to the outside is available
Stainless steel and black range hoods also available in this size and series
High and low setting gives you the right amount of power for most general cooking applications

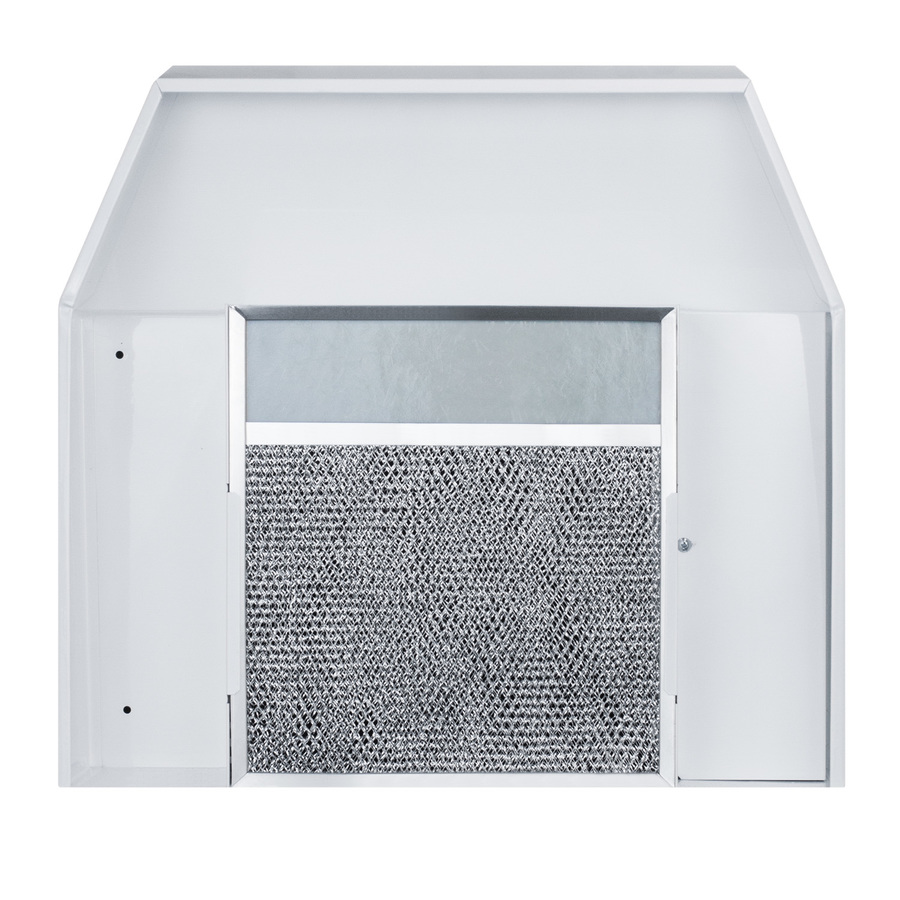

Removable mesh filter with solid construction and easy cleanability
Filter includes a charcoal liner for better absorption of grease and odors
Unit can accept a light bulb (max 40W) with the switch included on the remote terminal block. Bulb is not included.
Solidly constructed for years of use
Also available in 18", 20", 24", and 30" wide sizes
For a ducted version of this hood, see the ADAH16 series
DESCRIPTION

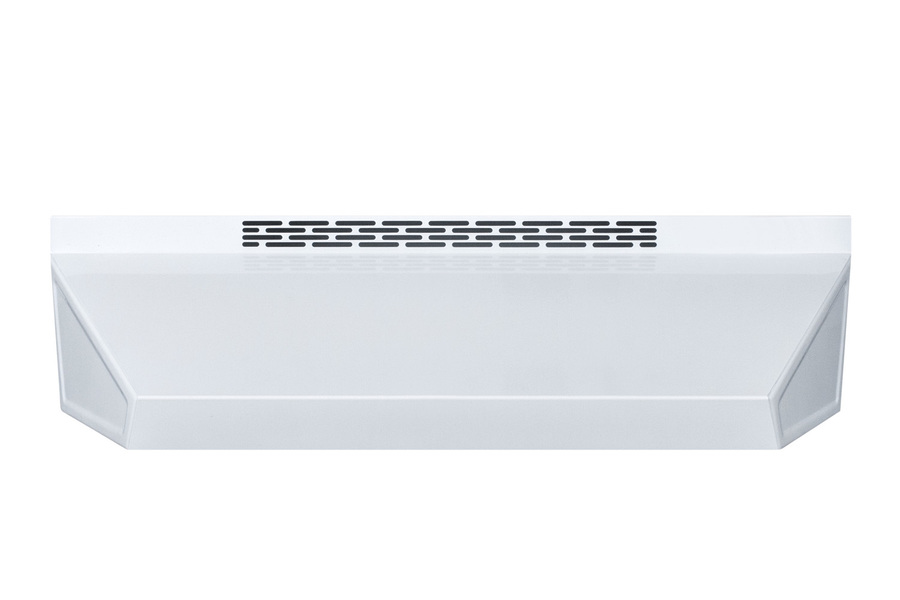

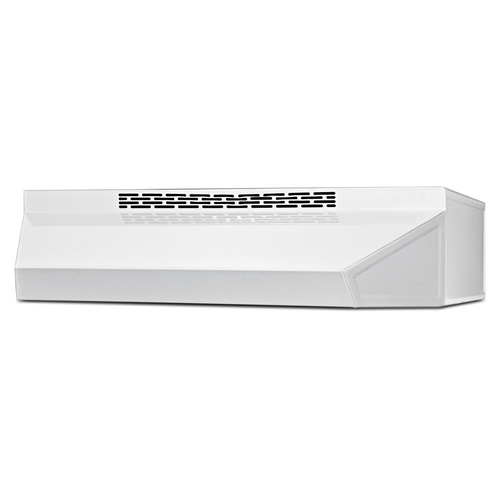

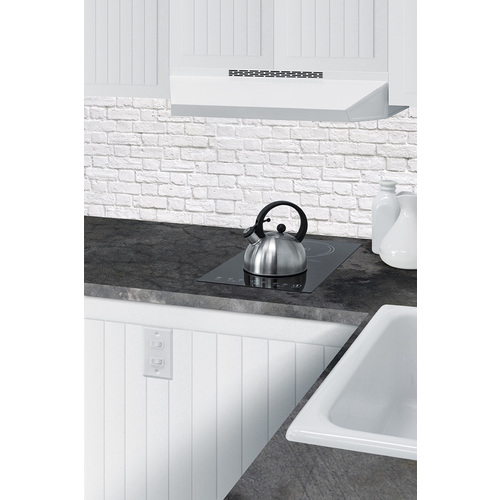

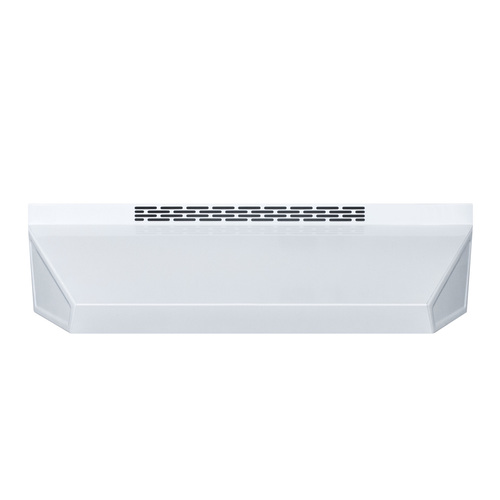

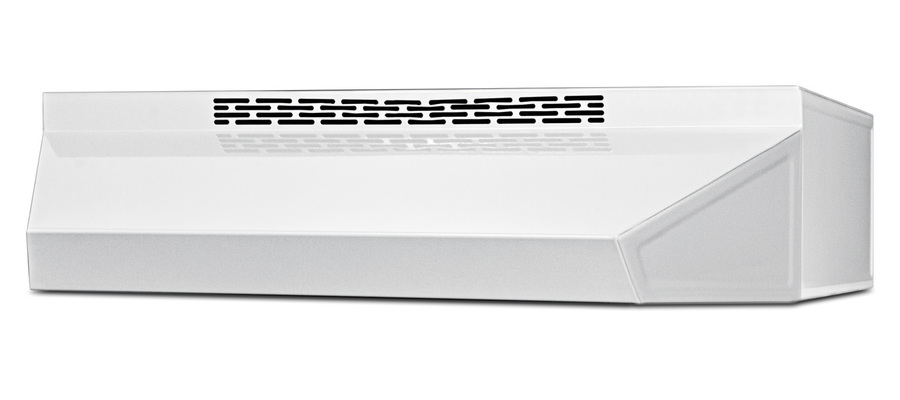

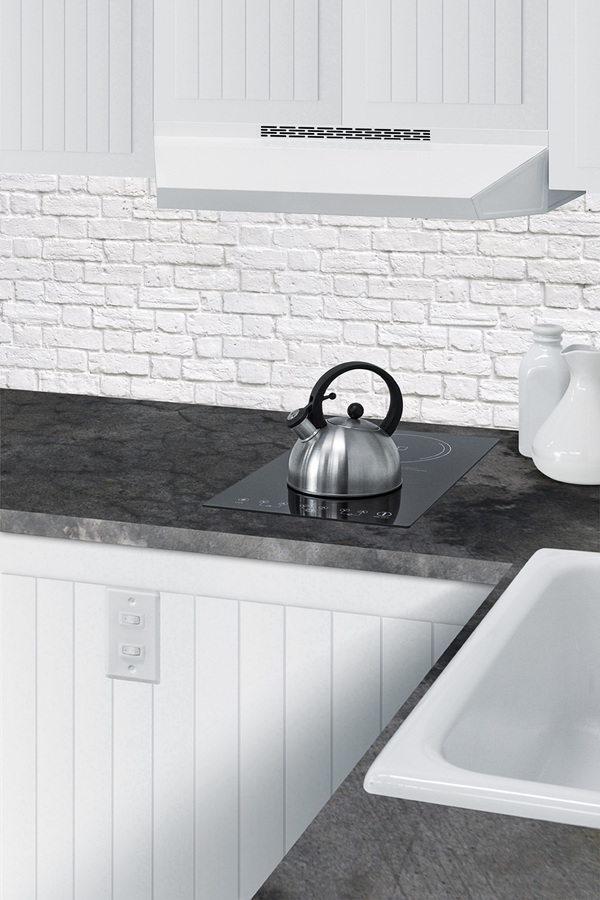

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. The ADAH1736W is designed and manufactured in the USA. Sized at 36 inches wide, this ductless (recirculating) hood features steel construction and a powder-coated finish in classic white. We include a remote terminal block and white wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. This range hood includes a 2-speed fan to meet light and heavy ventilation needs. The aluminum grease filter is dishwasher-safe for easy cleaning, with a charcoal liner included for improved absorption. The ADAH1736W can accept a light (40W max; bulb not included). In addition to this model, Summit also offers ducted low profile range hoods and European style choices, with sizes ranging from 18 inch to 36 inch wide. Browse our website to explore our complete selection.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
