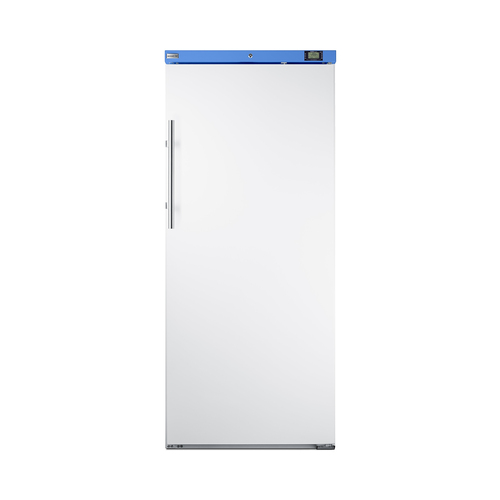

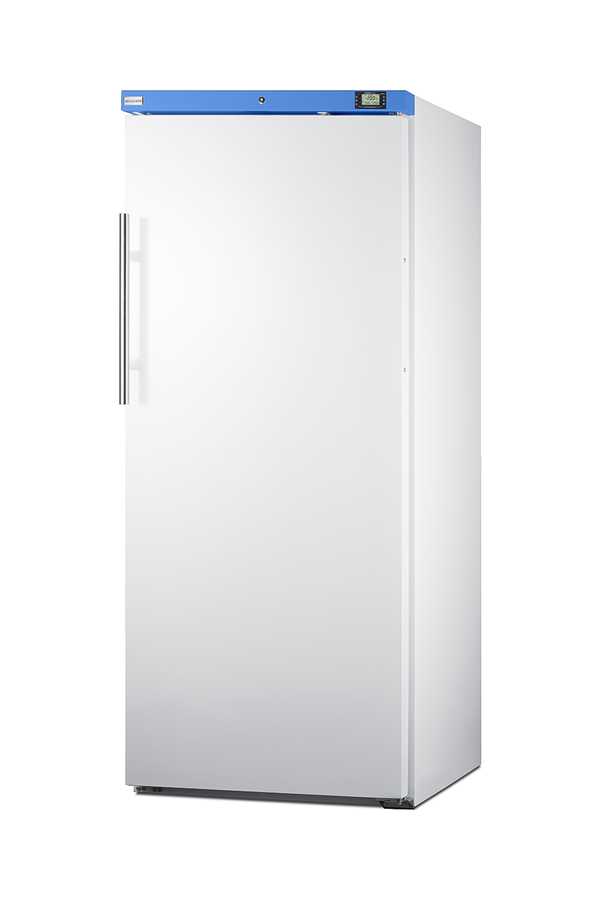

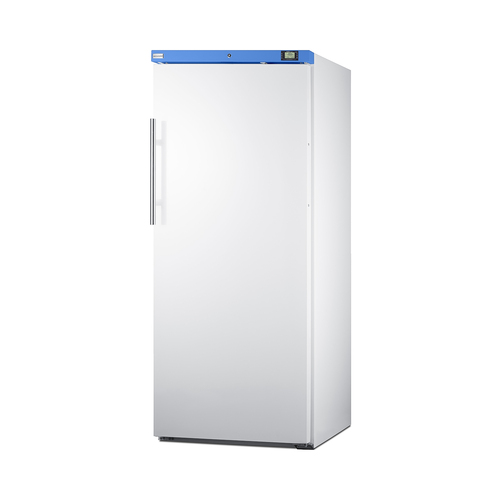

18 cu.ft. Upright Manual Defrost Freezer

SKU: AFM19W

Manual defrost operation to ensure more temperature stability with a static cooling system

Estimated Time to Ship:

Next day shipping

Find a dealer

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

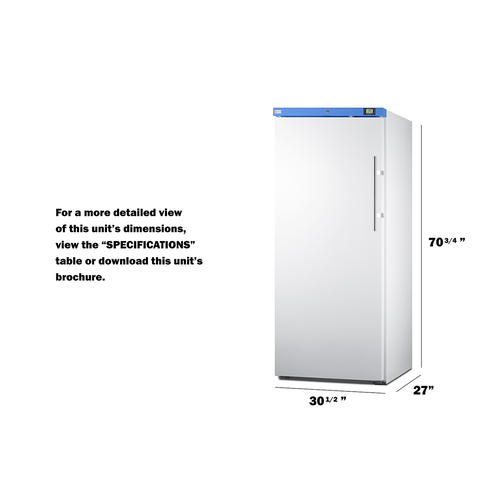

72.0" H x 30.5" W x 27.63" D
(183cm H x 77cm W x 70cm D)

Overview
Nominal Height	72.0" (183 cm)
Height of Cabinet	72.0" (183 cm)
Nominal Width	31.0" (79 cm)
Width	30.5" (77 cm)
Nominal Depth	28.0" (71 cm)
Depth	27.63" (70 cm)
Depth with Handle	30.25" (77 cm)
Depth with door at 90°	55.38" (141 cm)
Capacity	18.3 cu.ft. (518 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	2.7
Voltage/Frequency	115 V AC/60 Hz
Weight	215.0 lbs. (98 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101077314
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	64.0" (163 cm)
Interior Width	25.0" (64 cm)
Interior Depth	20.88" (53 cm)
Shelf Type	Wire
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R290
Refrigerant Amount	3.88 oz.
High Side PSI	280.0
Low Side PSI	145.0
Level Legs	2
Compressor Step Height	9.38" (24 cm)
Compressor Step Width	25.0" (64 cm)
Compressor Step Depth	7.25" (18 cm)
Temperature Range	-18 to -24ºC (Preset to -20ºC)

Exterior

LHD - Left hand door swing

Commercially listed

ETL-S listed to ANSI-NSF Standard 7 for commercial use

Upright manual defrost all-freezer

Front-opening commercial freezer

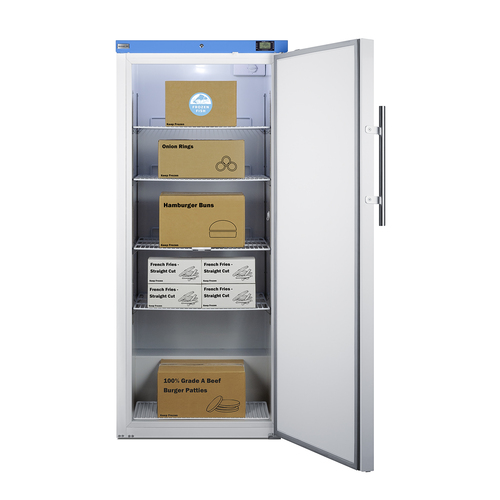

Large capacity

Over 18 cu.ft. of storage inside

Manual defrost operation

Static cooling system with no fans or warming cycles

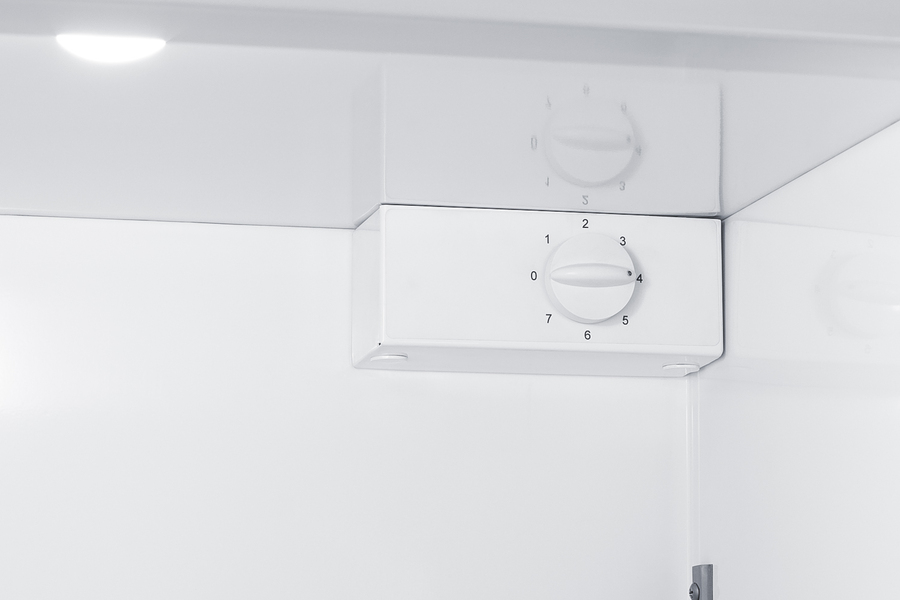

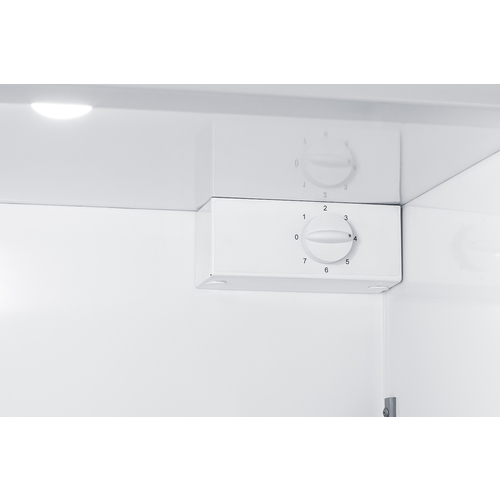

Dial thermostat

Intuitive and reliable mechanical thermostat located inside the unit to prevent unnecessary adjustments

-20ºC operation

Preset to -20ºC with a temperature range of -18 to -24ºC

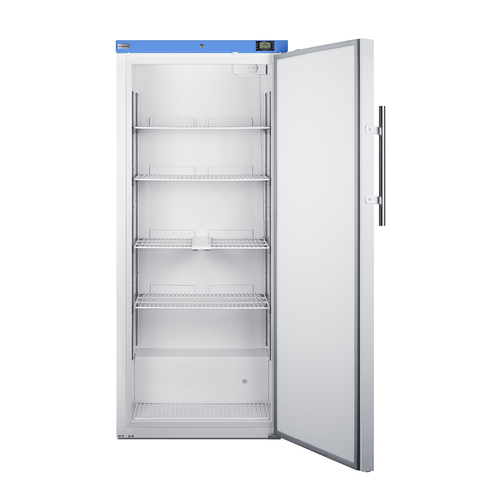

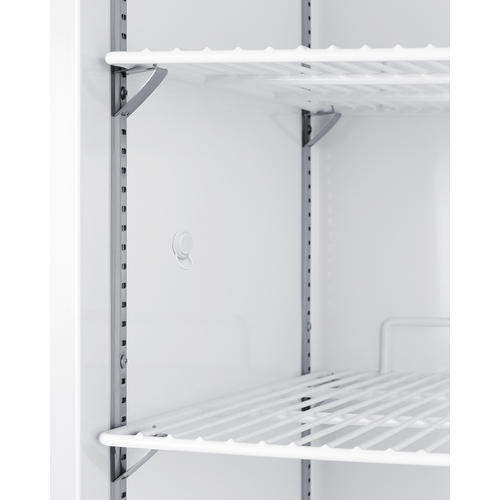

Cantilevered shelving

Tight pilaster spacing throughout the interior allows you to adjust the shelf positions to meet your exact storage needs

Epoxy-coated wire shelves

Four heavy duty shelves included

Factory-installed lock

Conveniently located towards the top of the door for easier user access (2 keys included)

Flat door liner

No door storage to allow for the interior to accommodate deeper trays

Reversible door

User-reversible door swing for added flexibility to best accommodate your setting

LED lighting

Automatic interior lighting for an efficient presentation

9' long cord with hospital grade plug

Extra long power cord with hospital grade 'green dot' plug for a more secure connection

External handle

Easy-grip handle in brushed aluminum

Leveling legs

Adjustable front legs allow you to ensure a straight fit, even on uneven surfaces

Advanced vacuum seal insulation

Vacuum seal gasket design ensures no cold air escapes (NOTE: seal activates when door is closed, so you must allow a few minutes to pass before re-opening)

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial manufactures a wide range of full-sized refrigeration choices approved to NSF-7 standards, including upright freezers.

Model AFM19W is a large capacity front-opening freezer with an 18.3 cu.ft. interior. It is ETL-S listed to NSF-7 for commercial storage applications. This freezer utilizes a static manual defrost cooling system that offers more stabilized temperature than traditional no-frost units. The dial thermostat is located inside to prevent accidental temperature adjustments. Cantilevered shelving with epoxy-coated wire shelves allows you to adjust the interior to best accommodate a variety of sizes, while the flat door liner helps to fit deeper trays than units equipped with door racks. An automatic LED light makes it easy to see the full interior.

This freezer comes in a white exterior finish. The keyed lock is conveniently located towards the top of the unit for easier user access. The reversible door includes an easy-grip handle in a brushed aluminum finish. This unit includes a 9'5" long power cord with a hospital grade 'green dot' plug for a more secure connection, ideal for high traffic commercial environments. The cooling system utilizes hydrocarbon refrigerant for a greener footprint that meets CARB regulations. For advanced insulation, the door features a vacuum seal that keeps all cold air inside.

In addition to this freezer, Summit Commercial manufactures a full lineup of full-sized commercial refrigerators and freezers, including reach-in style and frost-free options. Browse the full lineup to explore our catalog.

BROCHURE w/ DRAWINGS
AFM19W.pdf

TECHNICAL DRAWING (.dwg)
UFM19W__1_.dwg

ASSEMBLY DRAWING
UFM19W-Assembly__2_.pdf

MSDS INFORMATION
MSDS-R290-Propane_UFM19.pdf

USE & CARE
UFM19W_Use_and_Care_9-15-23.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
