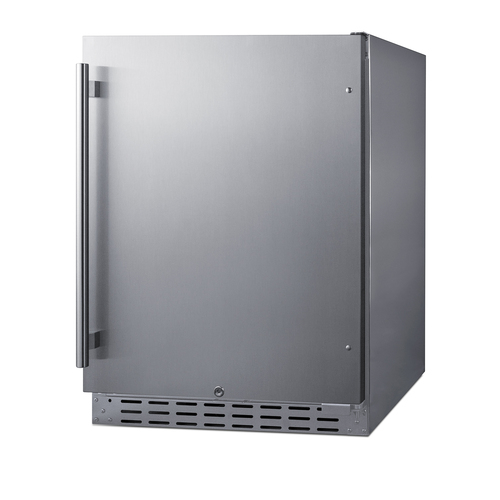

24" Built-In Outdoor Refrigerator, ADA Compliant

SKU: AL55OSCSS
Designed to fit under lower ADA-compliant outdoor counters
Estimated Time to Ship:

Next day shipping

Door Swing:
RHD LHD

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

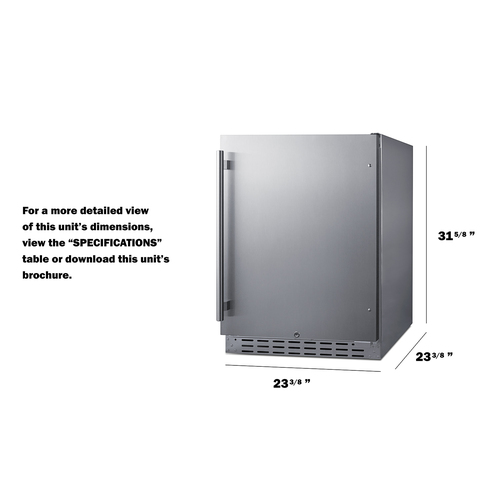

31.63" H x 23.5" W x 23.38" D
(80cm H x 60cm W x 59cm D)

Overview
Height of Cabinet 31.63" (80 cm)
Width 23.5" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 4.2 cu.ft. (119 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101108070
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 46ºF
Sound Level 33.2 dB
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 19.0" (48 cm)
Interior Depth 16.0" (41 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 5.0" (13 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

24" Wide Outdoor All-Refrigerator

Made with a 24" footprint that offers full storage capacity in a uniquely slim fit and an ADA-compliant height

ADA-compliant

32” height allows for installation within ADA-compliant spaces

Commercially approved

ETL-S listed to NSF-7 commercial standards

Weatherproof design

Durable construction for safe installation in outdoor kitchens

Built-In capable

Front-breathing design allows the unit to be built-in under counters

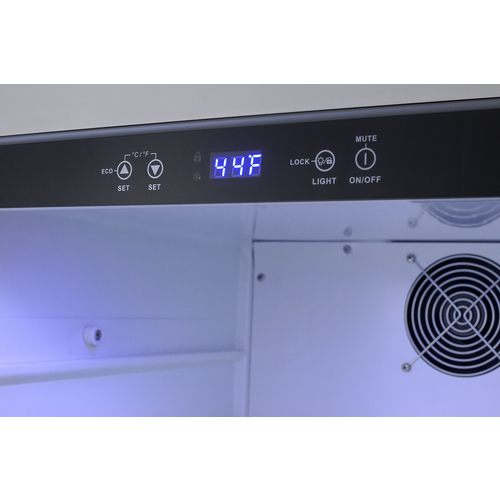

Digital control panel

Makes for easy temperature reading/management with electronic controls inside

Factory installed lock

Keyed lock for secure interior, with two keys included

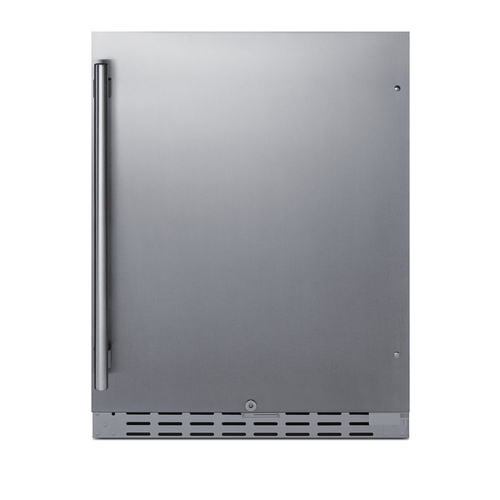

Stainless steel exterior

Durable construction with a stylish look

White interior

Classic interior allows for easy cleaning and viewing of products

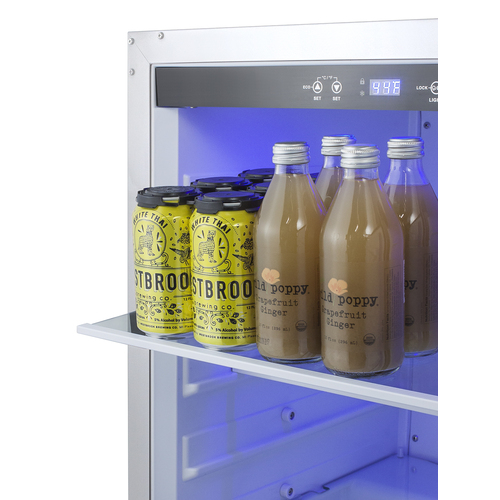

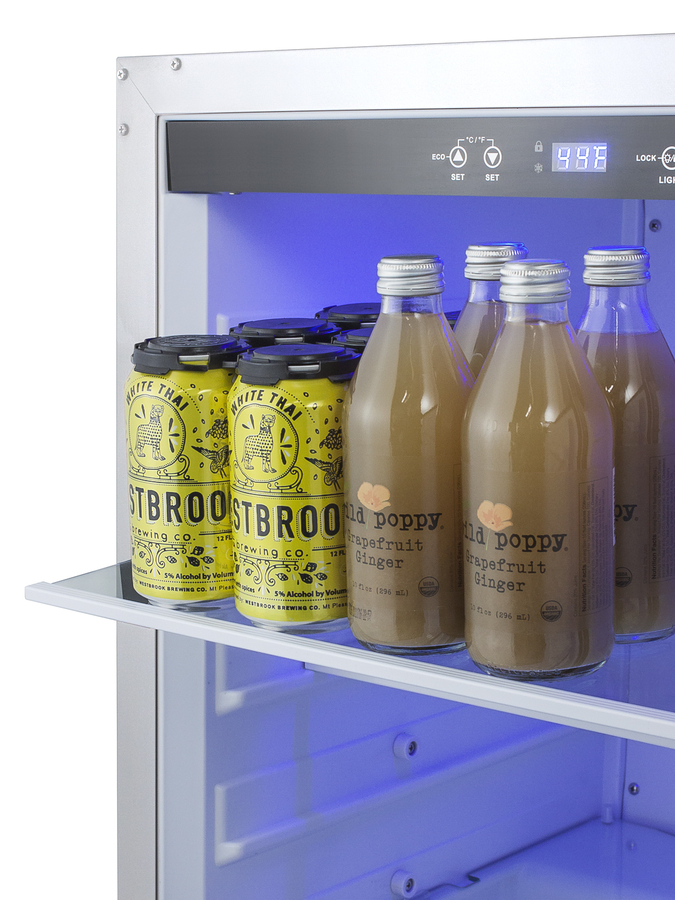

Adjustable glass shelving

Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents

Brake shelving system

Provides added safety when loading and unloading the unit's 3 shelves

Slotted floor

Allows for easy storage of bottles

Automatic defrost

Reduced maintenance with auto defrost system

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Interior light

Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

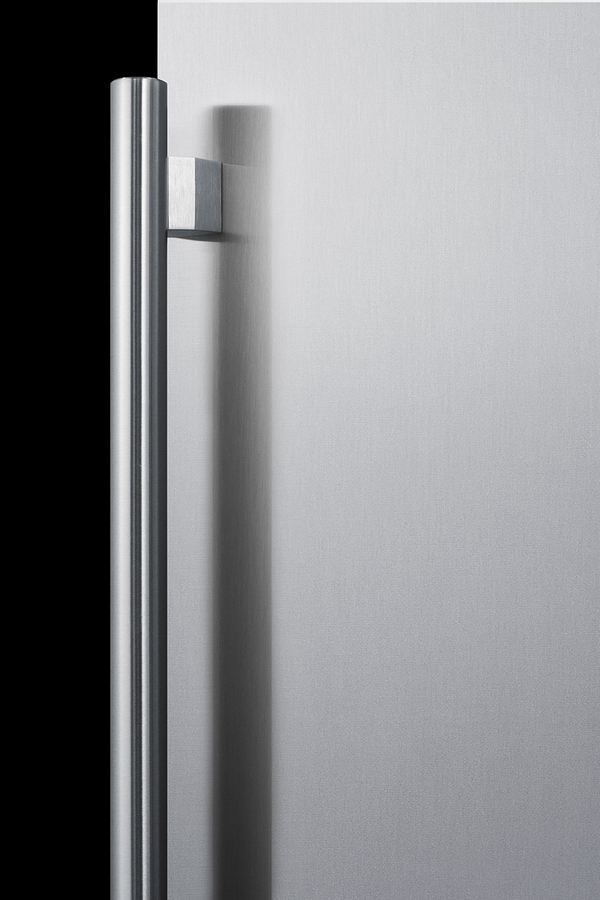

Professional handle

Stainless steel handle adds style to any setting

Temperature alarm

Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Integrated hinge

Flat stainless steel hinge ensures no added height is needed when installing under a counter

Quiet operation

Runs under 34 dB for a quiet performance that won't interrupt your conversation

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's innovative lineup features built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters, with advanced weatherproof construction for convenient use in any outdoor kitchen.

The AL55OSCSS is a 24" wide outdoor refrigerator that meets residential and commercial standards and is ETL-S listed to NSF-7. Its sealed rear and complete stainless steel exterior offer true luxury designed to last outdoors. The front-breathing system allows built-in installation, while the fully finished cabinet allows freestanding use. The door is user-reversible and includes a front lock and pro-style handle.

A temperature alarm offers added security should the temperature exceed the setpoint, and the optional Sabbath Mode can disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance, and the internal fan ensures it is evenly cooled.

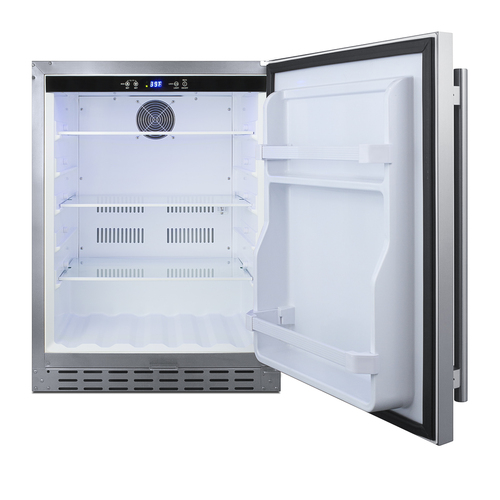

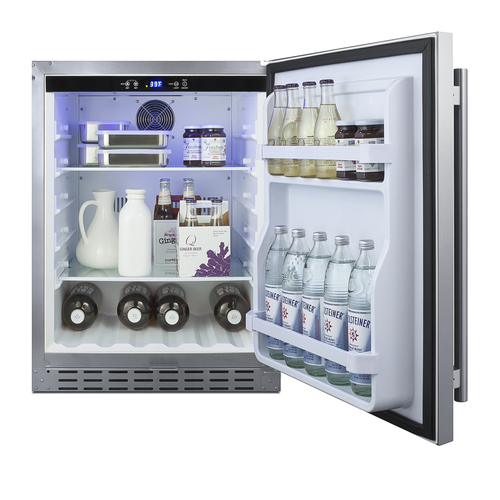

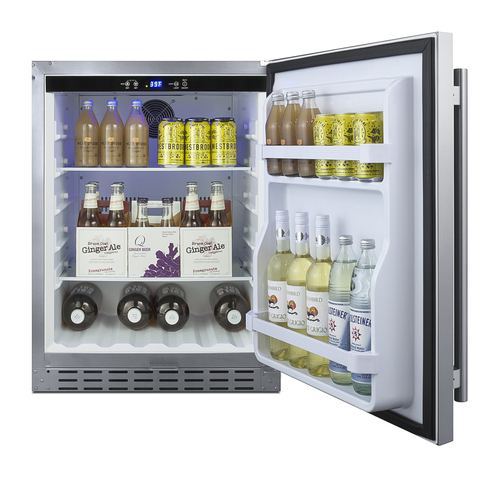

Inside, the AL55OSCSS has a digital control panel that allows you to manage the unit's temperature with ease. An adjustable temperature range between 36 and 46ºF ensures contents are kept cold. Three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two-door racks are ideal for keeping condiments within easy reach, while the slotted floor ensures easy storage of bottles. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior.

With its advanced user features and versatile design, the AL55OSCSS is an excellent addition to any ADA-compliant outdoor setting looking for a refrigerator with a modern, elegant look.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
