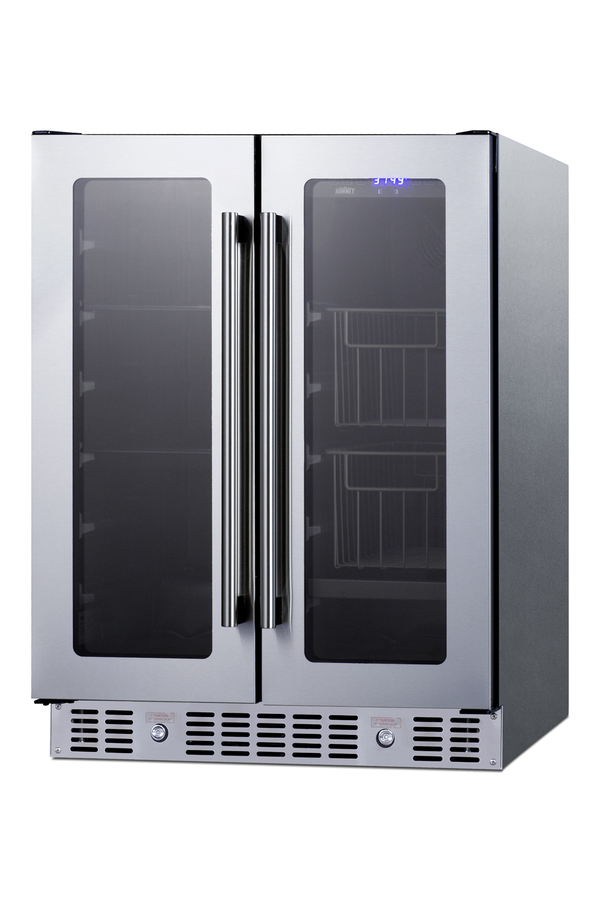

24" Built-In Dual-Zone Produce Refrigerator, ADA Compliant

SKU: ALFD24WBVCSSPANTRY
Innovative design offers the ideal storage conditions for fruits, vegetables, cured meats, cheeses, and select beverages for a stunning presentation with user-friendly features
Estimated Time to Ship:

3 to 5 days

Cabinet:

*Additional features may vary

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
32.0" H x 23.38" W x 22.75" D
(81cm H x 59cm W x 58cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 33.0" (84 cm)
Capacity 4.6 cu.ft. (130 L)
Bottles 21 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101077505
Refrigerator Features
Sabbath Mode Yes
Door Swing French
Reversible No
Height Adjustable Yes
Shelf Type Glass Shelves and Wire Baskets
Shelf Qty 3
Adjustable Shelves Yes
Wine Bottle Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range Cold Zone: 36-43°F; Pantry Zone: 41-68°F
Dimensions
Interior Height 25.38" (64 cm)
Interior Width 8.38" (21 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 8.38" (21 cm)
Compressor Step Depth 5.0" (13 cm)

Door
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings

Dual-zone design

Allows for safe storage of meats, cheeses, beverages, and fresh produce

Built-in capable

Make the best use of space by installing your appliance under the counter

ADA compliant

Sized at just 32" high for installation under lower ADA compliant counters

Height adjustable

Leveling legs can raise the unit to up to 33.5" for more standardized counters

Cold Zone

The left "Cold Zone" has a temperature range of 36-43° for storing meats, cheeses, and produce needing cooler temperatures

Pantry Zone

The right "Pantry Zone" has a temperature range of 41-68° for proper storage of produce requiring slightly warmer temperatures

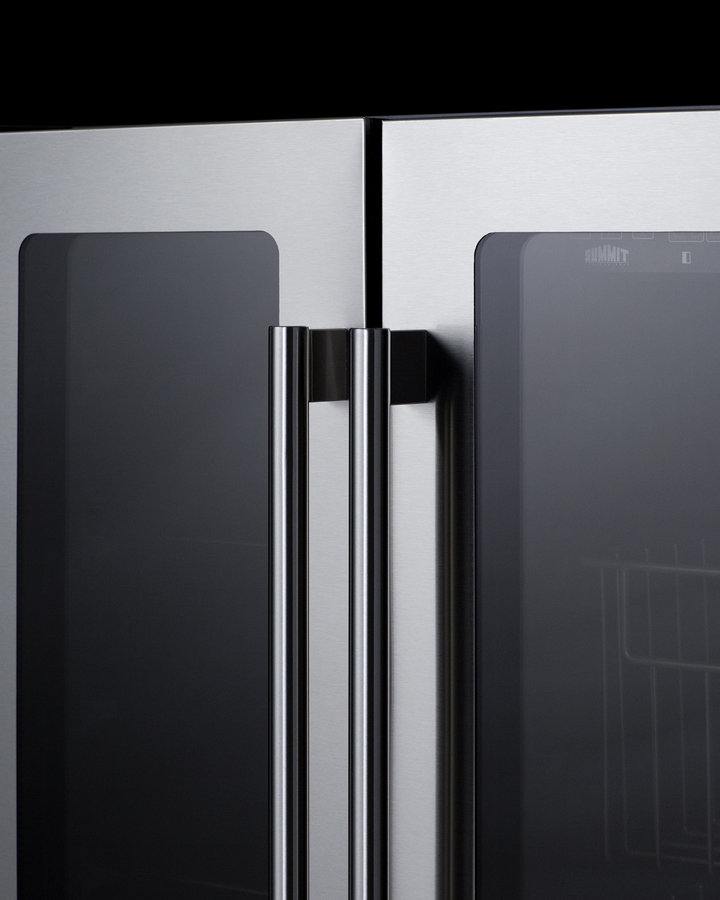

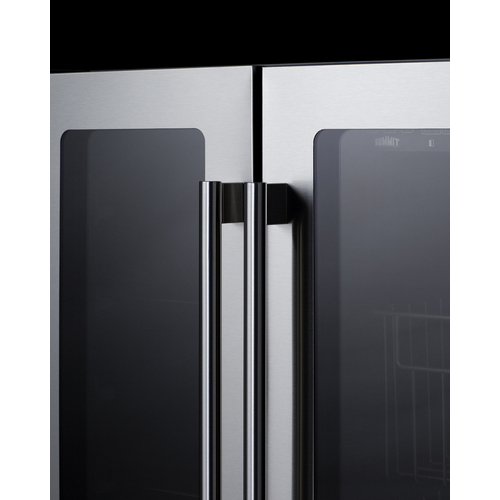

Seamless stainless steel trim

Glass is framed by seamless 304 grade stainless steel

Digital thermostats

Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit

Factory installed locks

Each door includes a keyed lock for optional security

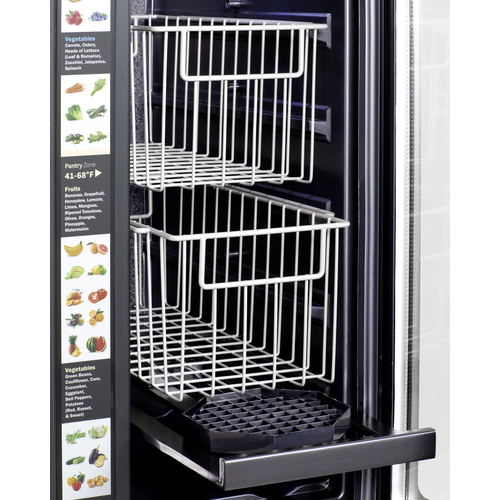

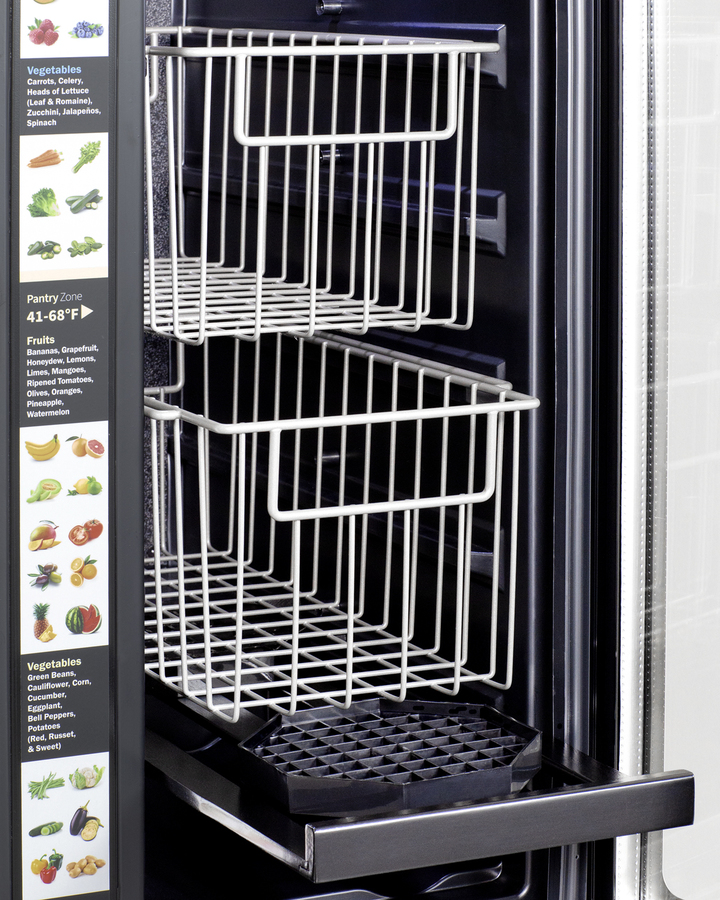

Adjustable wire baskets

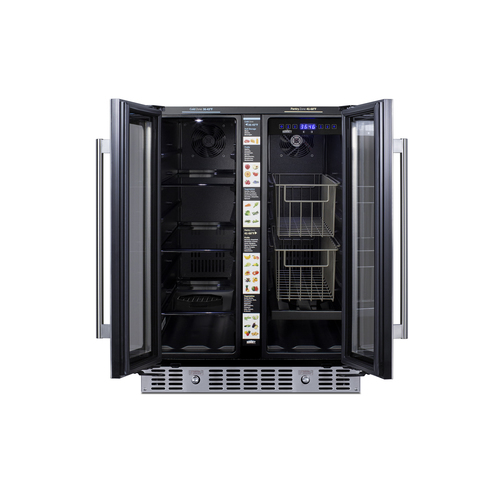

Pantry Zone includes two removable wire baskets for easy storage and transport of contents as needed

Adjustable glass shelves

Spill-proof glass shelves make it easy to store food and beverages in the Cold Zone

Humidity trays

Two trays included for users to easily increase humidity as needed (Note: the trays should regularly be cleaned to assure proper use and are dishwasher safe)

LED lighting

Attractive and energy efficient LED lighting offers an elegant presentation

Automatic defrost

Reduced user maintenance with automatic defrost operation

Fan-forced cooling

Internal fans ensure both interiors are evenly cooled from top to bottom

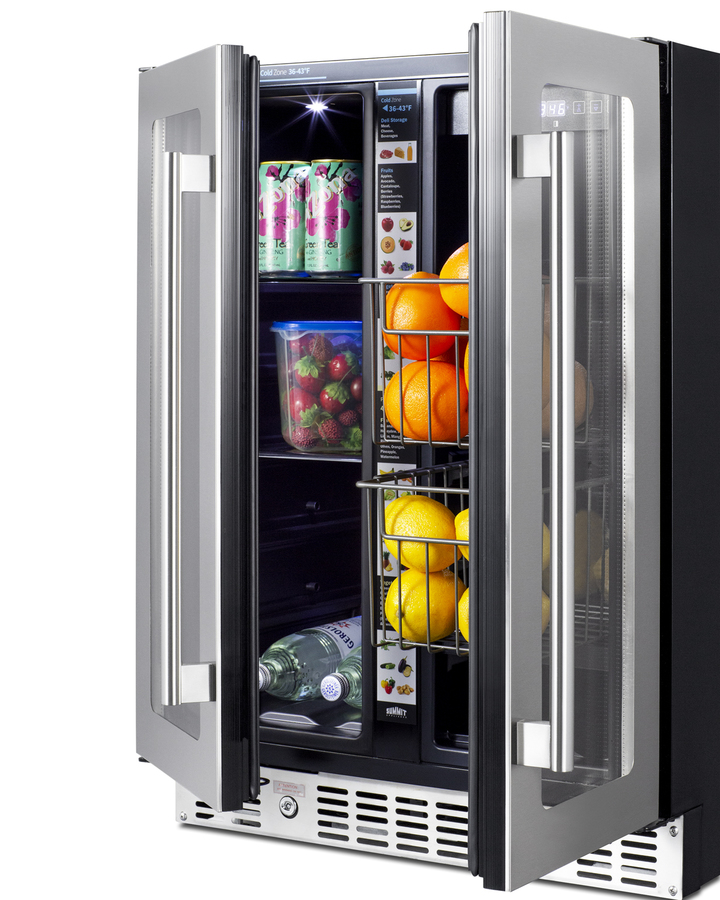

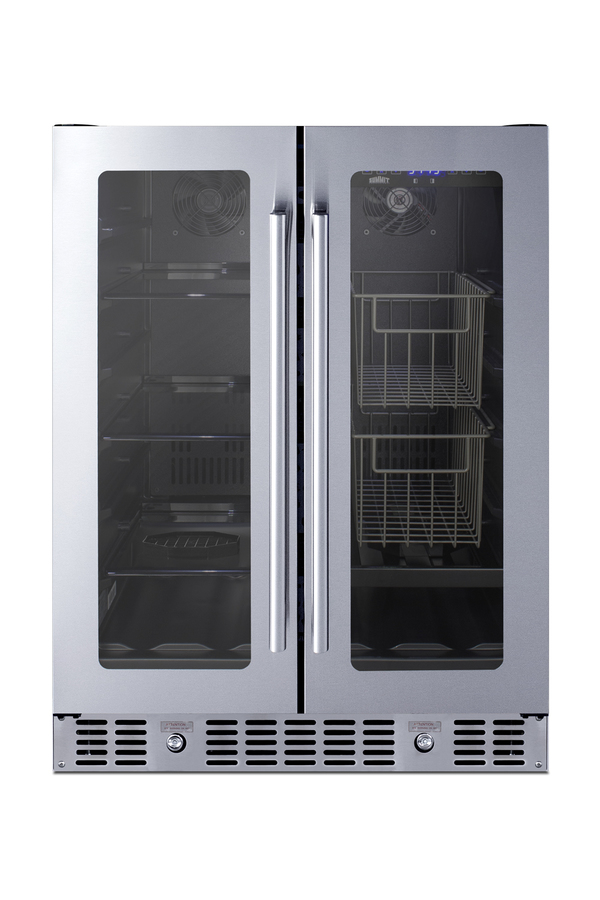

French door swing

Two side-by-side doors with French door opening

High temperature alarm

Audibly alerts if the interior temperature rises out of the recommended wine storage range

Open door alarm

Audible alarm will sound if the doors are left ajar for over 60 seconds

Sabbath mode

Allows you to disable certain electrical functions for up to 48 hours for periods of observance

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Usage stickers

Ships with affixed usage stickers for "COLD ZONE," "PANTRY ZONE," and "COLD ZONE/PANTRY ZONE STORAGE RECOMMENDATIONS"

Pantry storage booklet

Included storage guide provides tips and tricks on how to properly store produce

Stainless steel kickplate

Completes the professional look down to the toe kick

Right angle cord

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space saving design with easier cleanability

Integrated hinge

Door hinge adds no additional height, making it easier to install under a counter

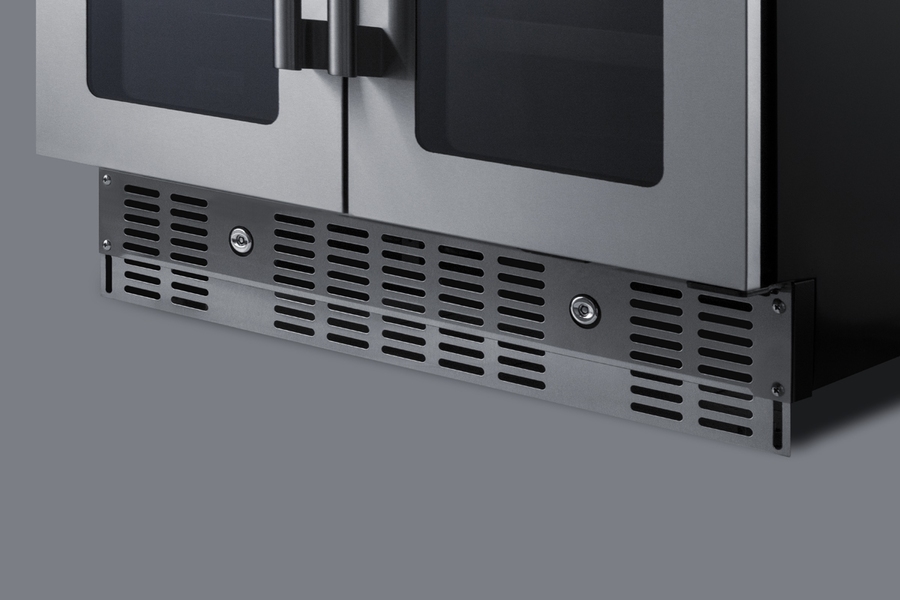

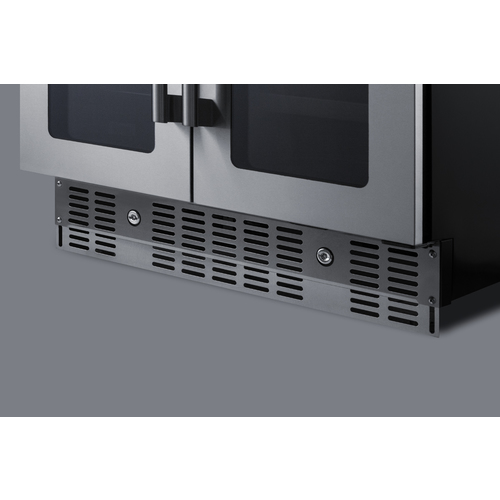

Kickplate extender included

Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

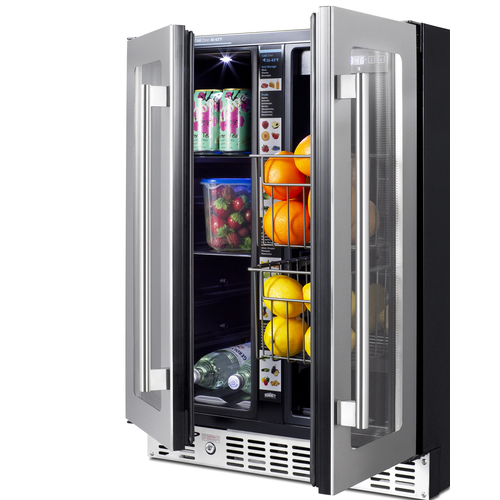

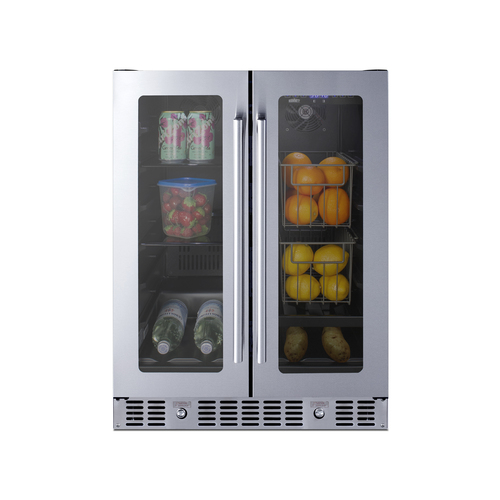

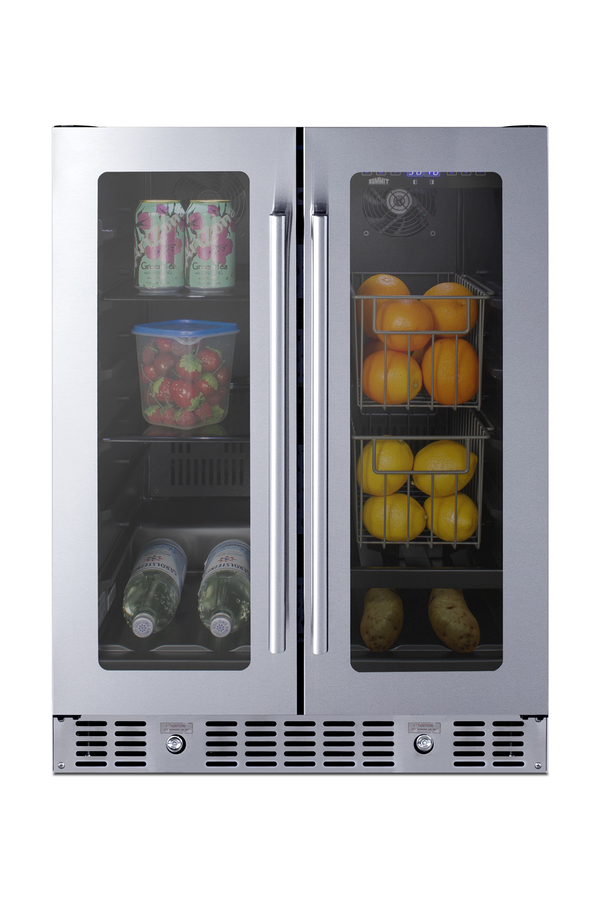

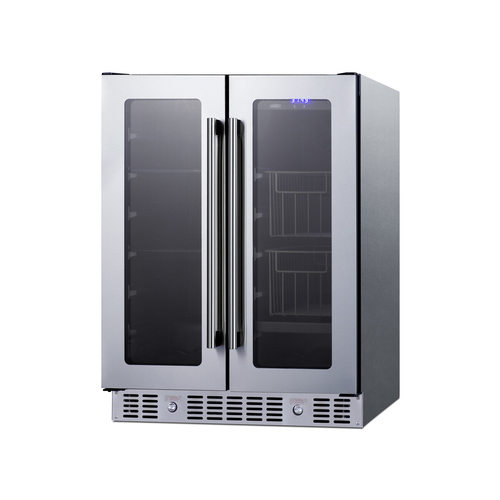

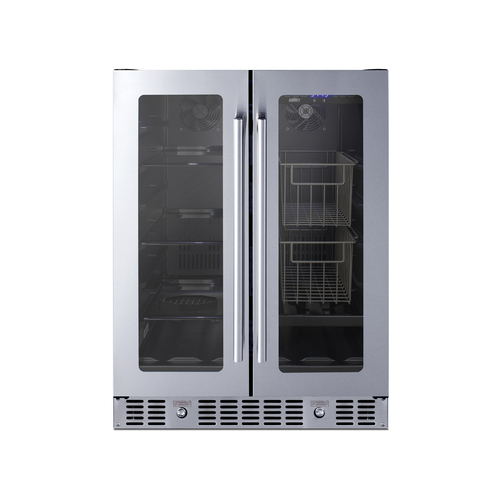

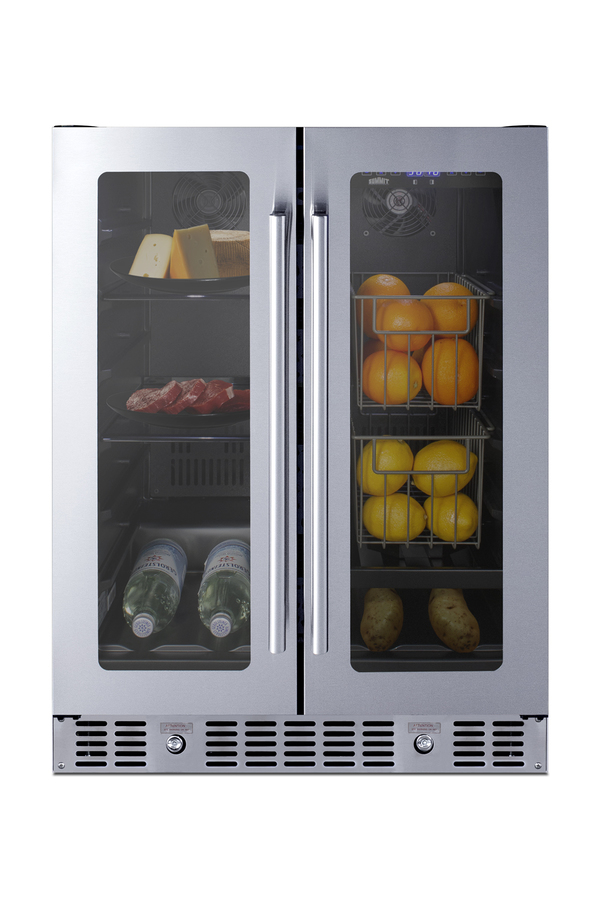

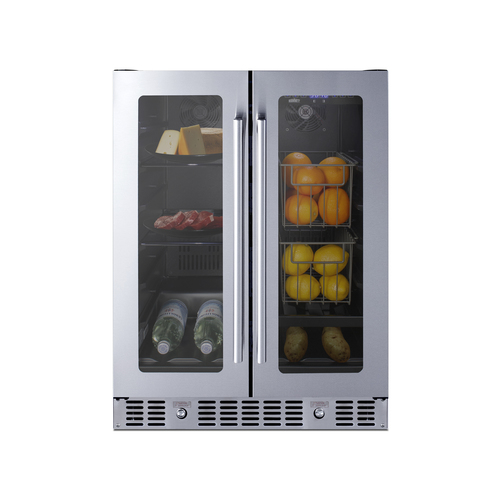

Summit brings an innovative solution to storing fruits and vegetables in the home with the ALFD24WBVCSSPANTRY, a dual zone produce refrigerator for use under standard or ADA compliant counters.

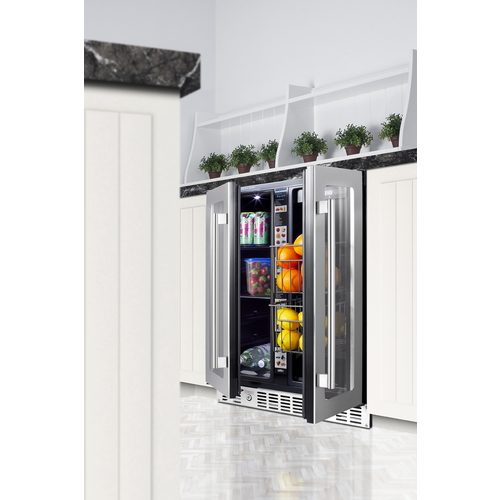

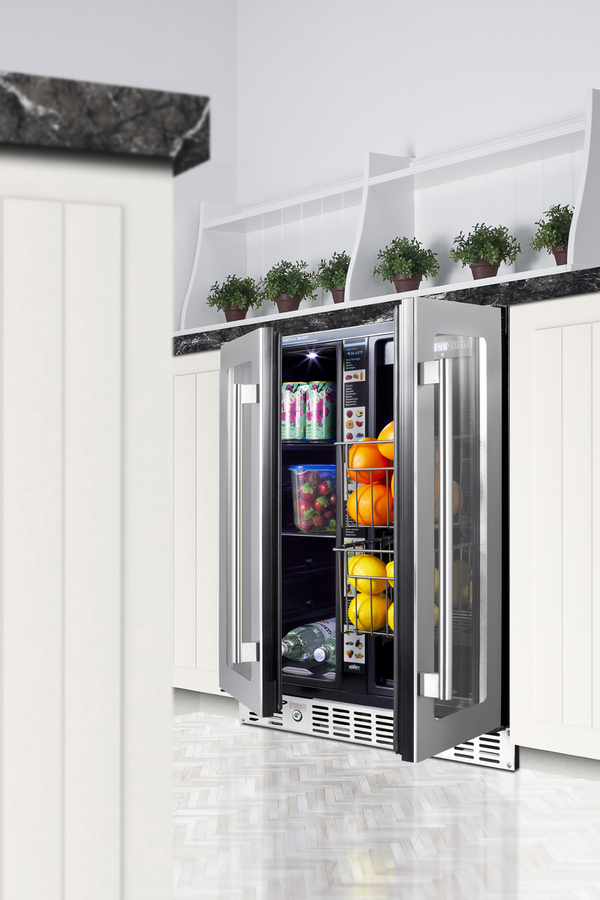

Sized with a convenient 24" footprint, the ALFD24WBVCSSPANTRY is 32" high, allowing it to fit under lower ADA compliant counters. Adjustable leveling legs let you raise the height up to 33.5", with a kickplate extender included to ensure a clean look under taller counters. The front-breathing system allows built-in installation, while the fully finished stainless steel cabinet also allows freestanding use. This model has a French door swing, with two double pane tempered glass doors in a seamless stainless steel trim. Each door includes a front lock and pro style handle in brushed stainless steel. The space-saving right-angle plug and integrated hinges provide added flexibility in unit placement.

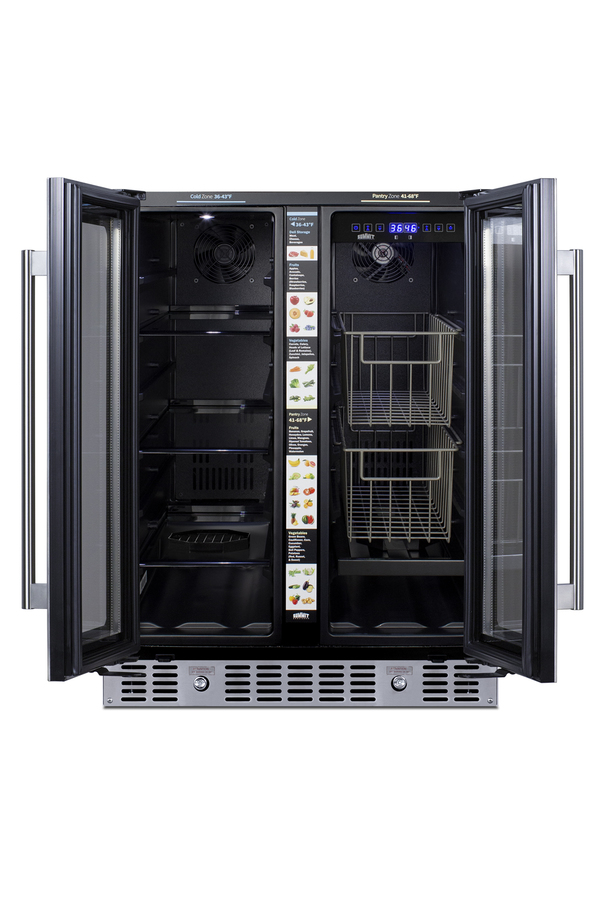

The ALFD24WBVCSSPANTRY features two distinct temperature zones to best store certain food items and beverages. The left Cold Zone has a temperature range of 36-43°F ideal for cheeses, meats, and produce requiring cooler temperatures that are slightly warmer than a standard fridge. The right Pantry Zone has a temperature range of 41-68°F, perfect for fresh produce in need of slightly warmer temperatures for proper storage. Adjustable glass shelves offer spill-proof storage and two pull-out wire baskets make storing and transporting certain fruits and vegetables more convenient. This unit comes with "Cold Zone" and "Pantry Zone" decals affixed above each compartment for easy identification of the temperature ranges. A vertical decal down the center of the unit identifies each compartment, as well as recommendations for which types of produce should be stored in which side. A pantry storage booklet is also included overviewing detailed guidance for properly storing fresh produce.

Additional features include digital temperature controls for user-friendly temperature management, with a readout in Fahrenheit or Celsius. Internal fans ensure even cooling within the unit, while automatic defrost operation affords minimal user maintenance. LED lighting offers an attractive and energy efficient presentation of the interior. This unit is equipped with audible alarms that warn if the doors are opened for over one minute and if the temperature exceeds the recommended range. The temperature memory function will restore the set temperature in the case of power loss, and Sabbath mode disables certain functions during periods of religious observance. Two octagonal trays are also included allowing users to increase the humidity  as needed (note: the trays should be cleaned regularly to assure proper use and are dishwasher safe).

With its unique design and luxury features, the ALFD24WBVCSSPANTRY lets you elevate your grocery storage, ensuring fresher tasting, longer lasting fruits, vegetables, and other food and beverage items.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
