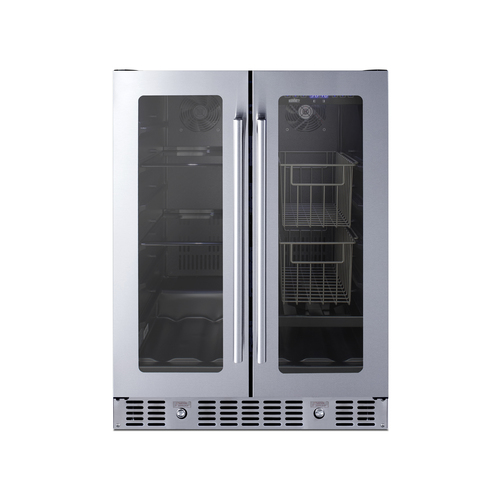

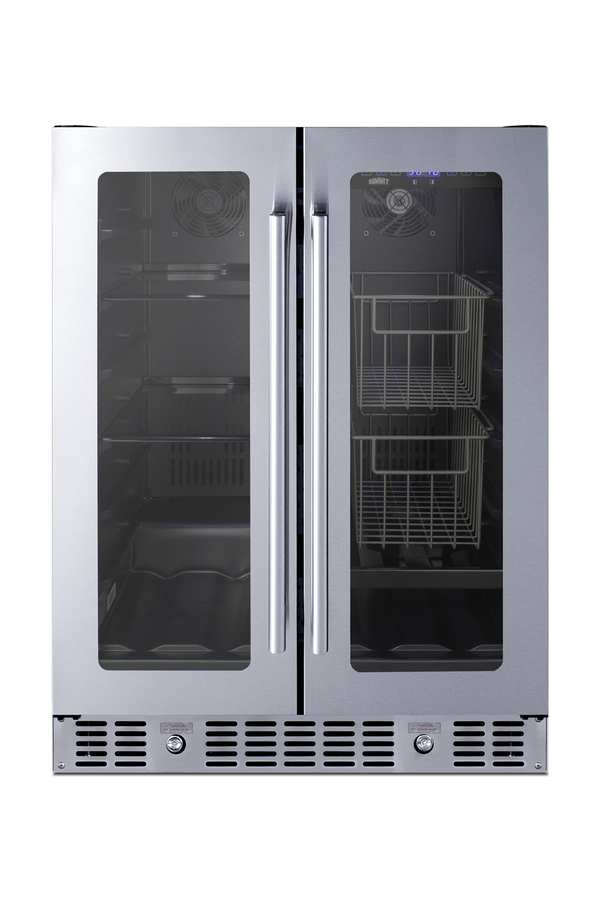

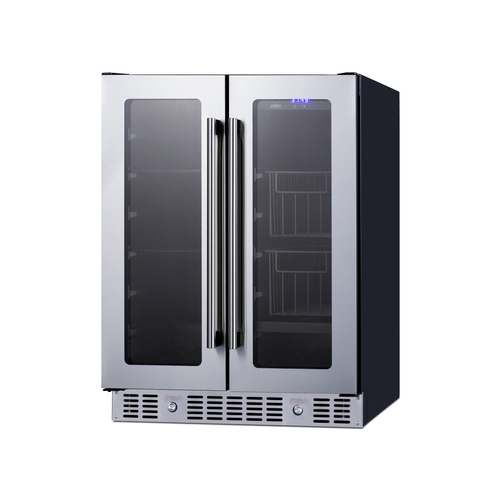

24" Built-In Dual-Zone Produce Refrigerator, ADA Compliant
3 to 5 days
(81cm H x 59cm W x 58cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 32.0" (81 cm) |
Height of Cabinet | 32.0" (81 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.38" (59 cm) |
Nominal Depth | 23.0" (58 cm) |
Depth | 22.75" (58 cm) |
Depth with Handle | 24.63" (63 cm) |
Depth with door at 90° | 33.0" (84 cm) |
Capacity | 4.6 cu.ft. (130 L) |
Bottles | 21 bottles |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101077499 |
Refrigerator Features
|
|
Sabbath Mode | Yes |
Door Swing | French |
Reversible | No |
Height Adjustable | Yes |
Shelf Type | Glass Shelves and Wire Baskets |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Wine Bottle Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.06oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | Cold Zone: 36-43°F; Pantry Zone: 41-68°F |
Dimensions
|
|
Interior Height | 25.38" (64 cm) |
Interior Width | 8.38" (21 cm) |
Interior Depth | 17.5" (44 cm) |
Compressor Step Height | 3.5" (9 cm) |
Compressor Step Width | 8.38" (21 cm) |
Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
Door | ||||
---|---|---|---|---|
|
FEATURES
Allows for safe storage of meats, cheeses, beverages, and fresh produce

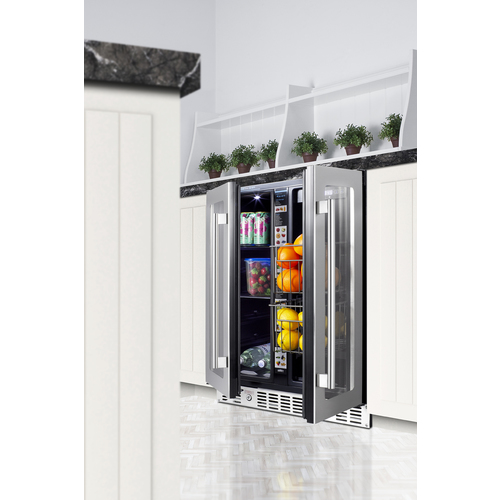

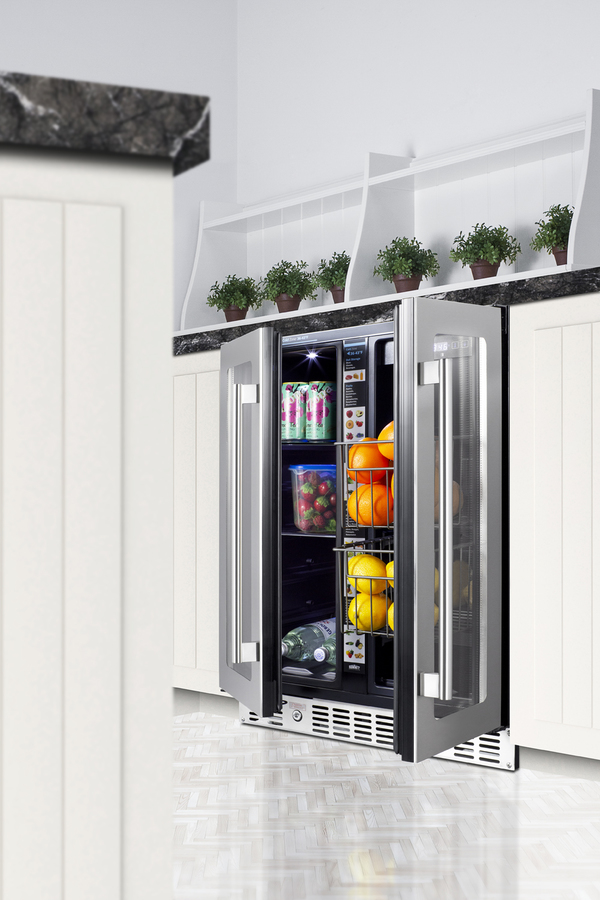

Make the best use of space by installing your appliance under the counter
Sized at just 32" high for installation under lower ADA compliant counters
Leveling legs can raise the unit to up to 33.5" for more standardized counters

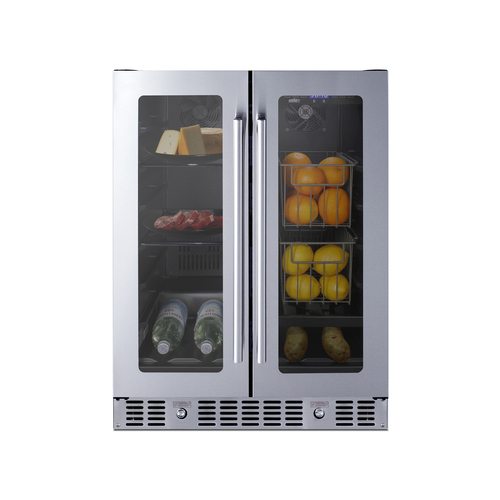

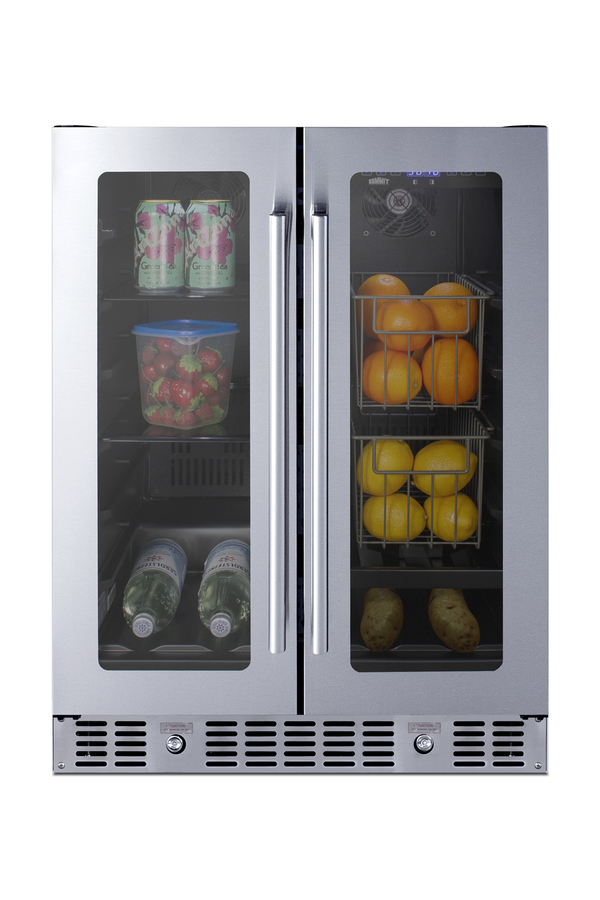

The left "Cold Zone" has a temperature range of 36-43° for storing meats, cheeses, and produce needing cooler temperatures
The right "Pantry Zone" has a temperature range of 41-68° for proper storage of produce requiring slightly warmer temperatures

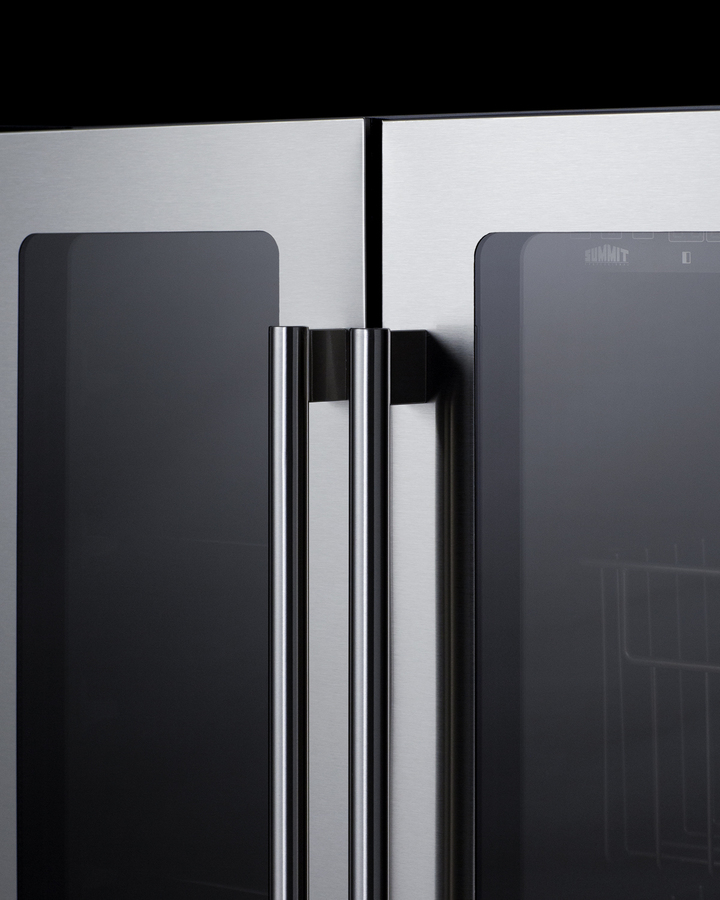

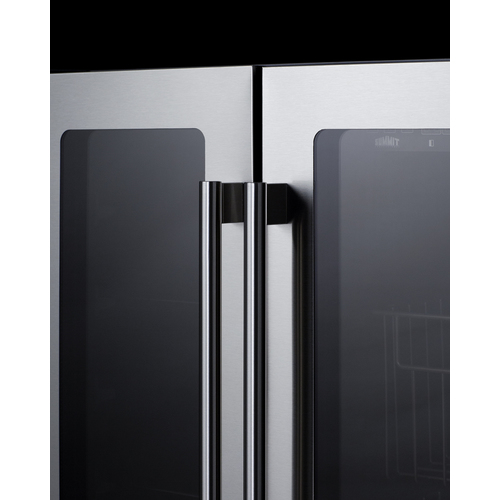

Glass is framed by seamless 304 grade stainless steel
Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
Each door includes a keyed lock for optional security

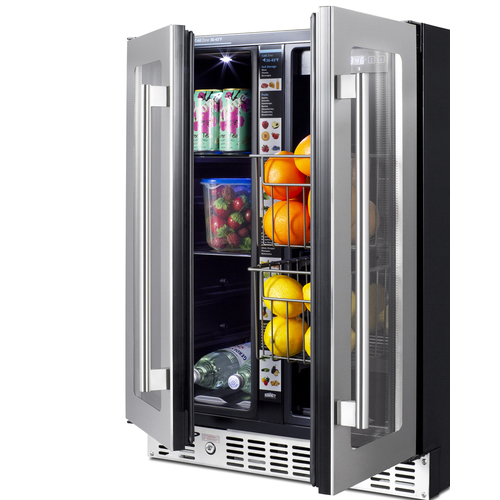

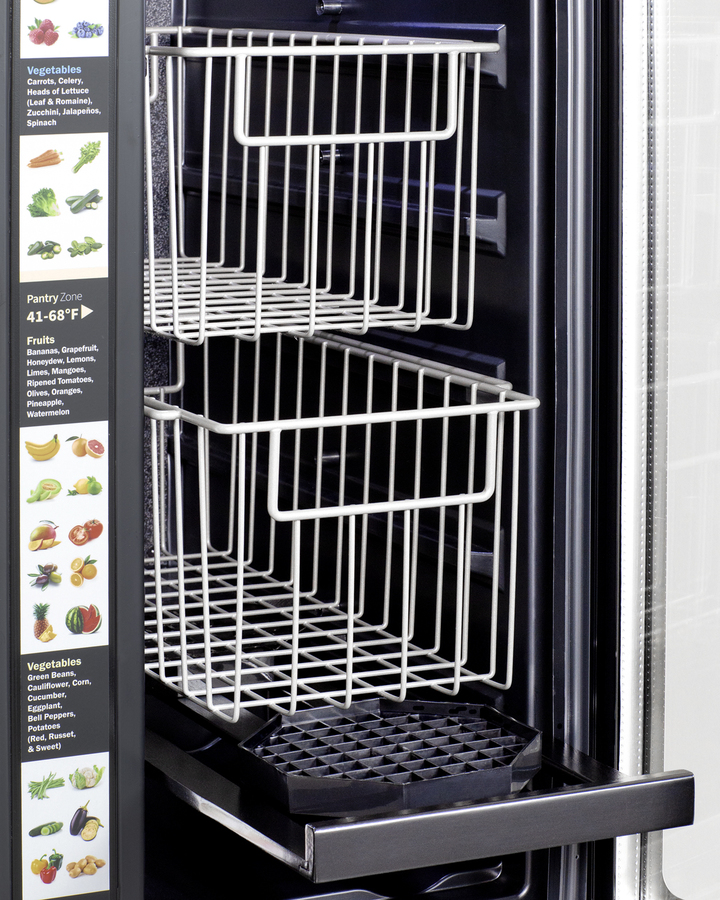

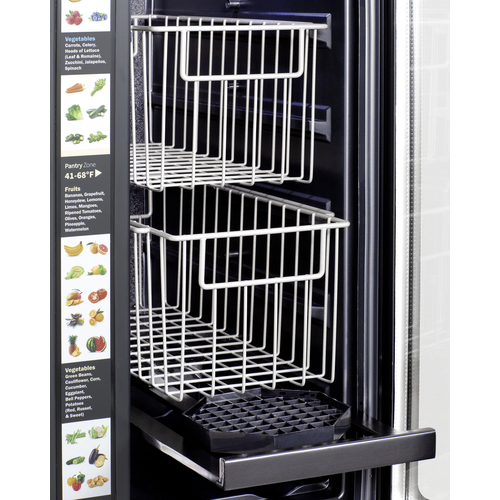

Pantry Zone includes two removable wire baskets for easy storage and transport of contents as needed
Spill-proof glass shelves make it easy to store food and beverages in the Cold Zone
Two trays included for users to easily increase humidity as needed (Note: the trays should regularly be cleaned to assure proper use and are dishwasher safe)
Attractive and energy efficient LED lighting offers an elegant presentation
Reduced user maintenance with automatic defrost operation
Internal fans ensure both interiors are evenly cooled from top to bottom

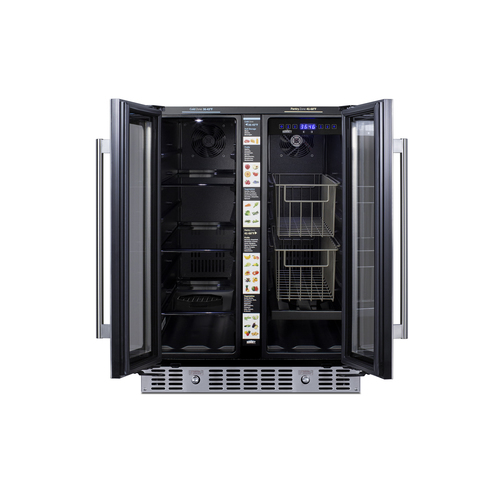

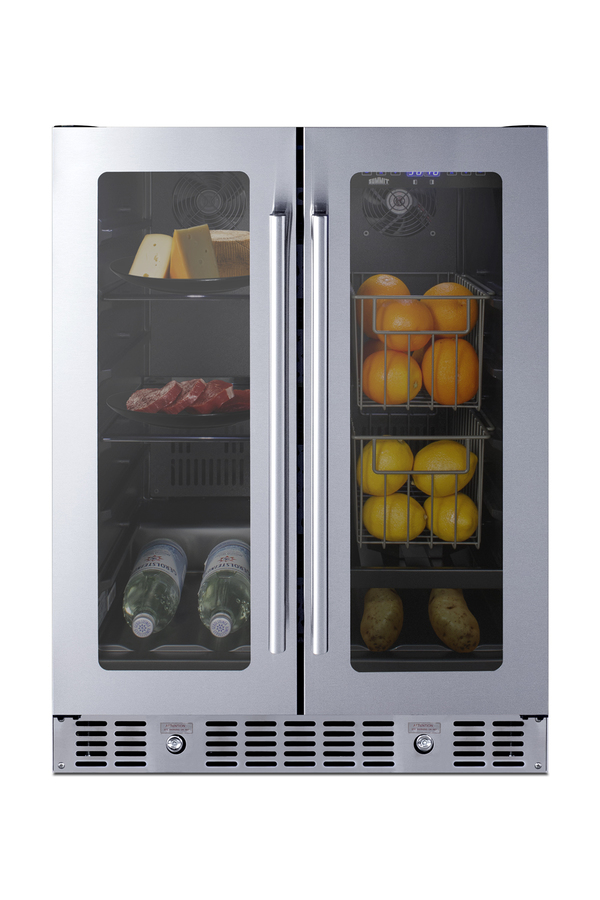

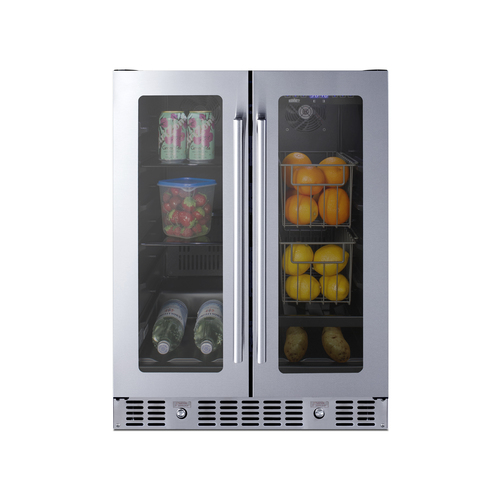

Two side-by-side doors with French door opening
Audibly alerts if the interior temperature rises out of the recommended wine storage range
Audible alarm will sound if the doors are left ajar for over 60 seconds
Allows you to disable certain electrical functions for up to 48 hours for periods of observance
Unit will retain its last settings when power is restored in the event of power loss
Ships with affixed usage stickers for "COLD ZONE," "PANTRY ZONE," and "COLD ZONE/PANTRY ZONE STORAGE RECOMMENDATIONS"
Included storage guide provides tips and tricks on how to properly store produce
Completes the professional look down to the toe kick
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space saving design with easier cleanability
Door hinge adds no additional height, making it easier to install under a counter

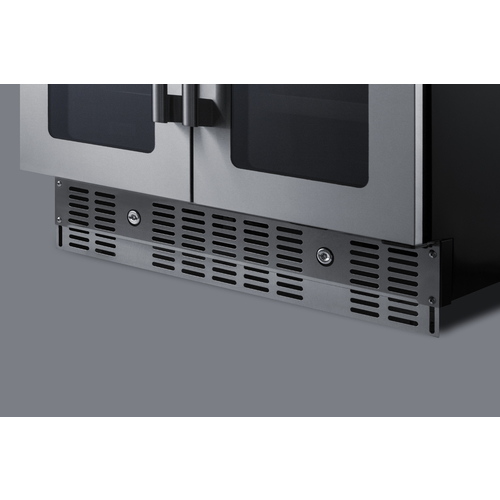

Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised
Allows the unit to be used freestanding
Environmentally friendly design does not contain ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit brings an innovative solution to storing fruits and vegetables in the home with the ALFD24WBVPANTRY, a dual zone produce refrigerator for use under standard or ADA compliant counters. Sized with a convenient 24" footprint, the ALFD24WBVPANTRY is 32" high, allowing it to fit under lower ADA compliant counters. Adjustable leveling legs let you raise the height up to 33.5", with a kickplate extender included to ensure a clean look under taller counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This model has a French door swing, with two double pane tempered glass doors in a seamless stainless steel trim. Each door includes a front lock and pro style handle in brushed stainless steel. The space-saving right-angle plug and integrated hinges provide added flexibility in unit placement. The ALFD24WBVPANTRY features two distinct temperature zones to best store certain food items and beverages. The left Cold Zone has a temperature range of 36-43°F ideal for cheeses, meats, and produce requiring cooler temperatures that are slightly warmer than a standard fridge. The right Pantry Zone has a temperature range of 41-68°F, perfect for fresh produce in need of slightly warmer temperatures for proper storage. Adjustable glass shelves offer spill-proof storage and two pull-out wire baskets make storing and transporting certain fruits and vegetables more convenient. This unit comes with "Cold Zone" and "Pantry Zone" decals affixed above each compartment for easy identification of the temperature ranges. A vertical decal down the center of the unit identifies each compartment, as well as recommendations for which types of produce should be stored in which side. A pantry storage booklet is also included overviewing detailed guidance for properly storing fresh produce. Additional features include digital temperature controls for user-friendly temperature management, with a readout in Fahrenheit or Celsius. Internal fans ensure even cooling within the unit, while automatic defrost operation affords minimal user maintenance. LED lighting offers an attractive and energy efficient presentation of the interior. This unit is equipped with audible alarms that warn if the doors are opened for over one minute and if the temperature exceeds the recommended range. The temperature memory function will restore the set temperature in the case of power loss, and Sabbath mode disables certain functions during periods of religious observance. Two octagonal trays are also included allowing users to increase the humidity as needed (note: the trays should be cleaned regularly to assure proper use and are dishwasher safe). With its unique design and luxury features, the ALFD24WBVPANTRY lets you elevate your grocery storage, ensuring fresher tasting, longer lasting fruits, vegetables, and other food and beverage items.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
