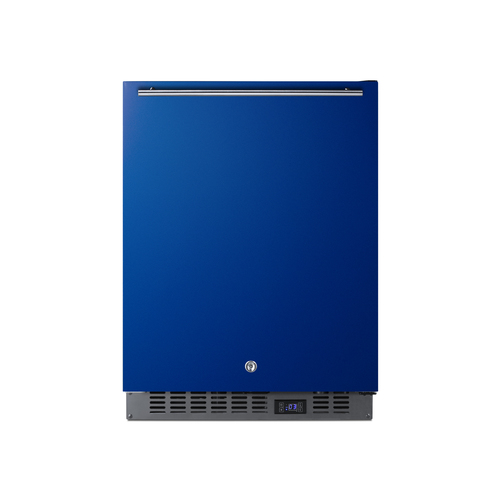

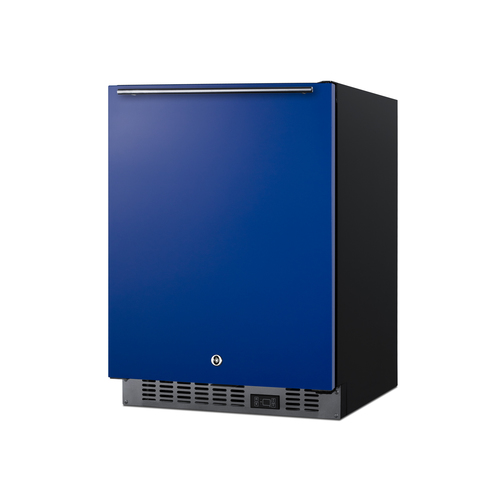

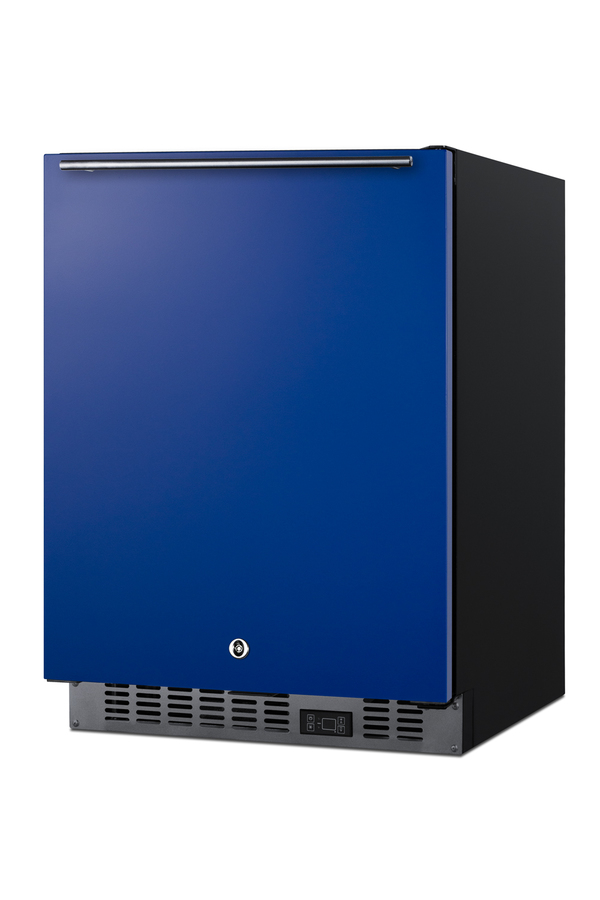

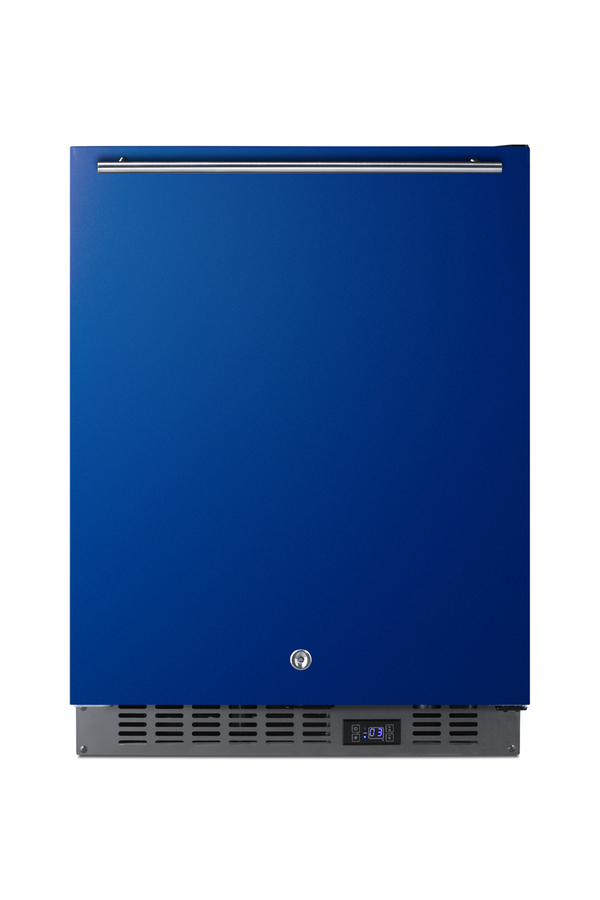

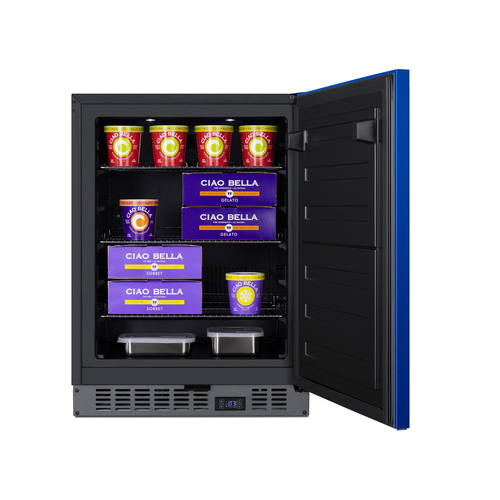

24" Wide Built-In All-Freezer, ADA Compliant

SKU: ALFZ53B

Cobalt blue door finish brings modern elegance under the counter

DISCONTINUED

Refrigerator Type:
Freezerless All-Freezer

Color: Blue

*Additional features may vary

32.0" H x 23.63" W x 22.63" D
(81cm H x 60cm W x 57cm D)

Overview
Height of Cabinet	32.0" (81 cm)
Width	23.63" (60 cm)
Depth	22.63" (57 cm)
Depth with Handle	24.13" (61 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	3.7 cu.ft. (105 L)
Defrost Type	Frost-Free
Door	Blue
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	345.0kWh/year
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	92.0 lbs. (42 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101087665
Freezer
Door Swing	RHD
Reversible	Yes
Interior Height	23.5" (60 cm)
Interior Width	18.75" (48 cm)
Interior Depth	15.5" (39 cm)
Shelf Type	Chrome
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.31 oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs	4
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	18.75" (48 cm)
Compressor Step Depth	4.5" (11 cm)
Temperature Range	-11°F to 11°F
Sabbath Mode	Yes
Sound Level	33.7 dB

Exterior

LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your freezer under the counter and flush with other cabinets

Frost-free operation

No-frost convenience eliminates the need to manually defrost the unit

Cobalt blue door

Deep blue finish with a slight gloss to elevate your undercounter space

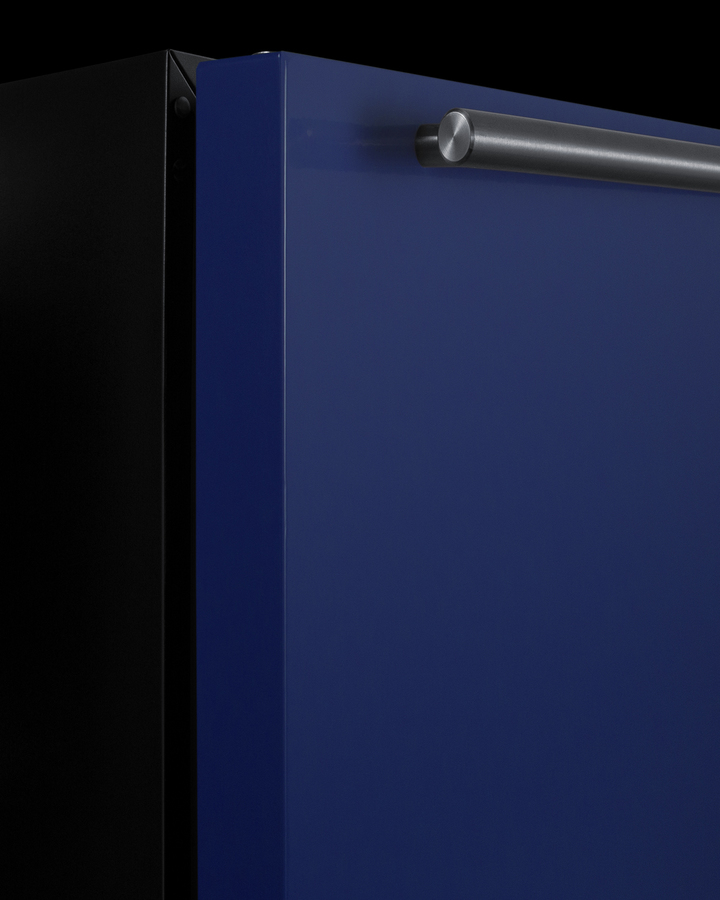

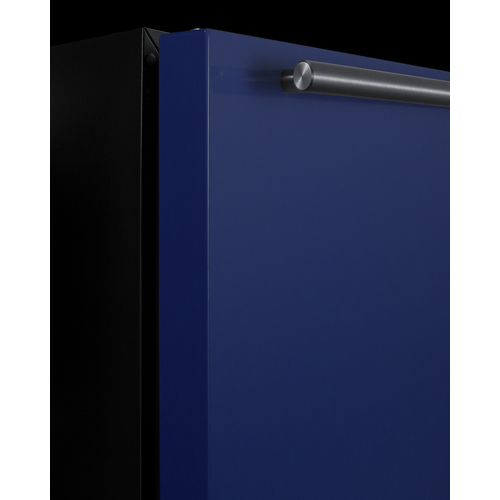

Professional handle

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Digital thermostat

Electronic controls offer easy and intuitive temperature management

Recessed LED light

Elegant lighting with an on/off switch located on the control panel

Reversible door

User-reversible door swing for added flexibility

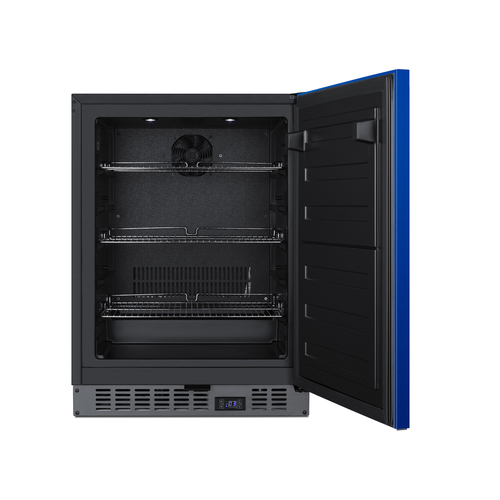

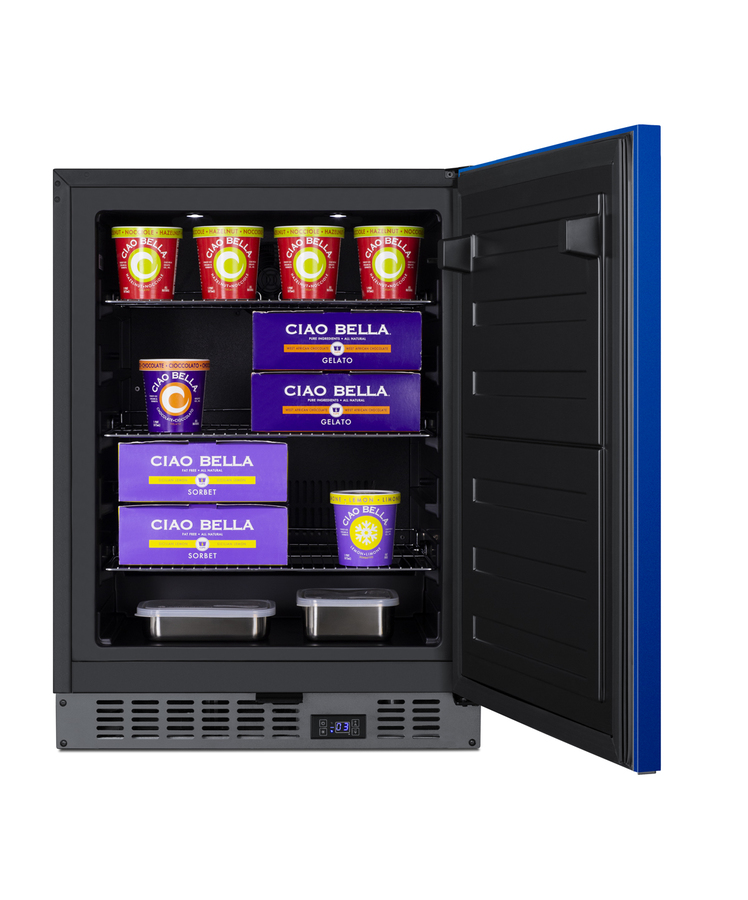

Adjustable shelves

Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Stainless steel kickplate

Added touch of style to complement the handle and complete the look

Sealed back

Space-saving design with no exposed coils for easier cleanability

Matching refrigerator available

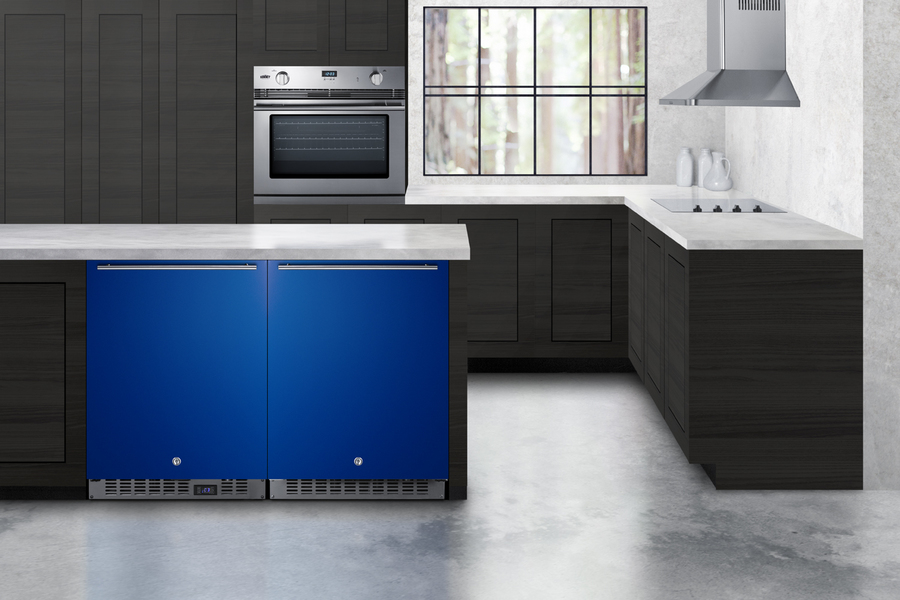

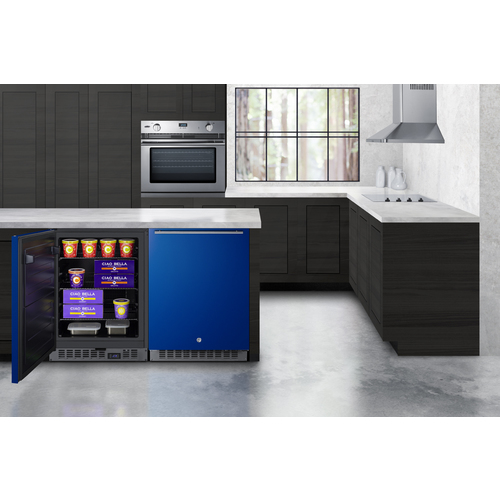

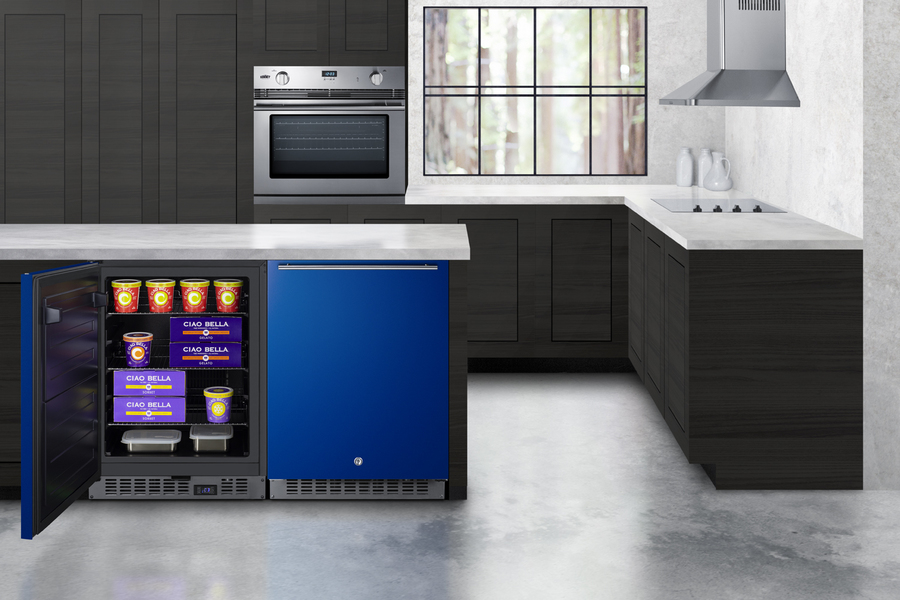

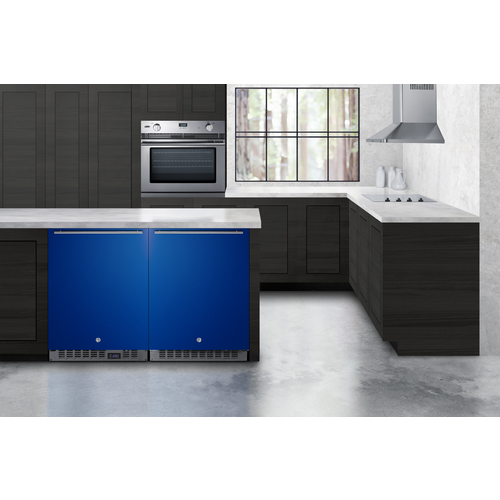

Pair with the AL54B for a matching side-by-side set under lower ADA compliant counters

Fully finished cabinet

Allows the freezer to be used as a freestanding model

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Make a statement under the counter with Summit's exclusive collection of boldly colored refrigerators and matching freezers.

Model ALFZ53B is a 24" wide freezer sized at just 32" high for easy installation under lower ADA compliant counters. The front-breathing cooling system allows built-in use, while the fully finished black cabinet also enables freestanding applications. The door finish comes in a striking cobalt blue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look.

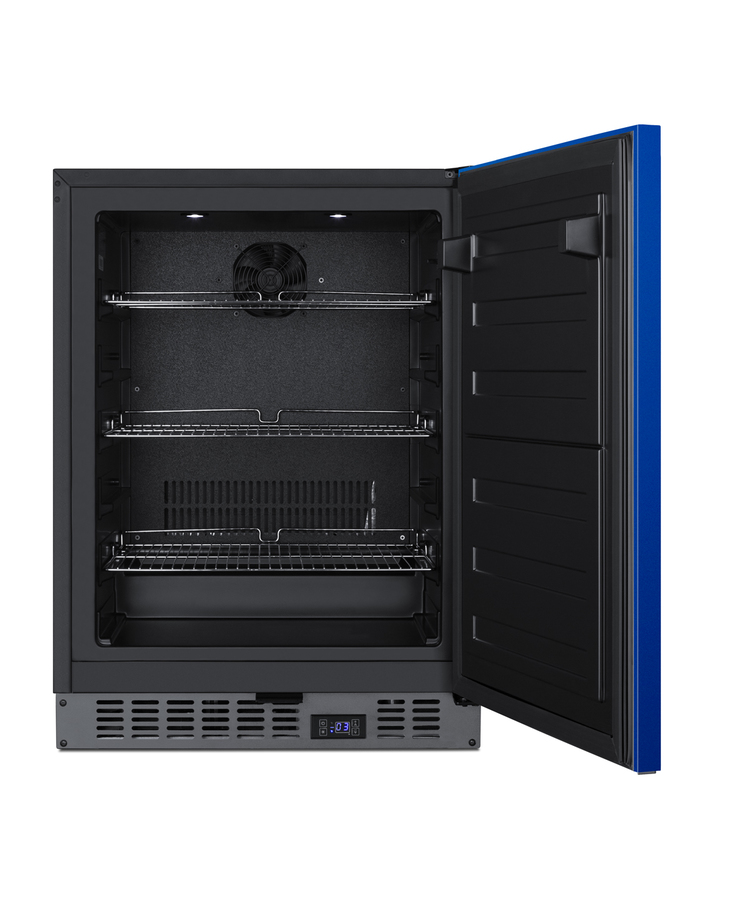

Inside, the ALFZ53B utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat (located in the kickplate) makes it easy to manage the interior temperature. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. An open door alarm and high temperature alarm audibly warn if stored items are being exposed. An optional Sabbath mode setting lets you disable some of the electrical elements during periods of observance.

Additional features include a factory-installed lock for optional security, user-reversible door swing to best fit your space, right angle plug to save on depth, and sealed rear to ensure easier cleaning. The ALFZ53B can be paired with the AL54B all-refrigerator to create a matching undercounter ADA compliant set. Additional colors are available, including saffron gold, emerald green, and lavender. Browse the full Summit selection to find the perfect addition to your kitchen.

BROCHURE w/ DRAWINGS
ALFZ53B.pdf

TECHNICAL DRAWING (.dwg)
ALFZ53SSHH__w-COLOR_.dwg

ASSEMBLY DRAWING
ALFZ53SSHH__w-COLOR_-Assembly.pdf

USE & CARE
ALR15B_AL54_SCFF1533B_ALFZ53_Use_and_Care_03.2022.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
