24" Wide Built-In All-Freezer, ADA Compliant
(81cm H x 60cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.63" (60 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.13" (61 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 3.7 cu.ft. (105 L) |
| Defrost Type | Frost-Free |
| Door | Yellow |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 345.0kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 92.0 lbs. (42 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101087641 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 18.75" (48 cm) |
| Interior Depth | 15.5" (39 cm) |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 18.75" (48 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 33.7 dB |
AVAILABLE UPGRADES
| Exterior | ||
|---|---|---|
|
FEATURES
32" height allows easy installation under lower ADA compliant counters
Make the best use of space by installing your freezer under the counter and flush with other cabinets
No-frost convenience eliminates the need to manually defrost the unit

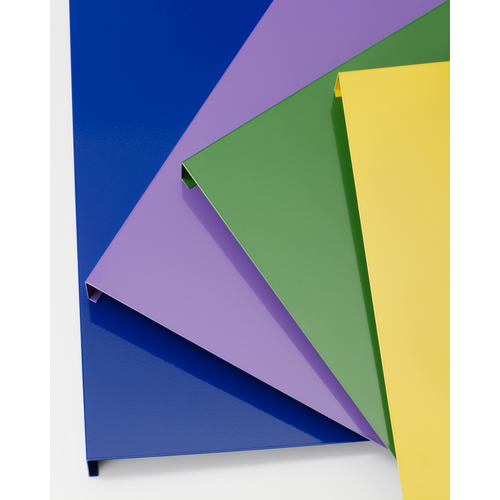

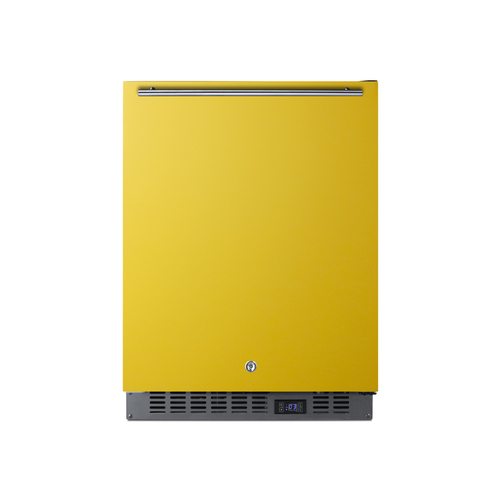

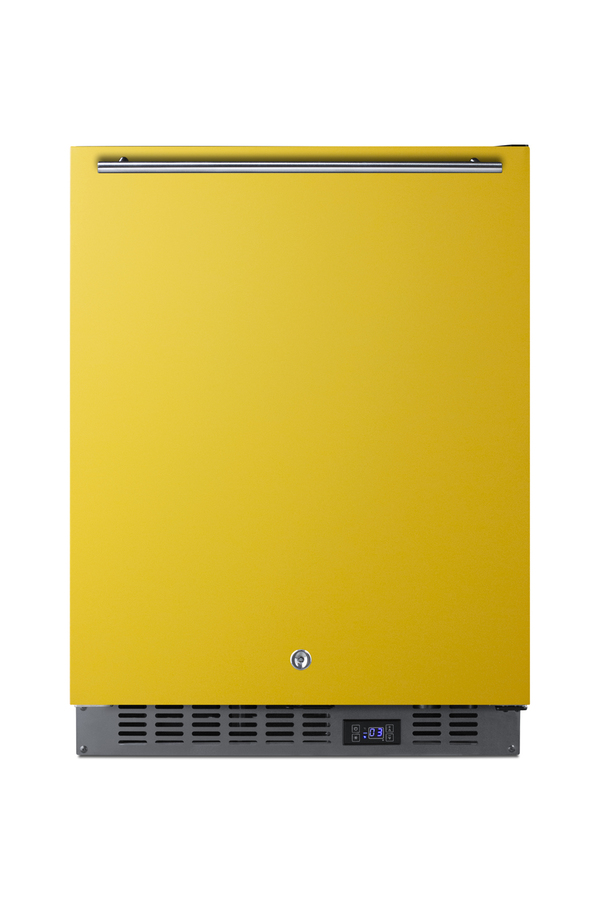

Bright yellow door finish with a slight gloss to elevate your undercounter space

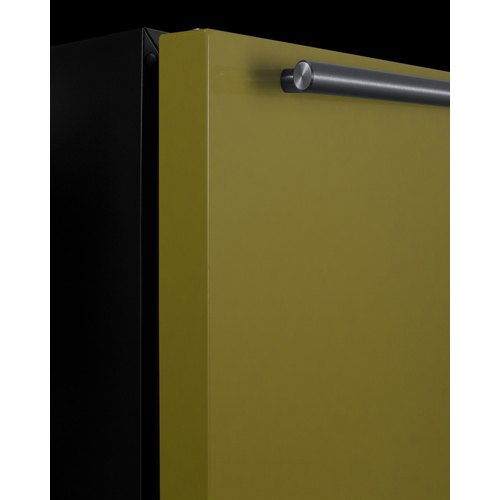

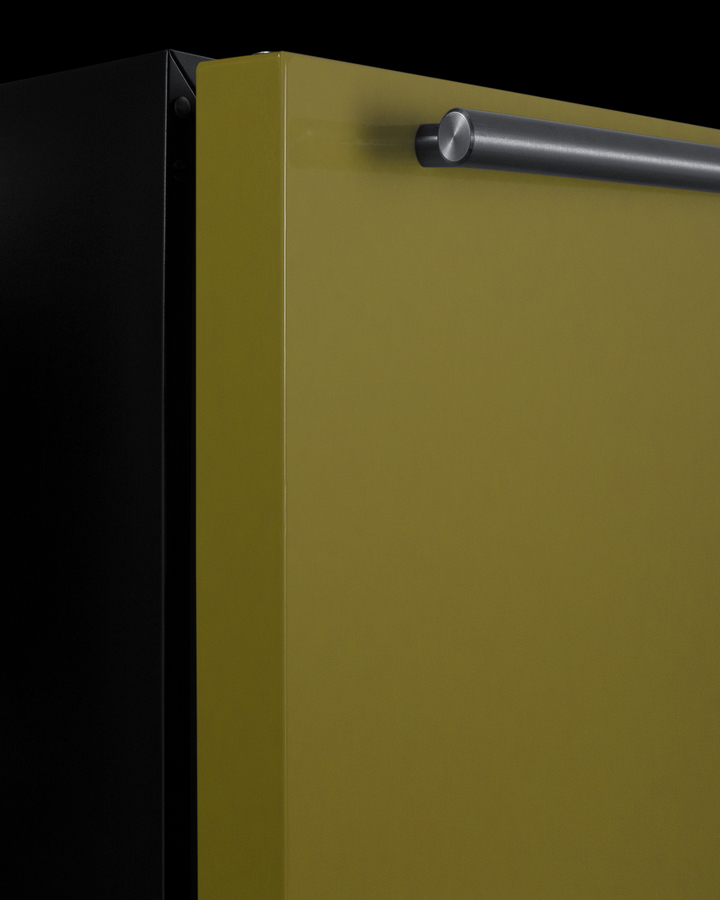

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
Electronic controls offer easy and intuitive temperature management
Elegant lighting with an on/off switch located on the control panel
User-reversible door swing for added flexibility

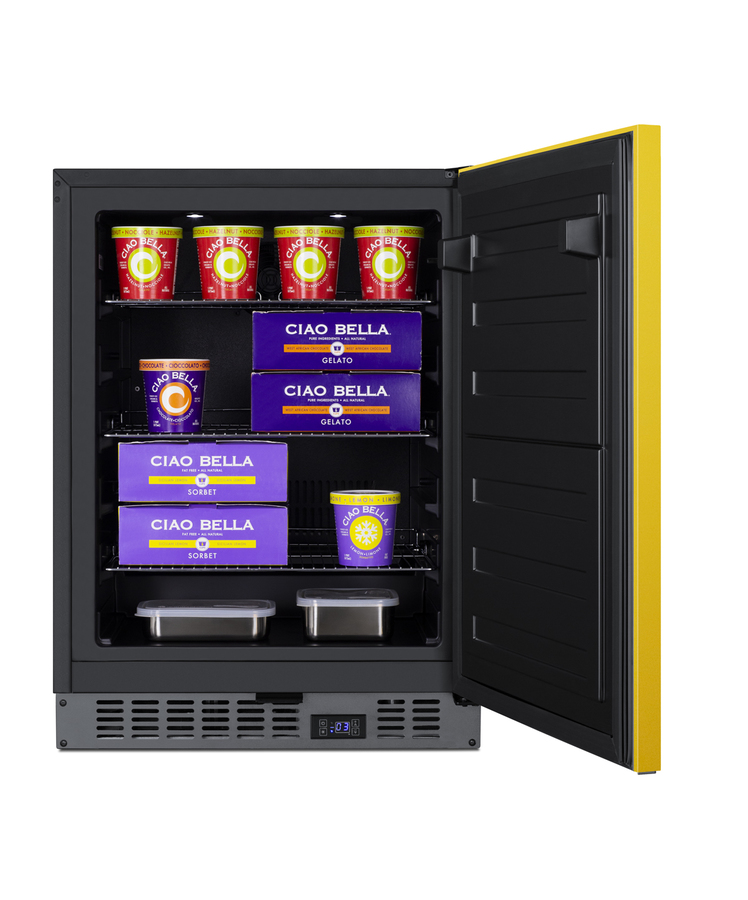

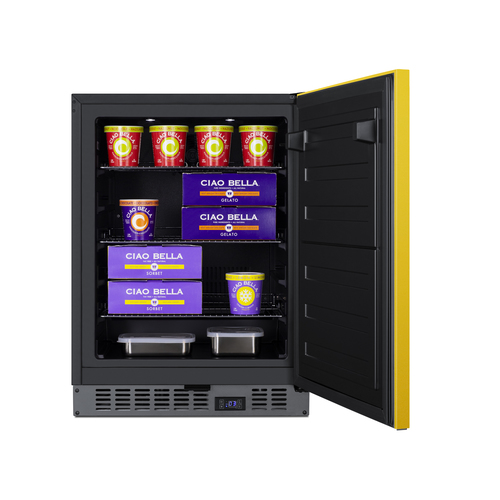

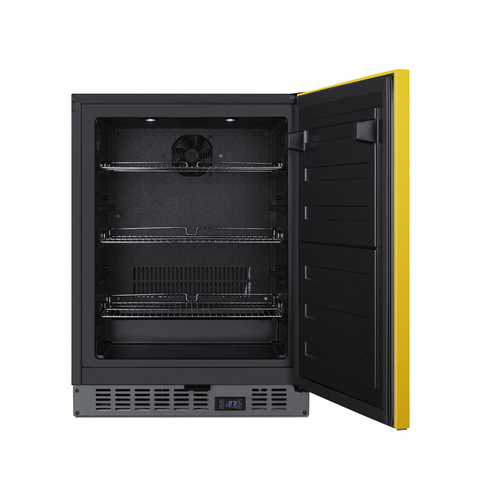

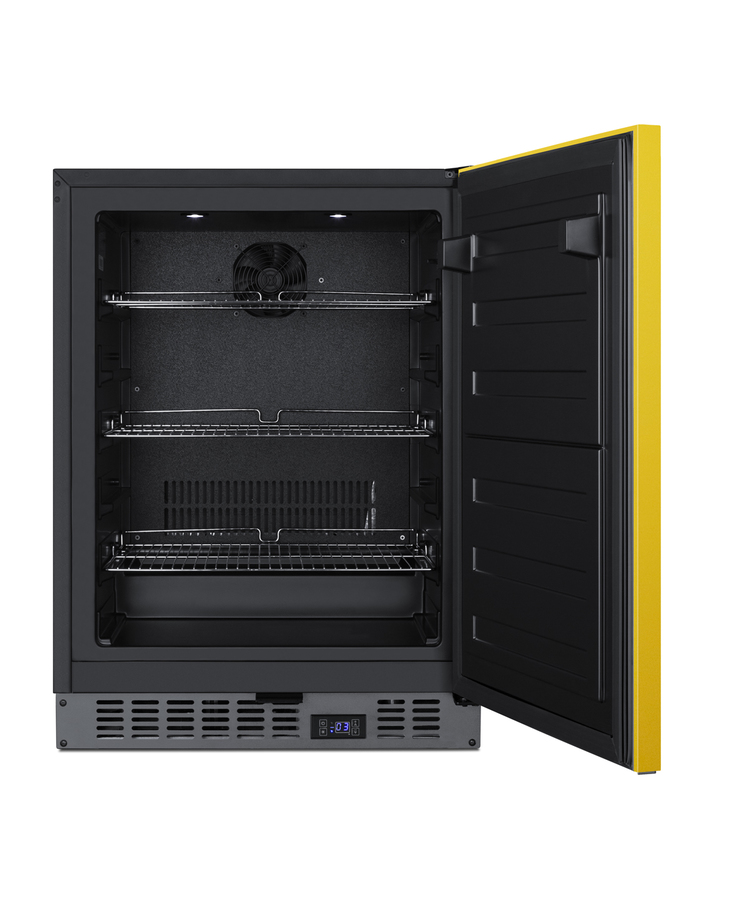

Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Keyed lock for a secure interior (2 keys included)
Audible alarm will sound if the door is left open longer than one minute
Optional setting lets you disable the lighting and alarm for up to 48 hours
High temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Added touch of style to complement the handle and complete the look
Space-saving design with no exposed coils for easier cleanability

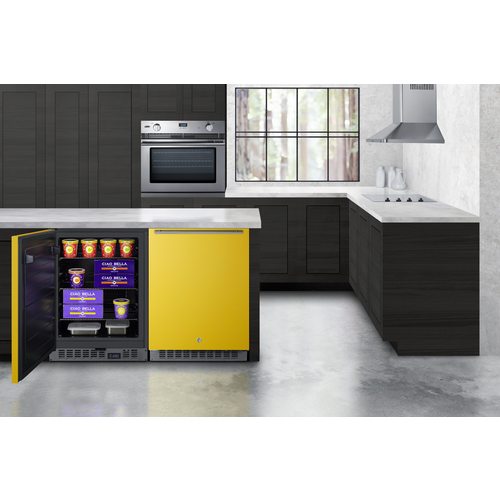

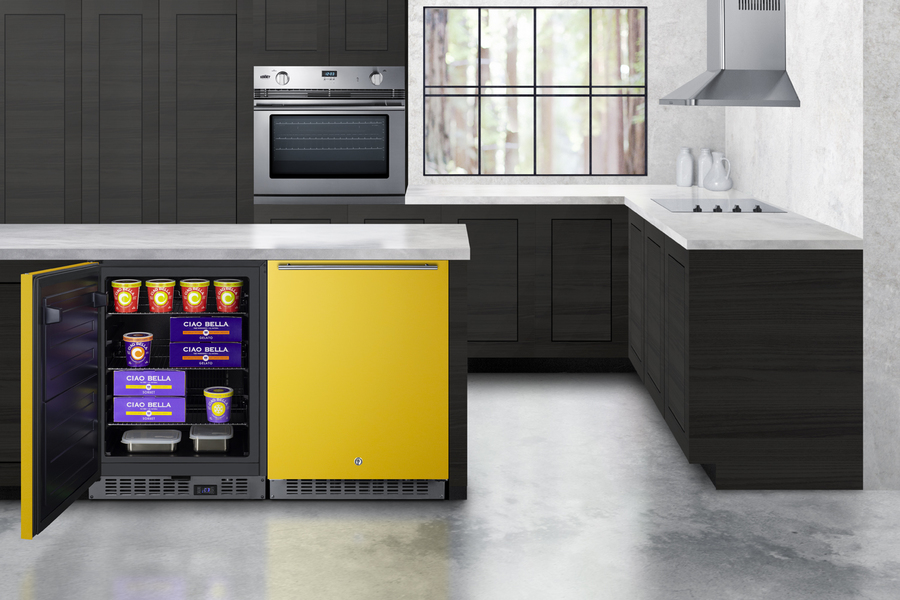

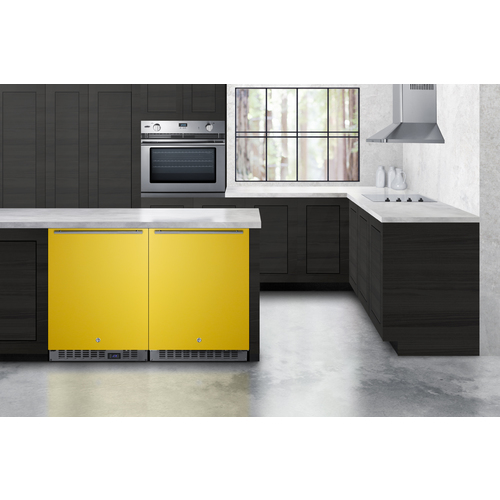

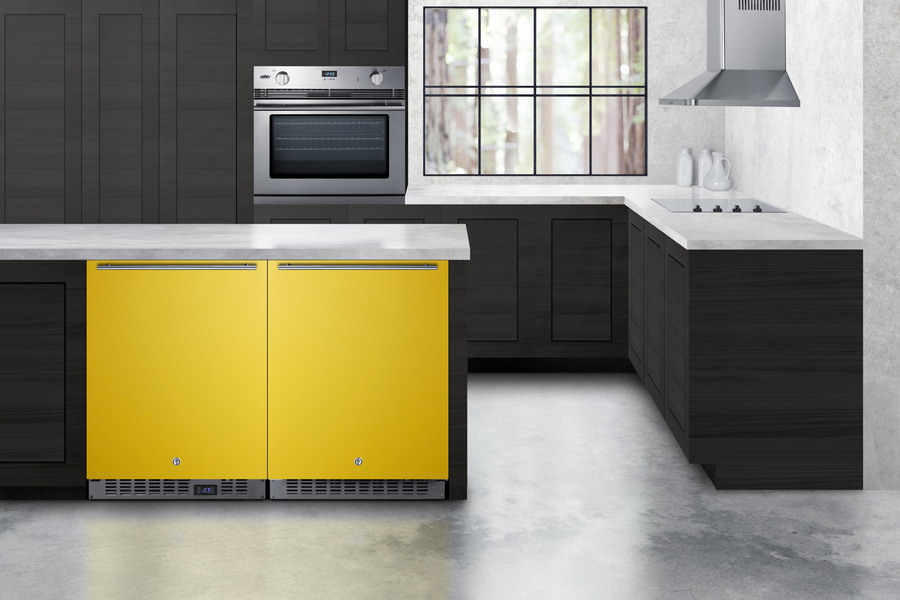

Pair with the AL54Y for a matching side-by-side set under lower ADA compliant counters
Allows the freezer to be used as a freestanding model
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

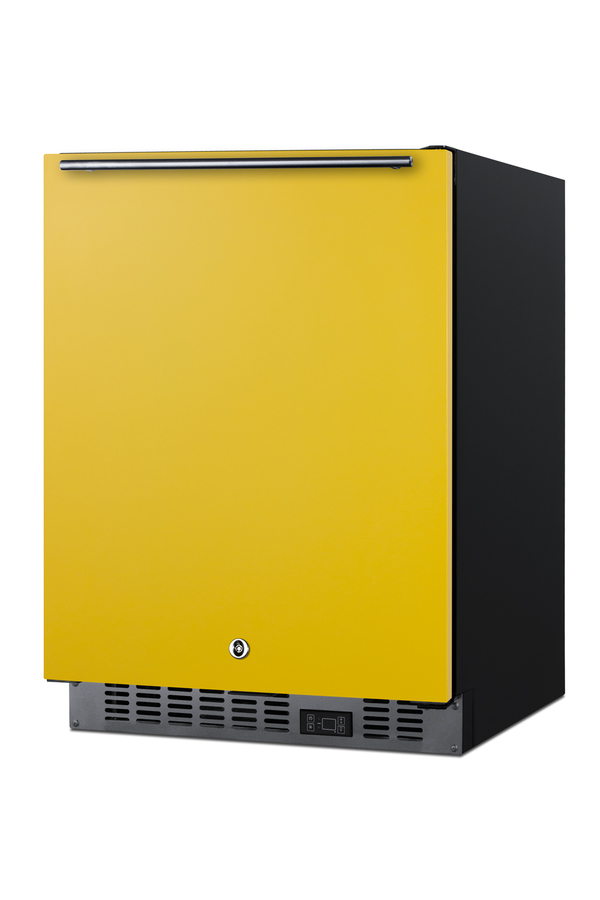

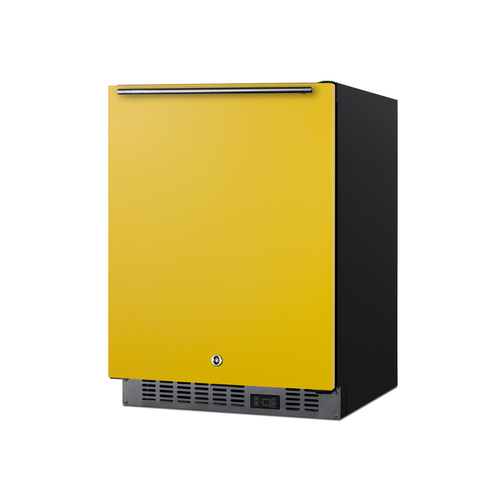

Make a statement under the counter with Summit's exclusive collection of boldly colored refrigerators and matching freezers. Model ALFZ53Y is a 24" wide freezer sized at just 32" high for easy installation under lower ADA compliant counters. The front-breathing cooling system allows built-in use, while the fully finished black cabinet also enables freestanding applications. The door comes in a bright saffron gold hue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look. Inside, the ALFZ53Y utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat (located in the kickplate) makes it easy to manage the interior temperature. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. An open door alarm and high temperature alarm audibly warn if stored items are being exposed. An optional Sabbath mode setting lets you disable some of the electrical elements during periods of observance. Additional features include a factory-installed lock for optional security, user-reversible door swing to best fit your space, right angle plug to save on depth, and sealed rear to ensure easier cleaning. The ALFZ53Y can be paired with the AL54Y all-refrigerator to create a matching undercounter ADA compliant set. Additional colors are available, including emerald green, cobalt blue, and lavender. Browse the full Summit selection to find the perfect addition to your kitchen.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
