23 Cu.Ft. Upright Pharmacy Refrigerator

SKU: ARS23ML
Designed and Purpose built to meet demanding needs of life science, vaccine, laboratory and medical cold storage applications
Estimated Time to Ship:

1 to 2 days

83.75" H x 27.5" W x 31.0" D
(213cm H x 70cm W x 79cm D)

Overview
Nominal Height 84.0" (213 cm)
Height of Cabinet 83.75" (213 cm)
Nominal Width 28.0" (71 cm)
Width 27.5" (70 cm)
Nominal Depth 31.0" (79 cm)
Depth 31.0" (79 cm)
Depth with Handle 32.75" (83 cm)
Depth with door at 90° 56.5" (144 cm)
Capacity 23.0 cu.ft. (651 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 7.5
Voltage/Frequency 115 V AC/60 Hz
Weight 282.0 lbs. (128 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101062297
Refrigerator Features
Door Swing RHD
Reversible No
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R290
Refrigerant Amount 2.5oz.
High Side PSI 290.0
Low Side PSI 155.0
Wheel Qty 4
Interior Light Yes
Temperature Range 2 to 10ºC
Dimensions
Interior Height 51.5" (131 cm)
Interior Width 23.5" (60 cm)
Interior Depth 27.0" (69 cm)

Exterior
PHRILEFT - Probe Hole
Factory installed 3/8" probe hole for customer supplied monitoring devices in 23/49 cu.ft. refrigerators and freezers; installed on left side of cabinet
TM1A - Factory-installed dry contacts with remote alarm
Remote alarm contacts with continuous temperature display
PHRI - Probe Hole
Factory installed 3/8" probe hole for customer supplied monitoring devices in 23/49 cu.ft. refrigerators and freezers; installed on left side of cabinet
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Purpose-built design

Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

Adjustable temperature

Interior is pre-set to 5ºC, with an adjustable control range from 2 to 10ºC

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Complete stainless steel construction

Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup

Forced air cooling

Top-mounted commercial fan ensures rapid temperature recovery

Automatic defrost with adjustable cycle defrost

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Self-closing door

Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading

Open door alarm

Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes

Commercial grade casters

Ships with a set of casters (2 locking) for easy mobility as needed

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Adjustable plastic-coated wire shelves for improved circulation

Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items

Interior light

Energy efficient LED lighting with internal on/off switch

Large capacity

23 cubic feet of storage space inside

Sealed back

Space-saving design that ensures easier cleanup

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Condenser cleaning alarm

In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months

Matching freezer

Pair with AFS23ML for a matching set in complete stainless steel

Extended warranty

2 years parts and labor/5 years compressor

Commercially approved

Commercial construction meeting UL commercial listing standards

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Additional choices

Glass door version (model ARG23ML) available for pharmacy, medical, laboratory, and additional applications

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications.

The ARS23ML is a 23 cu.ft. all-refrigerator with an adjustable control range from +2 to +10ºC. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.

Inside, the ARS23ML utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display.

The ARS23ML features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90º for easier loading.

Designed with hydrocarbon refrigerant, the ARS23ML provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching frost-free freezer, see the ARF23ML. A glass door refrigerator version is also available (model ARG23ML).

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.


Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

YOU MIGHT NEED

DL11BWiFiKIT Accessory Angle

DL11BWIFIKIT

3.5" H x 7.25" W x 3.25" D
NIST calibrated wifi/Bluetooth enabled single channel digital data logger with LCD display of the current and high/lo...
DL2BKIT Accessory Front

DL2BKIT

3.5" H x 7.25" W x 3.25" D
NIST calibrated USB digital data logger with LCD display of the current and high/low temperature and audible/visual t...
PF1Kit Accessory

PF1Kit

Power failure alarm designed to be used on virtually any 115/120V appliance

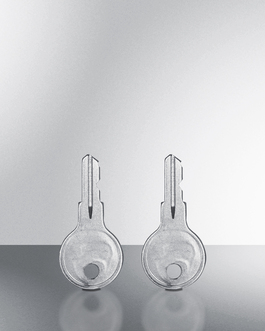

Key Accessory
