24" Wide 2-Drawer All-Refrigerator, ADA Compliant
Next day shipping

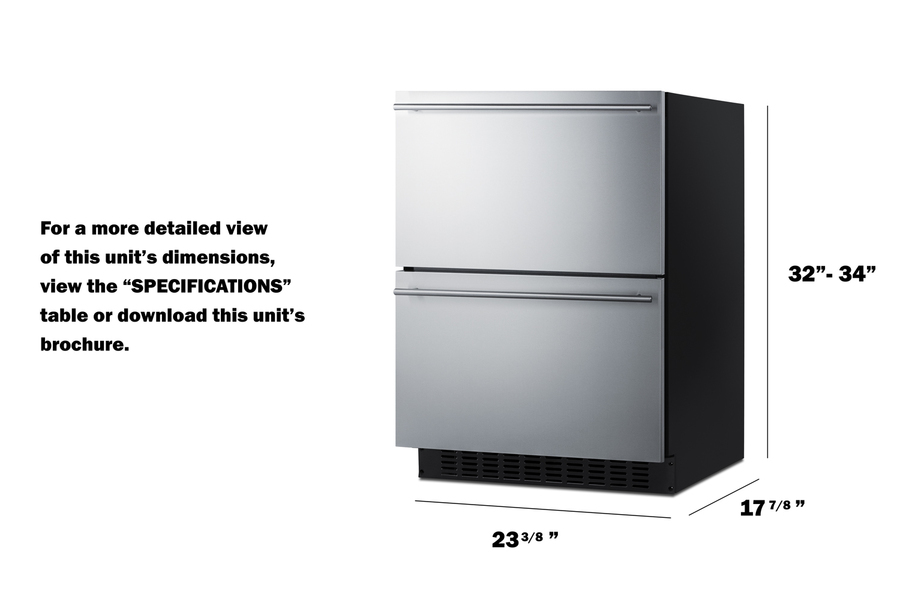

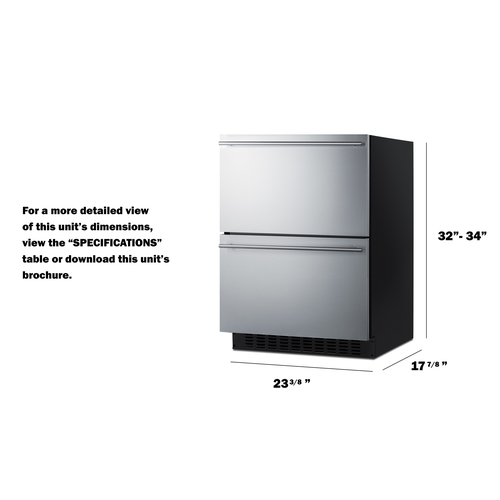

(81cm H x 59cm W x 45cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.88" (45 cm) |
| Depth with Handle | 19.0" (48 cm) |
| Depth with door at 90° | 29.63" (75 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 285.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 106.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079493 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33 dB |
|
Drawer Dimensions
|
|
| Interior Height 1 | 8.0" (20 cm) |
| Interior Width 1 | 17.63" (45 cm) |
| Interior Depth 1 | 11.25" (29 cm) |
| Interior Height 2 | 8.0" (20 cm) |
| Interior Width 2 | 17.63" (45 cm) |
| Interior Depth 2 | 11.25" (29 cm) |
|
Dimensions
|
|
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 17.63" (45 cm) |
| Compressor Step Depth | 4.75" (12 cm) |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES

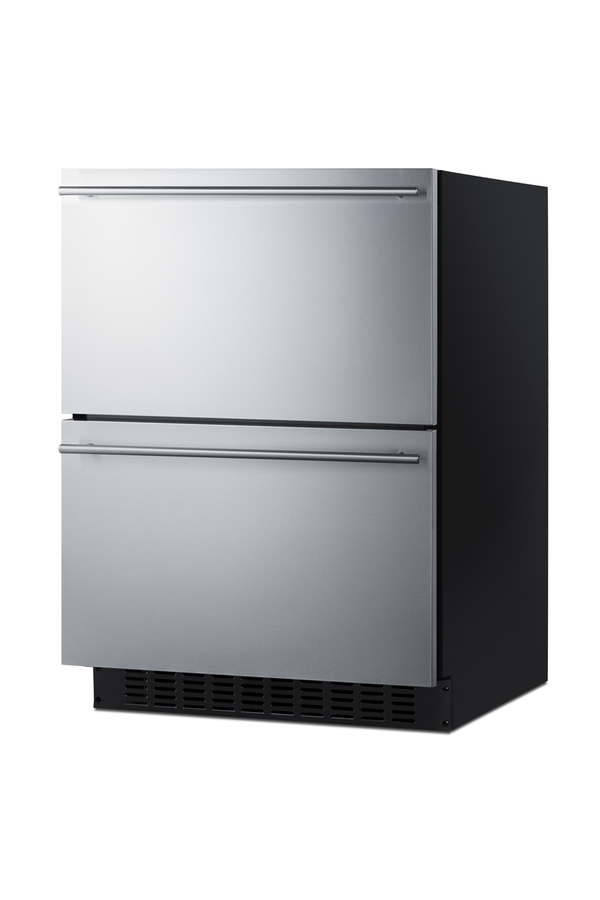

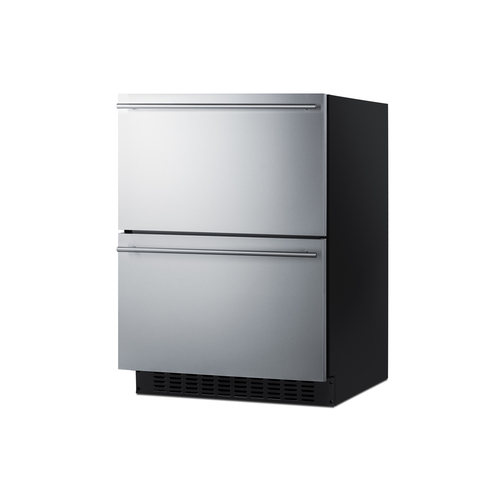

24" wide 3.1 cu.ft. all-refrigerator with two gliding drawers
Unique 17.88" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Sized just under 32" high to allow installation under lower ADA compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings

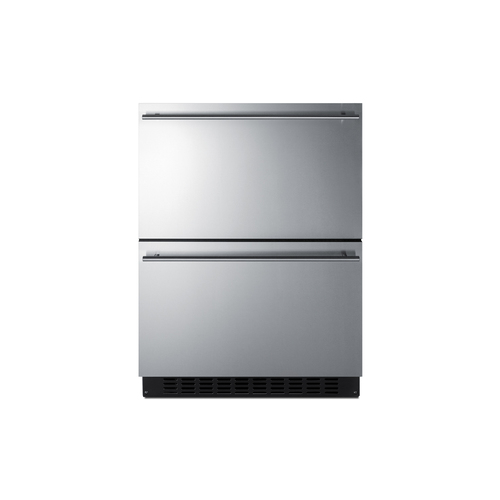

Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look

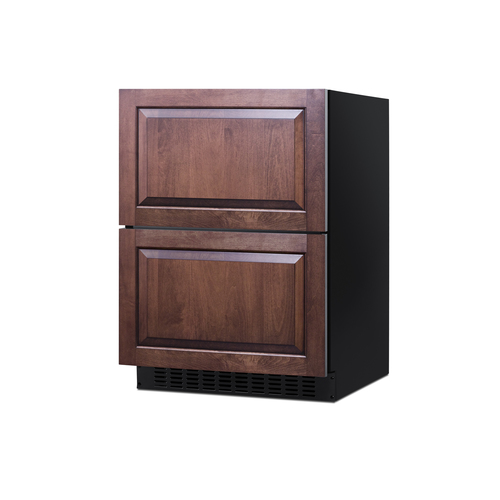

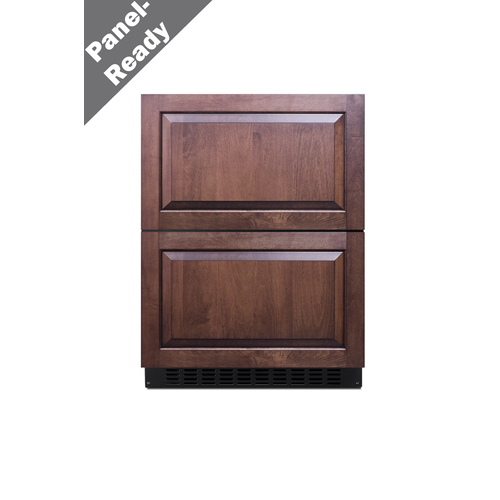

Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
Sleek stainless steel handles add an elegant touch to any setting
No-frost operation for minimum user maintenance

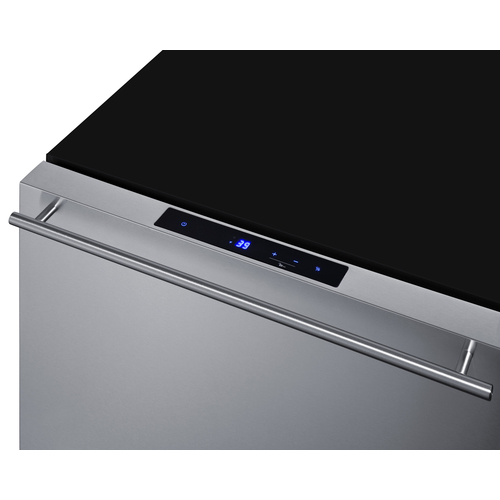

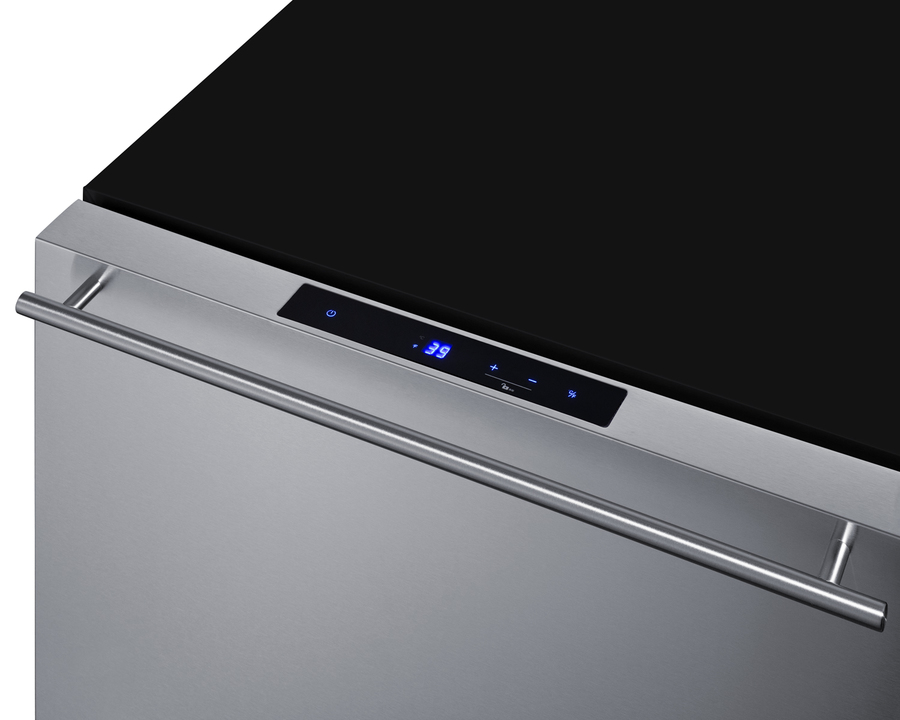

Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

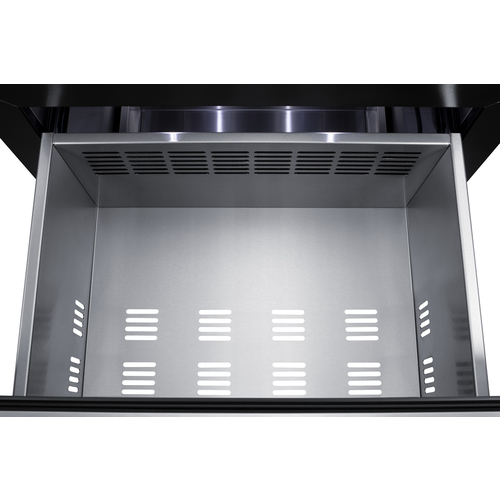

Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
Provides for efficient, even cooling of the entire unit

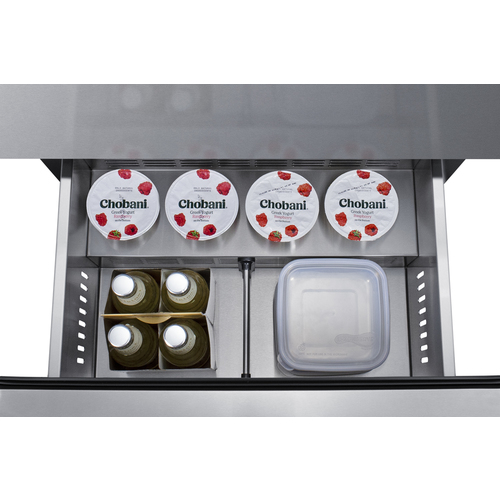

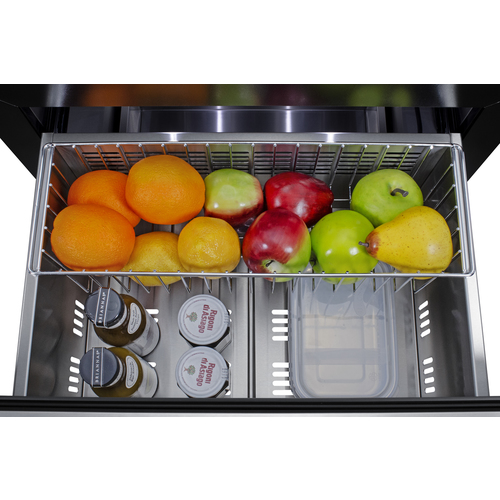

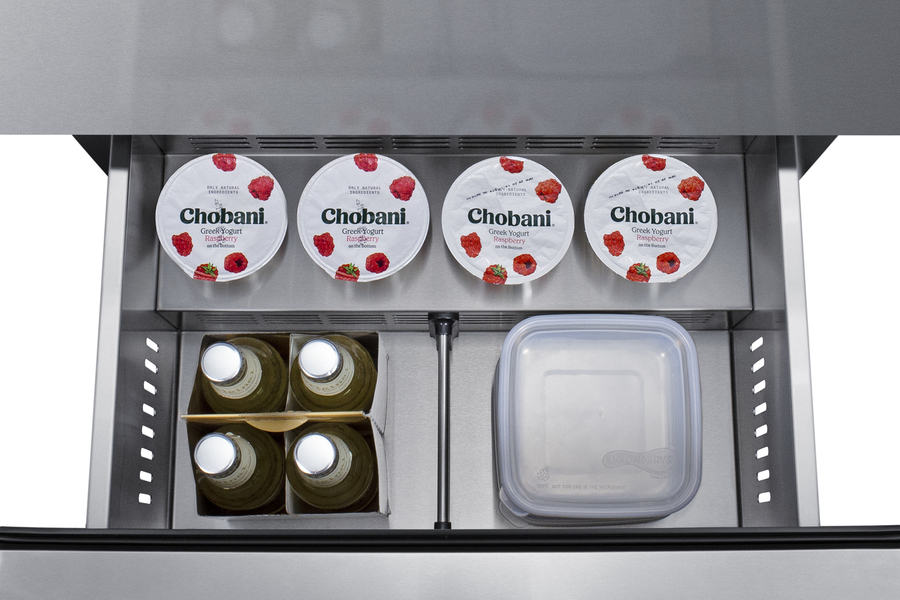

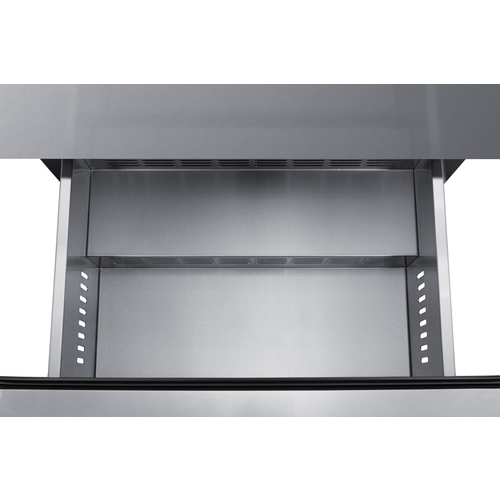

Two adjustable dividers provide flexibility when organizing the interiors
High temperature alarm sounds if the unit's interior goes out of the recommended range
Audible alarm will sound if either drawer is left open longer than one minute
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Disables digital controls after two minutes of activity for added safety
Unit will restore the most recent temperature settings after losing power
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils for easier cleanability
Allows the unit to be used freestanding
Included and recommended for user-installation to reduce the risk of tipping
ETL-S listed to NSF-7 standards to allow use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

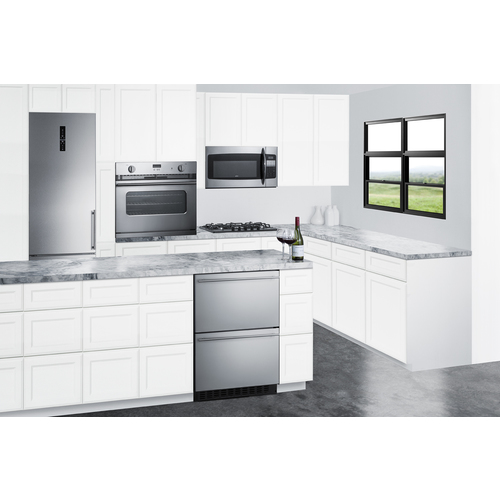

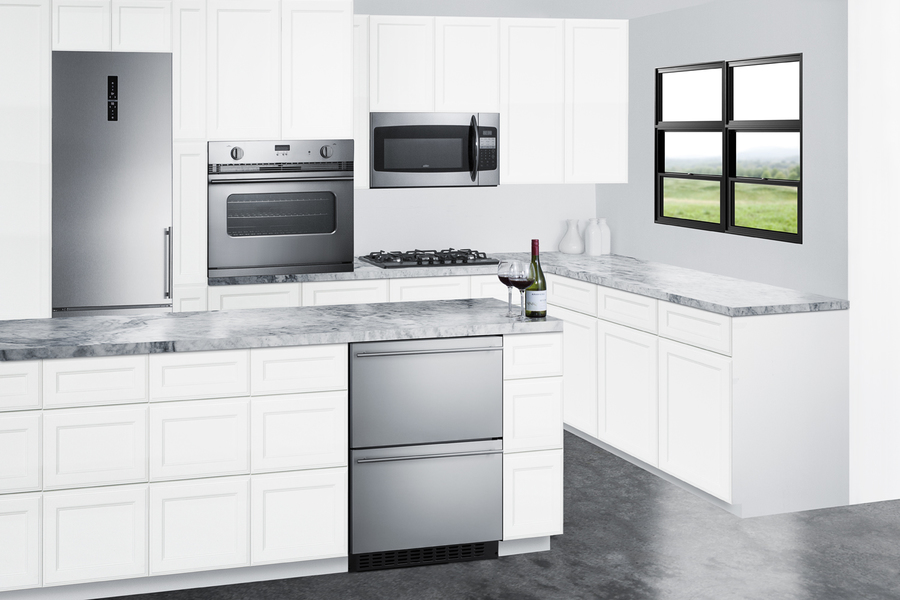

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDR2414 is a 24" wide 2-drawer refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The drawer fronts are fully finished in stainless steel, but can also accept panel overlays for a custom look (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Sleek stainless steel handles are included. Inside, the ASDR2414 has a generous 3.1 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers allow you to separate the drawer compartments for easy organization. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ASDR2414 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in a variety of styles, including 15", 19", and 24" widths, as well as outdoor refrigerators, wine cellars, and more.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
