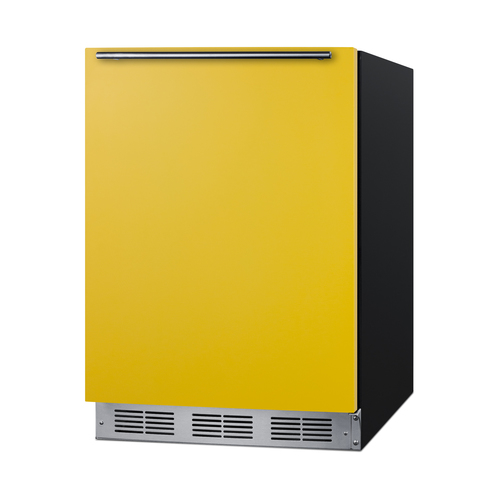

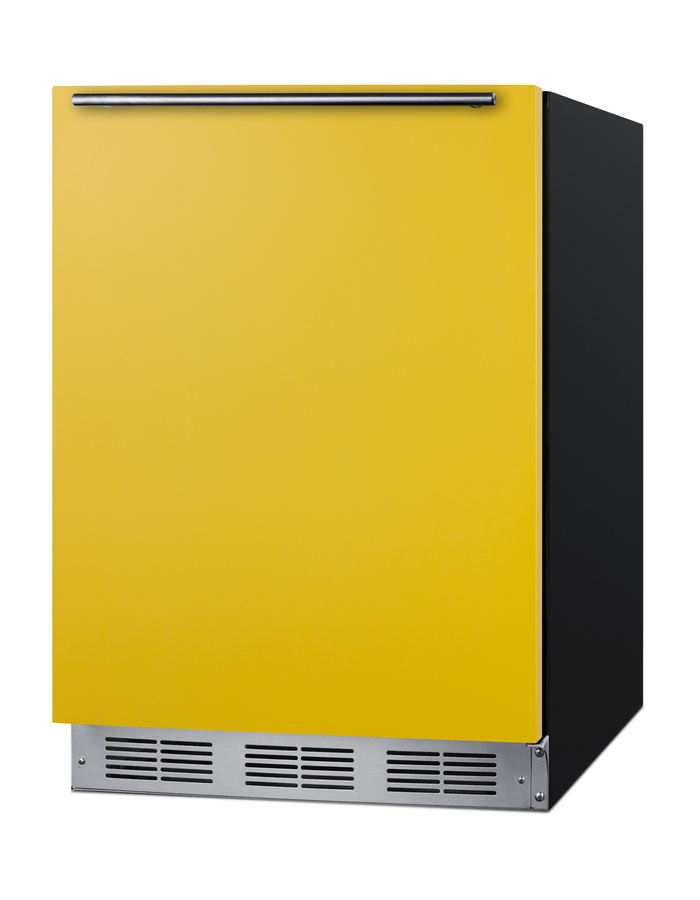

24" Wide All-Refrigerator

SKU: BAR631BKY

Made in Europe and finished with a saffron gold door that adds a bright touch to the kitchen

Estimated Time to Ship:

3 to 5 days

Find a dealer

32.63" H x 23.63" W x 23.0" D
(83cm H x 60cm W x 58cm D)

Overview
Nominal Height	33.0" (84 cm)
Height of Cabinet	32.63" (83 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	23.0" (58 cm)
Depth with Handle	24.5" (62 cm)
Depth with door at 90°	45.25" (115 cm)
Capacity	5.8 cu.ft. (164 L)
Defrost Type	Automatic
Door	Yellow
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	280.0kWh/year
Amps	0.9
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101087924
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Wine Bottle Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Interior Light	Yes
Dimensions
Interior Height	26.25" (67 cm)
Interior Width	21.0" (53 cm)
Interior Depth	18.0" (46 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)

Lock

L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)	L-TopLock Add a single keyed lock located on top of the unit

Exterior

DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	LHD - Left hand door swing Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

24" wide European all-refrigerator

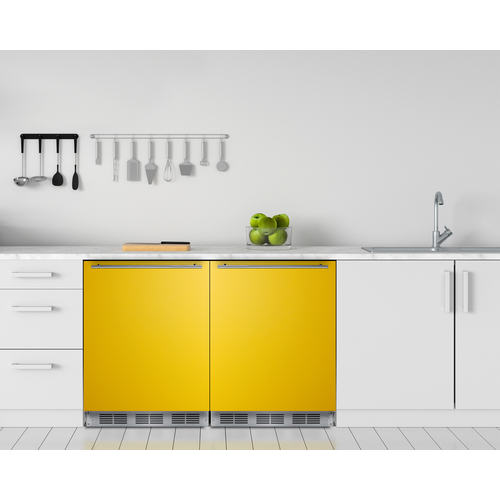

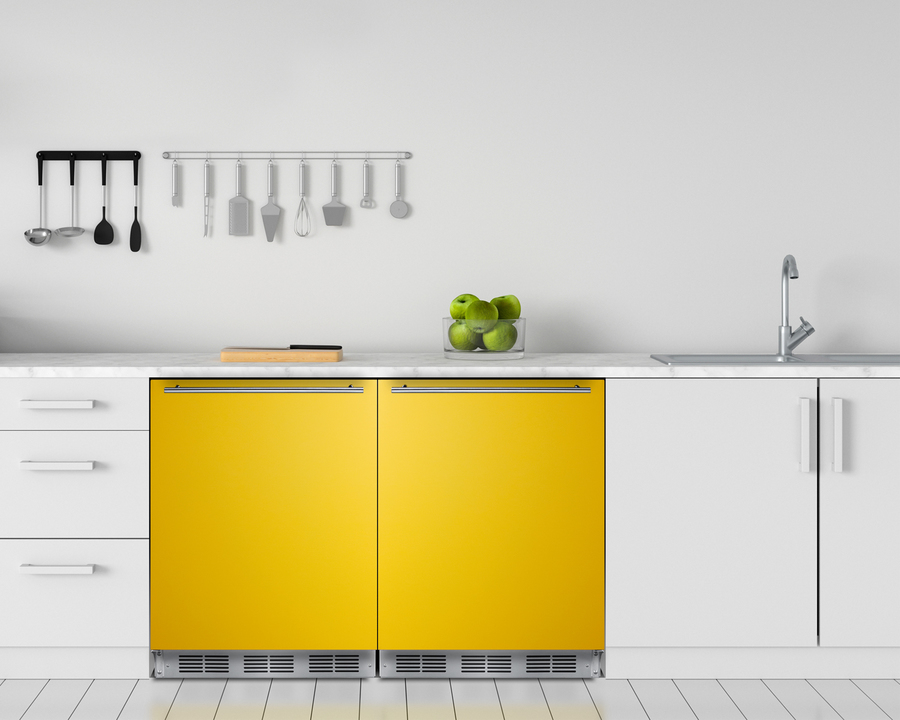

Designed for freestanding or recessed installation in 24" wide spaces

Slim counter height dimensions

Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit

Saffron gold door

Bright yellow door finish with a slight gloss to elevate your undercounter space

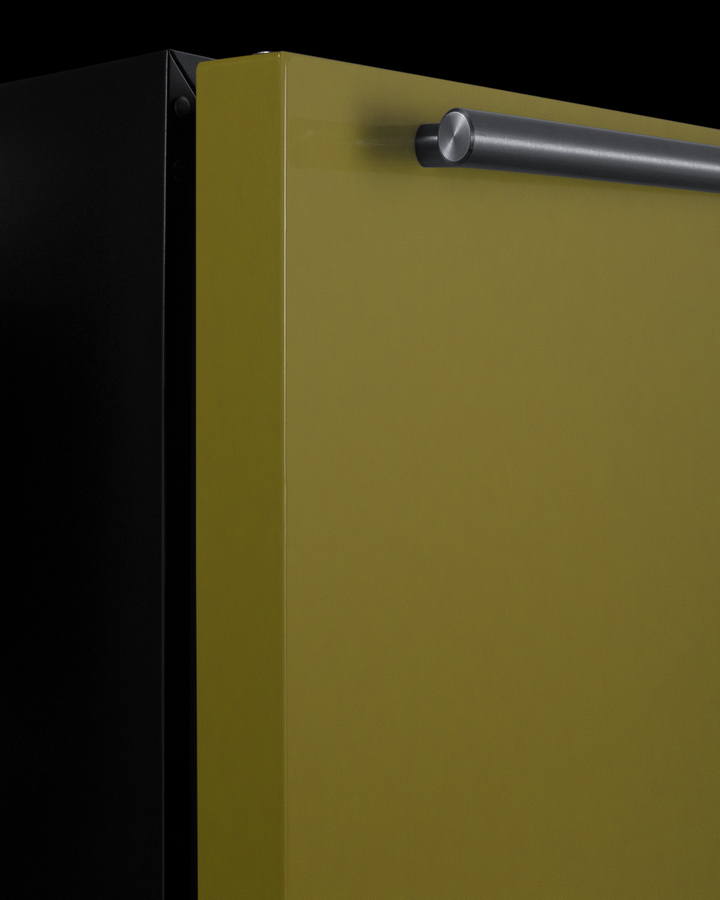

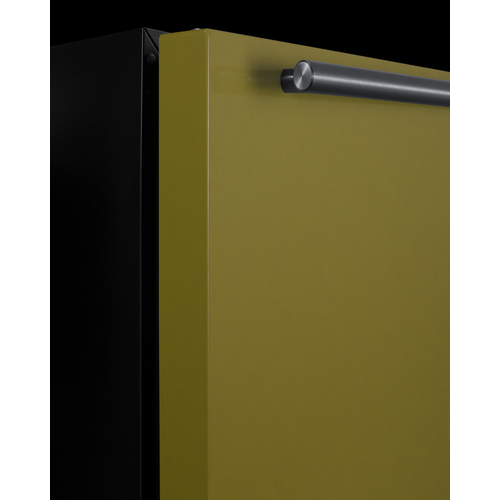

Professional handle

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Automatic defrost

Reduced user maintenance with automatic defrost operation

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior for reliable cooling

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Door storage

Keep tall bottles and condiments right on the door for convenient access

Wine shelf

Removable scalloped wine shelf is included to store champagne and wine bottles

Interior light

Automatically illuminates when you open the door

Adjustable thermostat

Dial thermostat located inside for easy and intuitive temperature management

Stainless steel kickplate

Added touch of style to complement the handle and complete the look

Reversible door

User-reversible door swing for added flexibility

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Make a statement under the counter with Summit's exclusive European collection of boldly colored refrigerators, available in standard or ADA compliant height.

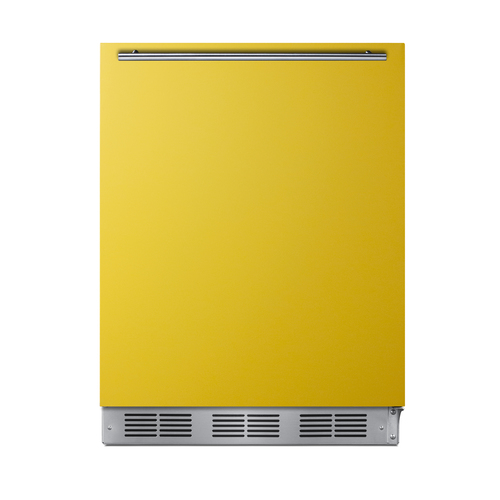

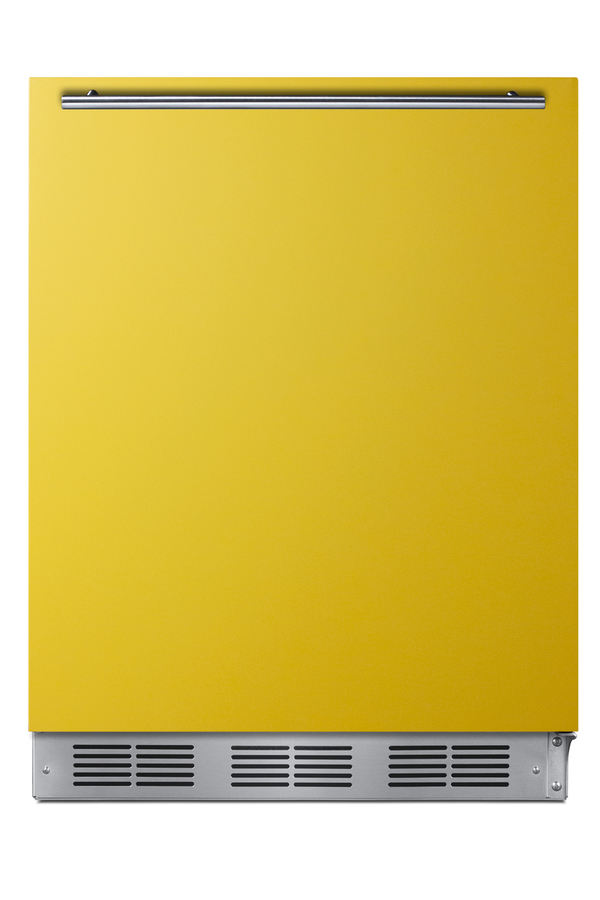

Model BAR631BKY is a 24" wide all-refrigerator with a generous 5.5 cu.ft capacity. The door comes in a bright saffron gold hue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look. This unit has jet black exterior cabinet. It is manufactured in Europe and modified in the United States with domestic steel finishing.

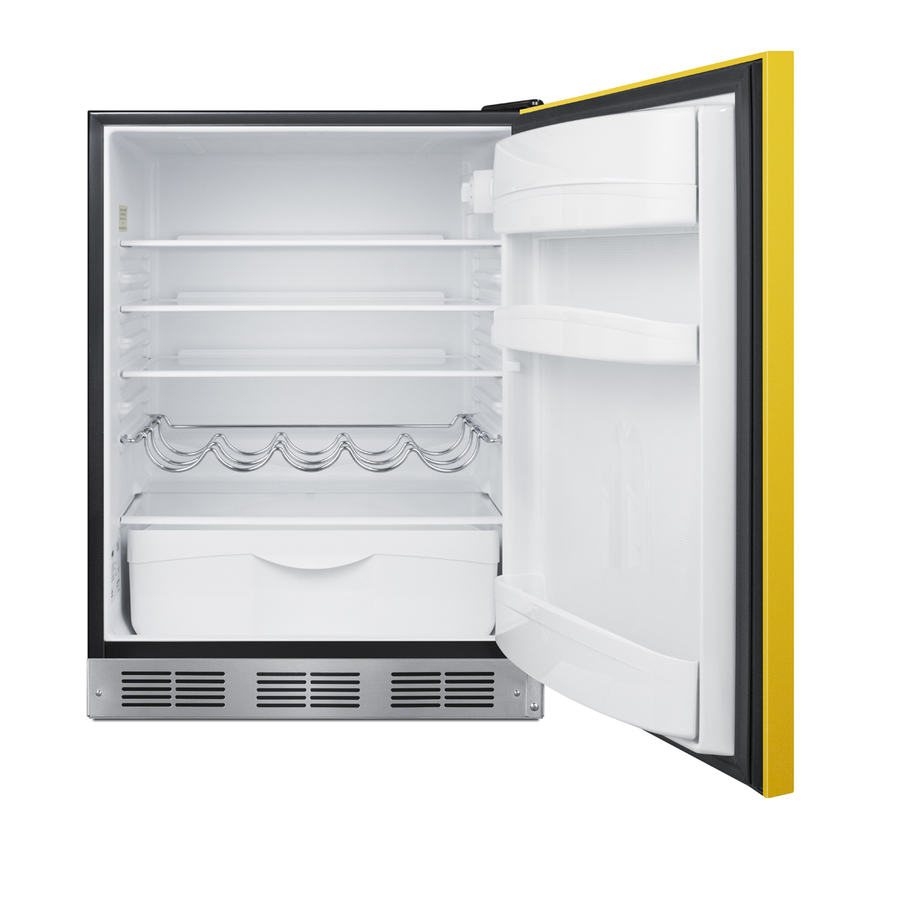

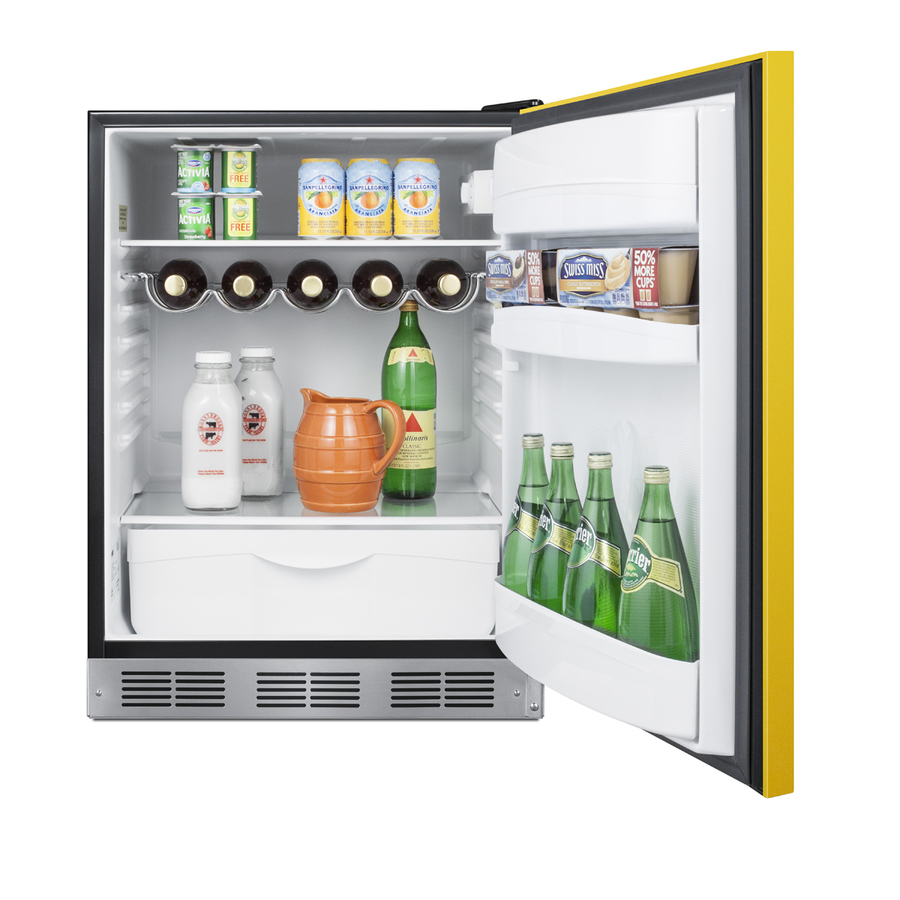

Inside, the BAR631BKY utilizes automatic defrost operation to ensure minimum user maintenance with a cold wall design for more reliable cooling. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, while a large crisper drawer is ideal for keeping produce at its best. A removable wine shelf lets you keep bottles securely in place. The door includes three storage racks for condiments and tall bottles. The seamless interior also features a dial thermostat and automatic light.

Additional colors are available, including emerald green, cobalt blue, and lavender. Browse the full Summit selection to find the perfect addition to your kitchen.

BROCHURE w/ DRAWINGS
BAR631BKY.pdf

TECHNICAL DRAWING (.dwg)
FF6_1W-3BK_SSHH__w-COLOR_.dwg

ASSEMBLY DRAWING
FF6_1W-3BK_SSHH__w-COLOR_-Assembly.pdf

USE & CARE
FF61W_FF63BK_BAR611_BAR631_FF6BK_FF708_User_Manual_6-9-23.pdf
