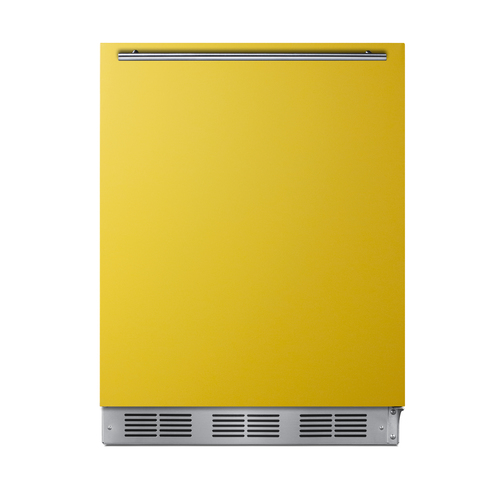

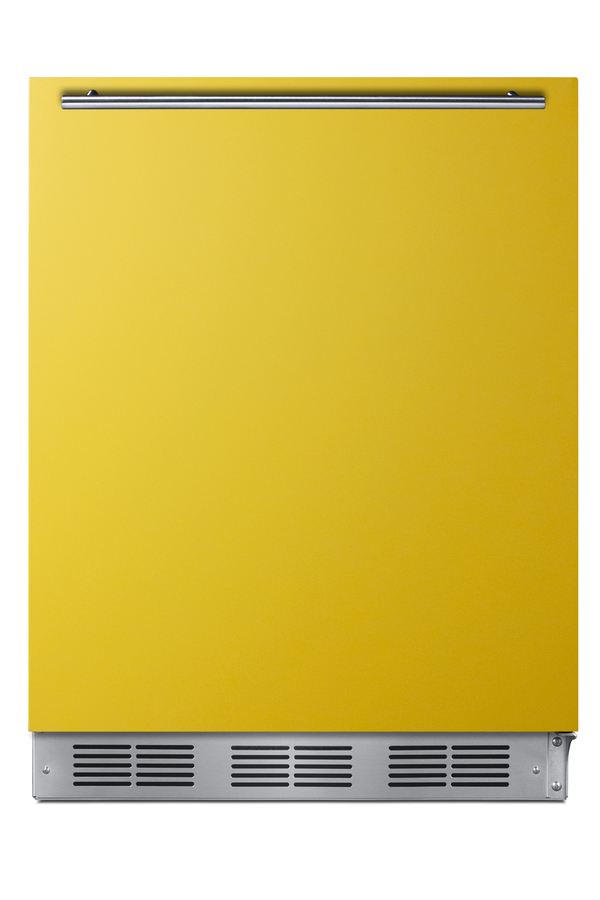

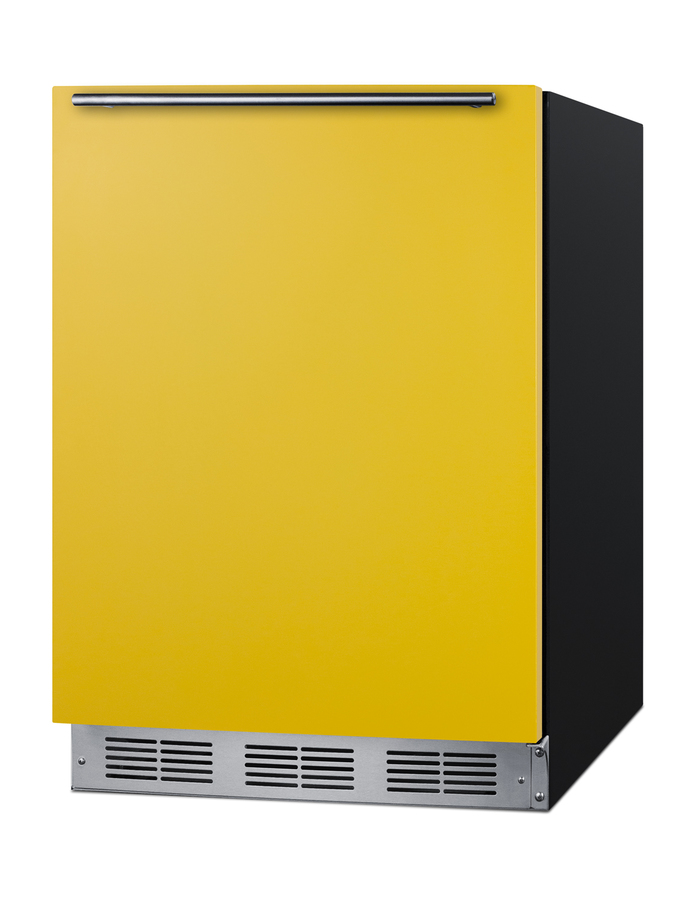

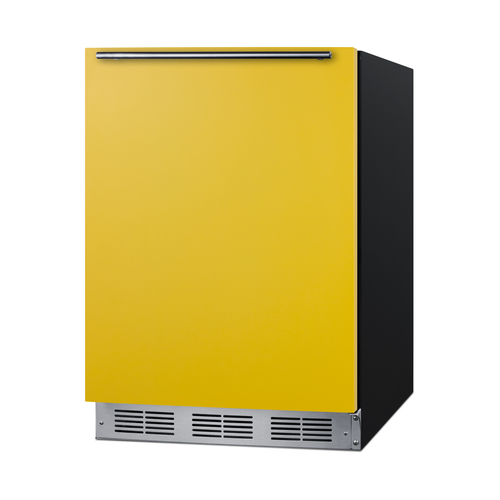

24" Wide All-Refrigerator, ADA Compliant
3 to 5 days
(82cm H x 60cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.13" (82 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with Handle | 24.5" (62 cm) |
| Depth with door at 90° | 45.25" (115 cm) |
| Capacity | 5.8 cu.ft. (164 L) |
| Defrost Type | Automatic |
| Door | Yellow |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 0.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101087962 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Opaque |
| Crisper Cover | Glass |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
|
Dimensions
|
|
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
AVAILABLE UPGRADES
| Lock | |||
|---|---|---|---|
|
|||
| Exterior | |||
|
FEATURES

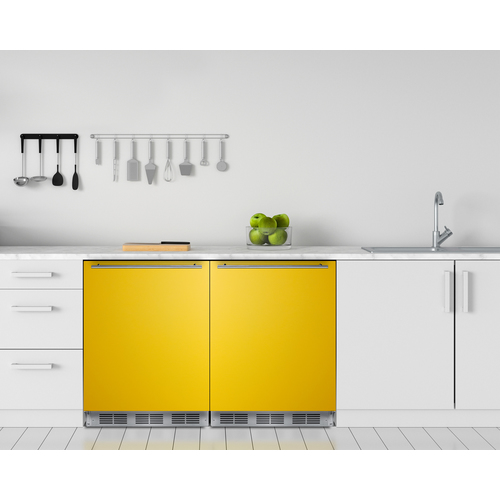

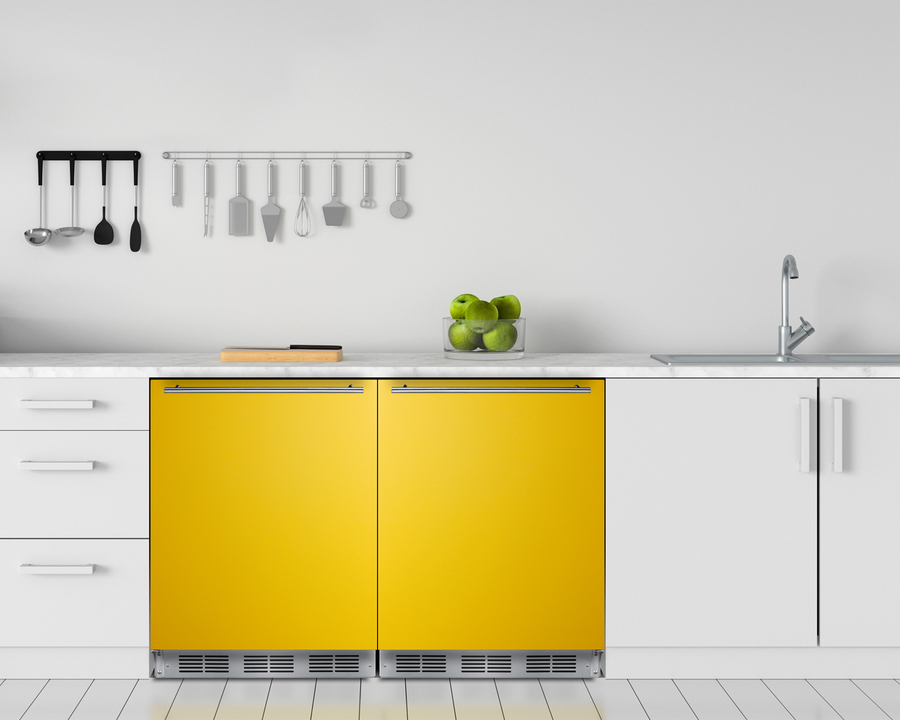

Designed for freestanding or recessed installation in 24" wide spaces
32" height for use in settings complying with ADA guidelines for lower counter height
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Bright yellow door finish with a slight gloss to elevate your undercounter space

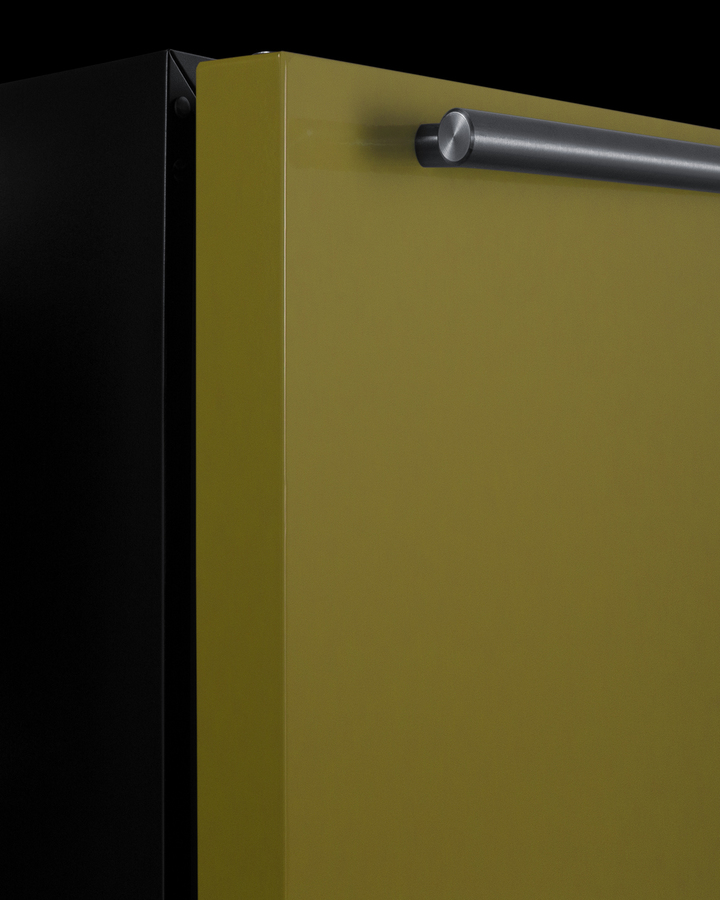

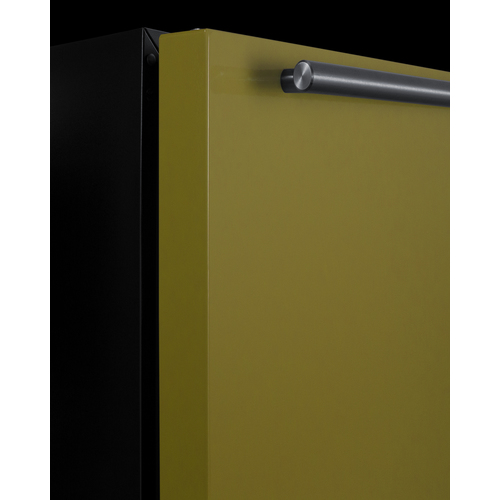

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
Reduced user maintenance with automatic defrost operation
Cold wall design with hidden evaporator and seamless interior for reliable cooling
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

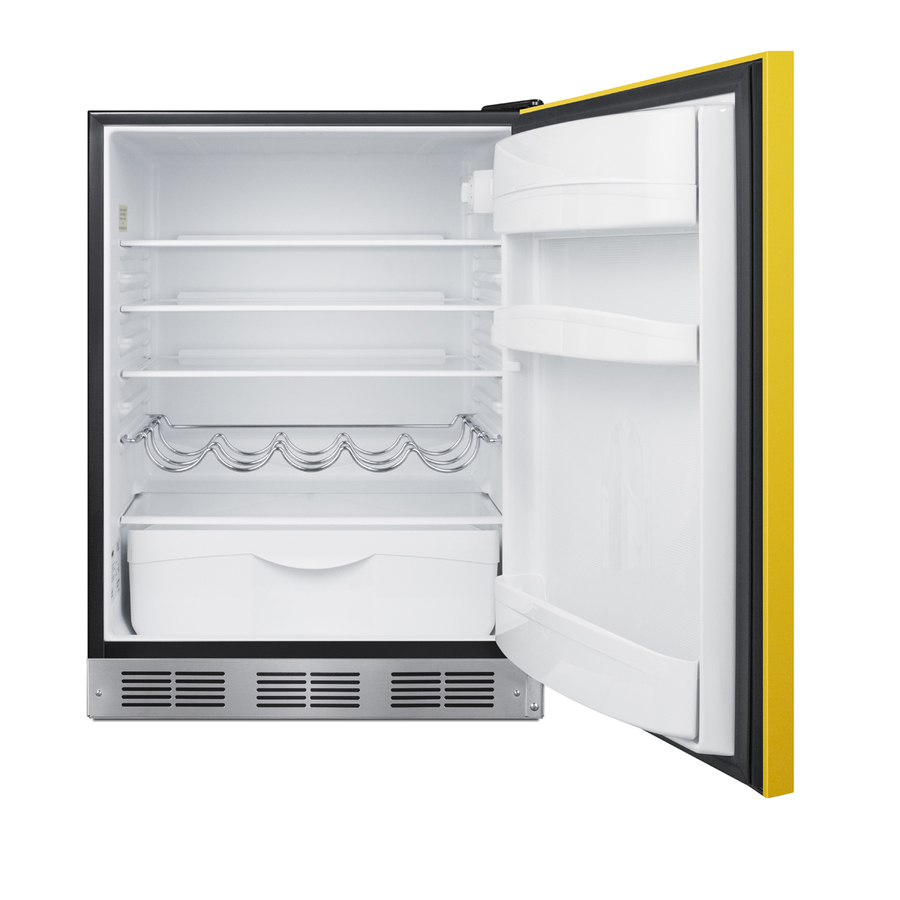

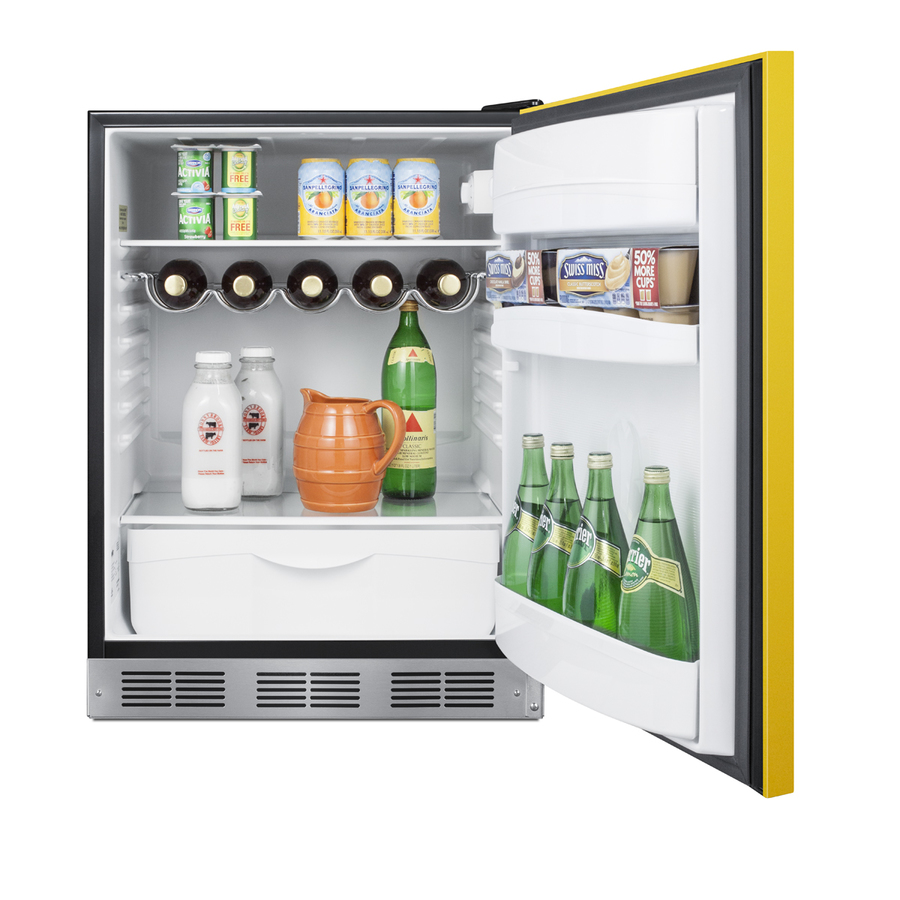

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Keep tall bottles and condiments right on the door for convenient access
Removable scalloped wine shelf is included to store champagne and wine bottles
Automatically illuminates when you open the door
Dial thermostat located inside for easy and intuitive temperature management
Added touch of style to complement the handle and complete the look
User-reversible door swing for added flexibility
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

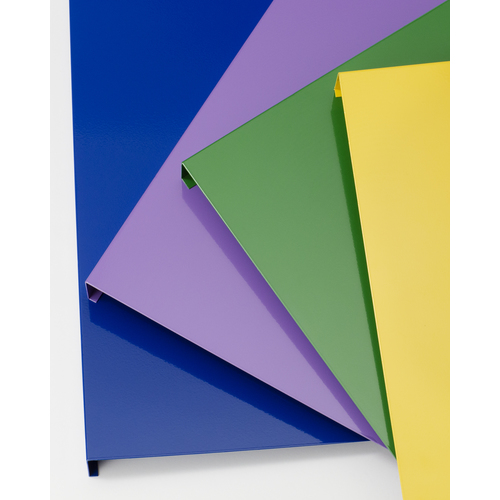

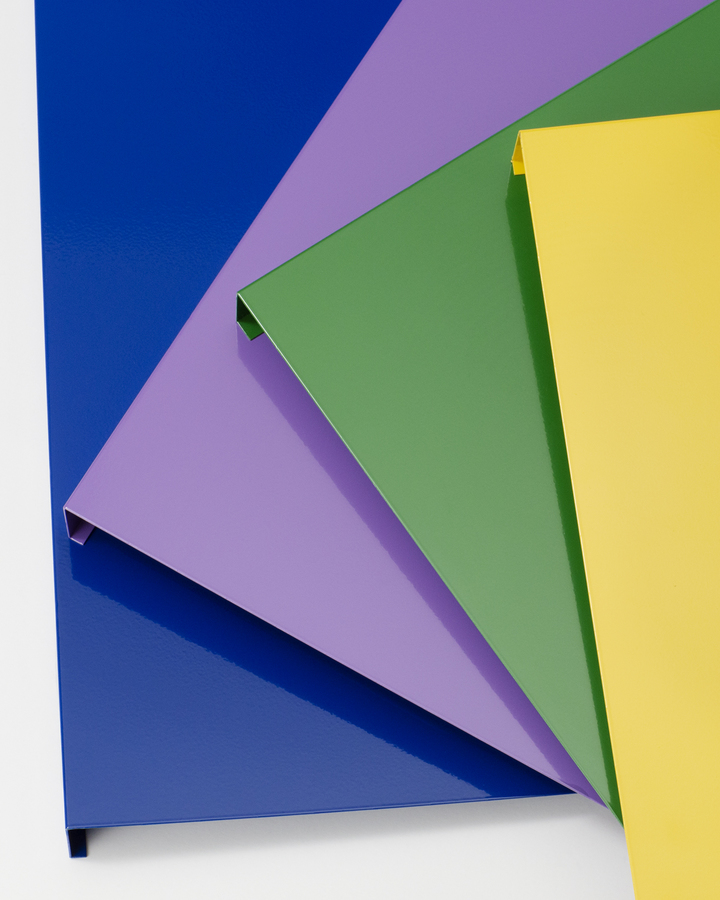

Make a statement under the counter with Summit's exclusive European collection of boldly colored refrigerators, available in standard or ADA compliant height. Model BAR631BKYADA is a 24" wide all-refrigerator sized at just 32" high for use in ADA compliant settings. The door comes in a bright saffron gold hue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look. This unit has jet black exterior cabinet. It is manufactured in Europe and modified in the United States with domestic steel finishing. Inside, the BAR631BKYADA utilizes automatic defrost operation to ensure minimum user maintenance with a cold wall design for more reliable cooling. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, while a large crisper drawer is ideal for keeping produce at its best. A removable wine shelf lets you keep bottles securely in place. The door includes three storage racks for condiments and tall bottles. The seamless interior also features a dial thermostat and automatic light. Additional colors are available, including emerald green, cobalt blue, and lavender. Browse the full Summit selection to find the perfect addition to your kitchen.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
