12 lb. Drain-Free Outdoor Icemaker

SKU: BIM24OS

No drain required for more flexibility in placing the icemaker

DISCONTINUED- REPLACED BY BIM27OSADA

25.25" H x 15.13" W x 20.63" D
(64cm H x 38cm W x 52cm D)

Overview
Height of Cabinet	24.88" (63 cm)
Height to Hinge Cap	25.25" (64 cm)
Width	15.13" (38 cm)
Depth	20.63" (52 cm)
Depth with Handle	23.13" (59 cm)
Depth with door at 90°	34.25" (87 cm)
Capacity	1.0 cu.ft. (28 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101001036
Icemaker
Door Swing	RHD
Reversible	No
Daily Ice Production	12.0 lbs. (5 kg)
Ice Storage Capacity	12.0 lbs. (5 kg)
Ice Shape	Crescent
Number of Ice Cube Sizes	1
Refrigerant Type	R600a
Refrigerant Amount	0.63 oz.
High Side PSI	250.0
Low Side PSI	110.0
Interior Height	11.75" (30 cm)
Interior Width	10.0" (25 cm)
Interior Depth	13.0" (33 cm)
Level Legs	2

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

U.L. approved for outdoor use

Weatherproof design rated safe for outdoor operation

Ground Fault Circuit Interrupter

Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks

Complete 304 grade stainless steel construction

Durable exterior with lasting elegance

Professional towel bar handle

A curved stainless steel handle provides generous room for a comfortable grip

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished cabinet

Allows the icemaker to be used freestanding

Insulated storage bin

Ice maintains solid crescent shape longer in cold storage bin

Sealed back

No exposed electrical components

Storage base options

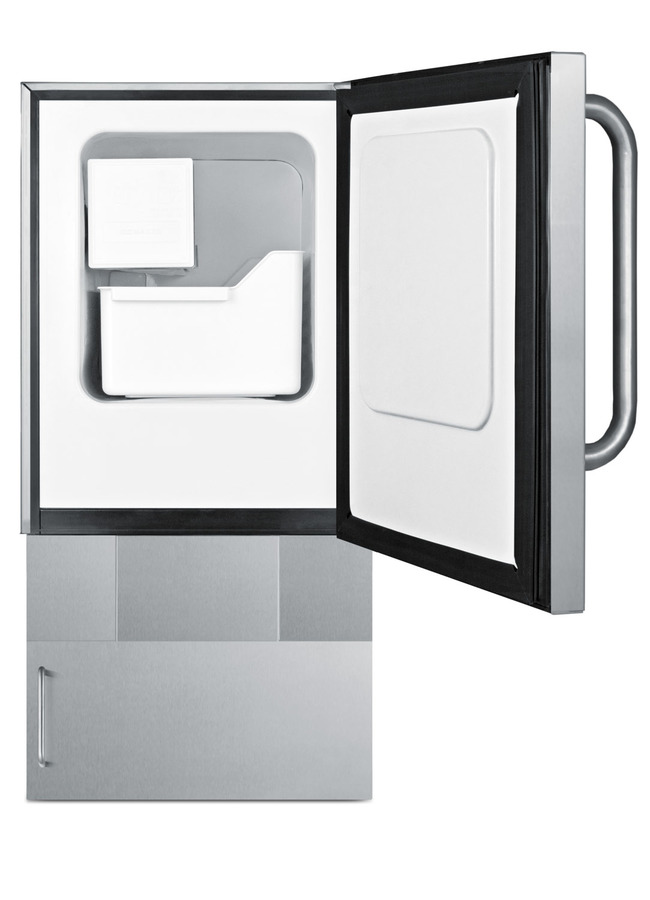

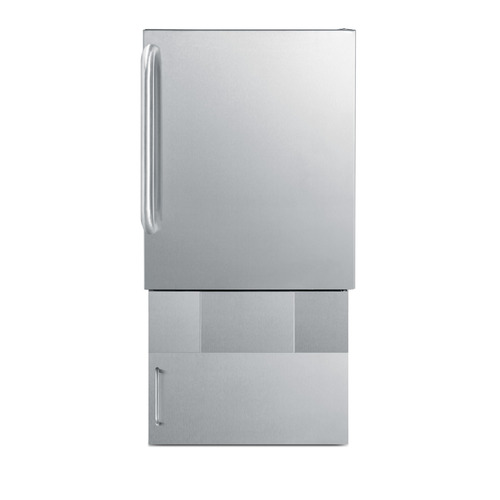

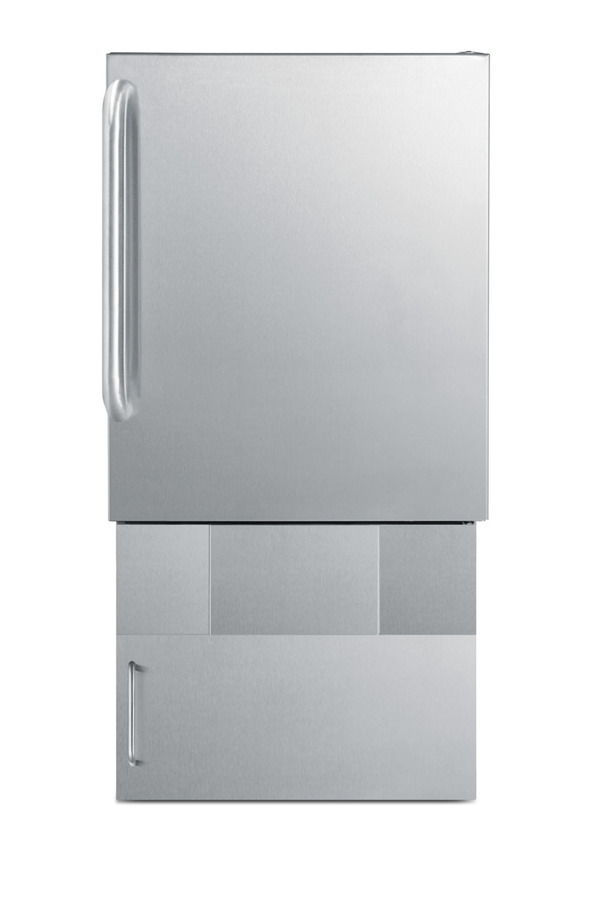

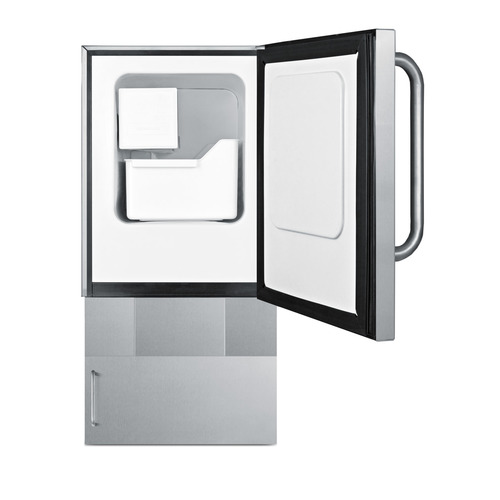

Bases available to raise unit height; Base 32 brings BIM24OS to ADA compliant counter height, Base 34 raises it to fit under standard counters

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

SUMMIT brings a convenient freeze to the outdoors with the BIM24OS, a compact icemaker with U.L. approval for outdoor use.

Fully wrapped in 304 grade stainless steel, the BIM24OS is designed to stand up to nature with elegant style. The weatherproof design includes a completely sealed back that protects all electrical components and SUMMIT's integrated Ground Fault Circuit Interrupter (GFCI) adds an extra level of protection and automatically resets the unit in the event of power failure.

At just over 15" wide, the BIM24OS is easy to place and can be used built-in or freestanding above or below the counter. Storage bases are available in two sizes: Base 32 to raise the height to an ADA compliant 32", or Base 34 to make it adjustable from 33" to 34 ¾" high.

The BIM24OS can produce up to 12 lbs. of crescent shaped cubes in a day cycle, storing it in a carefully insulated storage bin. Operation does not require a drain. Our signature 12" towel bar handle completes the package.

BROCHURE w/ DRAWINGS
BIM24OS.pdf

TECHNICAL DRAWING (.dwg)
BIM24OSICEMAKER_ARCH.dwg

USE & CARE
BIM24OS_BIM25H32_34_ENG_and_FR_01.29.21.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
