Built-In 50 lb. Clear Icemaker, ADA Compliant (Panel Not Included)
3 to 5 days
*Additional features may vary

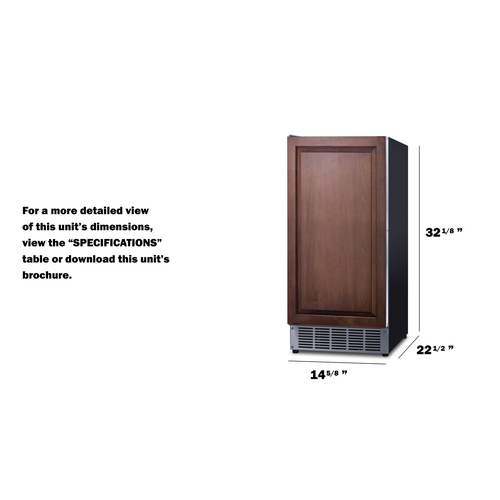

(82cm H x 37cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.38" (82 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.5" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | NSF |
| Amps | 4.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101029283 |
|
Icemaker
|
|
| Door Swing | LHD |
| Reversible | Factory Reversible |
| Drain Required | Yes |
| Daily Ice Production | 50.0 lbs. (23 kg) |
| Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Ice Shape | Cube |
| Size of Cube | 7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.88 oz. |
| High Side PSI | 350.0 |
| Low Side PSI | 130.0 |
| Interior Height | 18.5" (47 cm) |
| Interior Width | 12.0" (30 cm) |
| Interior Depth | 16.0" (41 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES
Efficient performance for commercial use
32 3/8" height fits under lower ADA compliant counters
NSF listed for use in commercial establishments
Internal pump allows more flexibility in placing the unit
Make the best use of space by installing your appliance under the counter

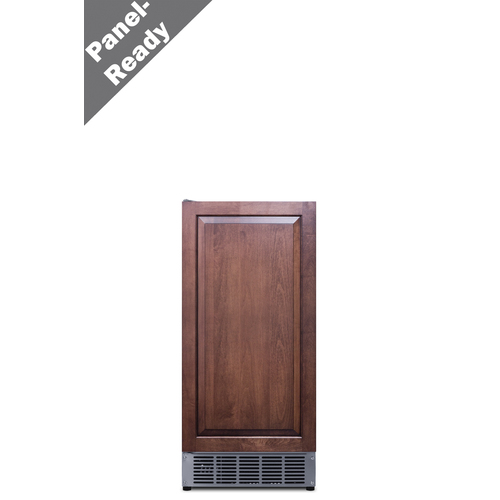

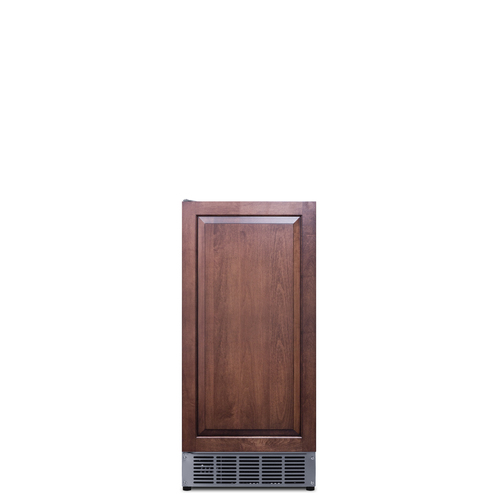

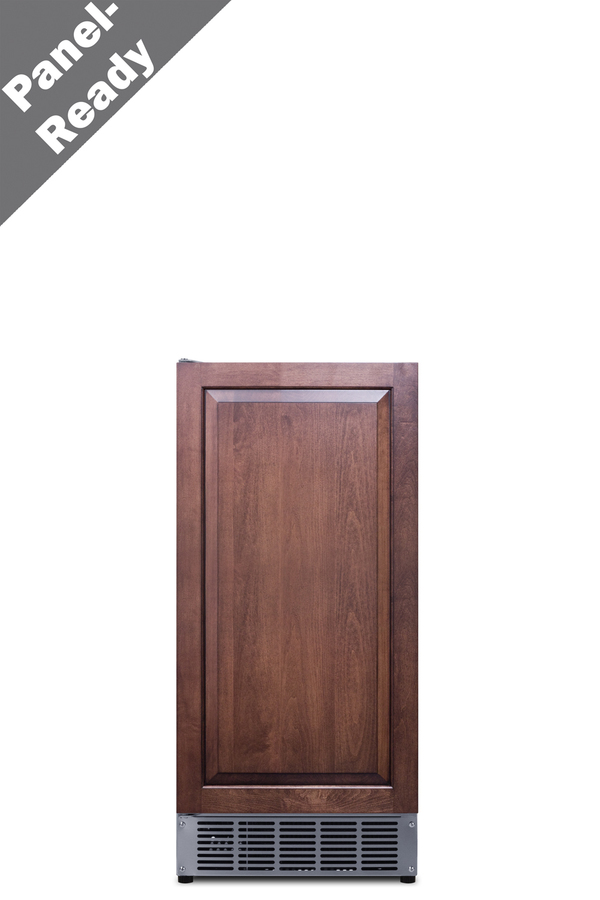

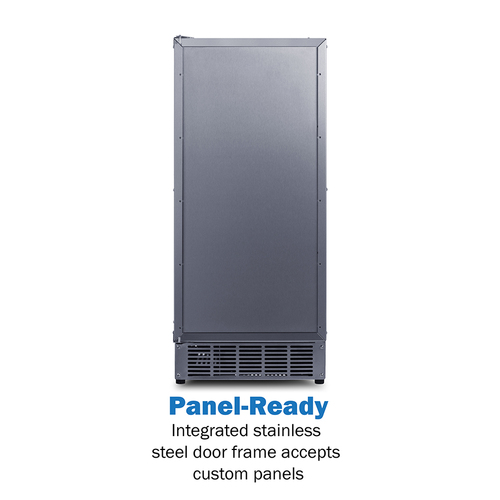

Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)

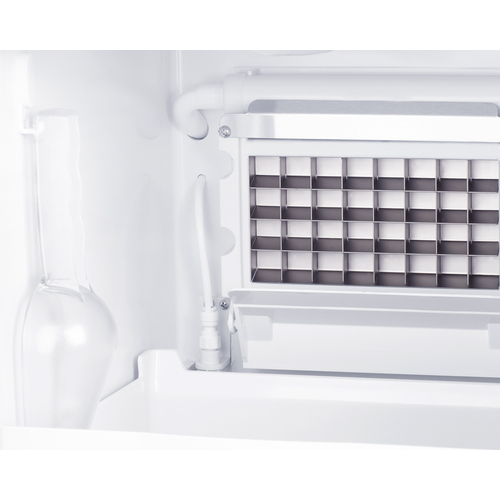

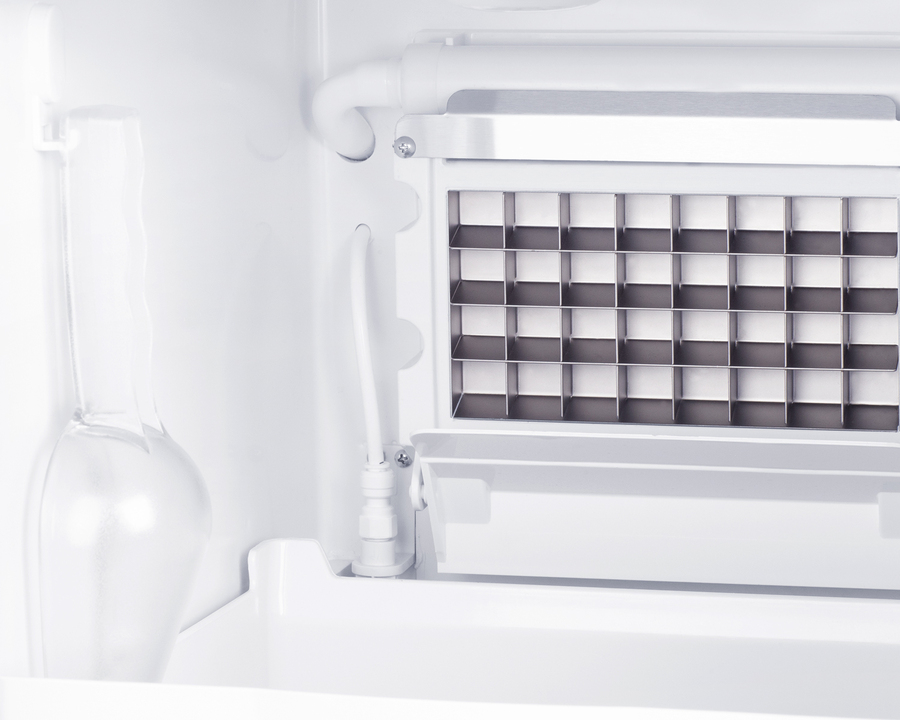

Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
Reduced maintenance with auto defrost system
Ice stays frozen longer inside this cold-protected bin
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
DESCRIPTION

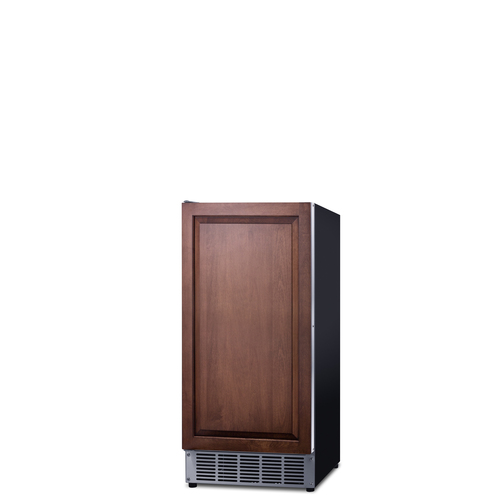

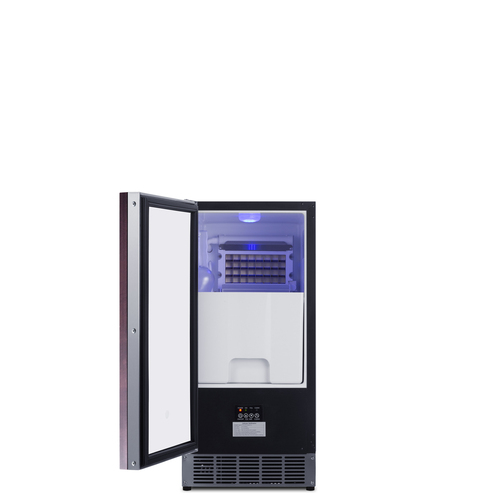

SUMMIT BIM44GIFADA is an auto defrost clear icemaker designed for true convenience under the counter in ADA compliant settings. At just under 15" wide, the BIM44GIFADA is ideal for finishing any kitchen or wet bar. The door includes an integrated stainless steel frame that can accept full overlay panels for a seamless look that blends into matching cabinetry. Users supply their own handles. This unit is 32 3/8" high to fit under lower counters following ADA guidelines. Automatic defrost makes maintenance simple and stress-free, while the BIM44GIFADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use. The BIM44GIFADA can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. The ice is produced in sheets and can be easily broken into cubes using the provided scoop. This unit must be used with a drain. It is NSF listed to commercial standards and is ENERGY STAR certified for commercial use.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
