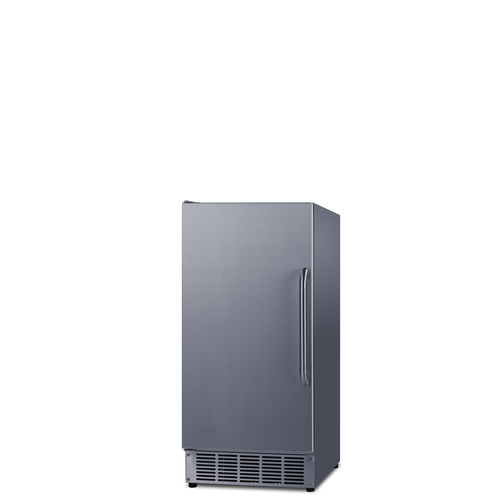

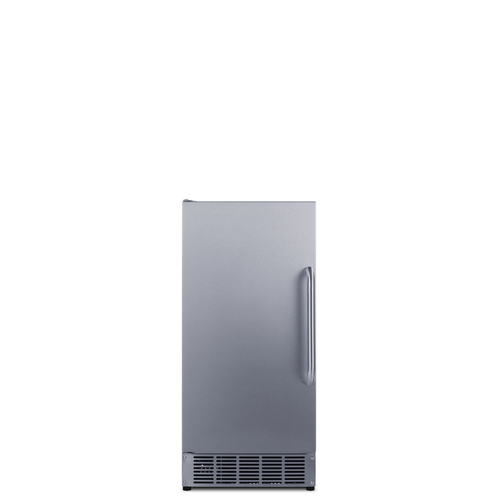

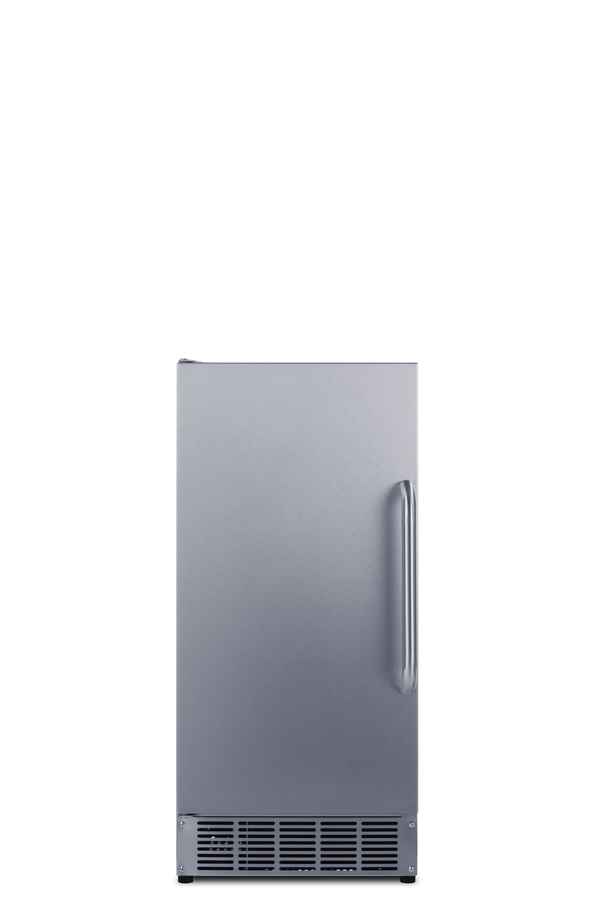

Built-In Outdoor 50 lb. Clear Icemaker, ADA Compliant

SKU: BIM47OSADA
Sized to fit under lower ADA compliant counters in outdoor kitchen spaces
Estimated Time to Ship:

2 to 4 days

Application:
Indoor Outdoor

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

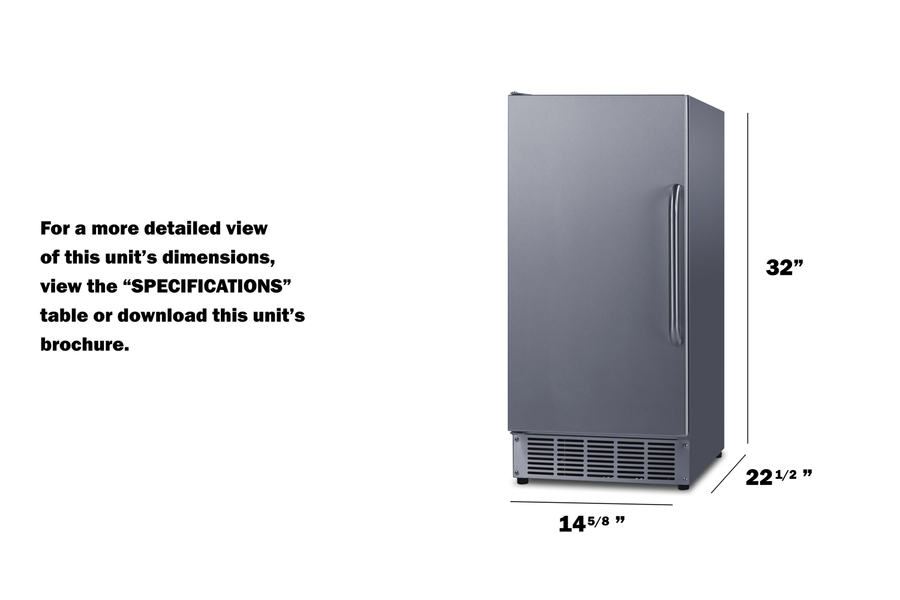

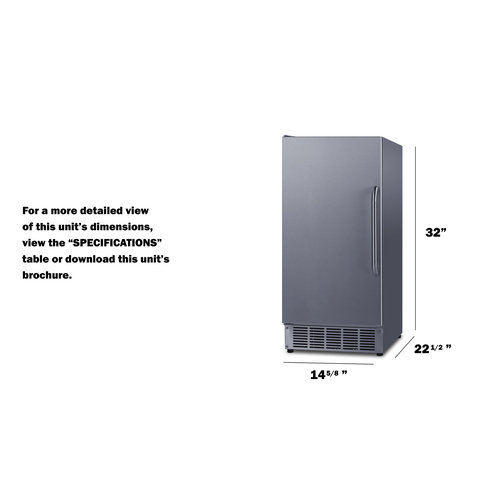

32.38" H x 14.5" W x 23.25" D
(82cm H x 37cm W x 59cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.38" (82 cm)
Nominal Width 15.0" (38 cm)
Width 14.5" (37 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.25" (59 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 36.75" (93 cm)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 4.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101067766
Icemaker
Door Swing LHD
Reversible Yes
Drain Required Yes
Daily Ice Production 50.0 lbs. (23 kg)
Ice Storage Capacity 25.0 lbs. (11 kg)
Ice Shape Cube
Size of Cube 7/8" x 7/8" x 7/8"
Number of Ice Cube Sizes 1
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 3.88 oz.
High Side PSI 350.0
Low Side PSI 130.0
Interior Height 18.5" (47 cm)
Interior Width 12.0" (30 cm)
Interior Depth 16.0" (41 cm)
Level Legs 4

Exterior
RHD - Right hand door swing
Door reversal to right hand door swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

Commercially approved

ETL-S listed to NSF-12 commercial standards

Weatherproof design

Durable stainless steel construction for safe installation in outdoor spaces

ADA compliant

32 3/8" height fits under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your icemaker under the counter

50 lb. production capacity

Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. per day (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)

ENERGY STAR certified commercial performance

Efficient performance saves on energy use and costs

Built-in pump

Internal pump affords more flexibility in placing the unit

Automatic defrost

Reduced maintenance with auto defrost system

Clear ice cube production

Produces 7/8" x 7/8" x 7/8" clear ice cubes

Touch control panel

Provides easy operation of the unit with indicator lights for each stage of the production process

Reversible stainless steel door

User-reversible door swing for flexible placement

Professional towel bar handle

A curved handle in brushed stainless steel offers an easy grip

Insulated storage bin

Ice stays solid longer in this cold-protected bin

Interior light

Lighting in a soft blue hue for easy viewing of the interior

Ice scoop included

Interior wall includes brackets to hang for easy storage

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

Sealed back

Space saving design for easier cleanability

Leveling legs

Four leveling legs help to keep the unit level on uneven surfaces

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit's line of commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor kitchen space.

ENERGY STAR certified for commercial use, BIM47OSADA is just 32 3/8" high, ideal for use under lower counters following ADA compliant guidelines. It features a complete stainless steel exterior specially built to hold up to the outdoor elements. The front-breathing design allows built-in use under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. The user-reversible stainless steel door includes a curved towel bar handle for a professional look. NOTE: this unit ships with a left hand door swing that can be reversed before delivery (add suffix RHD) or at home.

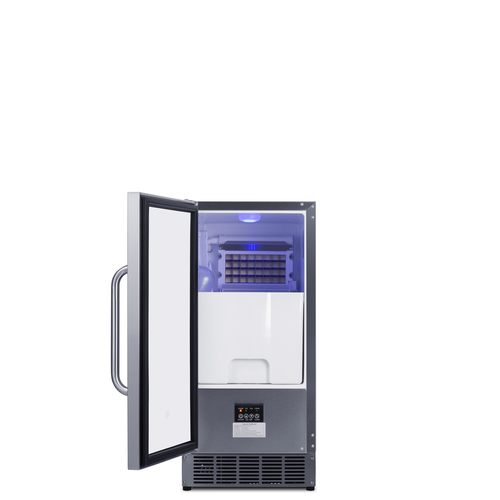

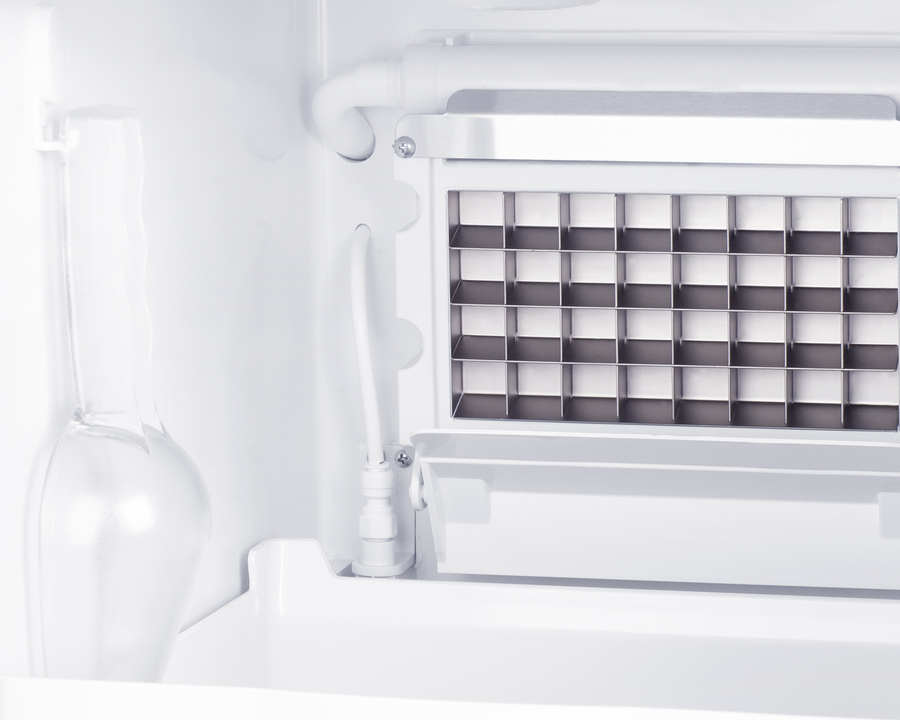

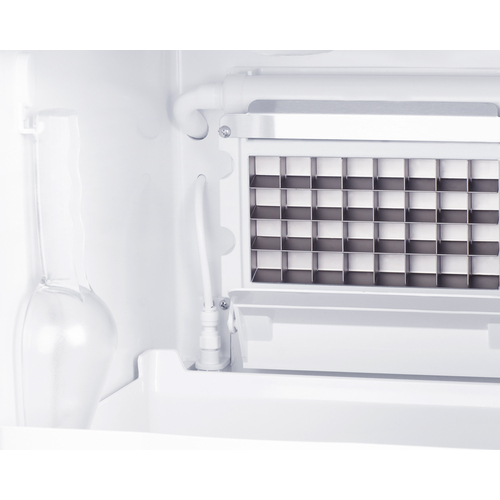

Inside, the BIM47OSADA has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 50 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided stainless steel scoop, which can be mounted on brackets inside for easy use. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces.

Sized at 15" wide, BIM47OSADA is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. For this unit in a standard height, see the BIM47OS.



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
