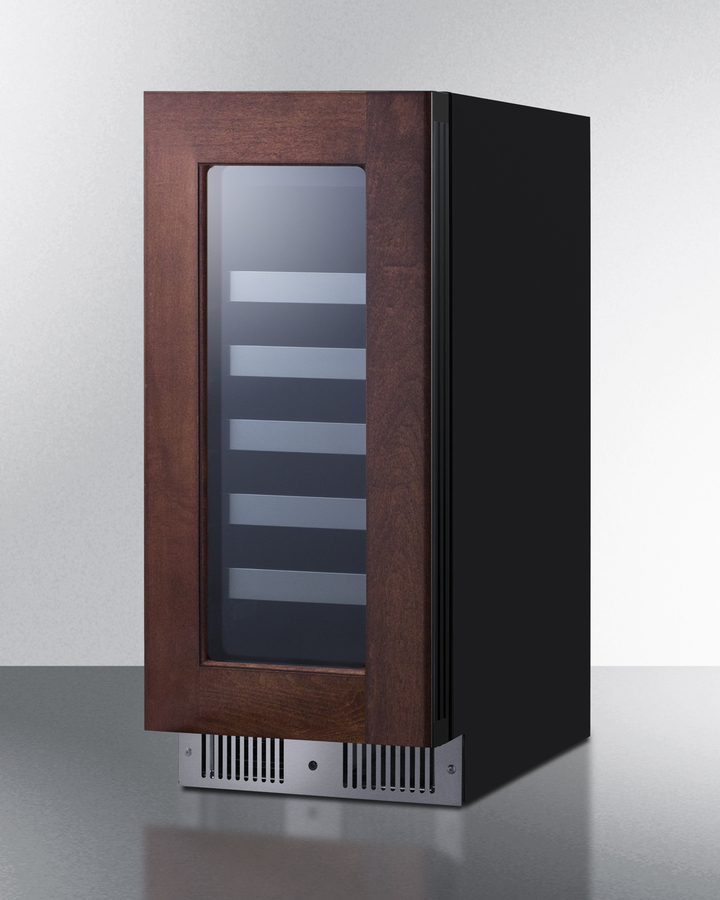

15" Wide Built-In Wine Cellar (Panel Not Included)
1 to 2 days
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
(86cm H x 37cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 22.88" (58 cm) |
| Depth with door at 90° | 37.5" (95 cm) |
| Bottles | 20 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156156 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | LHD |
| Reversible | No |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.0" (64 cm) |
| Interior Width 1 | 11.5" (29 cm) |
| Interior Depth 1 | 16.75" (43 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 11.5" (29 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | 41°F to 68°F |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Door | |||||
|---|---|---|---|---|---|
|
FEATURES
Single zone glass door wine cellar for residential or commercial storage
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar
ETL-S listed to NSF-7 Standards for use in commercial establishments
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" inner frame
European hinge design ensures a flush fit and allows for a smoother opening
Single-piece stainless steel door trim offers a more deluxe look
Attractive tinted glass door provides a complete but protected display of stored contents
Allows for seamless integration with other appliances
Universal collection design allows you to pair this unit with our 15" wide beverage center, model CL156BV1PNR, or our 24" wide beverage center, model CL24BV1PNR, depending on your needs
Stainless steel rear wall protects the unit's integrity and is easier to clean
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
Shelf design makes it easier to store cans and other styles of beverages
Shelves can comfortably hold 20 Bordeaux or Burgundy style wine bottles, with a slotted floor to also store three shorter wine bottles (max 10 3/4" height). Shelves can be removed to stack larger bottles if needed
No-frost operation for minimum user maintenance
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Interior can be set between 41 and 68ºF to accommodate your choice of red, white, or sparkling wine
Temperature readout can be shown in Celsius or Fahrenheit
Efficient lighting with a convenient on/off switch on the control panel
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 96 hours
Keyed lock located in the kickplate for added security as needed
Space-saving design with no exposed coils that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Bracket (included) helps prevent tipping for added safety
For this unit with the door opening from the other side, see model CL155WC1PNR
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit's collection of premium built-in undercounter wine cellars brings full functionality, convenience, and elevated style to kitchens and home bars. Summit's CL155WC1PNRLHD is a 15" wide single-zone wine cellar designed for residential or commercial settings. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. A seamless 304 grade stylish stainless steel trim blends smoothly into the gently tinted glass door for an elevated look. This unit has a sealed rear and right-angle cord for a better fit. The fully articulating European-style hinge design ensures a smoother opening, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. A lock is located in the kickplate for added convenience and security. Inside, model CL155WC1PNRLHD features a stainless steel rear wall for improved durability and sanitation. White LED lighting in the side walls provides elegant display conditions, with dimmable levels for a personalized ambiance. The easy-to-use digital control panel enables you to adjust the temperature between 41º and 68ºF to accommodate red, white, or sparkling wine bottles. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Five uniquely designed steel shelves in a jet black finish feature an attractive 304 grade stainless steel front trim to complete the classic look. The unit's steel shelves have a flat design ideal for holding bottles, as well as storing cans and other styles of beverages. Optimal storage capacity accommodates up to 20 standard 750ml Bordeaux or Burgundy style bottles and an additional 3 specialty wine bottles on the slotted floor sized under 10 3/4" high. (note: your capacity may vary depending on the bottle style). Additional features of the CL155WC1PNRLHD include a temperature memory function to restore the set temperature in the case of power loss and Sabbath mode, which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range. Note: This unit comes with an anti-tip bracket that should be installed to help prevent tipping of the unit for added safety. Uniquely styled and fully featured, the CL155WC1PNRLHD brings true luxury and convenience to kitchen spaces. For this unit with a dual-zone design, see the CL244WC2PNRLHD. Create a matching set by pairing this with our 15" wide beverage center, model CL156BV1PNRLHD, or our 24" wide beverage center, model CL24BV1PNRLHD. This unit comes with a left hand door swing. For this model with a right-hand door, see model CL155WC1PNR. Explore all of Summit's wine cellars and beverage centers at summitappliance.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
