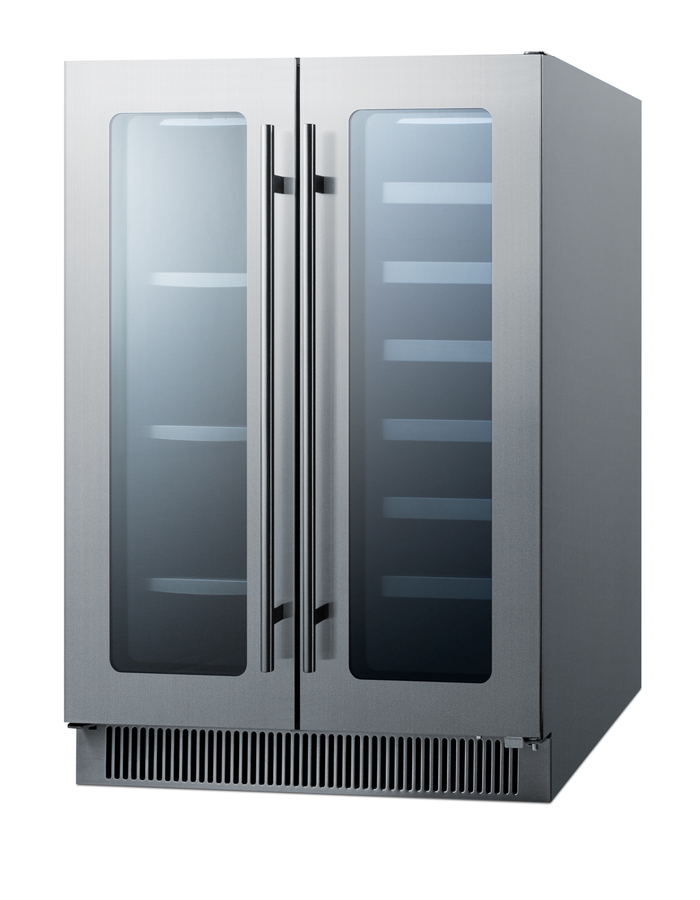

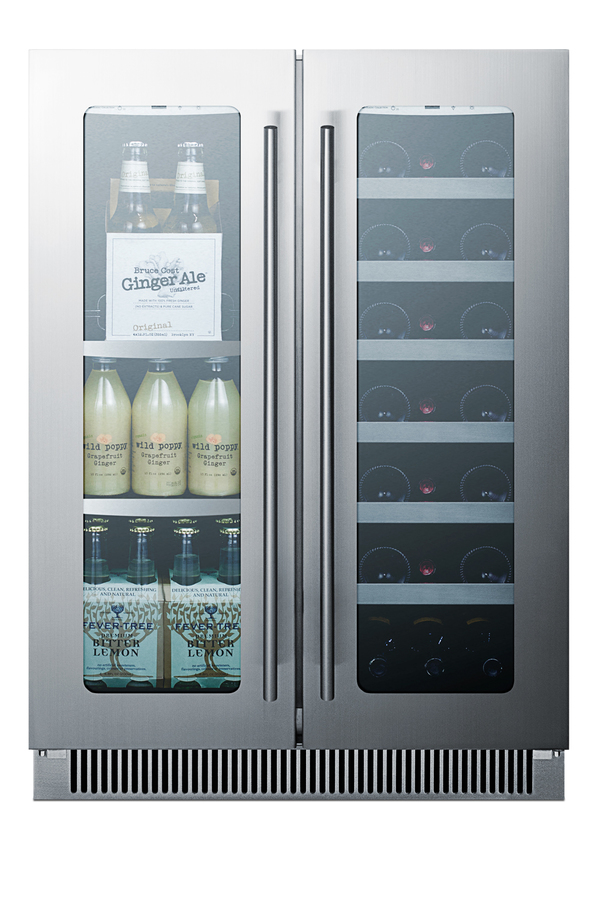

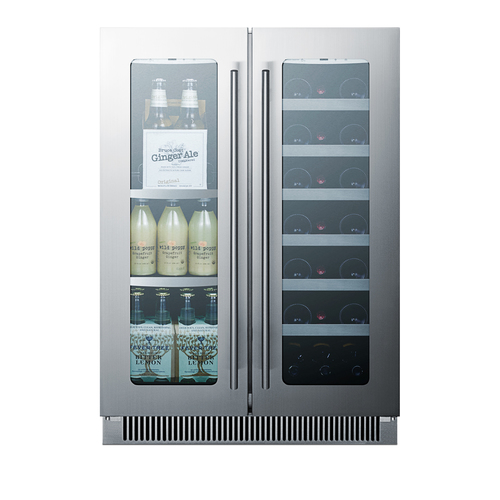

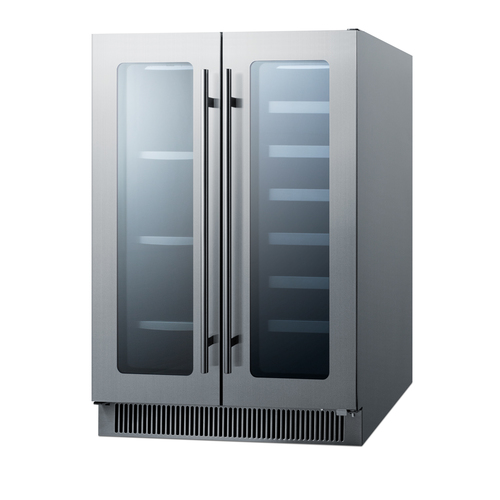

24" Wide Built-In Wine/Beverage Center

SKU: CL242WBV
Ultra thin tinted doors with seamless stainless steel trim
DISCONTINUED
34.5" H x 23.88" W x 23.38" D
(88cm H x 61cm W x 59cm D)

Overview
Height of Cabinet 34.5" (88 cm)
Width 23.88" (61 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 34.13" (87 cm)
Capacity 5.1 cu.ft. (144 L)
Bottles 21 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 400.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 119.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101056104
Wine Cellar
Number of Zones 2
Door Swing French
Reversible No
Adjustable Shelves Yes
Shelf Type Glass and Wire
Shelf Qty 9
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.41 oz.
High Side PSI 277.0
Low Side PSI 103.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 9.38" (24 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 4.38" (11 cm)
Compressor Step Width 9.38" (24 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs 2
Temperature Range 41°F to 64°F
Interior Height 2 26.0" (66 cm)
Interior Width 2 9.38" (24 cm)
Interior Depth 2 18.0" (46 cm)

Built-in capable

Make the best use of space by installing your appliance under the counter

Fully finished black cabinet

Allows the unit to be used freestanding

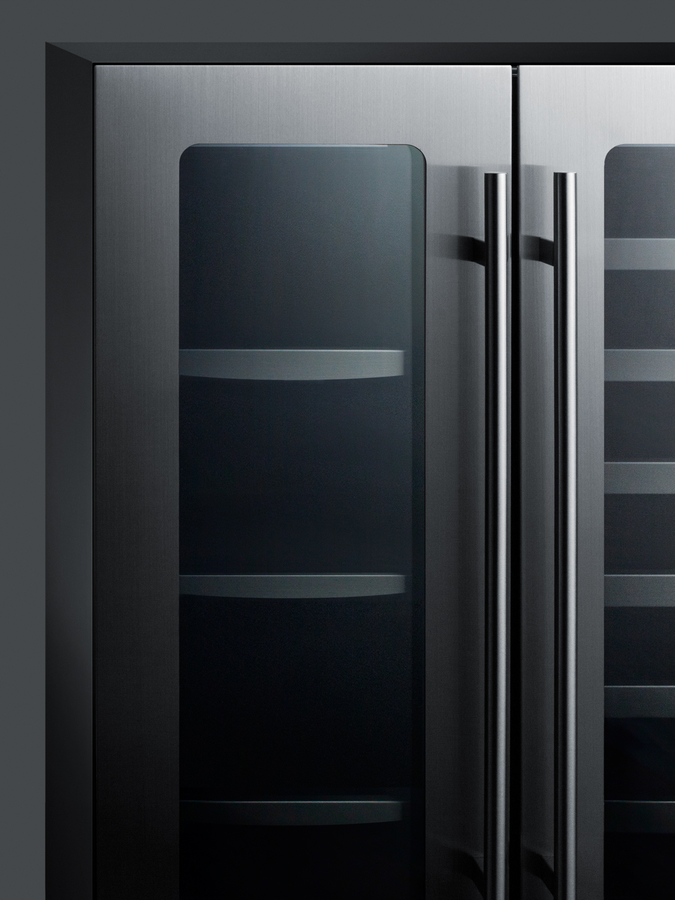

Low-e glass doors

Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass

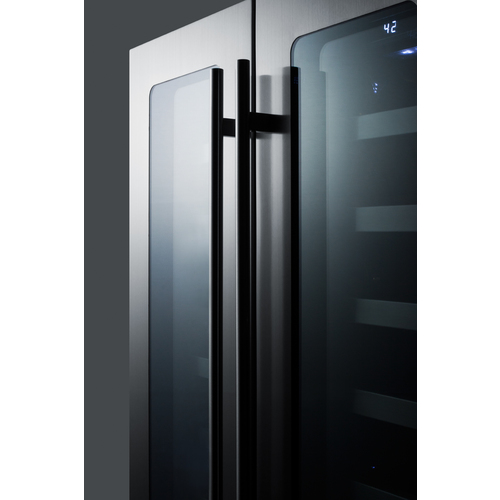

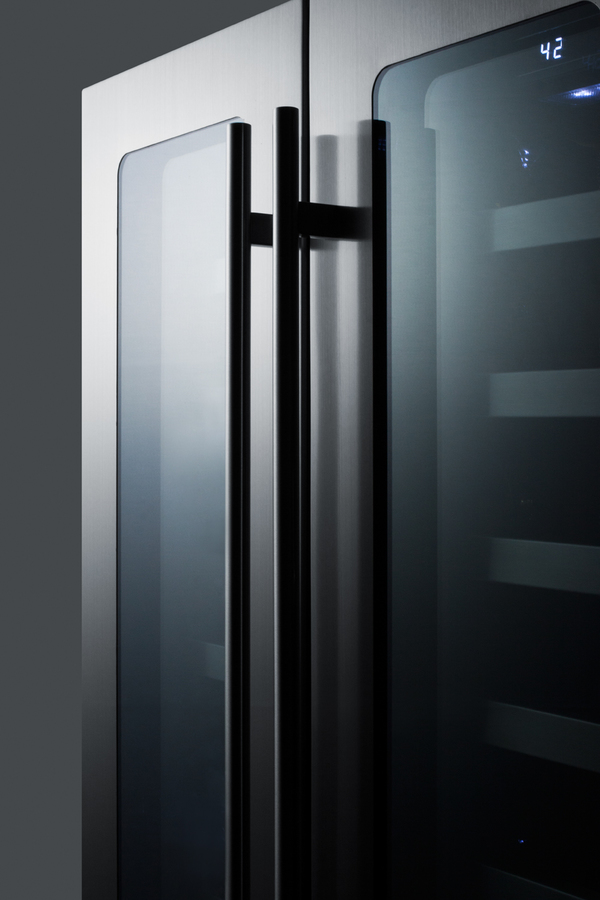

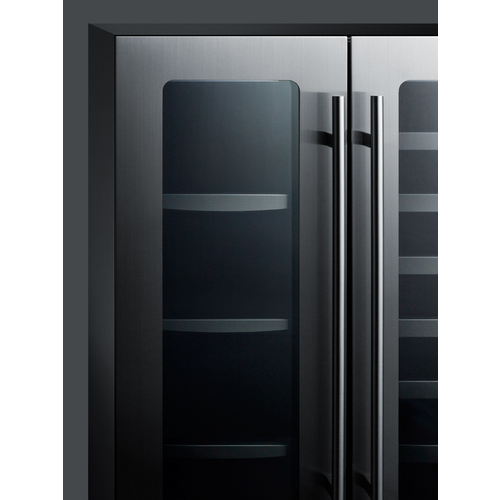

Seamless stainless steel trim

Glass is framed by seamless 304 grade stainless steel

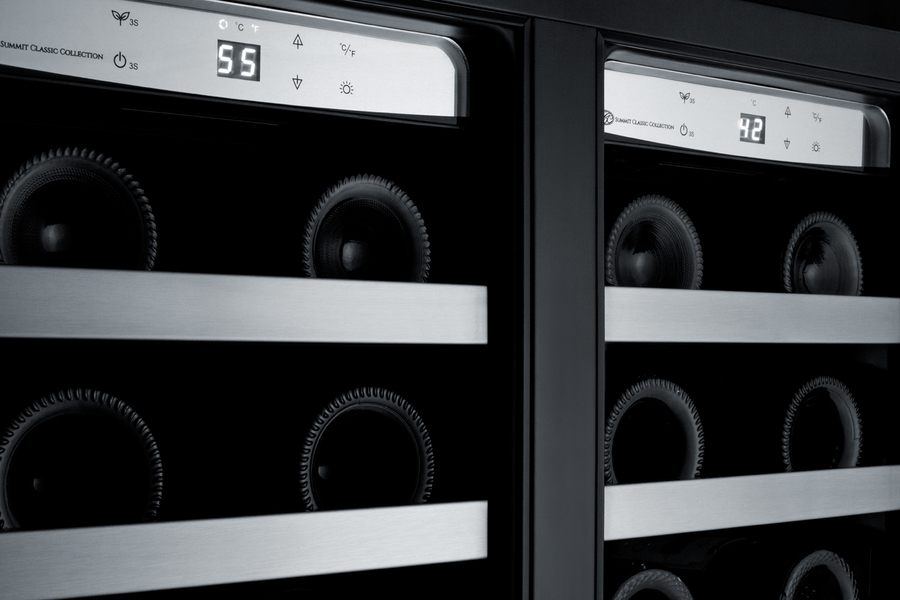

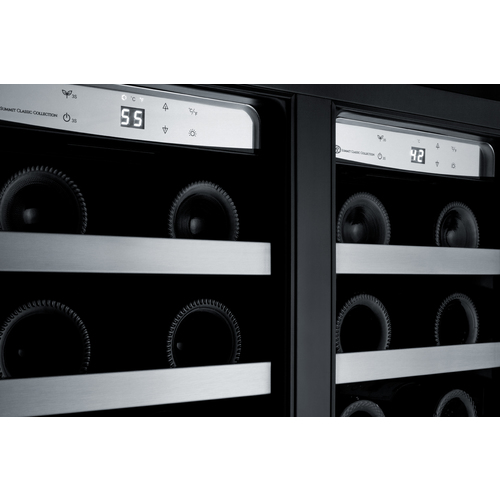

Digital thermostats

Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit

Two temperature zones

Independent zones let you accommodate wine and craft beer at their proper storage temperatures

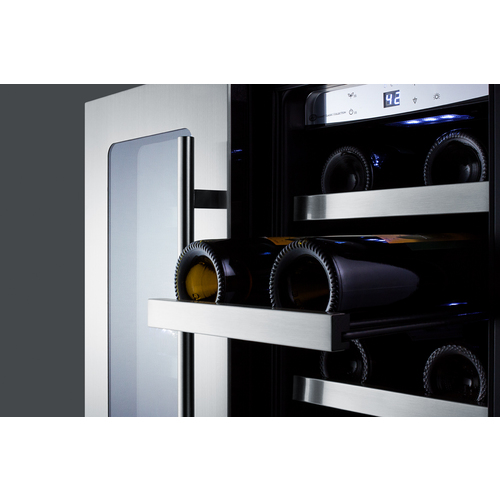

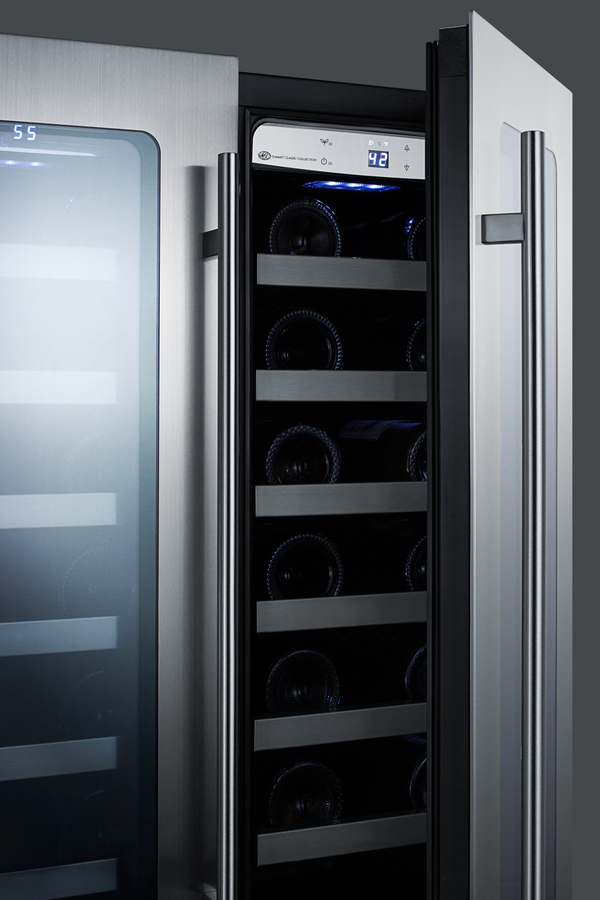

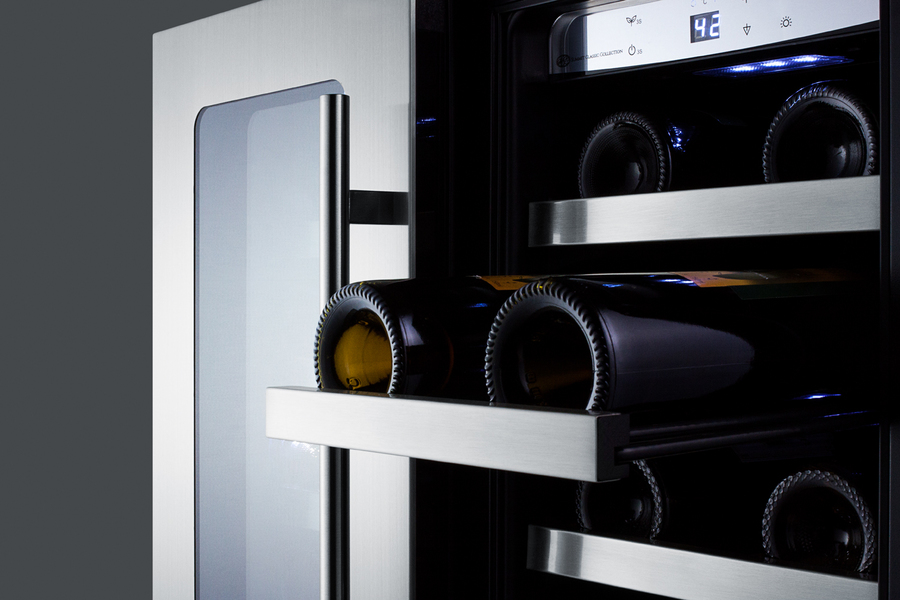

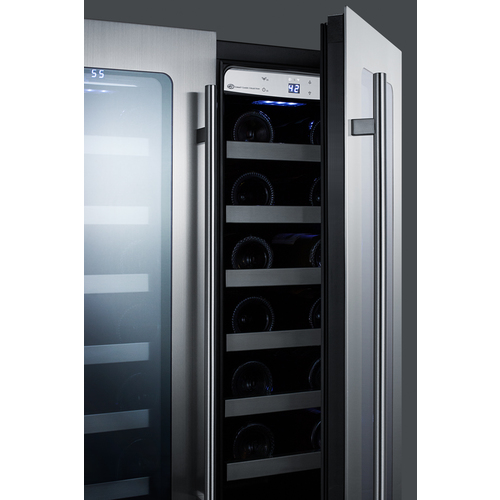

Stainless steel trimmed wire shelves

Jet black wine shelves slide out easily for wine storage, with a seamless stainless steel trim to finish the look

Adjustable glass shelves

Spill-proof glass shelves make it easy to store and display craft beer bottles and cans

White LED lighting

Unique white light offers elegant illumination for the jet black interior

Automatic defrost

Reduced user maintenance with automatic defrost operation

Fan-forced cooling

Internal fans ensure both interiors are evenly cooled from top to bottom

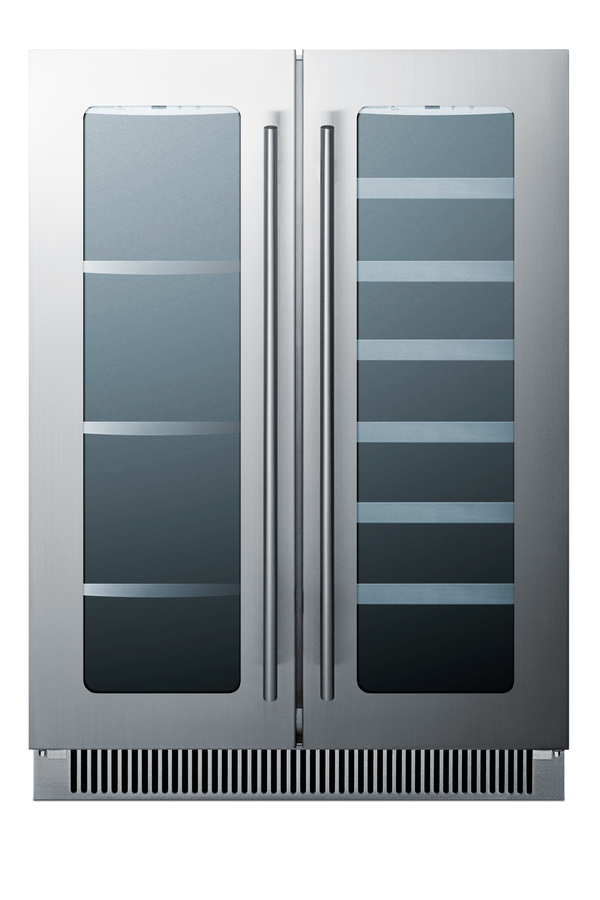

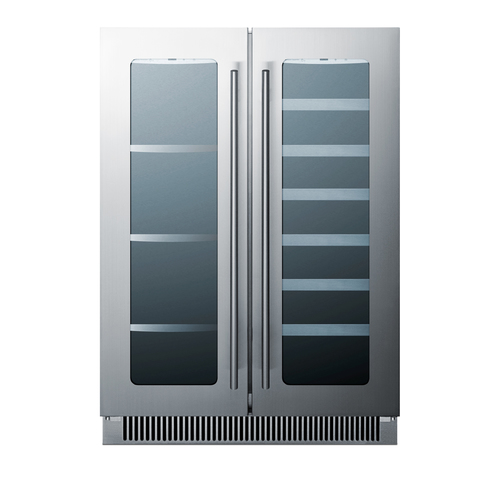

French door swing

Two side-by-side doors with French door opening

Stainless steel kickplate

Completes the professional look down to the toe kick

Temperature alarm

Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range

Open door alarm

Audible alarm will sound if the door is left ajar

Sealed back

Space saving design with easier cleanability

Energy conservation mode

Lets you disable some of the electrical features to save on energy use

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.

The CL242WBV is an undercounter wine and craft beer center with two independent temperature zones. Two gently tinted low-e glass doors feature a French opening design, providing a dramatic presentation for your collection. Seamless stainless steel trim blends right into the glass, while sleek handles and our signature kickplate complete the modern look.

The front-breathing design allows the CL241WBV to be built-in under counters, while the fully finished black cabinet also enables freestanding use. At just under 24" wide and deep, this unit is perfectly sized to fit common wet bar cutouts. The sealed back adds to the easy cleanability.

Inside, the CL242WBV includes a combination of wine and glass shelves. The wine shelves feature a stainless steel trim and black wire finish, while the craft beer shelves are made from unique frosted glass for spill-proof convenience. All shelves are adjustable and fit in either section, allowing you to fully customize your storage. The digital control panel makes it easy to manage the temperature in Celsius or Fahrenheit, keeping your red wine or bottled water at exactly the right setting. White LED lighting in each section offers an elegant yet energy efficient accent in the jet black interior. This model comes equipped with high/low temperature and open door alarms to ensure your collection is never exposed to improper temperature conditions. A conservation mode setting allows you to further save on energy use.

Fully featured for user convenience and beautifully styled for the home, SUMMIT CL242WBV offers the perfect storage solution for under the counter.

Download
BROCHURE w/ DRAWINGS
CL242WBV.pdf
Download
TECHNICAL DRAWING (.dwg)
CLFD24WCWINECELLARA-C2000.dwg

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
