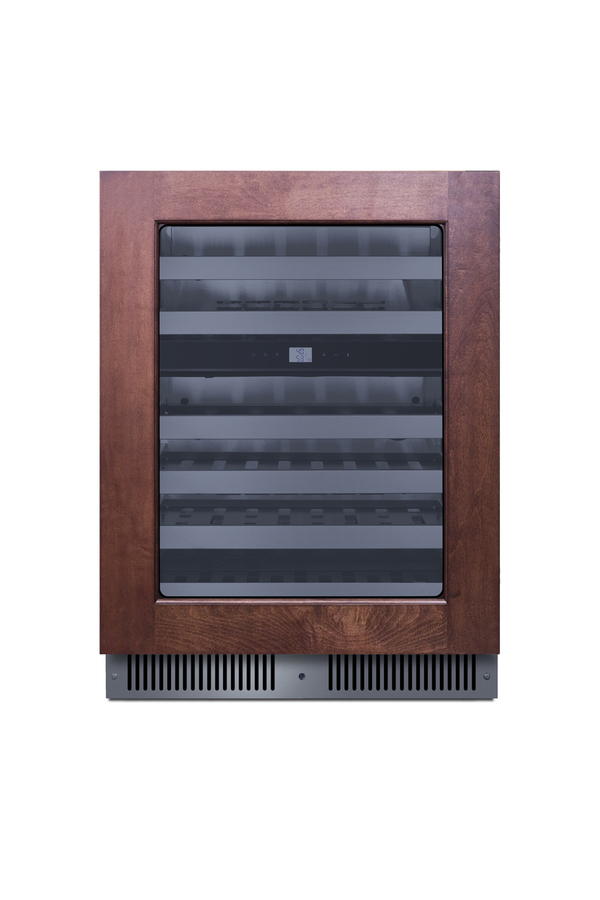

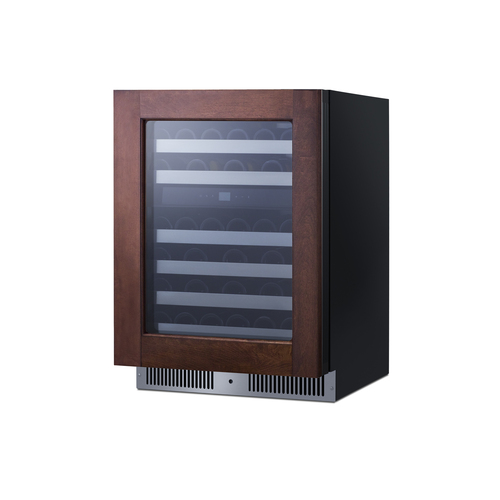

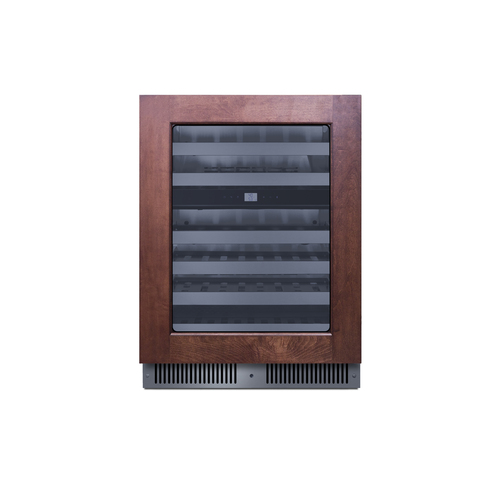

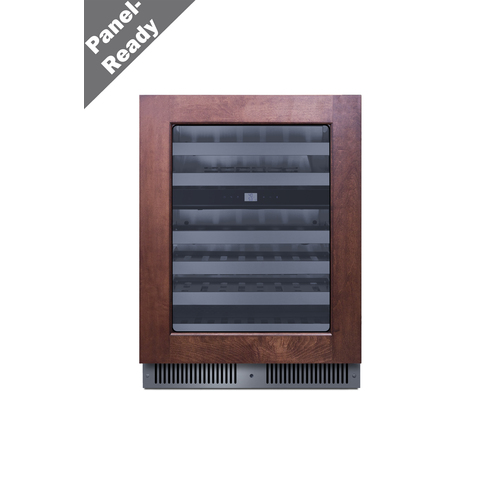

24" Dual Zone Built-In Wine Cellar (Panel Not Included)

SKU: CL244WC2PNRLHD
Premium built-in undercounter design featuring tri-colored lighting for a versatile and elevated presentation
Estimated Time to Ship:

1 to 2 days

Height:
Standard
Door Swing:
RHD LHD
Door Trim:

*Additional features may vary

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

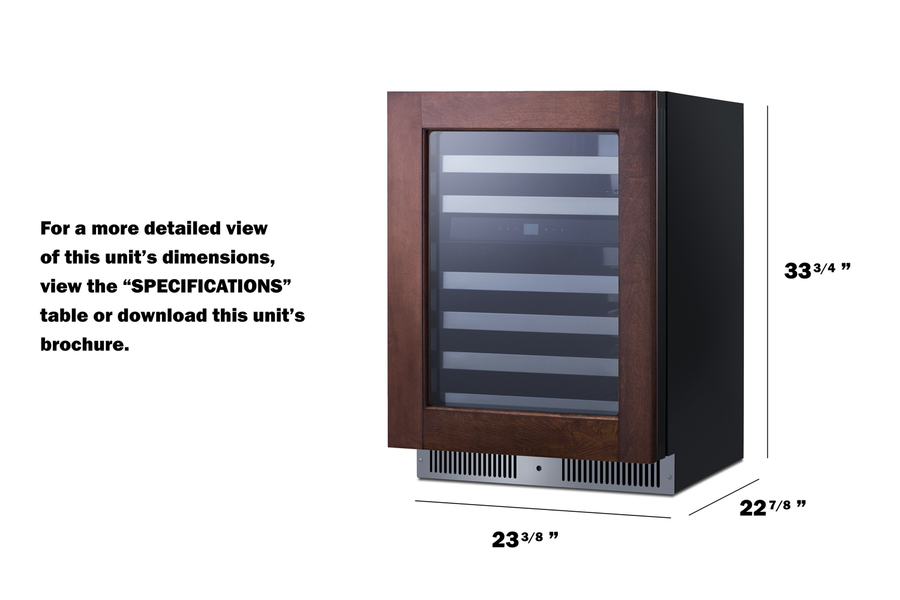

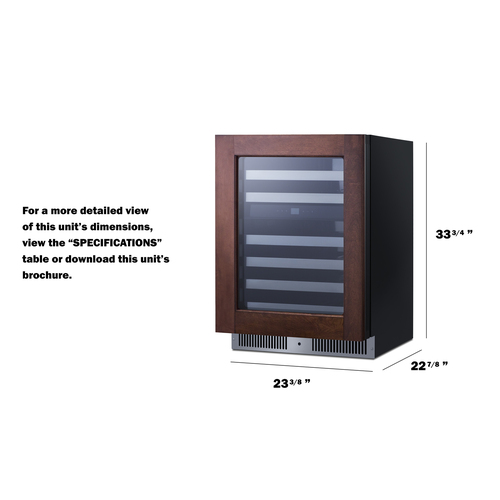

33.75" H x 23.38" W x 22.88" D
(86cm H x 59cm W x 58cm D)

Overview
Height of Cabinet 33.75" (86 cm)
Width 23.38" (59 cm)
Depth 22.88" (58 cm)
Depth with door at 90° 46.63" (118 cm)
Bottles 48 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 3.0
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101156118
Wine Cellar
Number of Zones 2
Door Swing LHD
Reversible No
Adjustable Shelves Yes
Shelf Type Steel
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38 oz.
Interior Height 1 8.5" (22 cm)
Interior Width 1 19.25" (49 cm)
Interior Depth 1 15.0" (38 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.25" (49 cm)
Compressor Step Depth 5.0" (13 cm)
Temperature Range Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF
Interior Height 2 15.5" (39 cm)
Interior Width 2 19.25" (49 cm)
Interior Depth 2 15.0" (38 cm)
Sabbath Mode Yes

Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings

24" Wide Premium Wine Cellar

Premium dual zone built-in undercounter wine cooler for residential and commercial storage

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Custom style

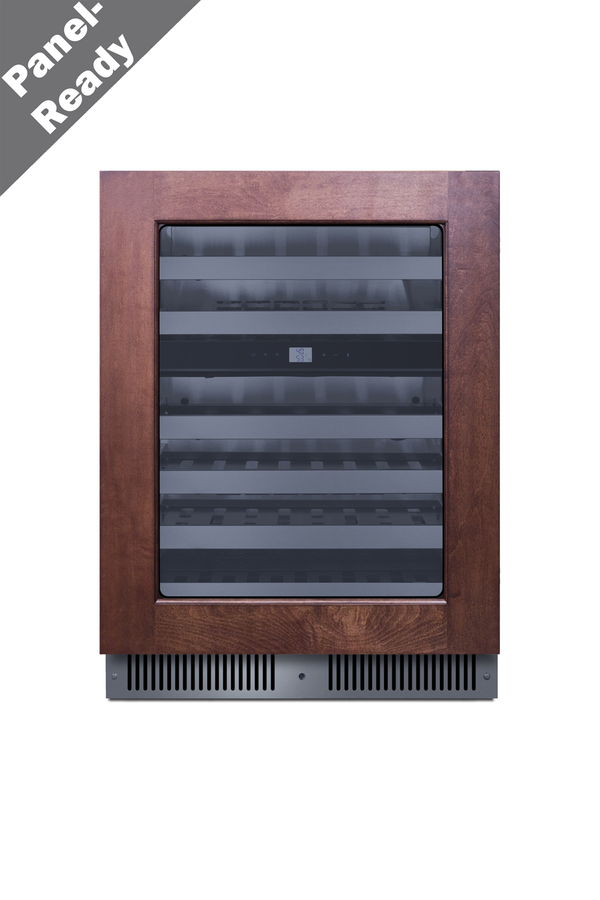

Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen or bar

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Easy panel installation with included 2-piece bracket kit

Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" inner frame

Gently tinted glass door

Attractive glass door provides a complete but protected display of stored contents

Seamless 304 grade stainless steel door trim

Single-piece stainless steel door trim offers a more deluxe look

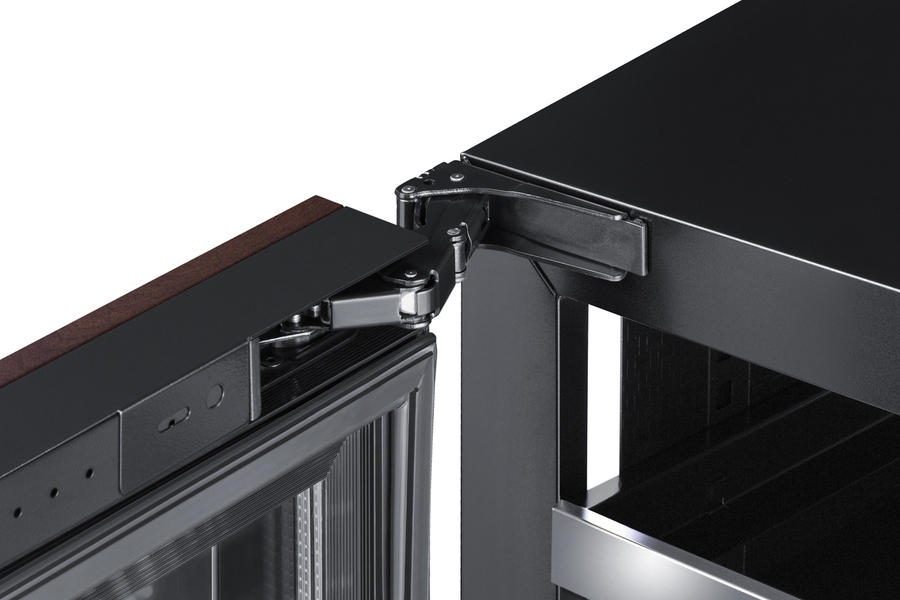

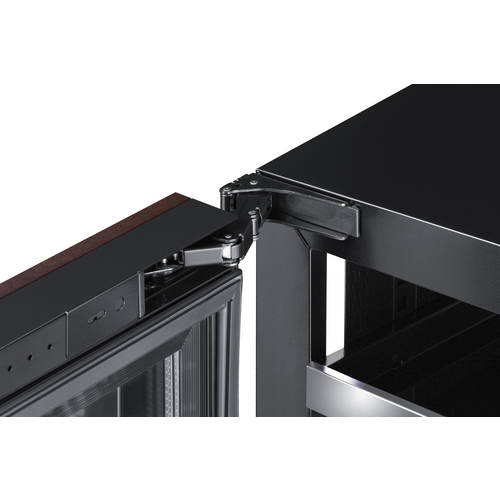

Fully articulating style hinge

European style hinge design ensures a flush fit and allows for a smoother opening

Factory-installed lock

Keyed lock located in the kickplate for added security as needed

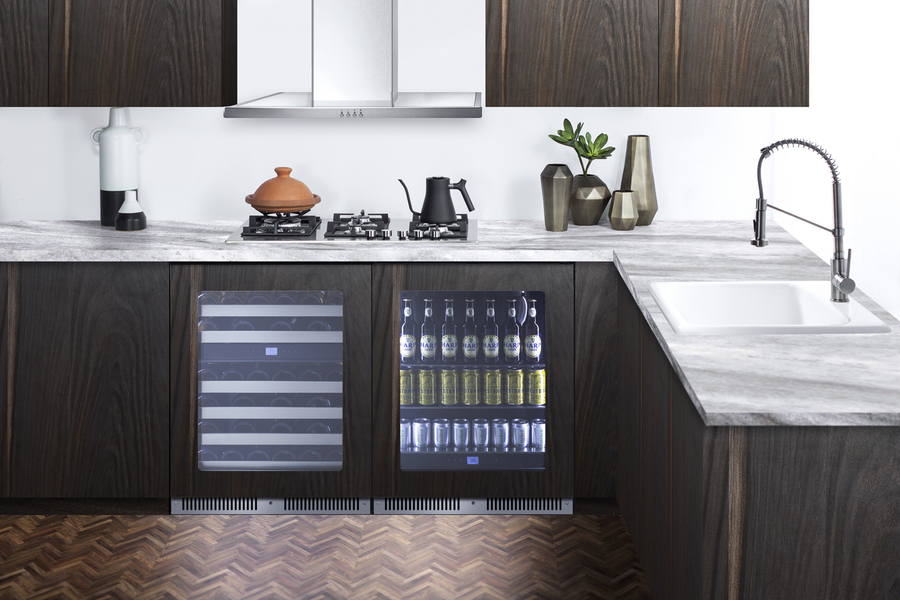

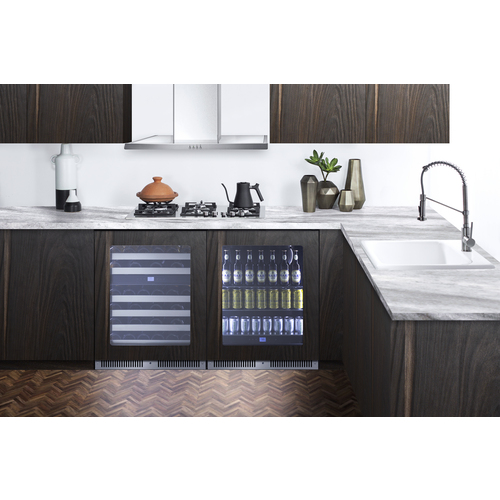

Matching sets

Universal collection design allows you to pair this unit with our 24" wide deluxe beverage center, model CL24BV1PNR, or our 15" wide beverage center, model CL156BV1PNR, depending on your need

Dual zone storage

Upper zone operates between 41 and 50ºF for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64ºF to best preserve red wine

Generous bottle capacity

Each shelf can hold up to 8 Burgundy or Bordeaux style bottles for an overall 48-bottle capacity to meet your storage needs (NOTE: capacity may vary depending on specific bottle style)

Deluxe wine shelving

Removable flat steel shelves in a black finish with stainless steel trim for an elegant but modern look

Full-extension shelving

Six shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Flat shelf design

Shelf design makes it easier to store cans and other styles of beverages

Vibration-free

Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle

Stainless steel interior rear wall

Stainless steel rear wall protects the unit's integrity and is easier to clean

Tri-colored LED lighting

Rotate your presentation style with a choice of blue, white, or amber LED lighting

Digital thermostat

Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Digital temperature display

Temperature readout can be shown in Celsius or Fahrenheit

DynaClima mode

This function provides consistent temperature and humidity distribution, mimicking a natural wine cellar environment

Silent mode

Reduces vibration disturbances by slowing down and pausing the cooling unit's operation

Automatic defrost

No-frost operation for minimum user maintenance

Stainless steel kickplate

Complete luxury down to the toe kick

Anti-tip bracket

Bracket (included) helps prevent tipping for added safety

Left hand door swing

For this unit with the door opening from the other side, see model CL244WC2PNR

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's collection of premium built-in undercounter wine cellars  brings full functionality, convenience, and elevated style to kitchens and home bars.

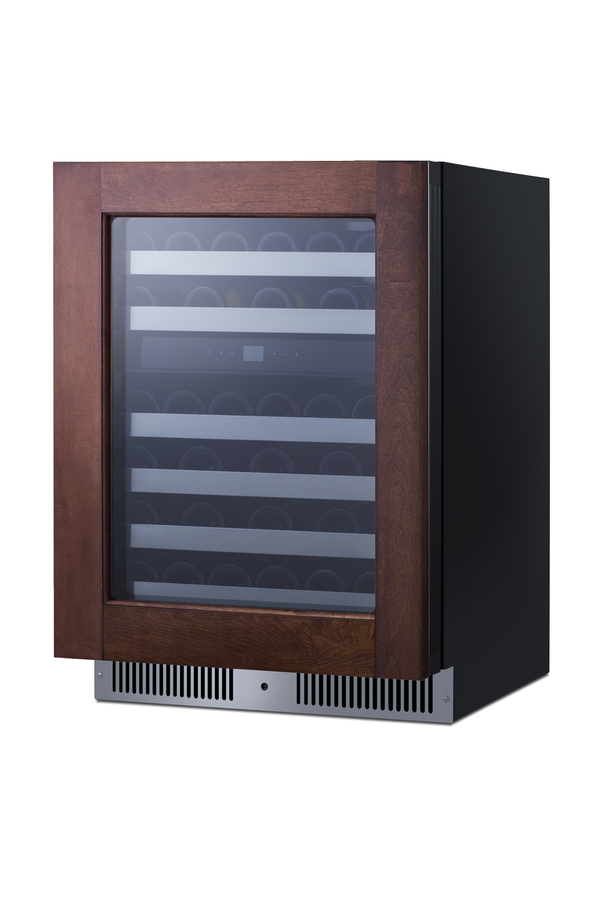

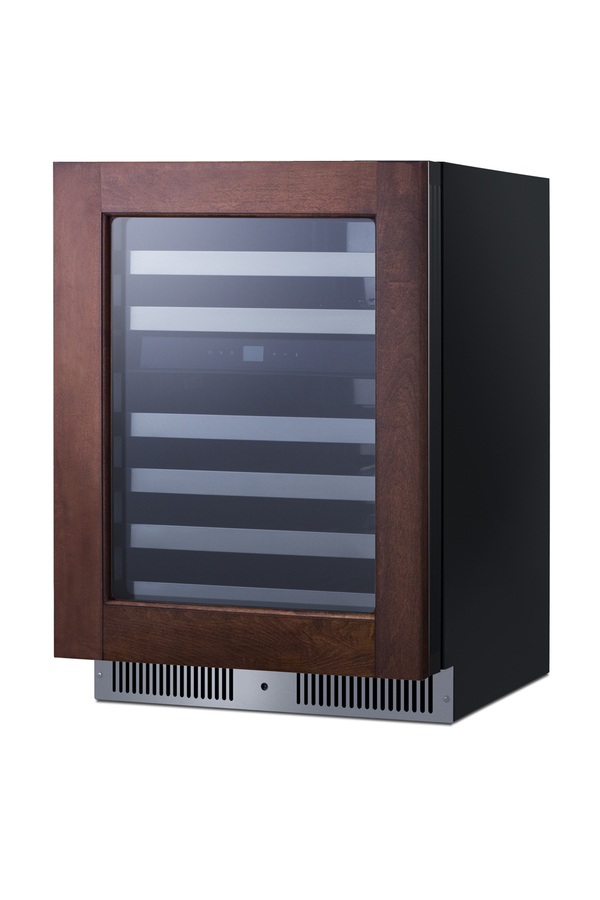

Summit's CL244WC2PNRLHD is a 24" wide dual zone wine cellar designed for residential or commercial settings. The front-breathing system allows built-in installation, while the fully finished black cabinet allows freestanding use. Seamless, stylish stainless steel trim blends smoothly into the gently tinted glass door for an elevated look. This unit has a sealed rear and right-angle cord for a better fit. The fully articulating European-style hinge design ensures a smoother opening, with a 2-piece bracket kit included to allow easy installation of your own custom door trim.  A lock is located in the kickplate for added convenience and security.

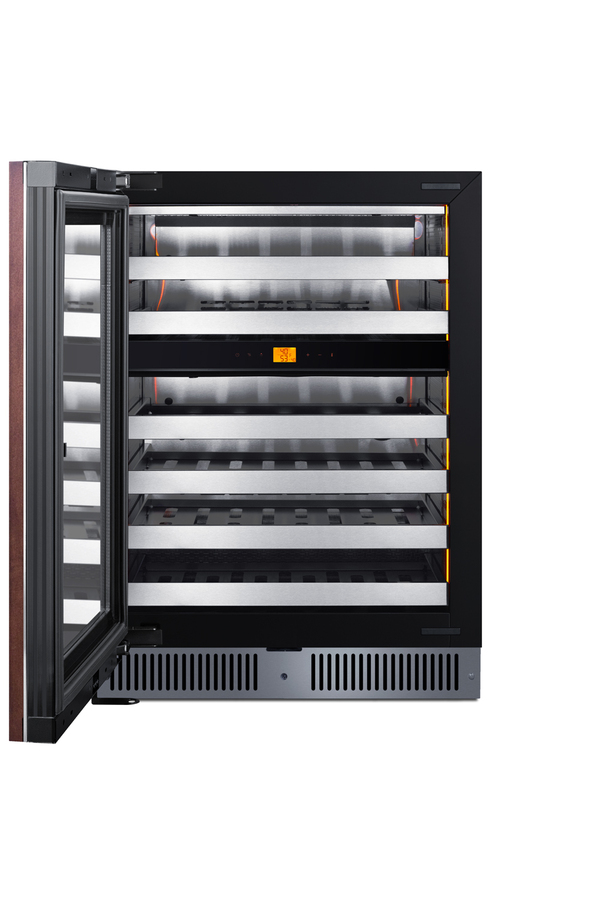

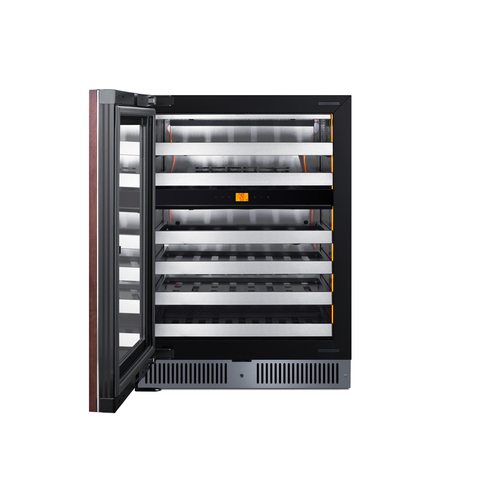

Inside, model CL244WC2PNRLHD features a stainless steel rear wall for improved durability and sanitation. Tri-colored LED lighting featuring amber, blue, and white options offers elegant display conditions with dimmable levels that let you create the perfect presentation. The easy-to-use digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white or sparkling wine, while the lower zone is designed to store red wine between 50 and 64ºF. Fan-forced cooling ensures even temperature distribution and fast temperature recovery.

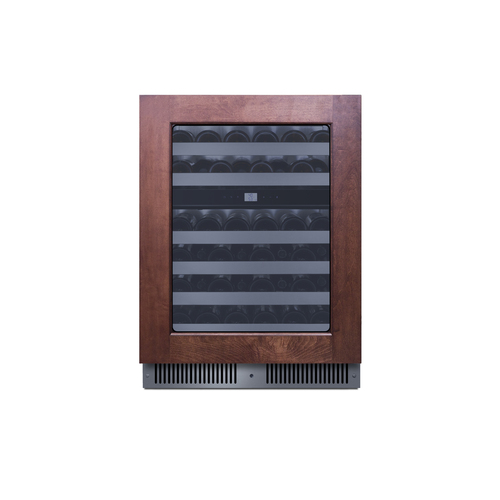

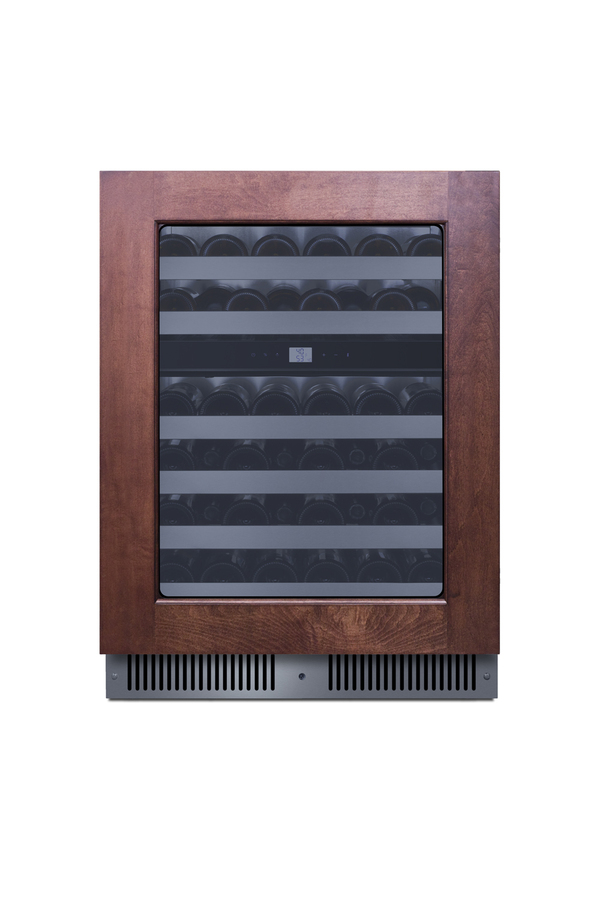

Six full-extension steel shelves in a jet black finish slide out smoothly on ball-bearing glides, with an attractive stainless steel front trim to complete the classic look.  The unit's steel shelves have a flat design ideal for storing cans and other styles of beverages. Optimal storage capacity accommodates up to 48 standard 750ml Bordeaux or Burgundy style bottles (note: your capacity may vary depending on the bottle style).

Model CL244WC2PNRLHD has two different running modes: Silent mode, which minimizes vibrations to lower noise emissions and creates a more stable storage environment, ideal for preserving your wine's quality. The second, DynaClima mode, optimizes both temperature and humidity distribution for long-term wine storage, mimicking the conditions of a traditional wine storage cabinet.

Additional features include a temperature memory function to restore set temperature in the case of power loss and Sabbath mode, which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range.

Note: This unit comes with an anti-tip bracket that should be installed to help prevent tipping of the unit for added safety.

Uniquely styled and fully featured, the CL244WC2PNRLHD brings true luxury to small kitchen spaces. For this unit with a single zone design in a 15" width, see the CL155WC1PNRLHD. Create a matching set by pairing this with our 24" wide deluxe beverage center, model CL24BV1PNRLHD, or our 15" wide beverage center, model CL156BV1PNRLHD. This unit comes with a left hand door swing. For this model with a right-hand door, see model CL244WC2PNR.

Explore all of Summit's wine cellars and beverage centers at summitappliance.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
