24" Wide Built-In Beverage Center (Panel Not Included)
1 to 2 days
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
(86cm H x 59cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 22.88" (58 cm) |
| Depth with door at 90° | 46.63" (118 cm) |
| Capacity | 4.73 cu.ft. (134 L) |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 3.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156071 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
|
Drawer Dimensions
|
|
| Interior Height 1 | 3.75" (10 cm) |
| Interior Width 1 | 19.25" (49 cm) |
| Interior Depth 1 | 5.0" (13 cm) |
|
Dimensions
|
|
| Interior Height | 26.0" (66 cm) |
| Interior Width | 19.25" (49 cm) |
| Interior Depth | 17.0" (43 cm) |
AVAILABLE UPGRADES
| Exterior | |||||
|---|---|---|---|---|---|
|
|||||
| Door | |||||
|
FEATURES

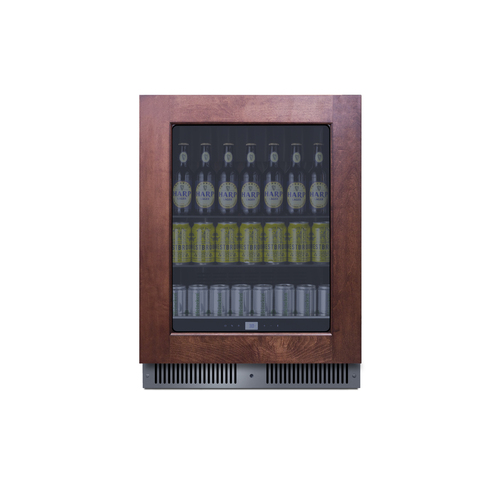

Premium glass door beverage refrigerator for residential and commercial use
Front-breathing design lets you make the best use of space by installing your appliance under the counter

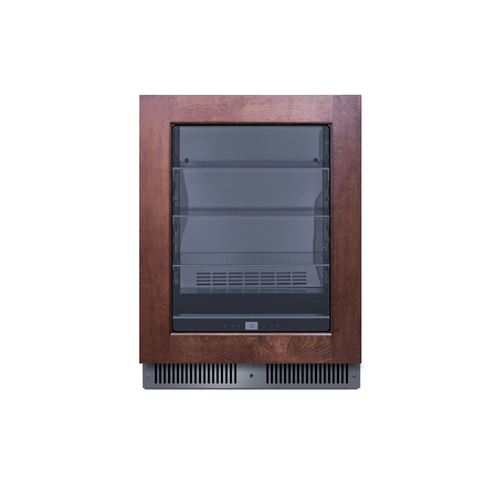

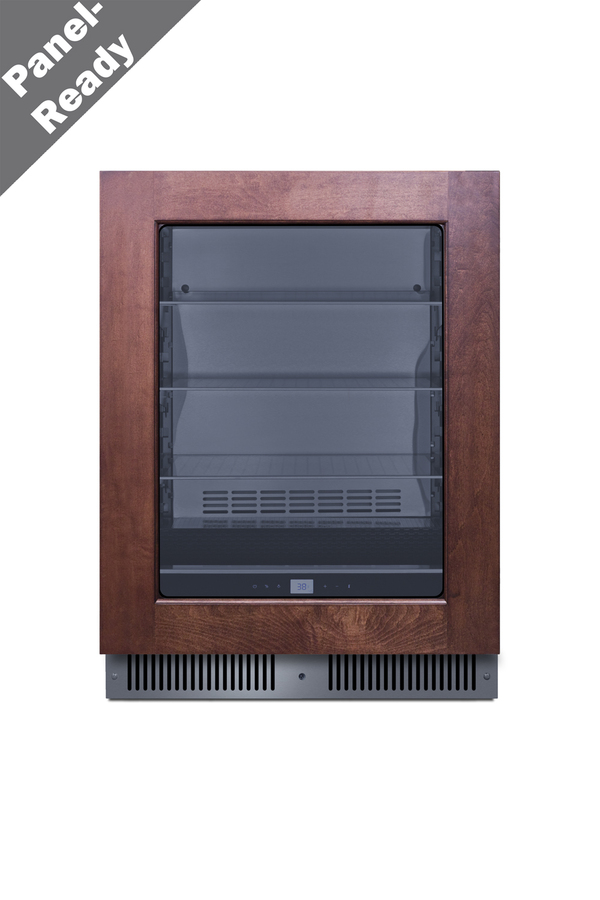

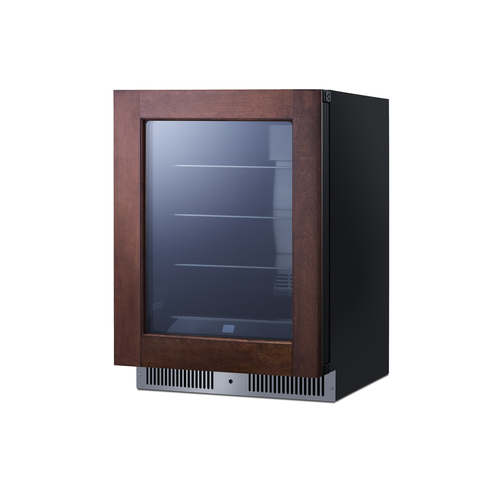

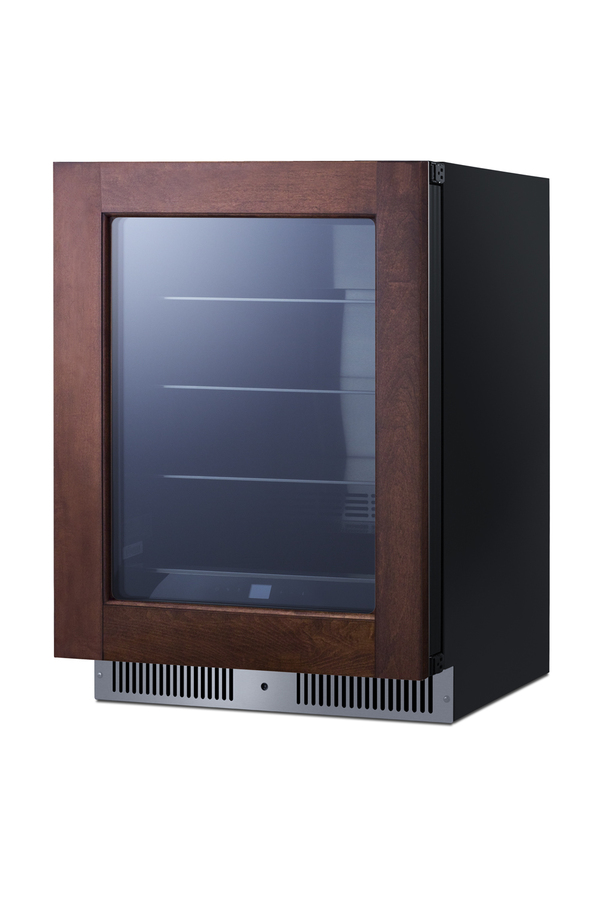

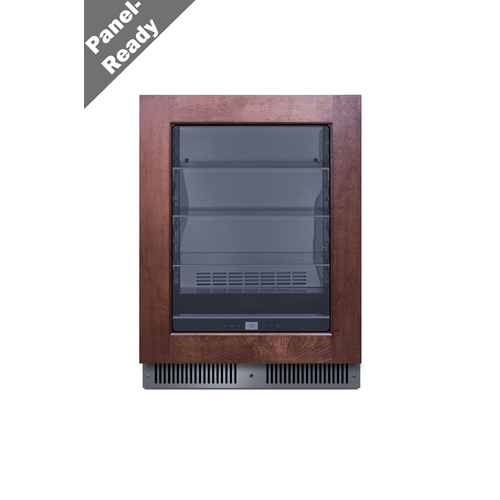

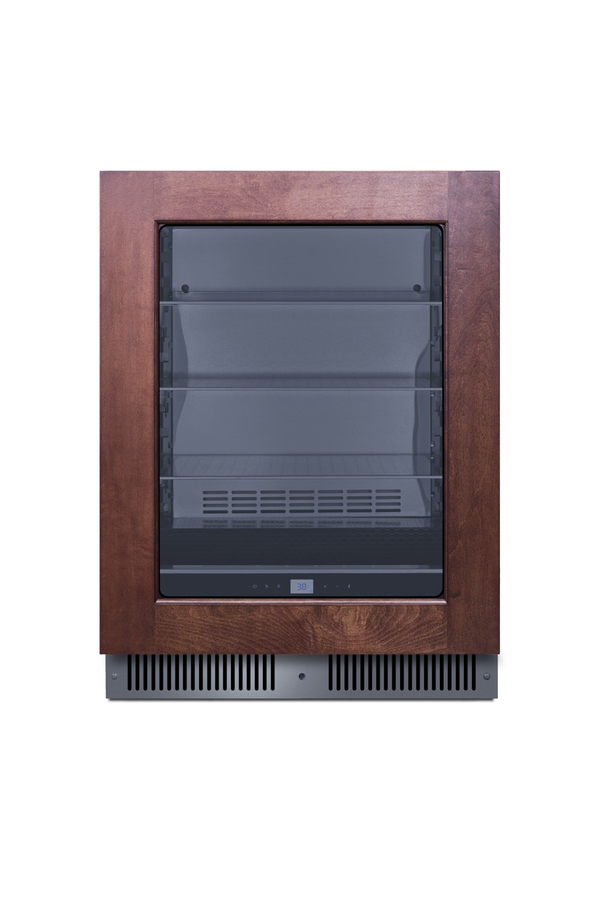

Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen
ETL-S listed to NSF-7 Standards for use in commercial establishments
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" inner frame

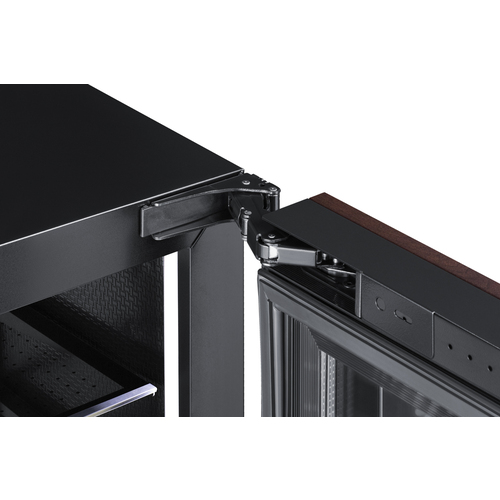

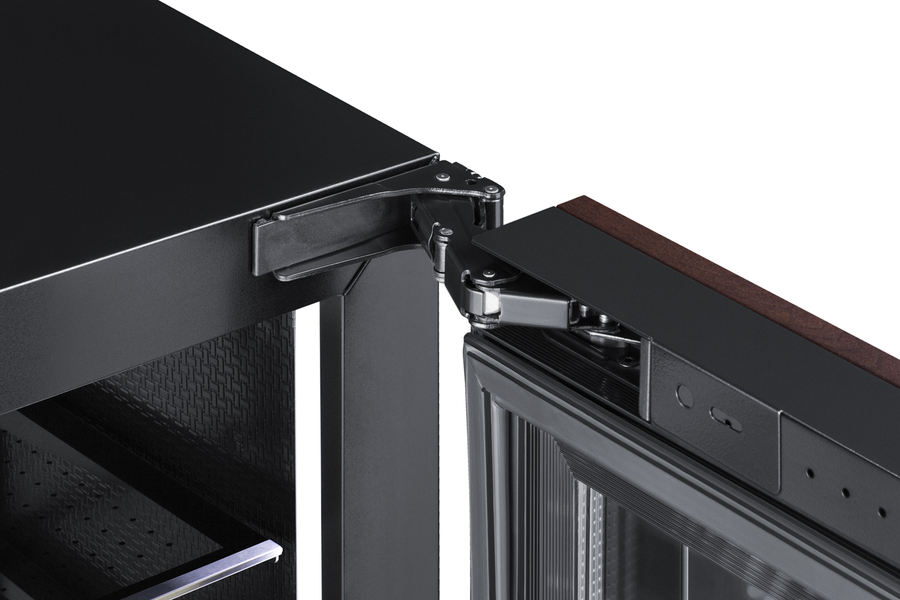

European style hinge design ensures a flush fit and allows for a smoother opening
Single-piece stainless steel door trim offers a more deluxe look
Attractive tinted glass door provides a complete but protected display of stored contents
Allows for seamless integration with other appliances

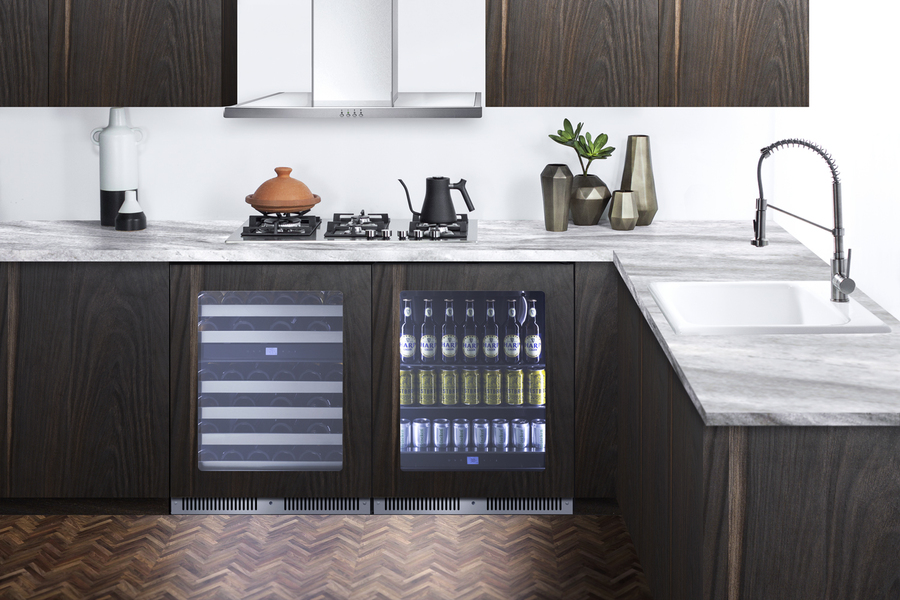

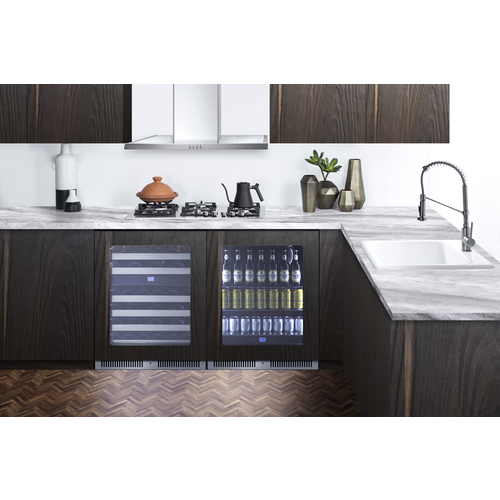

Pair with our 24” wide wine cellar, model CL244WC2PNR, for a matching side-by-side set under standard-height counters. This unit can also be paired with our 15” wine cellar, see model CL155WC1PNR, to fit your unique needs
4.7 cu. ft. of interior storage space

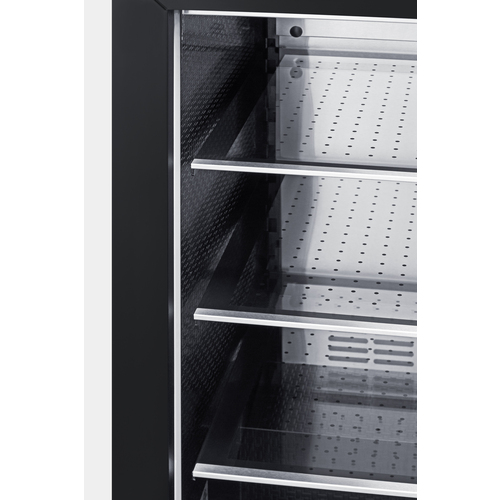

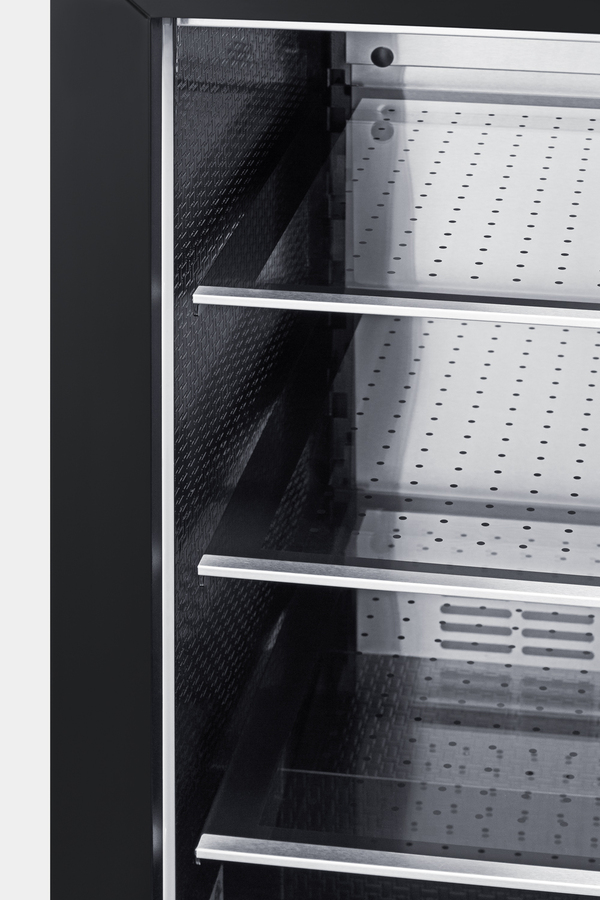

Three easy-to-clean glass shelves for flexible storage
The unit's dipped flat floor design makes it easier to store certain beverages in an upright position
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Ensures a more accessible view of the digital controls and thermostat, keeping the temperature in view without the need to bend to read it
Easy-to-use digital controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit

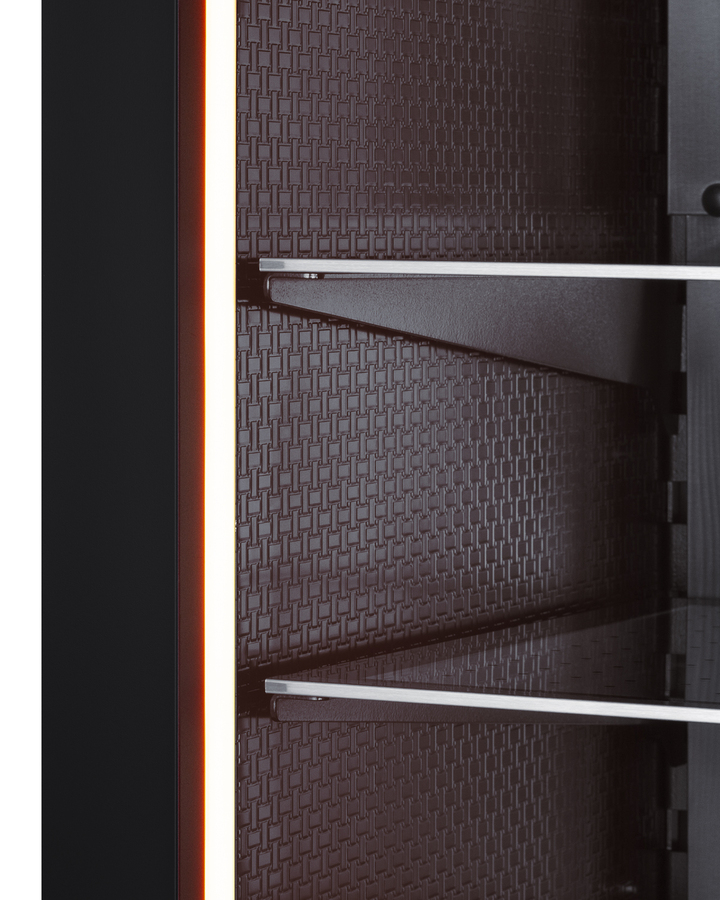

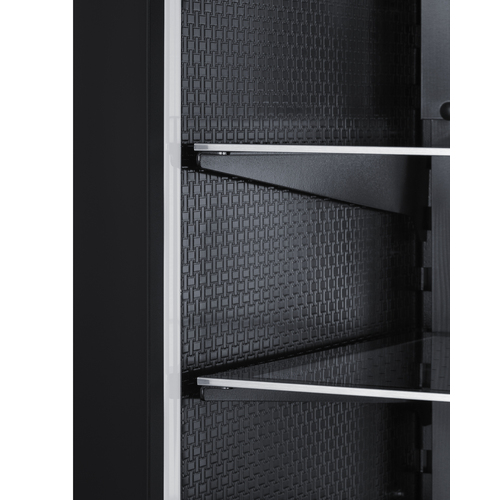

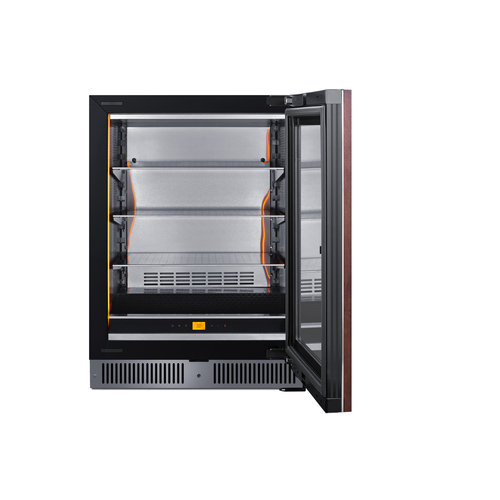

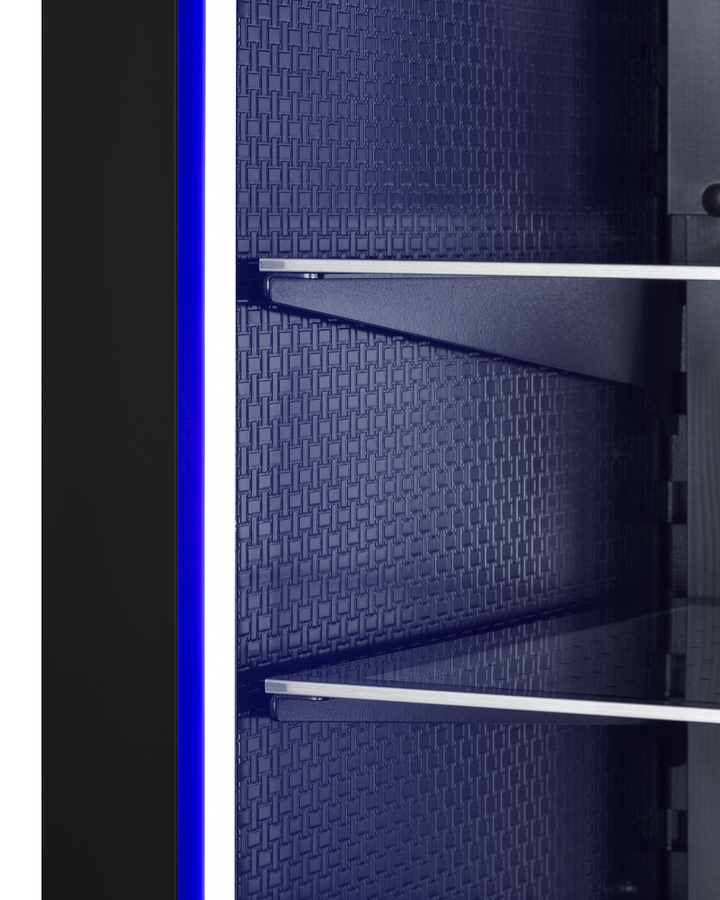

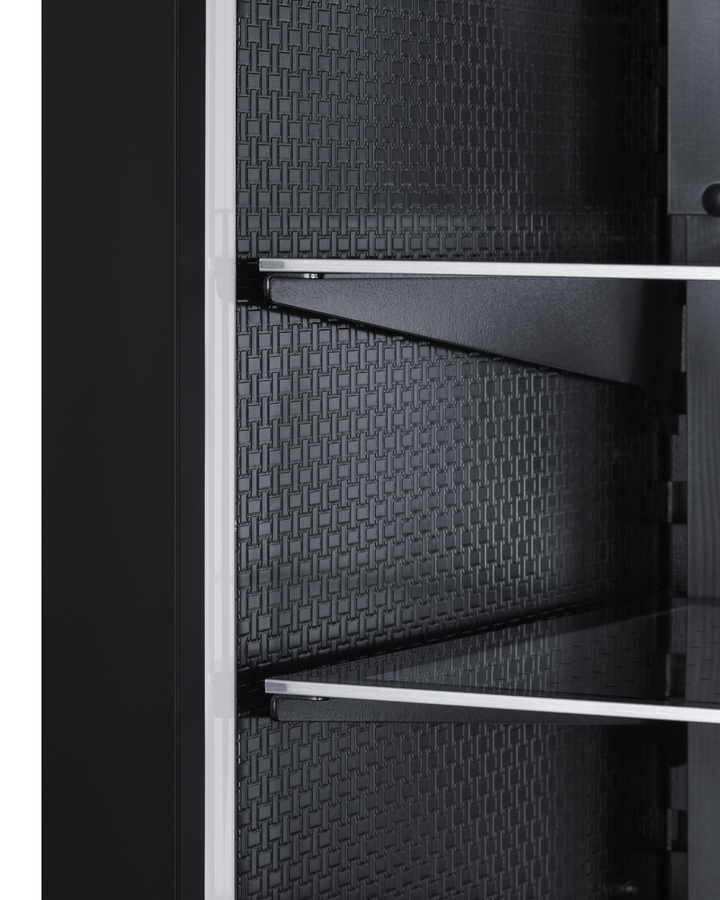

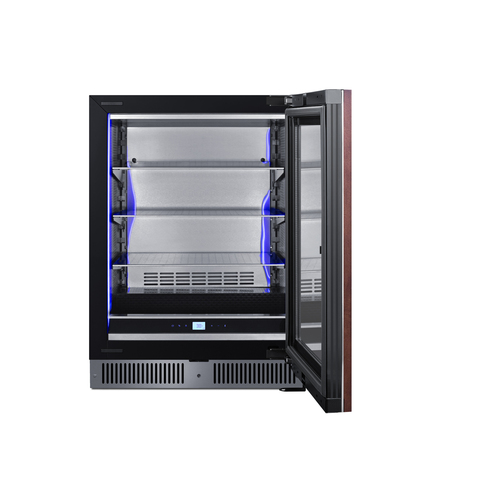

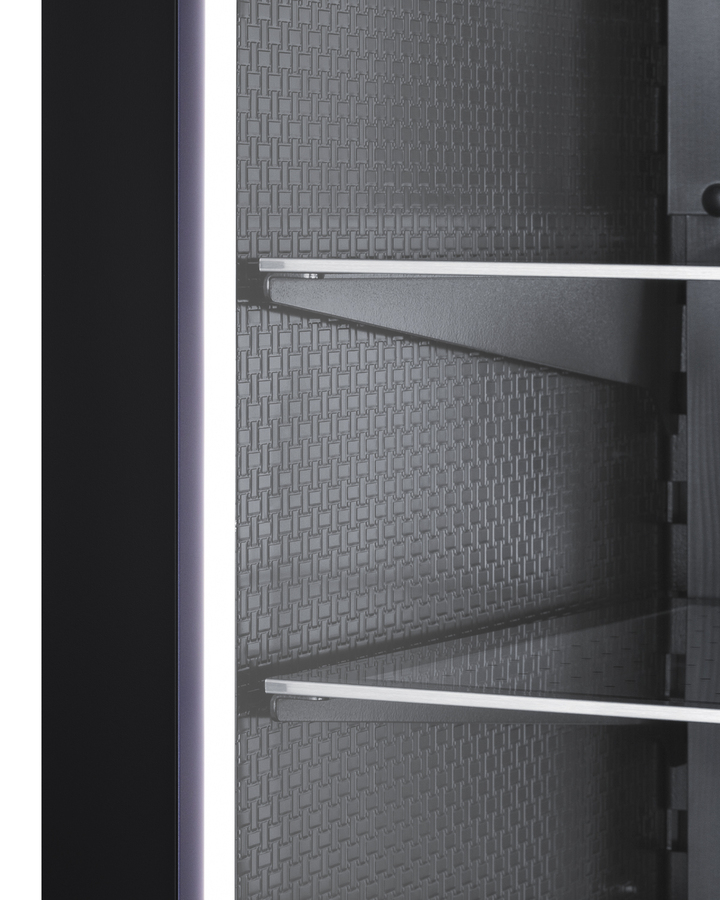

Rotate your presentation style with a choice of blue, white, or amber LED lighting
No-frost operation for minimum user maintenance
Audible alarm will sound if the door is left open longer than one minute
Temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable the lighting and alarm for up to 96 hours
Keyed lock located in the kickplate for added security as needed
Space-saving design with no exposed coils that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Complete luxury down to the toe kick
Bracket (included) helps prevent tipping for added safety

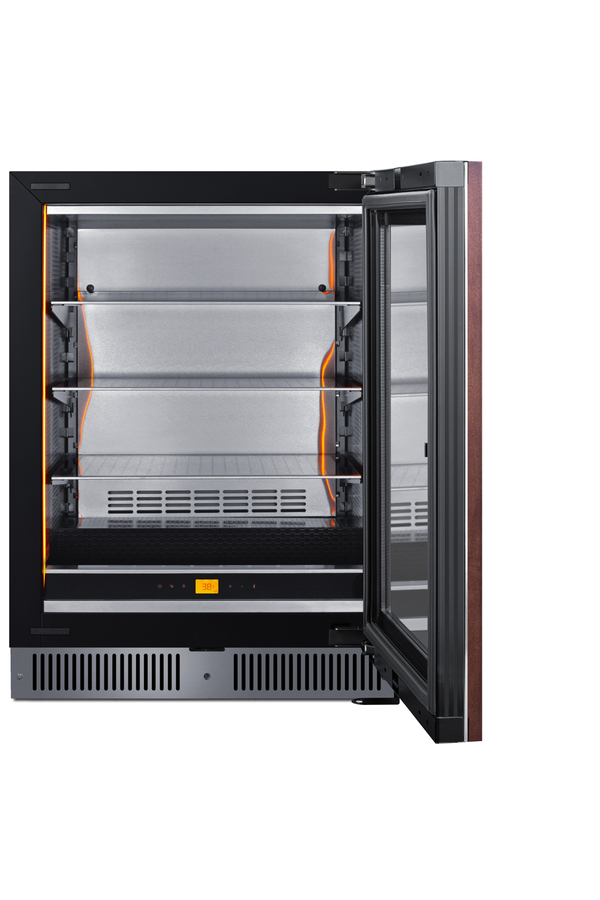

User-reversible door swing for added flexibility to best accommodate your setting
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit's collection of premium built-in undercounter beverage centers brings full functionality, convenience, and elevated style to kitchens and home bars. Summit's CL24BV1PNR is a 24" wide beverage center designed for residential or commercial use with 4.73 cu. ft. of storage space. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless, stylish stainless steel trim blends smoothly into the reversible double pane tempered glass door for an elevated look. This unit has a sealed rear and right-angle cord for a better fit. The fully articulating European-style hinge design ensures a smoother opening, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. A lock is located in the kickplate for added convenience and security. Inside, model CL24BV1PNR features a stainless steel rear wall for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Tri-colored LED lighting featuring amber, blue, and white options offers elegant display conditions with dimmable levels that let you create the perfect presentation. Three glass shelves ensure flexible storage to accommodate any size bottle. The interior includes an angled digital thermostat for increased accessibility, with a readout viewable in Celsius or Fahrenheit. The unit's floor features a dipped flat design to allow you to store certain beverages upright. Additional features include a user-reversible door, a sabbath mode for observance periods, and a temperature memory function to restore the set temperature during power loss. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature. Uniquely styled and fully featured, the CL24BV1PNR brings true convenience to kitchen or bar spaces. For this unit in a 15" width, see model CL156BV1PNR. Create a matching set by pairing this with our 24" wide wine cellar, model CL244WC2PNR, or our 15" wide wine cellar, model CL155WC1PNR. Explore all of Summit's beverage centers and wine cellars at summitappliance.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
