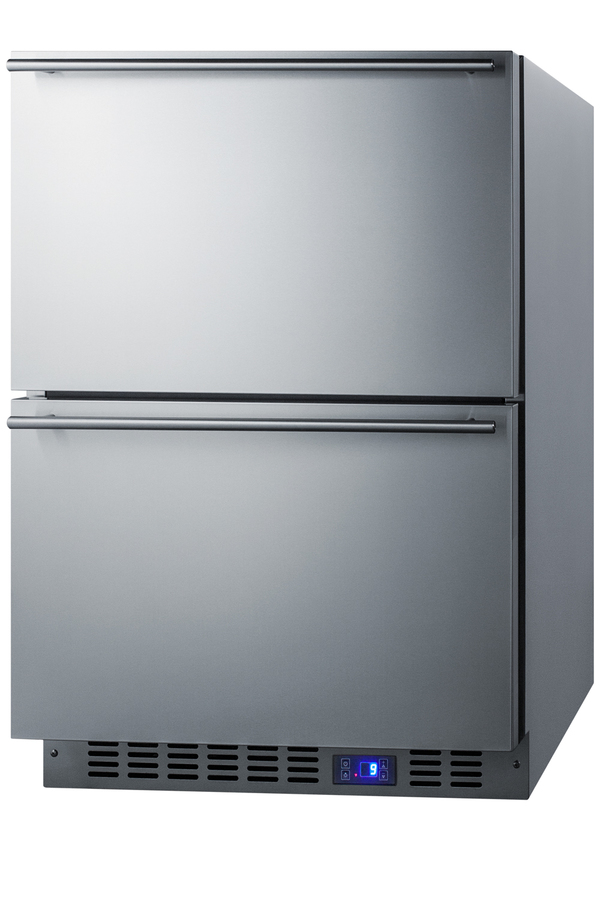

24" Wide Built-In 2-Drawer All-Refrigerator

SKU: CL2R248

Panel-ready drawer fronts let you create your own custom look

Estimated Time to Ship:

2 to 4 days

Find a dealer

34.0" H x 23.63" W x 23.63" D
(86cm H x 60cm W x 60cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	34.0" (86 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.63" (60 cm)
Depth with Handle	25.0" (64 cm)
Depth with door at 90°	39.38" (100 cm)
Capacity	4.26 cu.ft. (121 L)
Defrost Type	Frost-Free
Door	Stainless Steel/Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	260.0kWh/year
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	106.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101032207
Refrigerator Features
Sabbath Mode	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	2
Interior Light	Yes
Interior Drawers	Yes
Interior Drawers Qty	2
Sound Level	32.9 dB
Drawer Dimensions
Interior Height 1	9.25" (23 cm)
Interior Width 1	17.25" (44 cm)
Interior Depth 1	15.5" (39 cm)
Interior Height 2	10.0" (25 cm)
Interior Width 2	17.25" (44 cm)
Interior Depth 2	15.5" (39 cm)
Dimensions
Compressor Step Height	3.5" (9 cm)
Compressor Step Width	17.25" (44 cm)
Compressor Step Depth	4.0" (10 cm)

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

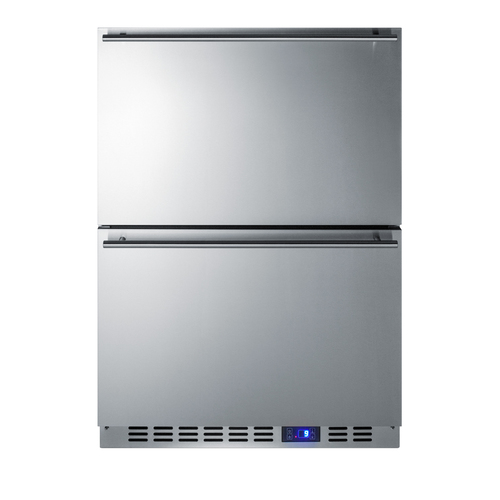

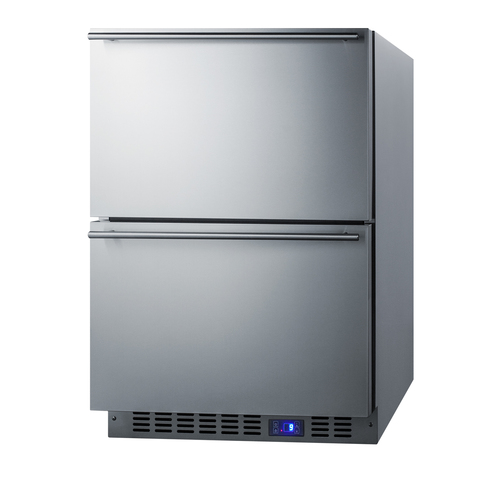

Stainless steel exterior

Complete stainless steel construction ensures lasting durability and style

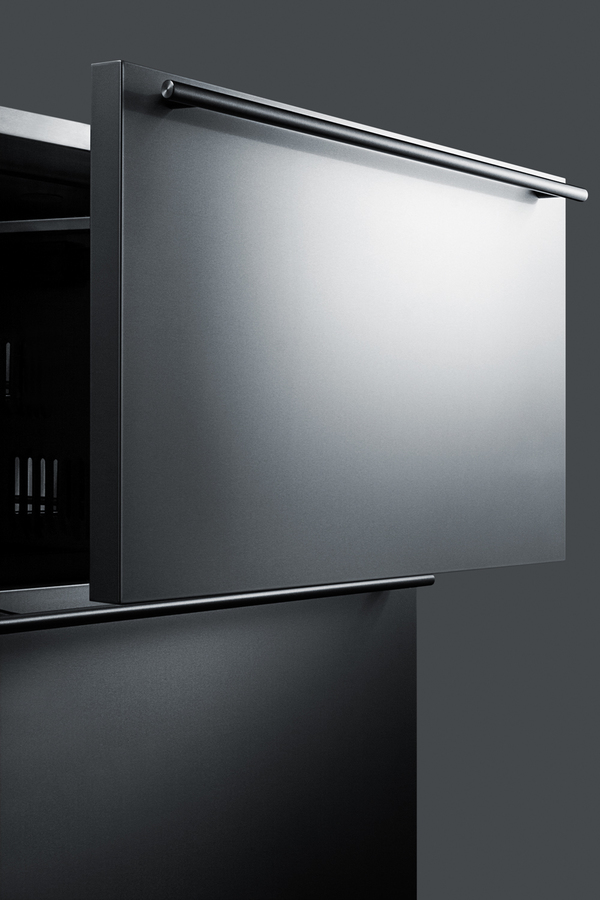

Two stainless steel drawers

Slide-out drawers offer 3.4 cu.ft. of interior storage

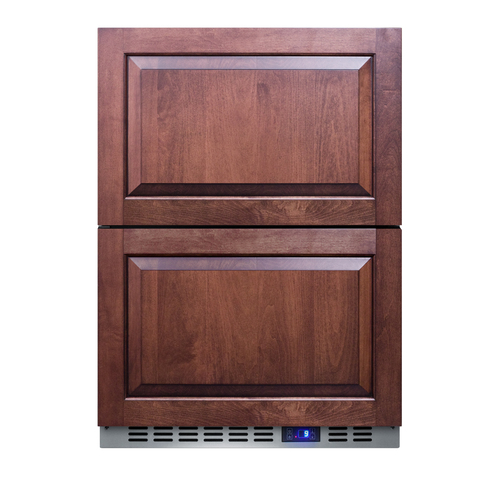

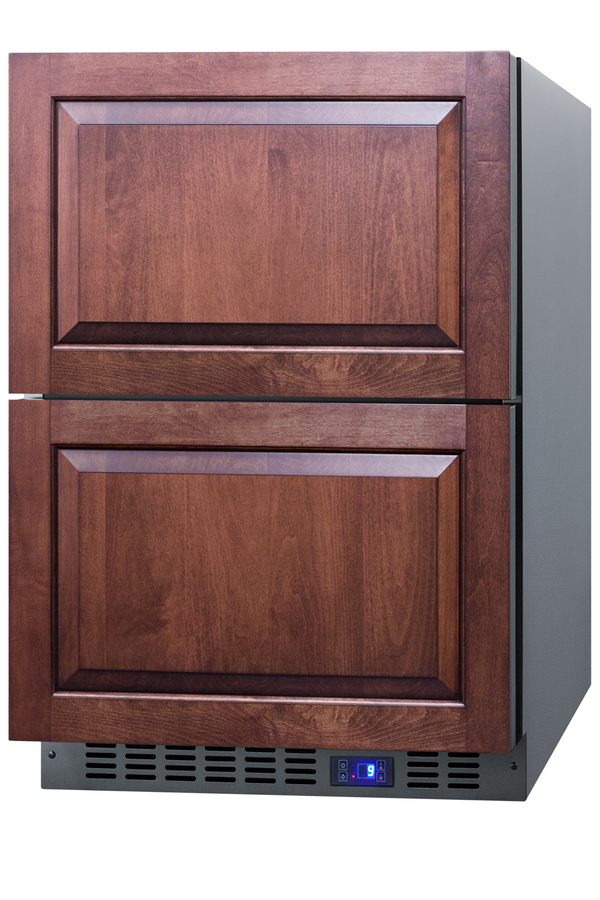

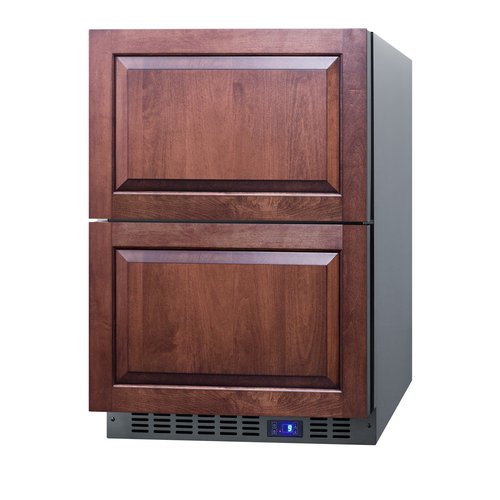

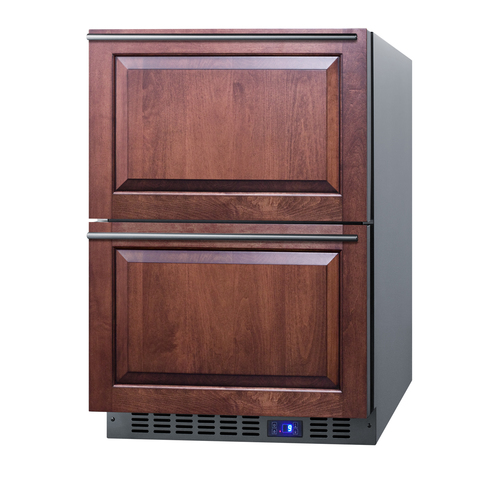

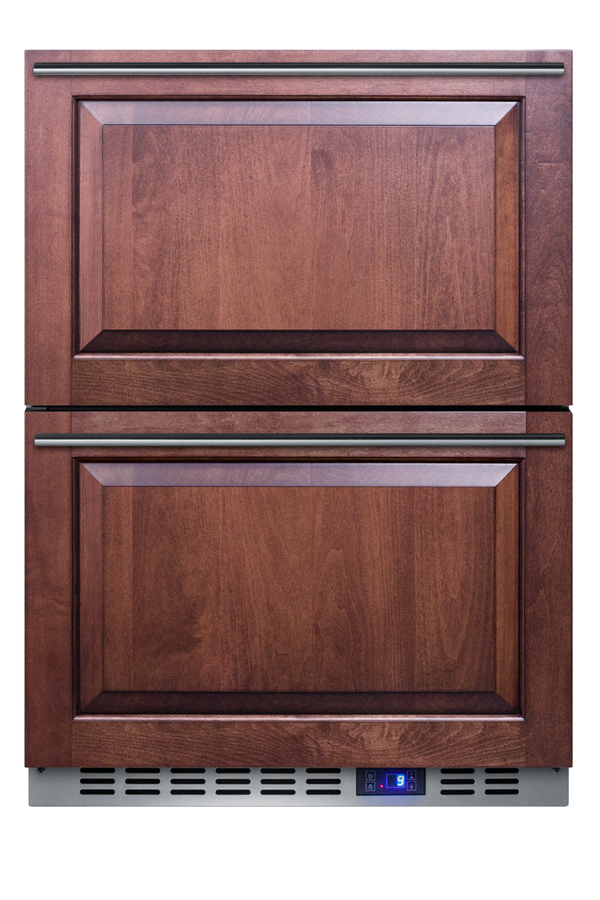

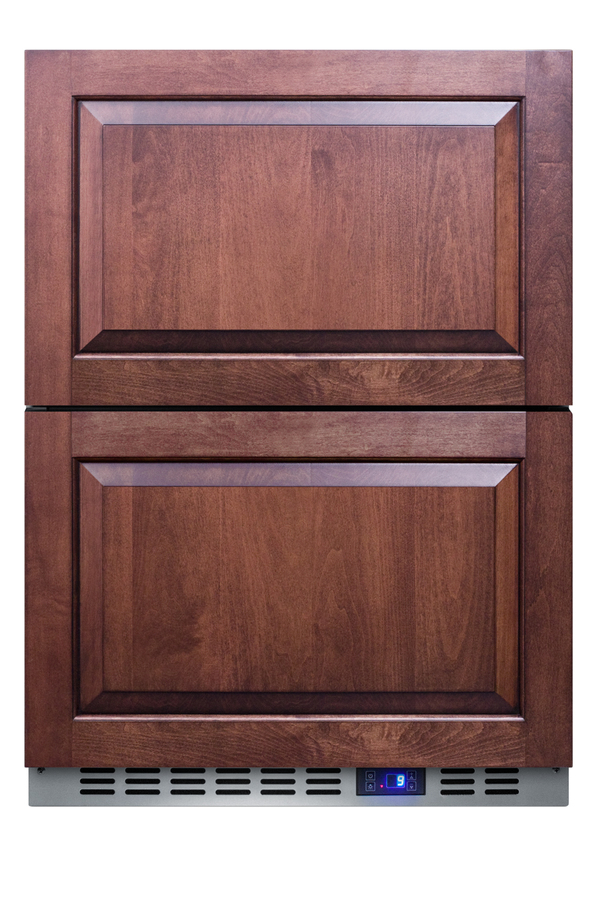

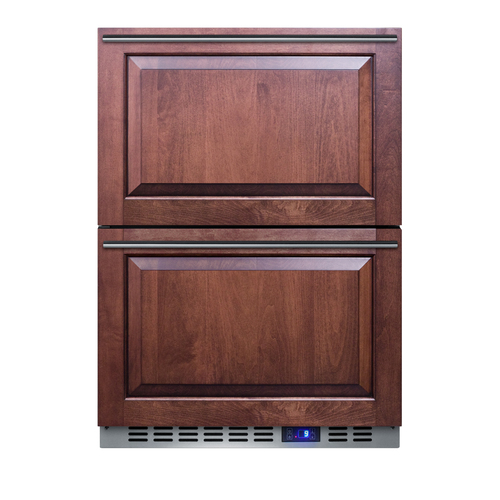

Panel-ready drawer fronts

Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Frost-free operation

No-frost operation for minimum user maintenance

Stainless steel kickplate

Completes the professional look down to the toe kick

Open drawer alarm

Audible alarm will sound if the drawers are left ajar for over a minute

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

LED lighting

Elegant and efficient lighting offers a gentle illumination for the drawer interiors

Sabbath Mode

Optional setting lets you disable the lighting and alarm for up to 48 hours

Drawer dividers

Two adjustable dividers make it simple to organize the drawer interiors

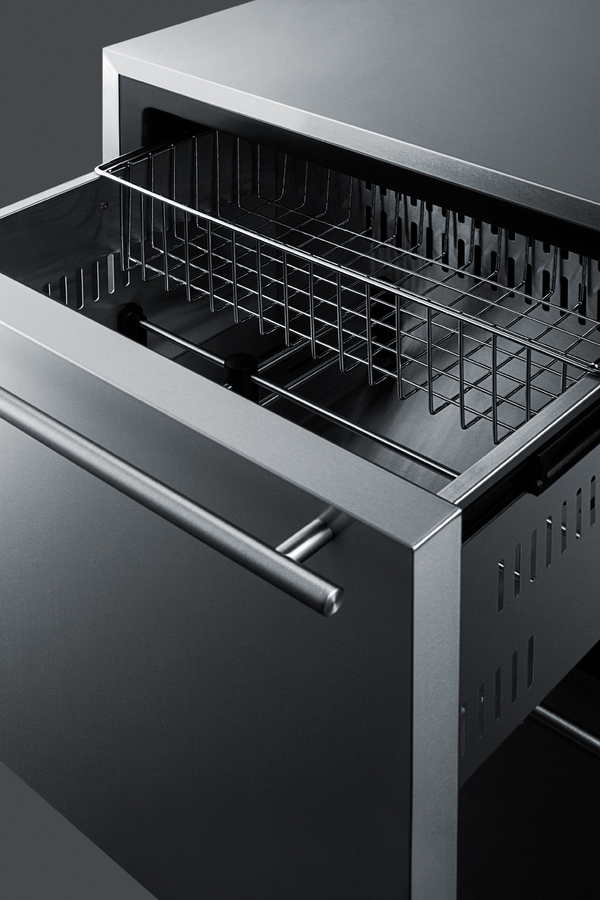

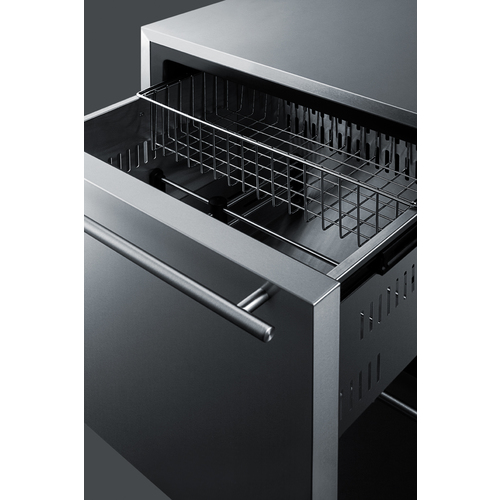

Sliding basket

Removable chrome basket included for easier storage convenience

Fully finished cabinet

Allows the unit to be used freestanding

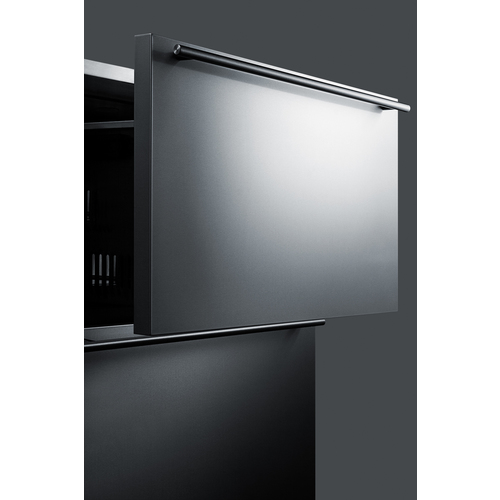

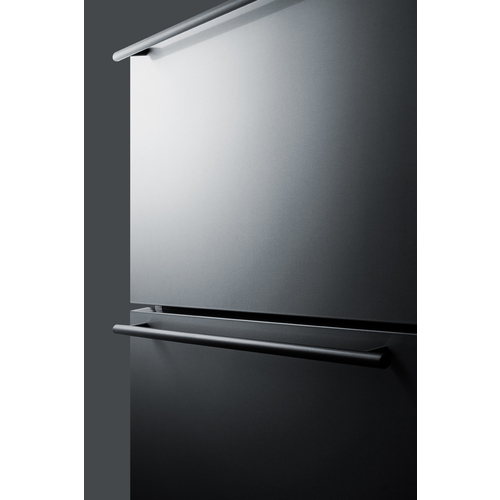

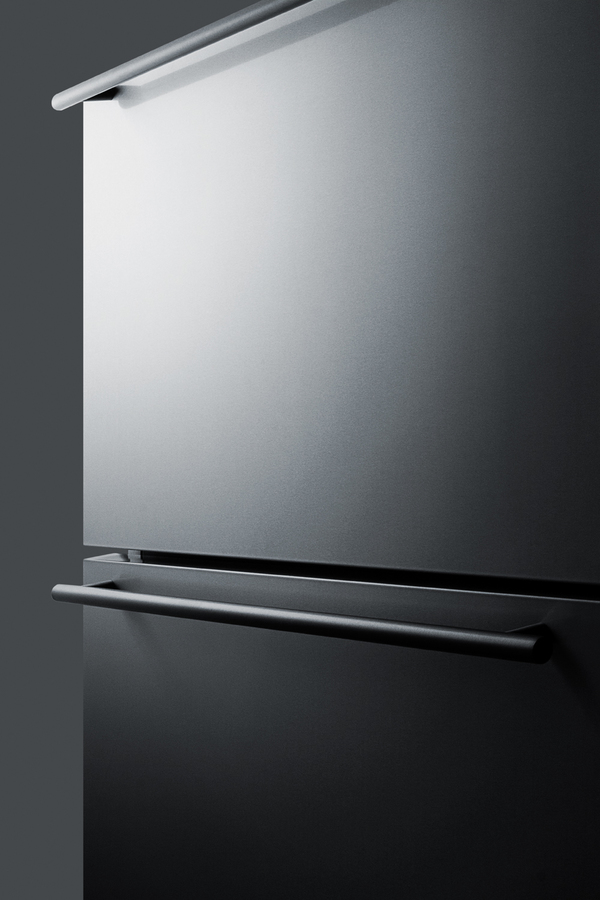

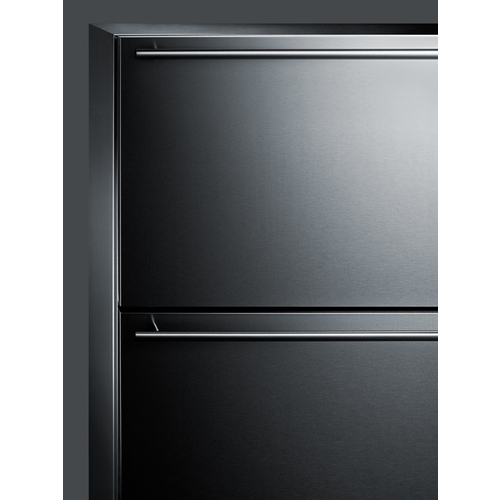

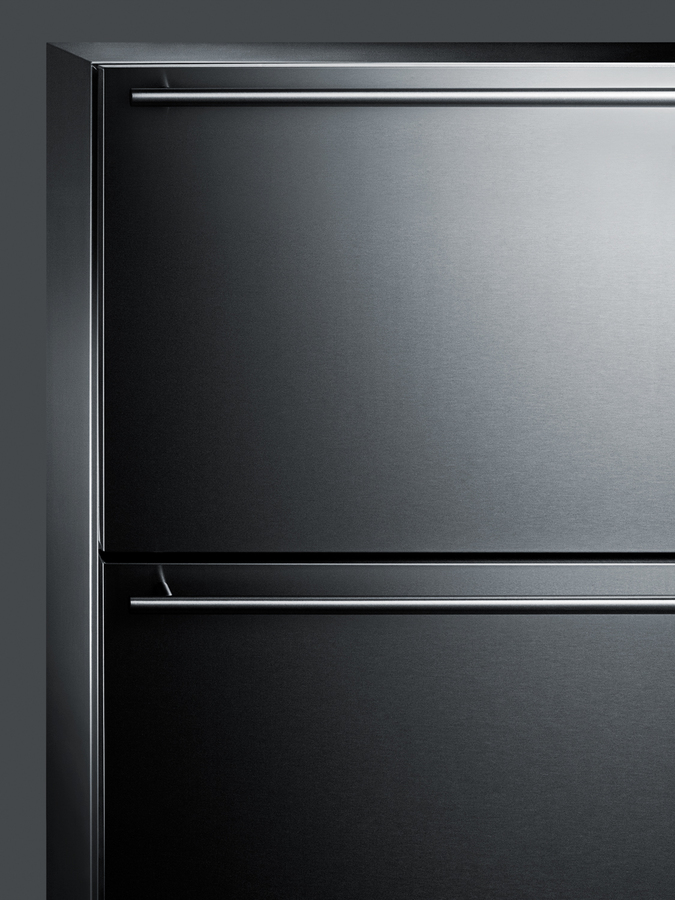

Professional handles

Sleek stainless steel handles add an elegant touch to any setting

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Sealed back

Space saving design with easier cleanability

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Anti-tip bracket

Included and recommended for user-installation to reduce the risk of tipping

Matching freezer

Pair with the CL2F249 to create a matching refrigerator-freezer set

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

The Summit Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.

The CL2R248 is a 24" wide two-drawer all-refrigerator fully constructed from stainless steel. The fully finished cabinet allows freestanding use, while the front-breathing cooling system enables built-in installation under counters. The drawers can be customized with overlay panels to match or accent existing cabinetry design. The stainless steel kickplate and sleek handles complete the look.

Frost-free operation ensures minimum user maintenance inside the 3.4 cu.ft. interior. Two adjustable dividers make it easy to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A sliding chrome basket offers added storage convenience, while the LED lighting makes it easy to view stored contents when loading or unloading both sections.

Additional features ensure the unit is running at its best. These include a high temperature alarm and open drawer alarm. The digital thermostat makes it easy and intuitive to manage the interior temperature, while a temperature memory function helps to recover all settings in the event of power loss. This model also has a Sabbath Mode Setting that disables certain electrical features during periods of religious observance.

With its flexible design and user-friendly features, the CL2R248 is the ideal drawer refrigerator for home settings looking to add convenient luxury to the kitchen. To create a matching set, pair with our CL2F249 frost-free all-freezer.

BROCHURE w/ DRAWINGS
CL2R248.pdf

TECHNICAL DRAWING (.dwg)
CL2R248__2__DR._ALL-_REF.__A-C_2000_.dwg

3D DRAWING
SPR627OS2D.obj

3D DRAWING
SPR627OS2D.dwg

3D DRAWING
SPR627OS2D.3ds

USE & CARE
CL2R248_CL2F249manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
