18" Wide Built-In Wine/Beverage Cooler Drawer

SKU: COOL1D
Unique 18" width and single drawer design, with a fully finished front that also accepts overlay panels to create a custom look
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

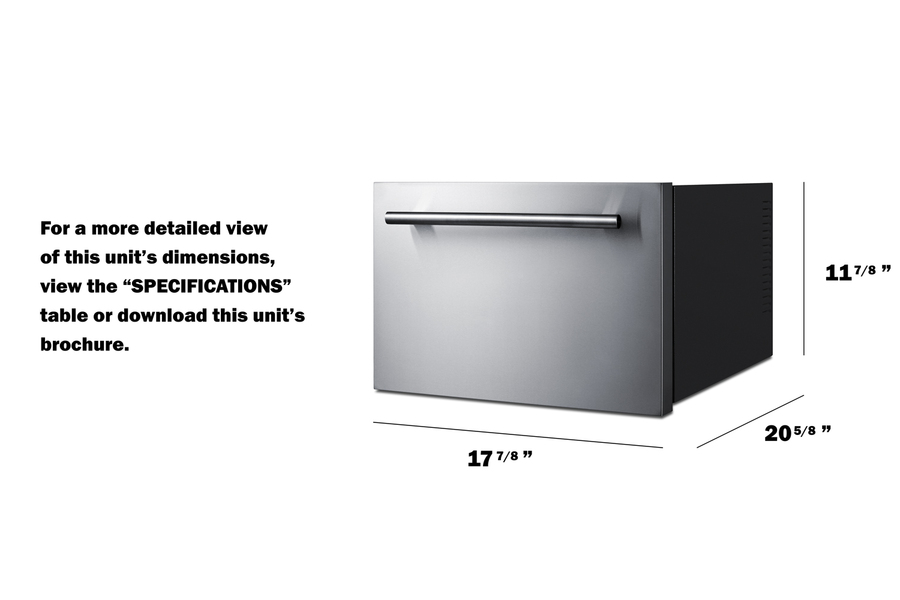

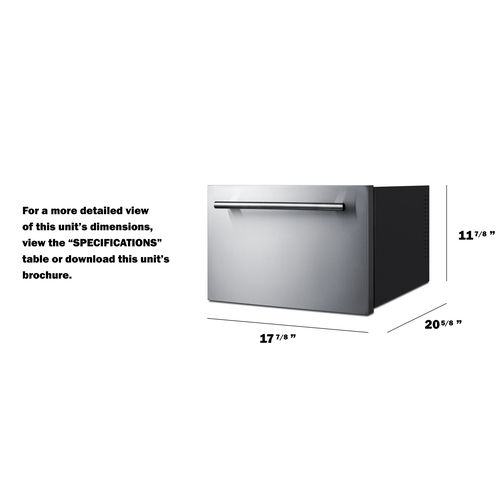

11.88" H x 17.88" W x 20.63" D
(30cm H x 45cm W x 52cm D)

Overview
Nominal Height 12.0" (30 cm)
Height of Cabinet 11.88" (30 cm)
Nominal Width 18.0" (46 cm)
Width 17.88" (45 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.63" (52 cm)
Depth with Handle 22.5" (57 cm)
Capacity 0.8 cu.ft. (23 L)
Bottles 8 bottles
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 62.0 lbs. (28 kg)
Parts & Labor Warranty 1 Year
UPC 761101088945
Wine Cellar
Number of Zones 1
Door Swing Drawer
Adjustable Shelves Yes
Shelf Type Plastic
Shelf Qty 2
Thermostat Type Digital
Interior Light Yes
Fan Type Exterior
Interior Height 1 7.0" (18 cm)
Interior Width 1 13.63" (35 cm)
Interior Depth 1 12.25" (31 cm)
Level Legs 2
Temperature Range 46 to 68ºF
Sabbath Mode Yes

18" wide single drawer cooler

Slim fit allows you to elevate extra undercounter or wall space

Quiet operation

Solid state cooling eliminates the typical noises and vibrations produced by compressor-based coolers

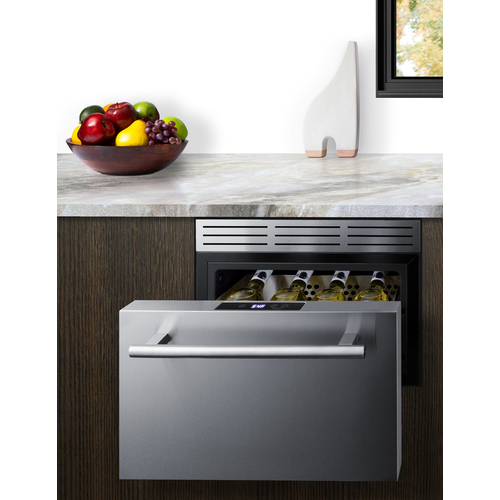

Built-in capable

Designed for installation in 12" H x 18" W x 22.5" D cutouts with cross ventilation in rear

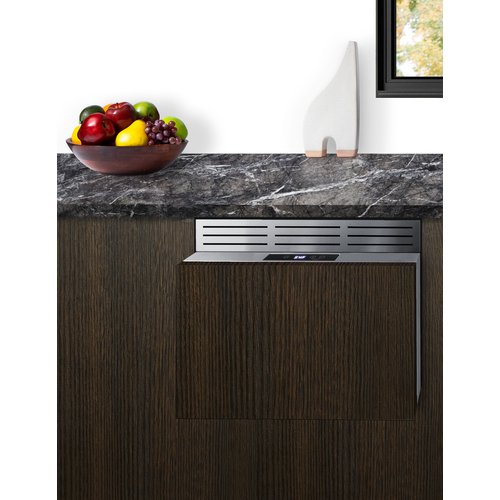

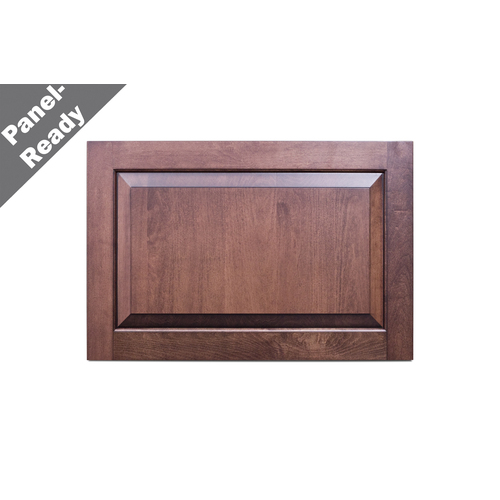

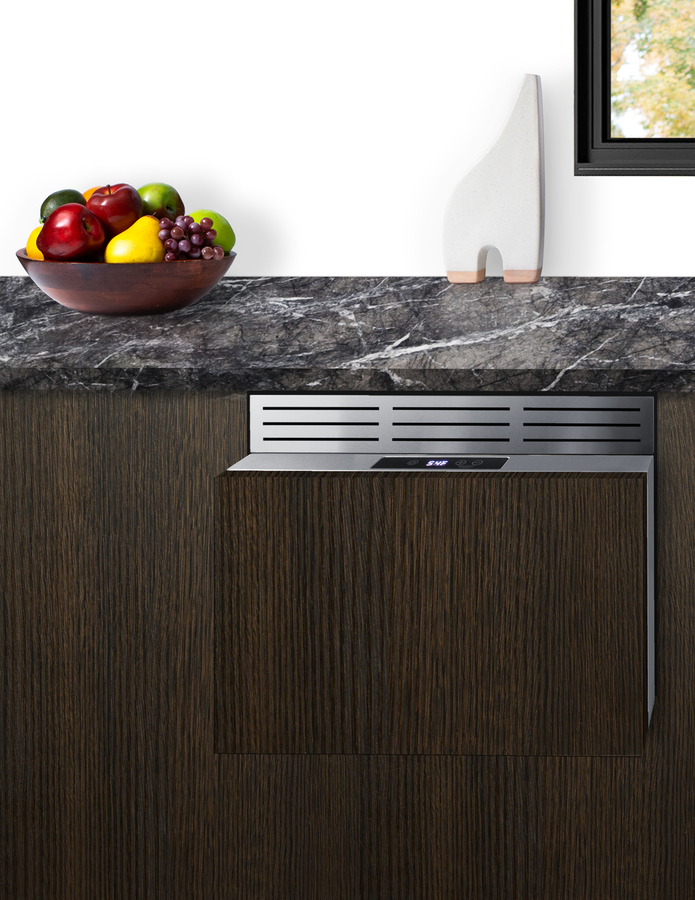

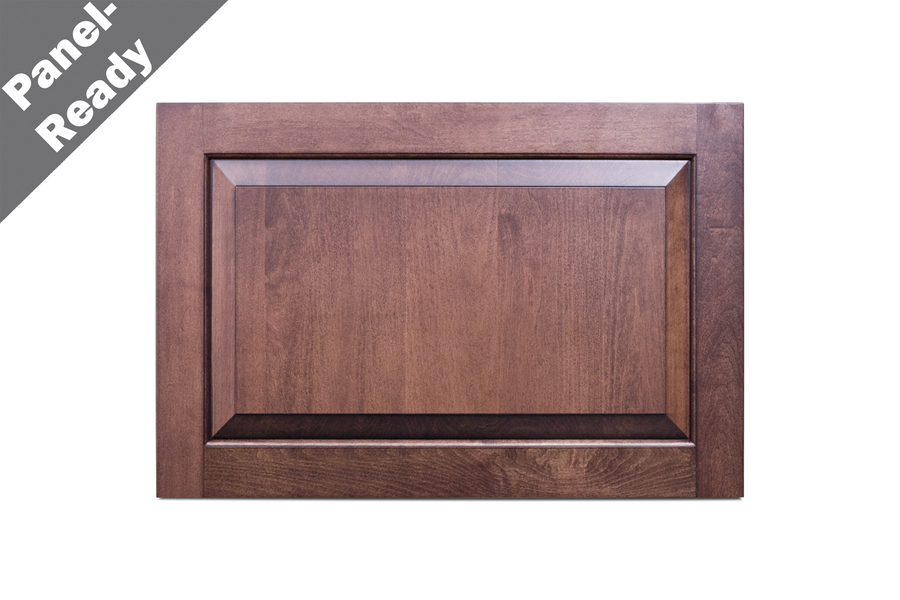

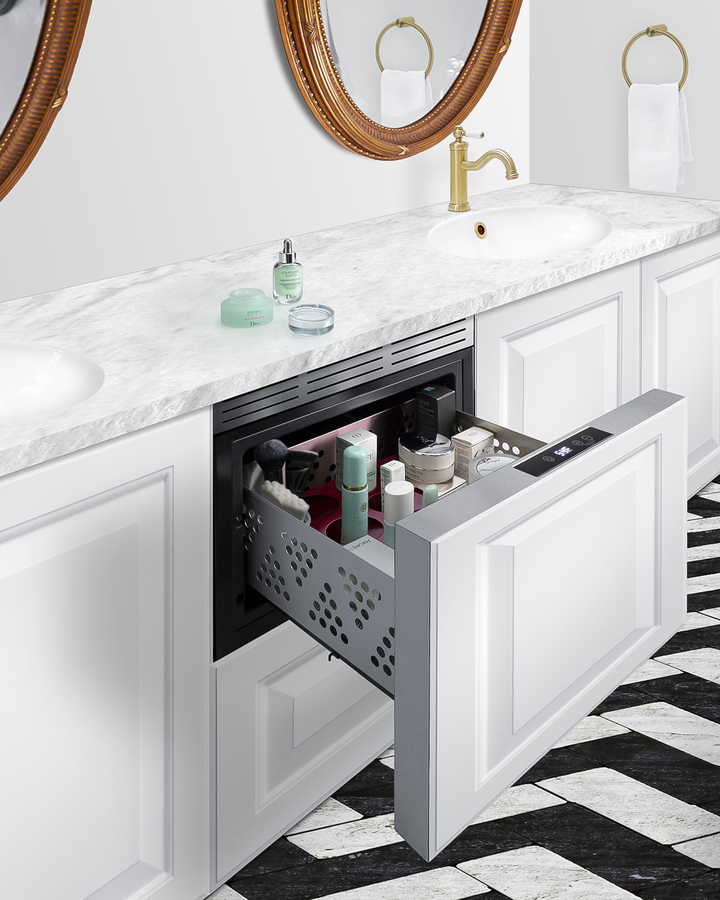

Panel-ready

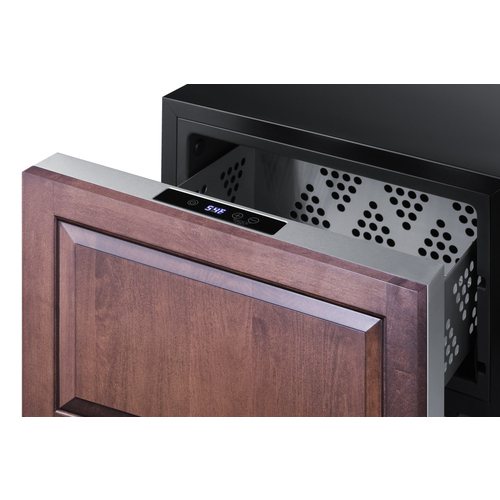

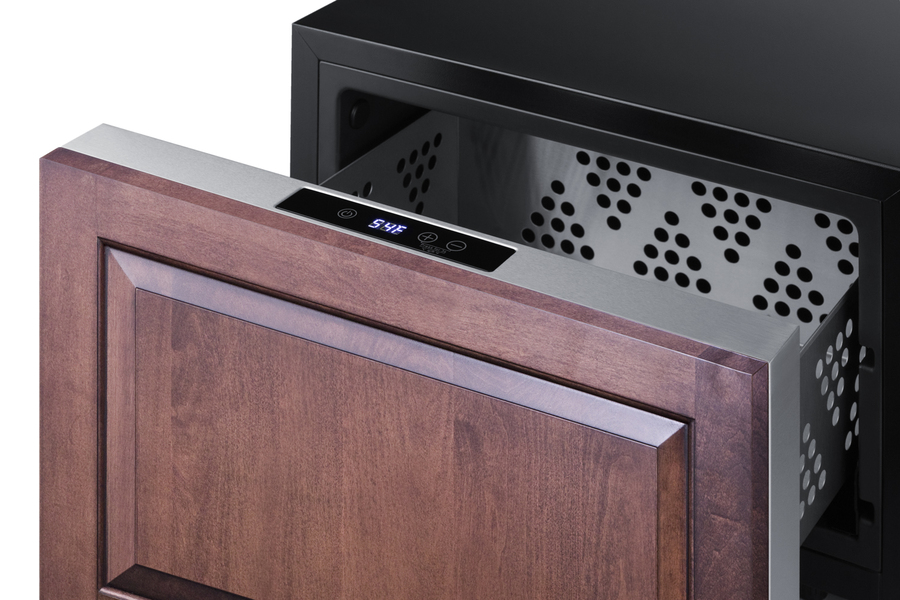

Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 11.9" H x 17.87" W at 3/4" thickness)

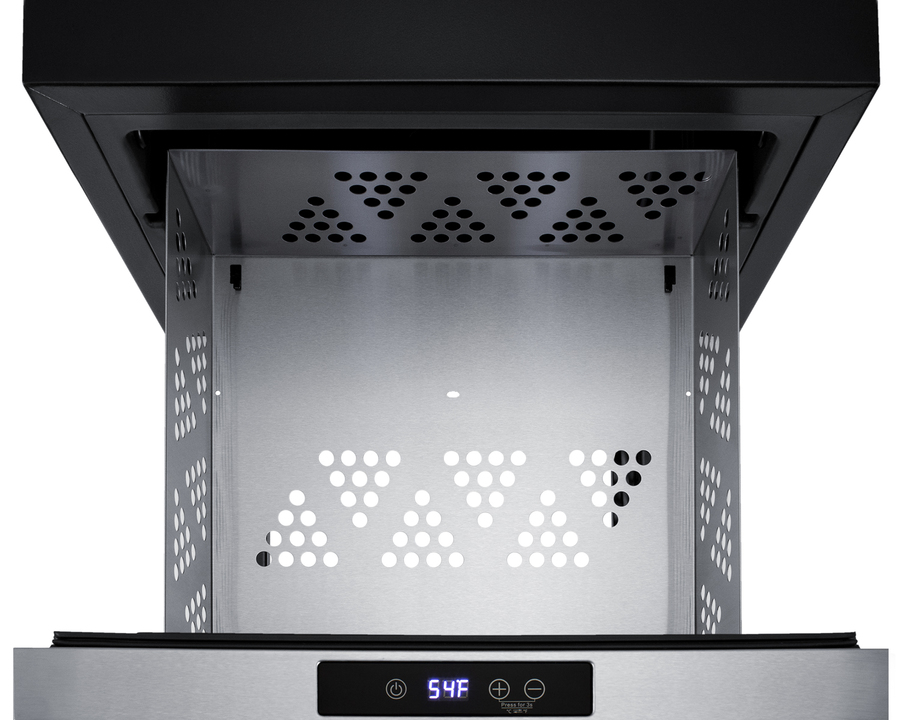

304 grade stainless steel drawer

Drawer front and interior constructed from stainless steel for added durability and easy cleanability

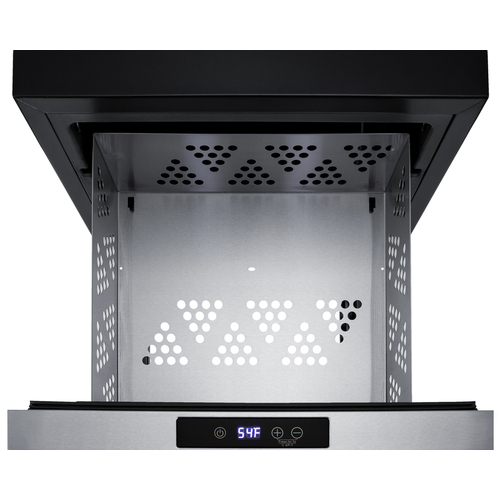

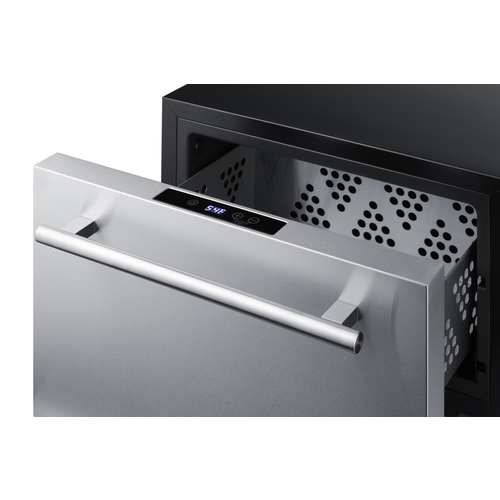

Digital thermostat

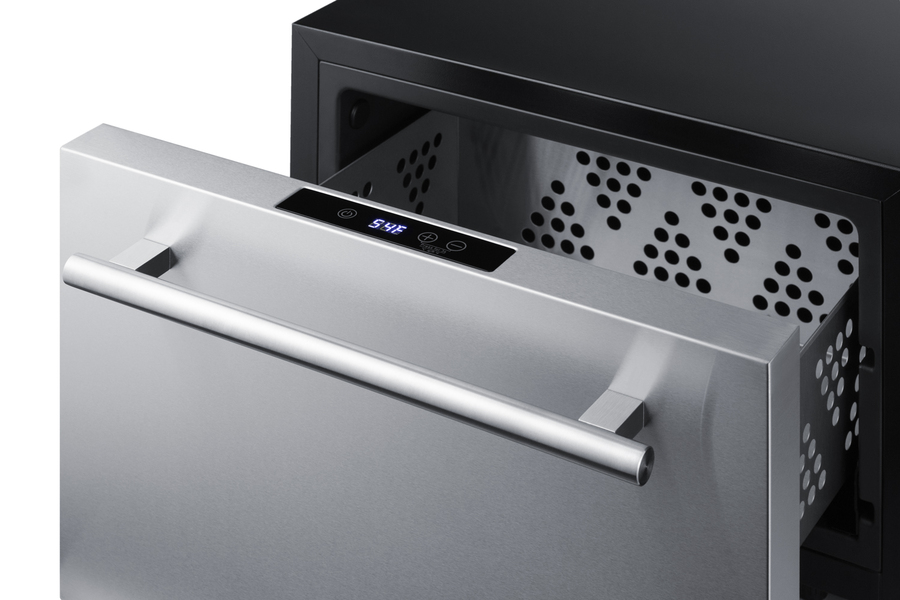

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

Perfect chilling temperature

Designed to operate between 46 and 68ºF for the ideal storage of wine, beverages, and certain cosmetics

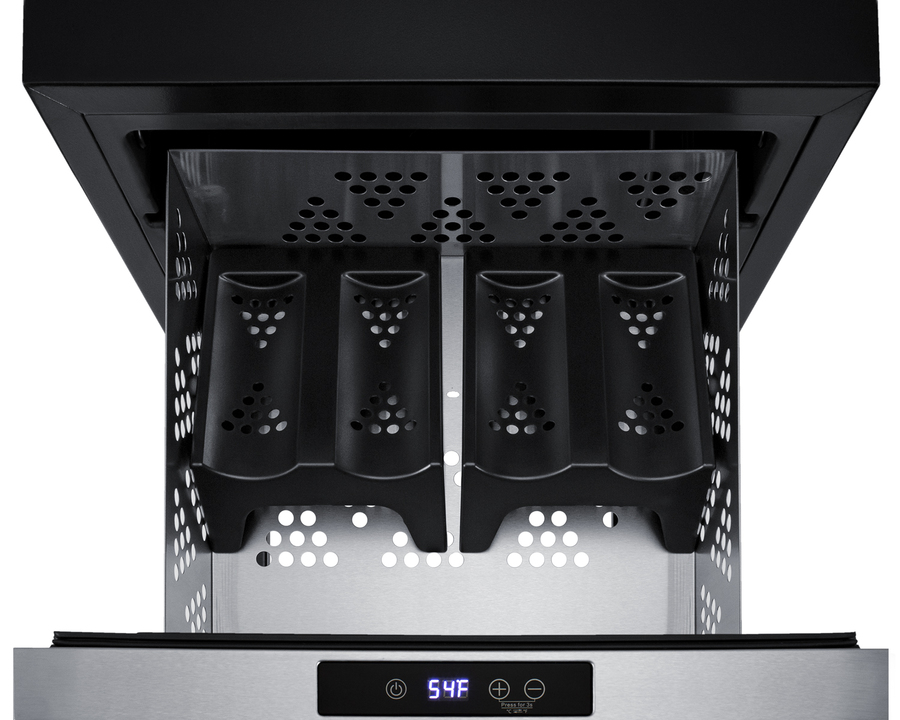

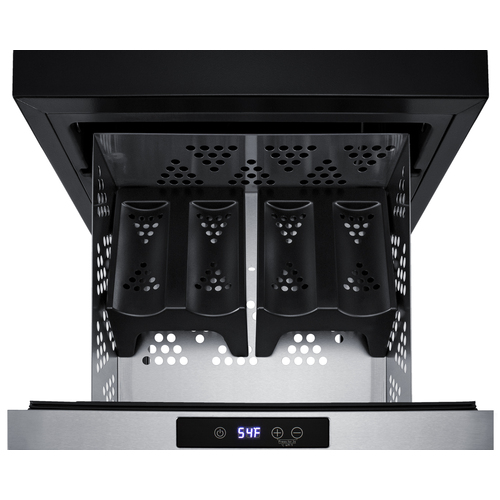

Removable wine shelves

Two molded plastic racks included to store Bordeaux style and other bottles at a slight angle

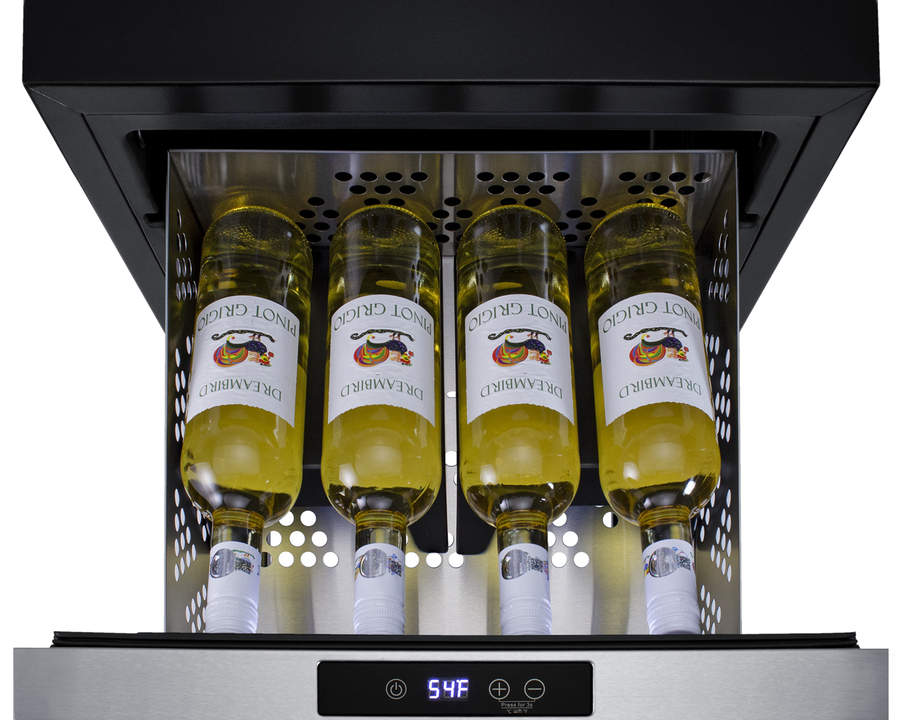

Open wine bottle storage

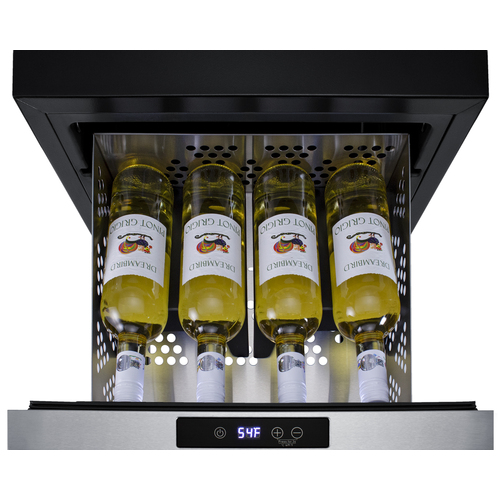

Thoughtfully designed shelving allows you to store up to 4 bottles at a 45º angle, perfect for chilling open bottles without in spill-proof style

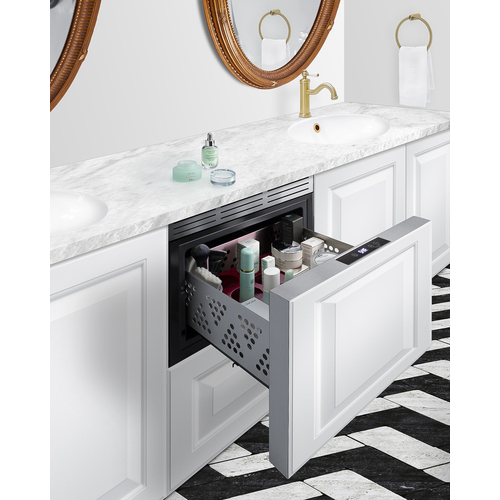

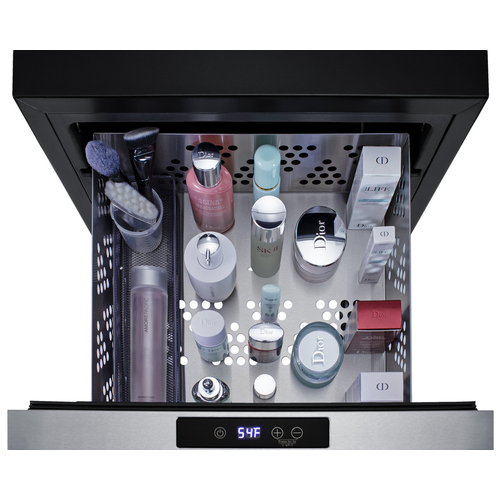

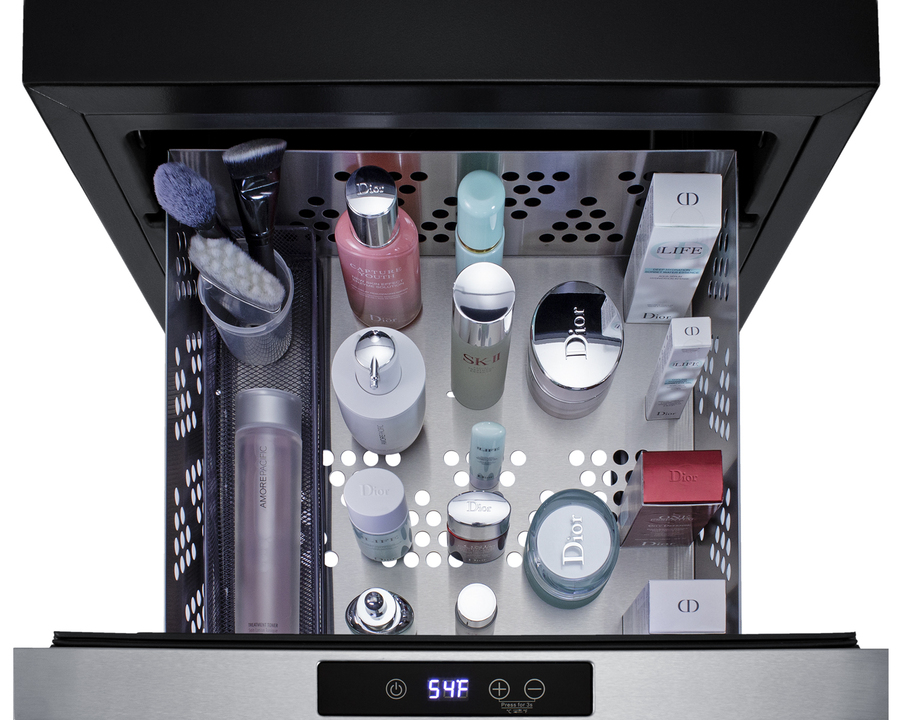

Great for skincare products

Temperature range and unit size makes it the perfect spa or vanity cooler to keep cosmetics, serums, and other skincare products stored at the proper conditions

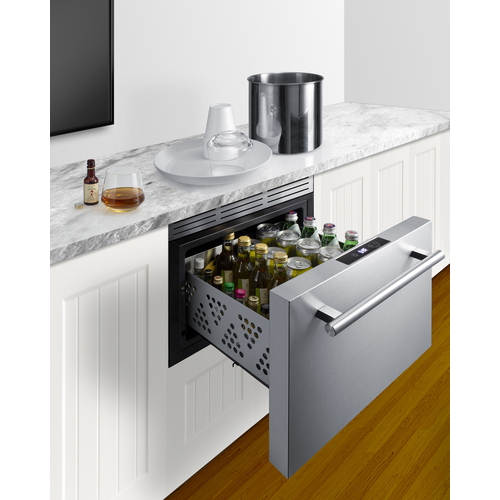

Upgraded minibar design

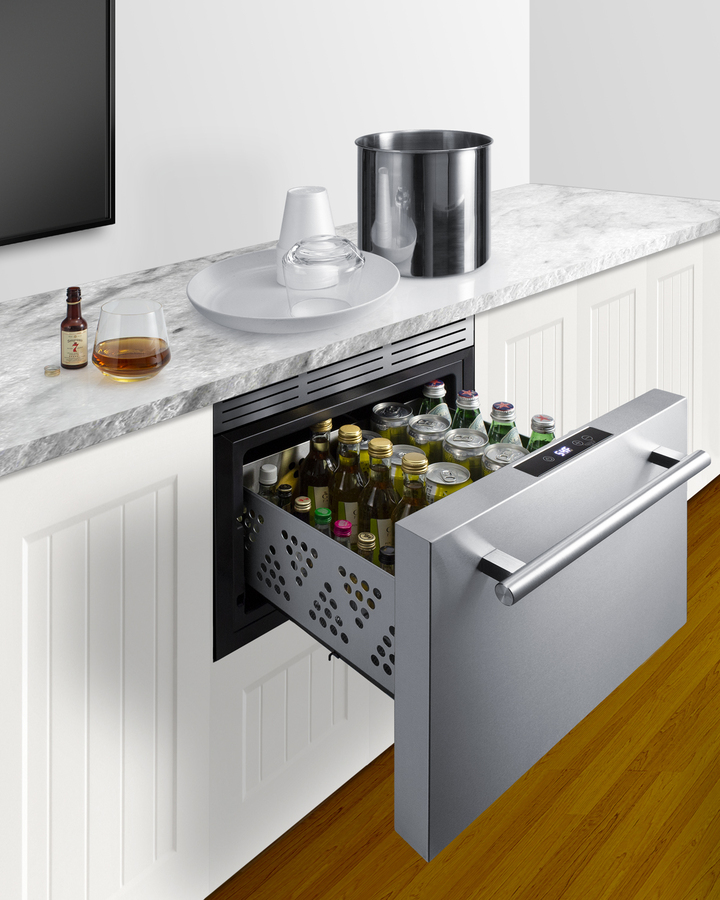

Ideal for hospitality design looking to elevate the in-room minibar with a more luxurious design

Open drawer alarm

Audible/visual alarm alerts if the drawer has been left open for five minutes

Sabbath Mode

Optional setting lets you disable certain electrical functions during periods of religious observance

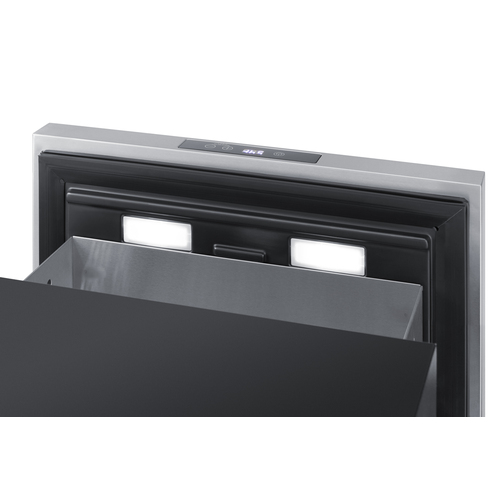

LED lighting

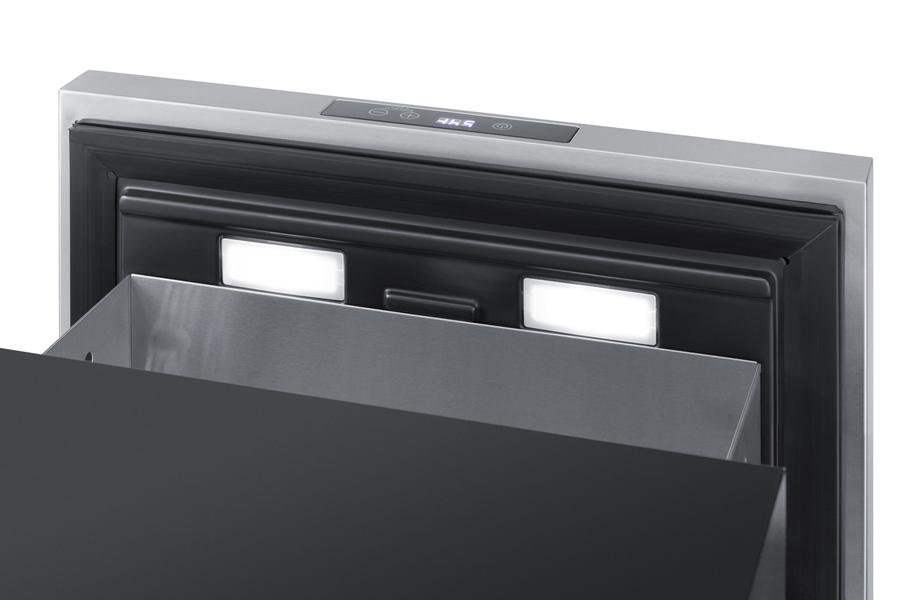

Elegant LED lighting in a gentle white hue illuminates the drawer for an easy view of the interior

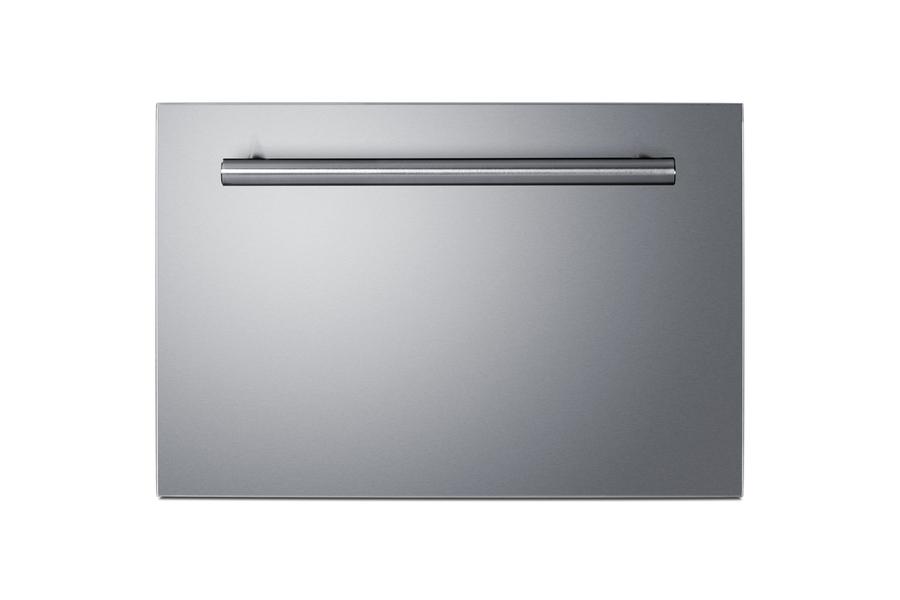

Professional handle

A sleek stainless steel handle adds an elegant touch to any setting

Sealed back

Space-saving design with no exposed coils for easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

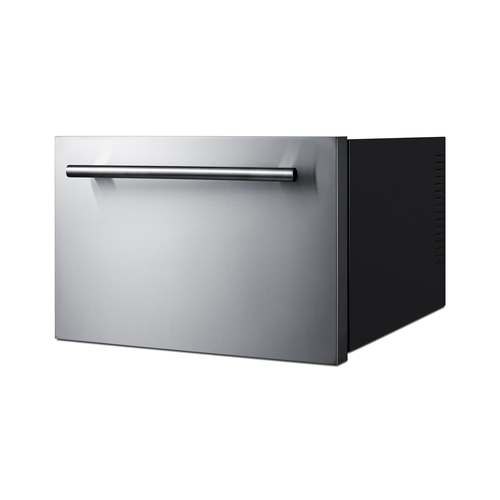

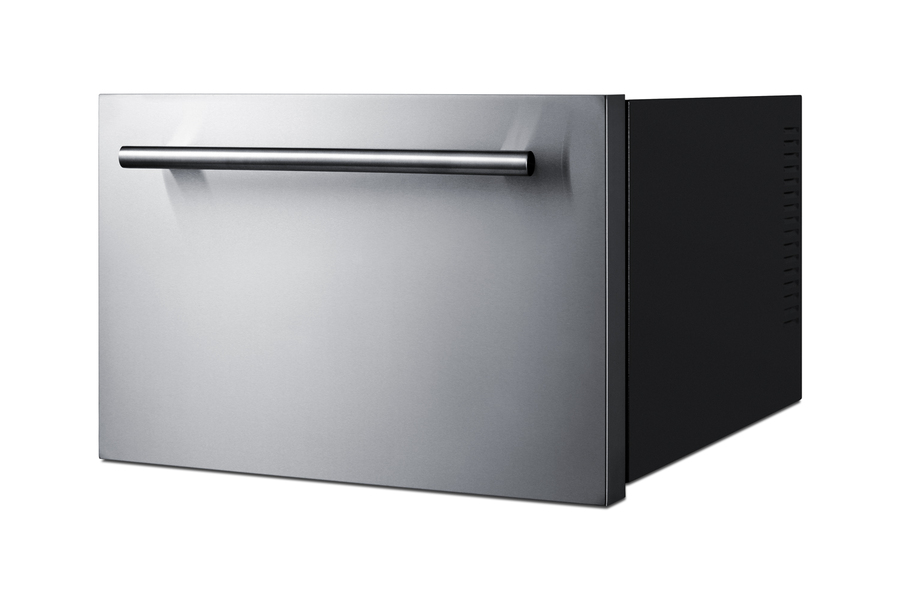

Fully finished black cabinet

Allows the unit to be used freestanding if preferred

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Summit manufactures a unique assortment of built-in single drawer appliances, including our new 18" wide solid state wine and beverage cooler ideal for home kitchens, hotel spaces, corporate offices, back bar settings, and more.

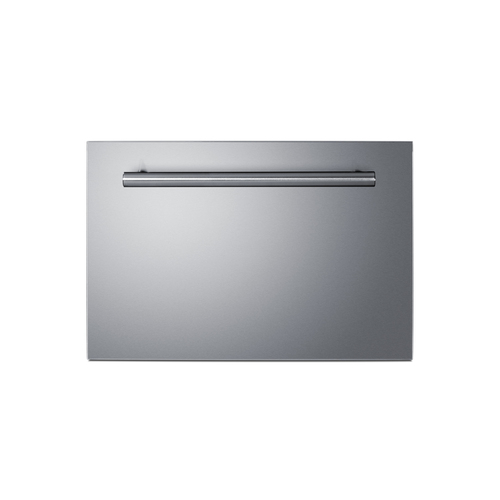

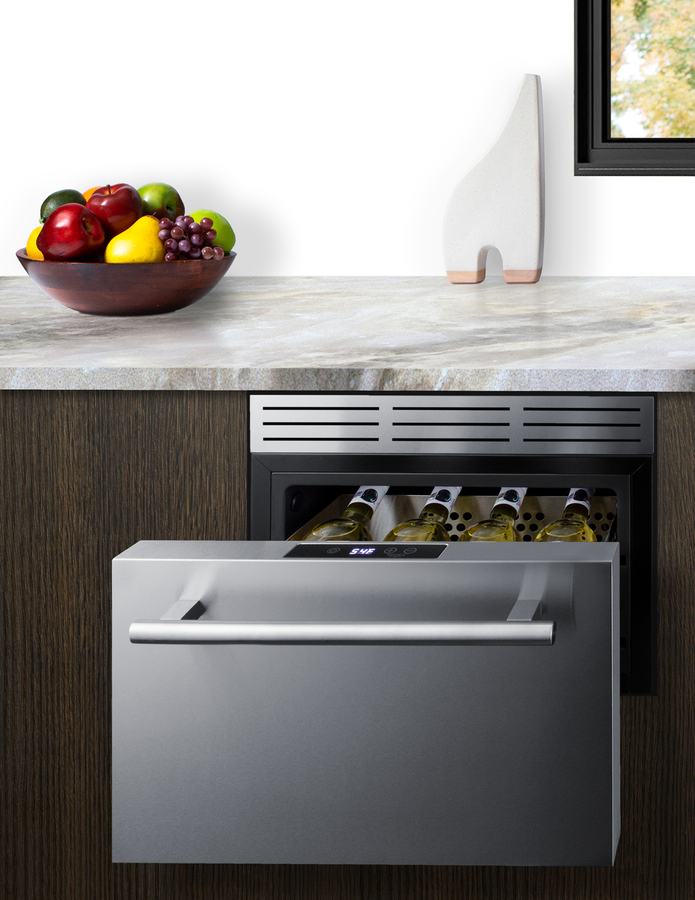

Model COOL1D is a 1-drawer wine and beverage chiller that utilizes an efficient and quiet solid state cooling system. The stainless steel drawer features a fully finished front with a horizontal grain to match any setting, with a pro-style handle included. The drawer front can also accept an overlay panel for a more customized look to blend or complement adjacent cabinetry (panel size: 17.87" W x 11.9" H at a 3/4" thickness). This cooler is designed to be installed in cabinet openings sized at 12" H x 18" W x 22.5" D and requires a 5.11" x 2.36" ventilation channel above the cabinet in the rear for proper operation. Alternatively, we include a stainless steel front grill that raises the height an additional 2" to account for the exhaust.

Designed for the storage of wine and beverages, the COOL1D includes intuitive digital controls that let you adjust the temperature between 46 and 68ºF. The temperature readout is switchable between Fahrenheit and Celsius to best suit your preference. An audible/visual alarm warns if the drawer has been left open for more than 5 minutes. Two LED lights in a white hue provide attractive illumination when the drawer is opened. Sabbath mode allows you to disable the interior light and digital temperature display as needed.

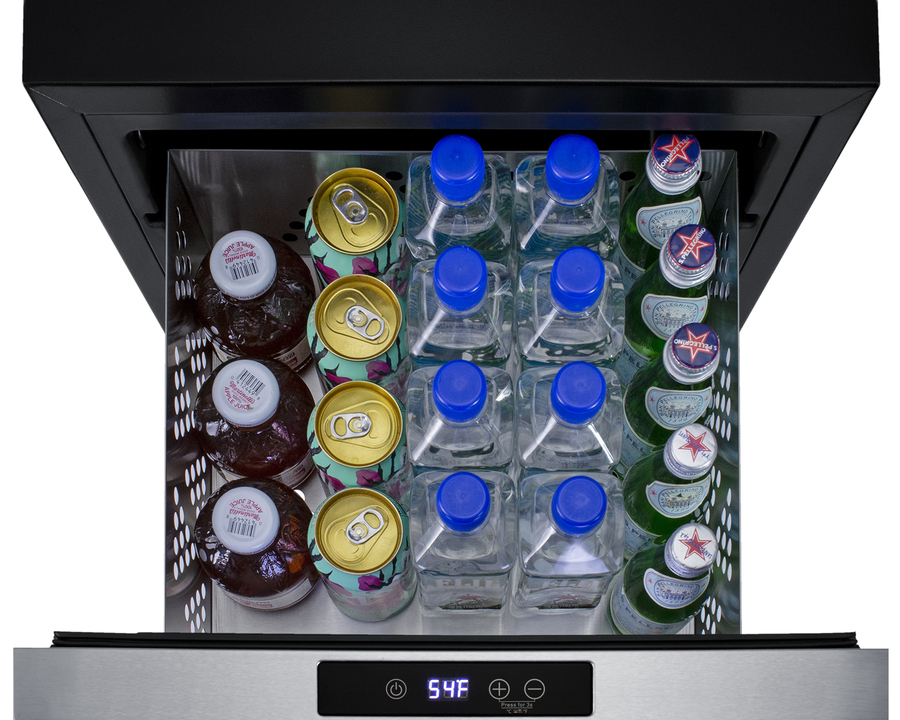

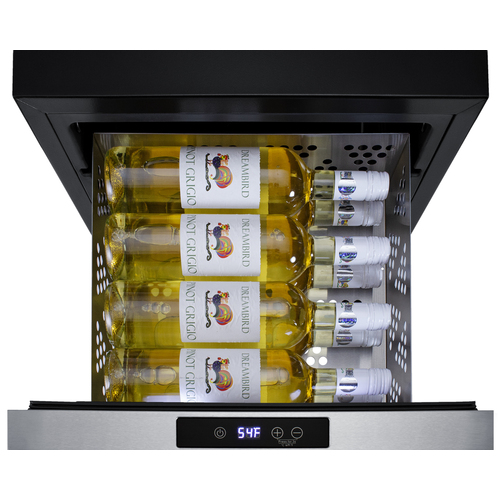

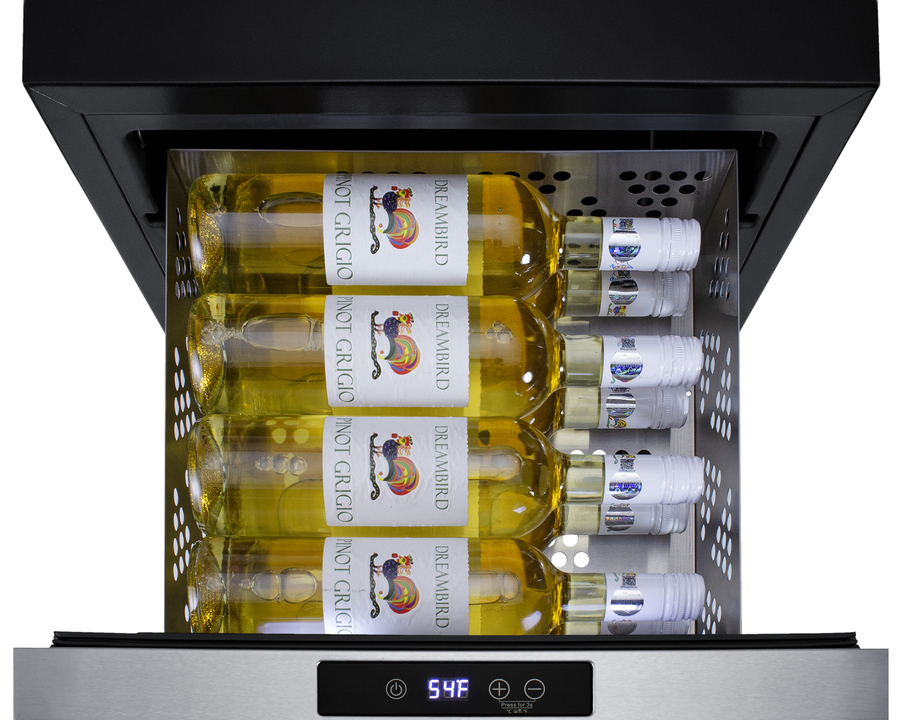

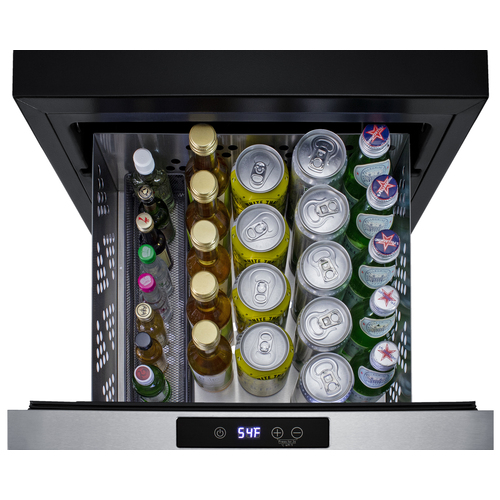

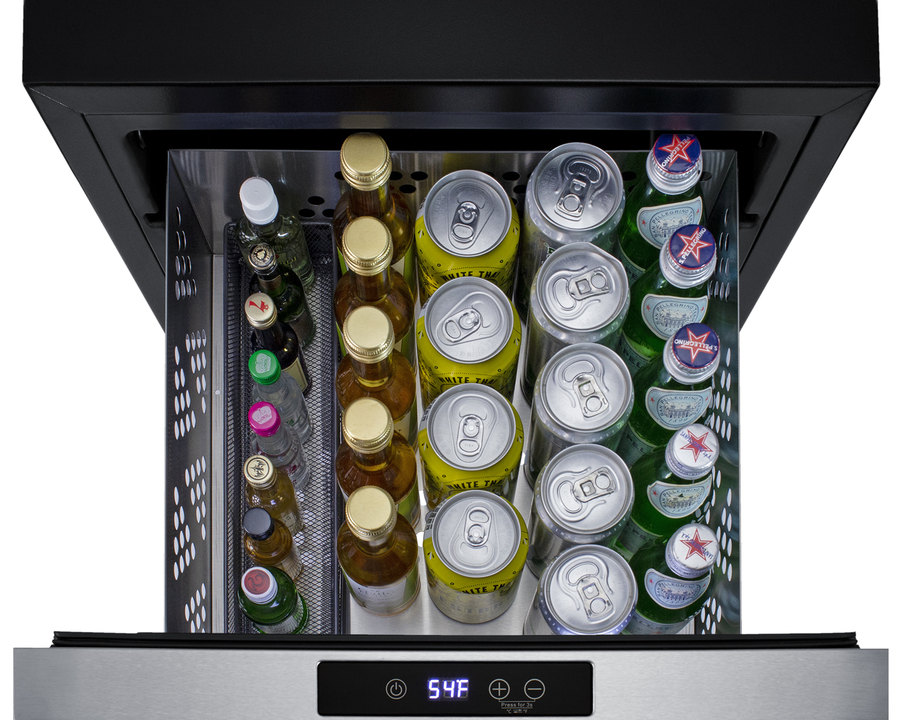

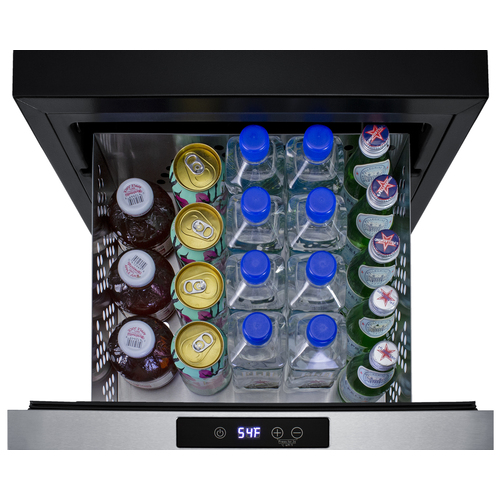

We include two removable wine shelves that let you store standard Bordeaux style bottles at a slight angle, making it easy to keep open bottles in reach with the necks facing forward. This layout allows you to store 4 bottles on the shelves and an additional 2 on the bottom of the drawer. By removing the shelves, you can store up to 8 bottles, or a variety of soda cans, water bottles, mini liquor bottles, and more. With its mild temperature range and elegant design, the COOL1D is also ideal for the storage of skincare products such as face masks, serums, creams, and other cosmetics that function better in cooler temperature conditions.

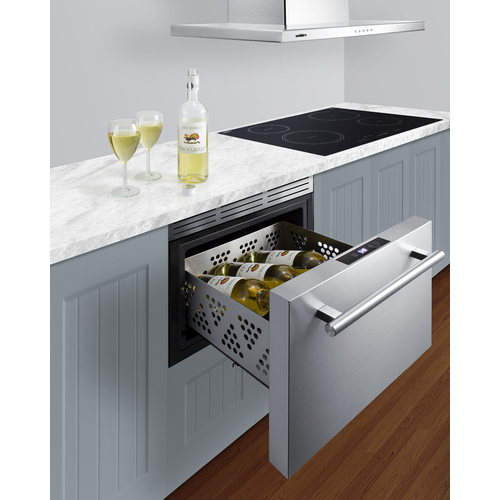

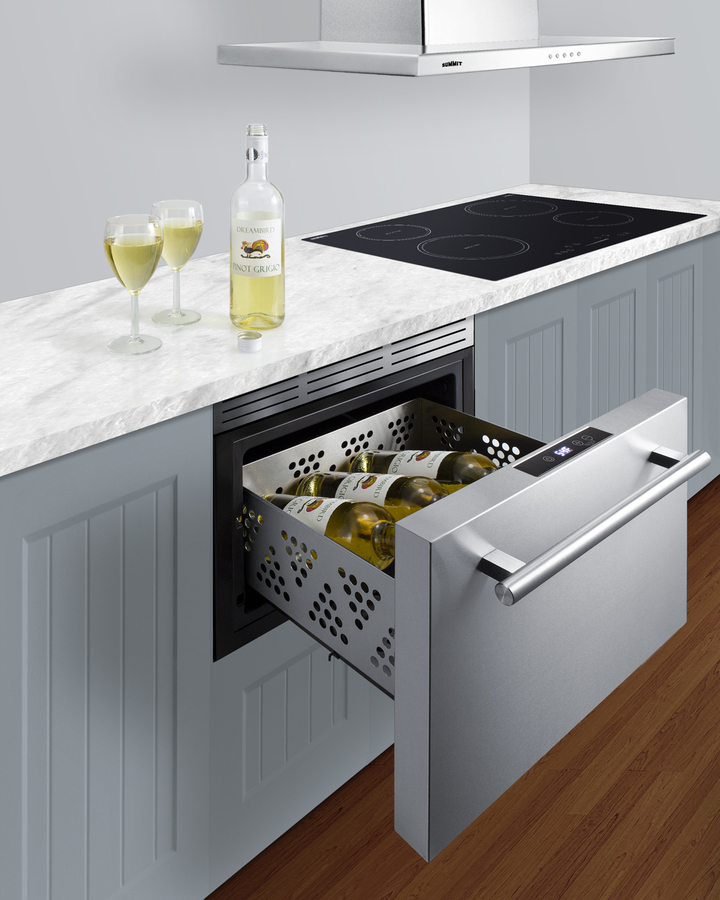

With its uniquely small size and versatile performance, the COOL1D is ideal for a variety of spaces looking to elevate undercounter openings with an attractive, functional cooling system. It can be installed in home kitchens or wet bars, corporate spaces, bathroom settings, walk-in closets, hotel suites, and much more.

Download
BROCHURE w/ DRAWINGS
COOL1D.pdf
Download
TECHNICAL DRAWING (.dwg)
COOL1D.dwg
Download
ASSEMBLY DRAWING
COOL1D-Assembly.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
