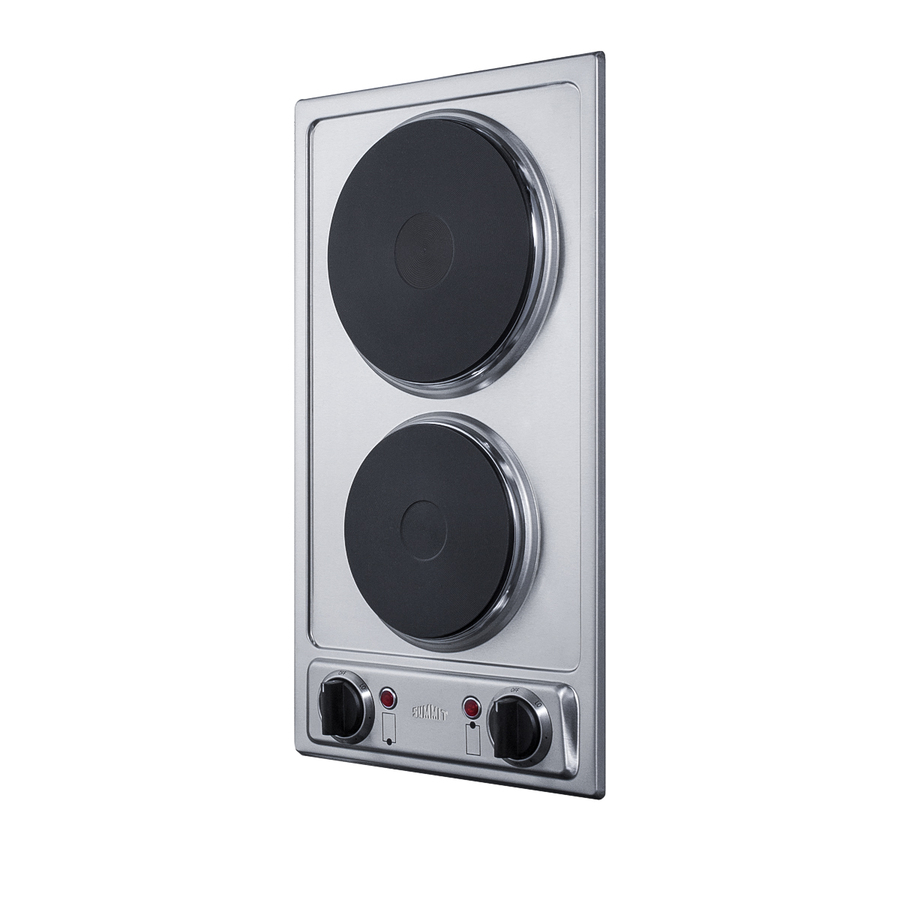

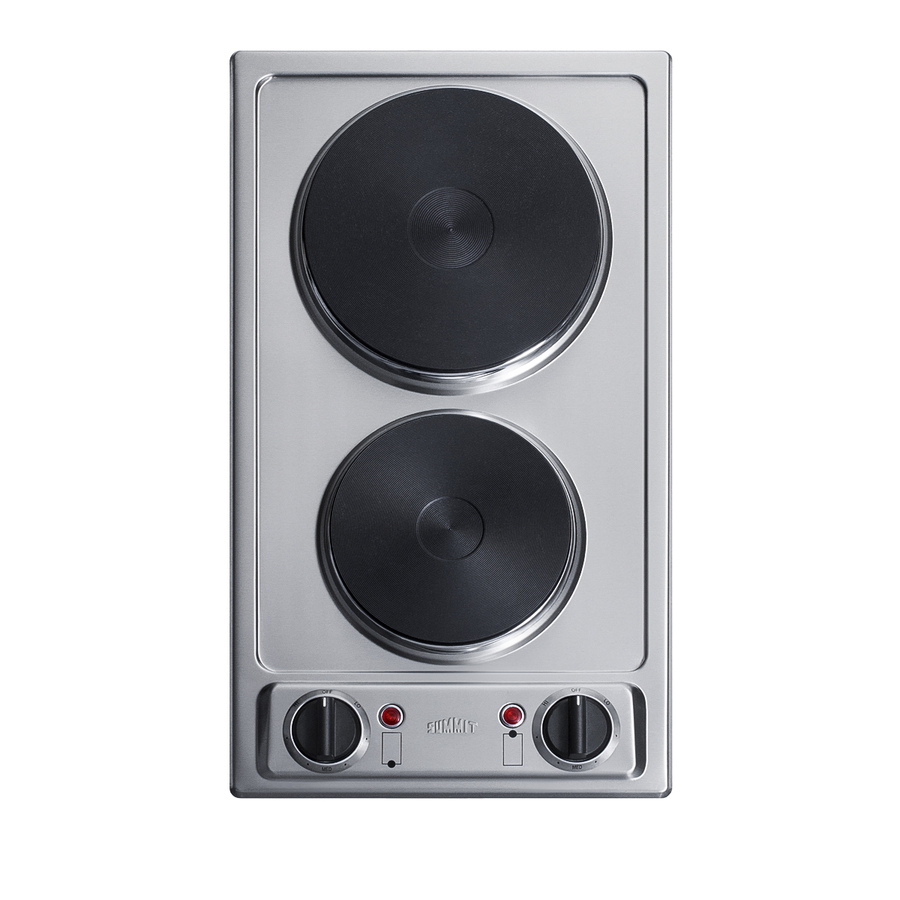

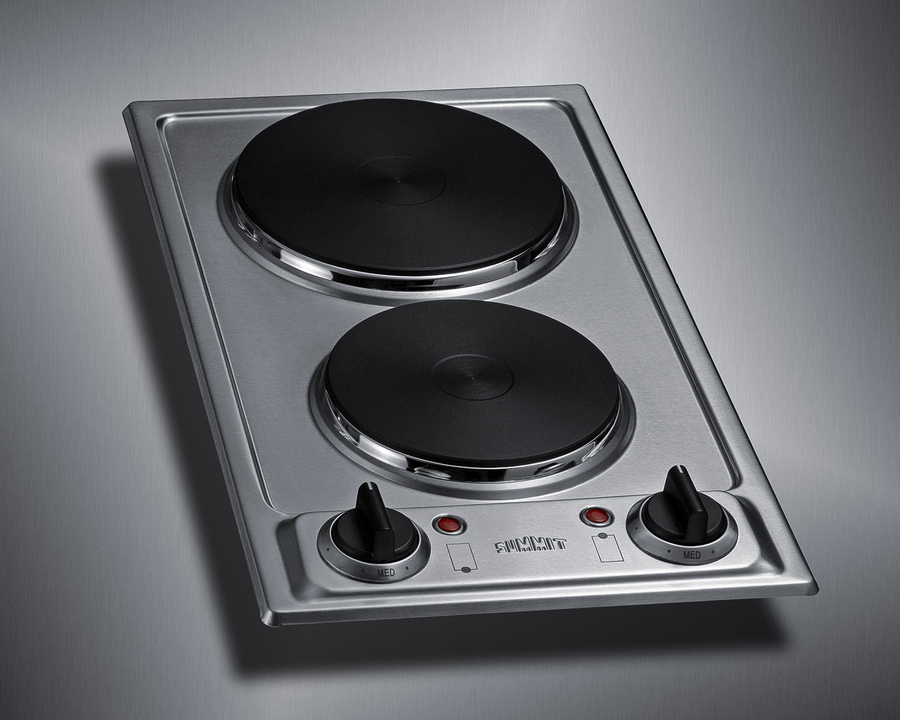

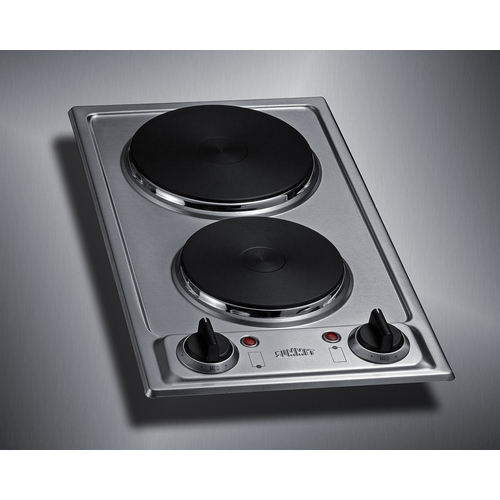

12" Wide 115V 2-Burner Solid Disk Cooktop
Next day shipping
(10cm H x 29cm W x 51cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 4.13" (10 cm) |
| Height of Cabinet | 4.13" (10 cm) |
| Nominal Width | 12.0" (30 cm) |
| Width | 11.25" (29 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 12.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 13.0 lbs. (6 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101089447 |
|
Electric Cooktop
|
|
| Heating Type | Radiant |
| Surface | Stainless Steel |
| Element Type | Cast Iron |
| Number of Elements | 2 |
| Controls | Dial |
| Countertop Cutout Height | 5.0" (13 cm) |
| Countertop Cutout Width | 10.5" (27 cm) |
| Countertop Cutout Depth | 19.25" (49 cm) |
| Power Source | 115 |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 500.0 |
| Element #2 Size | 8.0" (20 cm) |
| Element #2 Wattage | 900.0 |
| Power Cord Included | Yes |

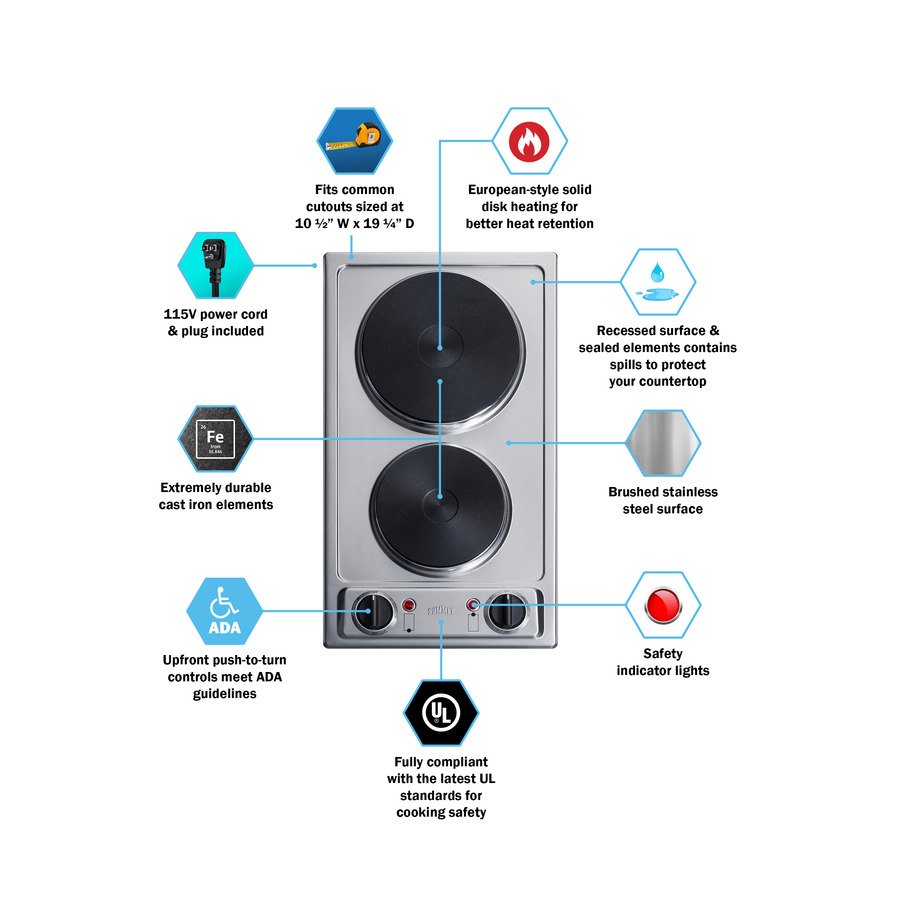

FEATURES
12" wide 115V cooktop with two solid disk heating elements
Designed for use with 110-120V / 20 amp connections

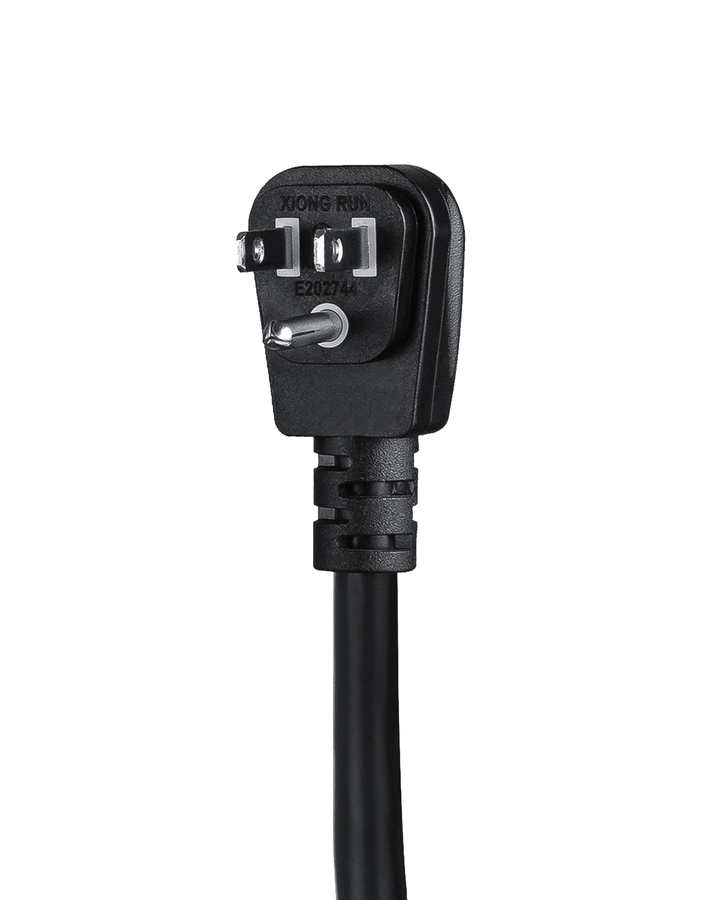

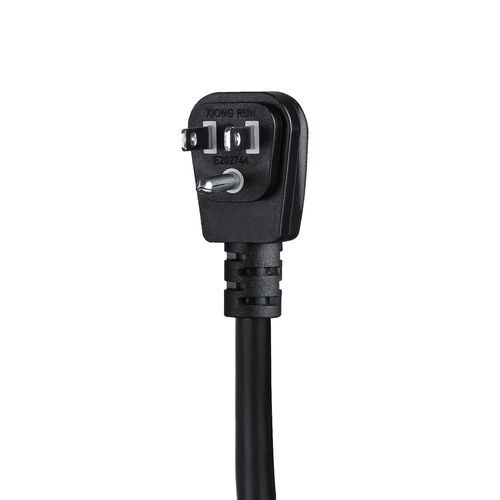

Pre-installed 115V cord with 3-pronged plug for easier setup
Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
Solid metal elements hold up to heavy duty use
Rear 900W burner with wide 8" diameter is ideal for heating larger cooking vessels
Front element offers 500W of cooking power to accommodate most heating needs
Fully sealed cast iron elements offer easier cleanup than traditional coil elements
Surface is made from stainless steel for an attractive and easy to clean look
Knobs require a small amount of force to help prevent accidents
Operating indicators light up to show which burner is in use
Slight indent helps to contain spills and protect adjacent countertops
Fits counter cutout sizes that are 10 1/2" W x 19 1/4" D
Compliant with the latest UL 858 safety standards

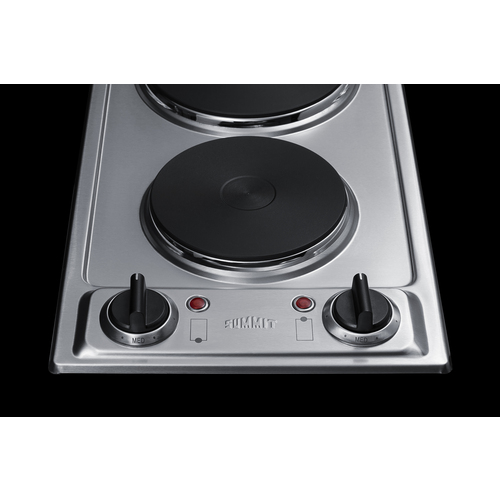

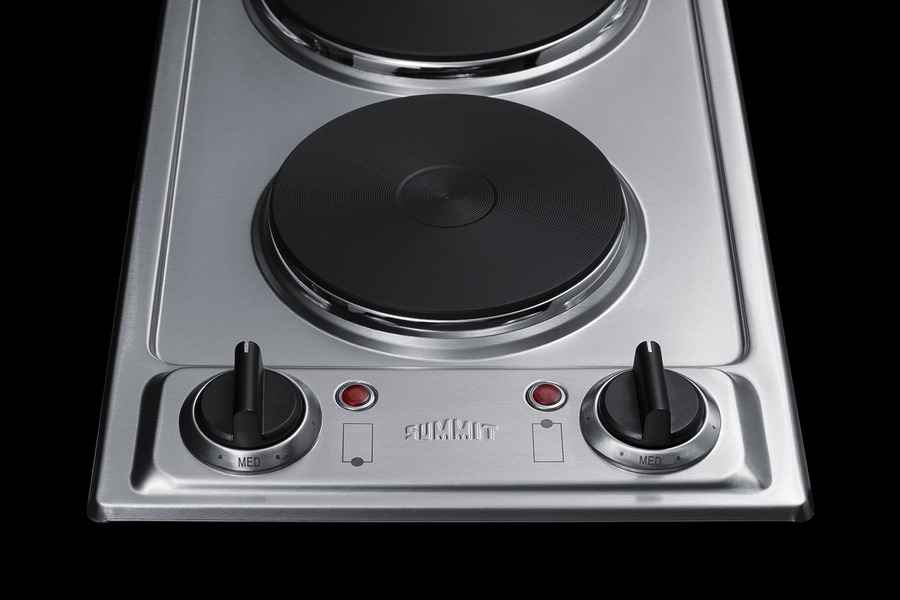

Upfront controls and easy-to-operate knobs offer easier accessibility
DESCRIPTION
Summit's selection of electric 115V cooktops offers the perfect fit for every application, including our unique line of solid disk elements designed for maximum durability. Sized at 12" wide, the CSD2B115 is a 115V cooktop with two solid disk elements. The pre-installed power cord includes a right angle 3-prong plug for easy installation in common cutouts sized at 10 1/2" W x 19 1/4" D. Upfront push-to-turn knobs meet ADA guidelines for user accessibility while also ensuring maximum safety. This cooktop surface comes in brushed stainless steel for an attractive look built to last. The rear 900W burner is sized with an 8" diameter to fit large cookware, while the front 500W 6" element accommodates smaller pots and pans. The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. With its modern style and durable design, the CSD2B115 is a great choice for hotels, mobile homes, tiny houses, ADUs, temporary housing, and other small kitchens with specific cooking needs. Additional 115V cooktops are available in coil, radiant, and induction style, as well as 230V solid disk cooktops in 2 and 4-burner configurations. Browse the full Summit line to find the perfect choice for your kitchen.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
