24" Wide Built-In Refrigerator-Freezer, ADA Compliant (Panel Not Included)

SKU: CT661WBIIFADA
Unique dual evaporator system ensures better cooling in each section
Estimated Time to Ship:

3 to 5 days

Refrigerator Type:
With Freezer Freezerless
Color: Panel-Ready

*Additional features may vary

32.38" H x 23.63" W x 23.0" D
(82cm H x 60cm W x 58cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 23.0" (58 cm)
Depth 23.0" (58 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Panel-Ready
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 365.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101068336
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
LHD - Left hand door swing
Door reversal to left hand swing
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
Door
CDG-Emerald green door
Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap
Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate
CDB-Cobalt blue door wrap
Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap
Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

ADA compliant

32" high to fit under lower ADA compliant counters

Slim undercounter dimensions

Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit

Built-in capable

Make the best use of space by installing your appliance under the counter

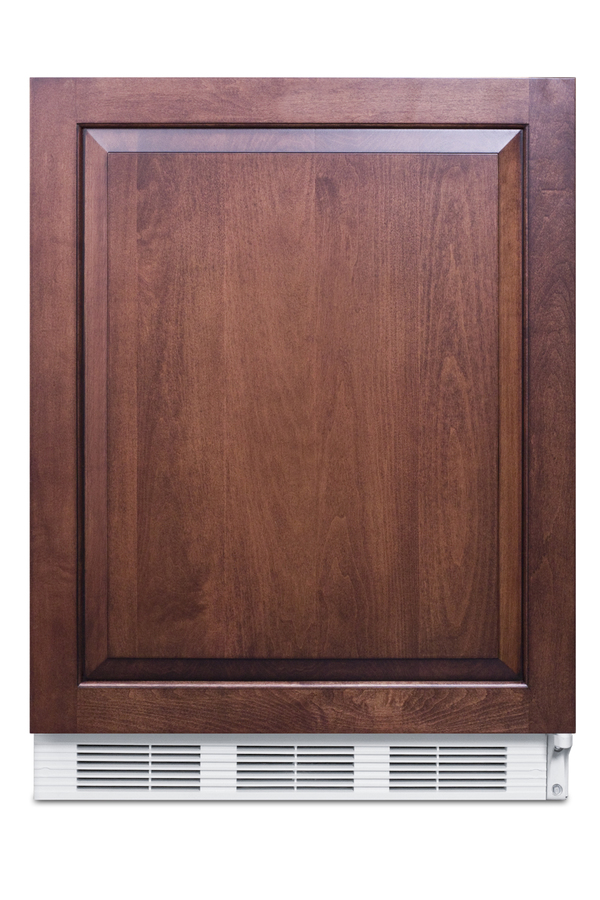

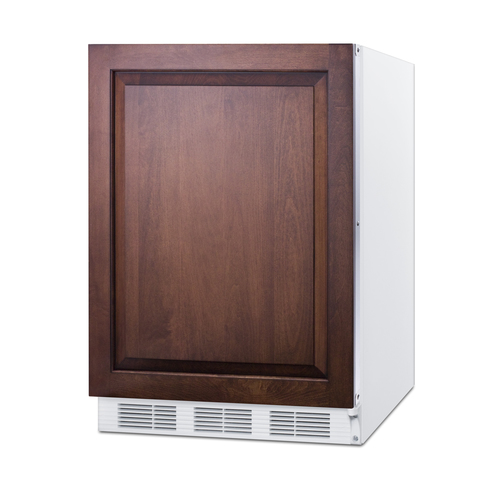

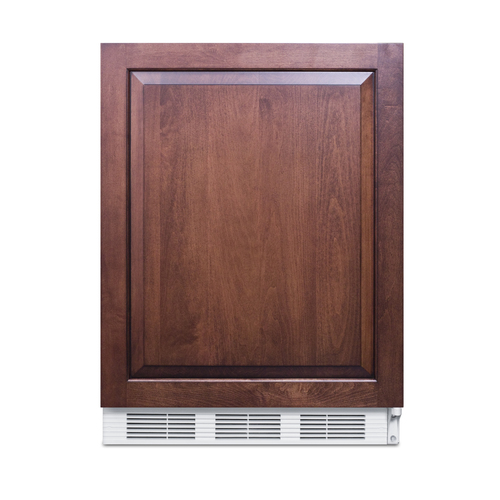

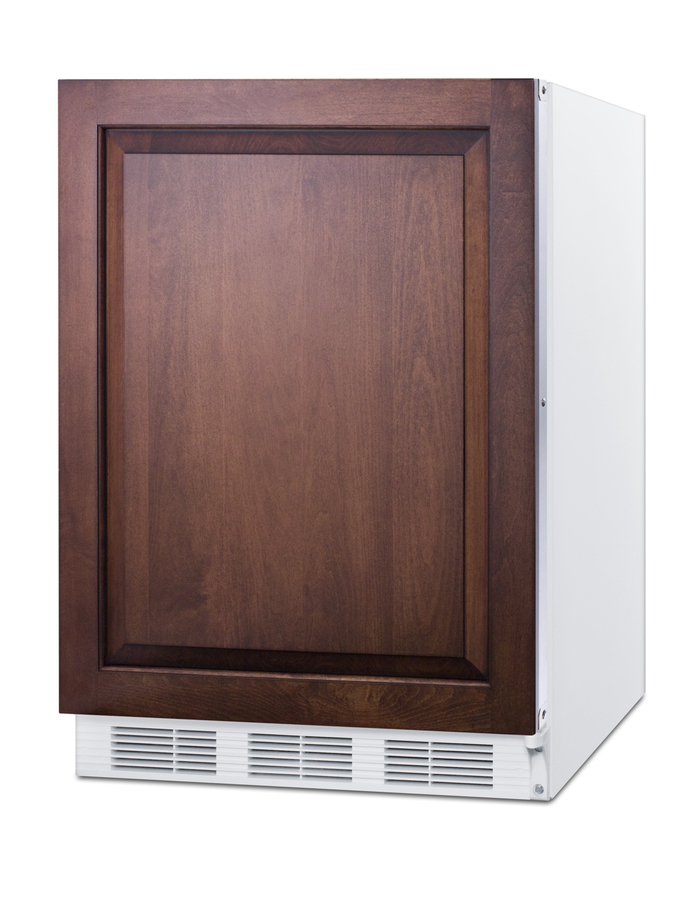

Panel-ready door

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

Cycle defrost

This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Dual evaporator

Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

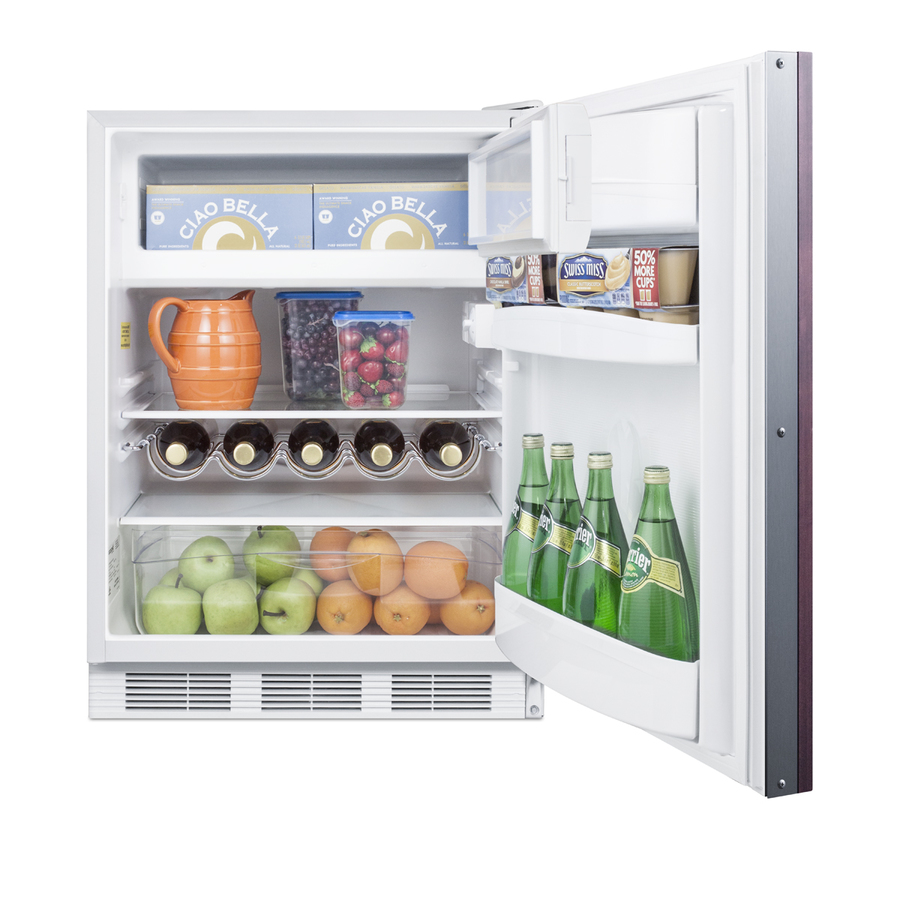

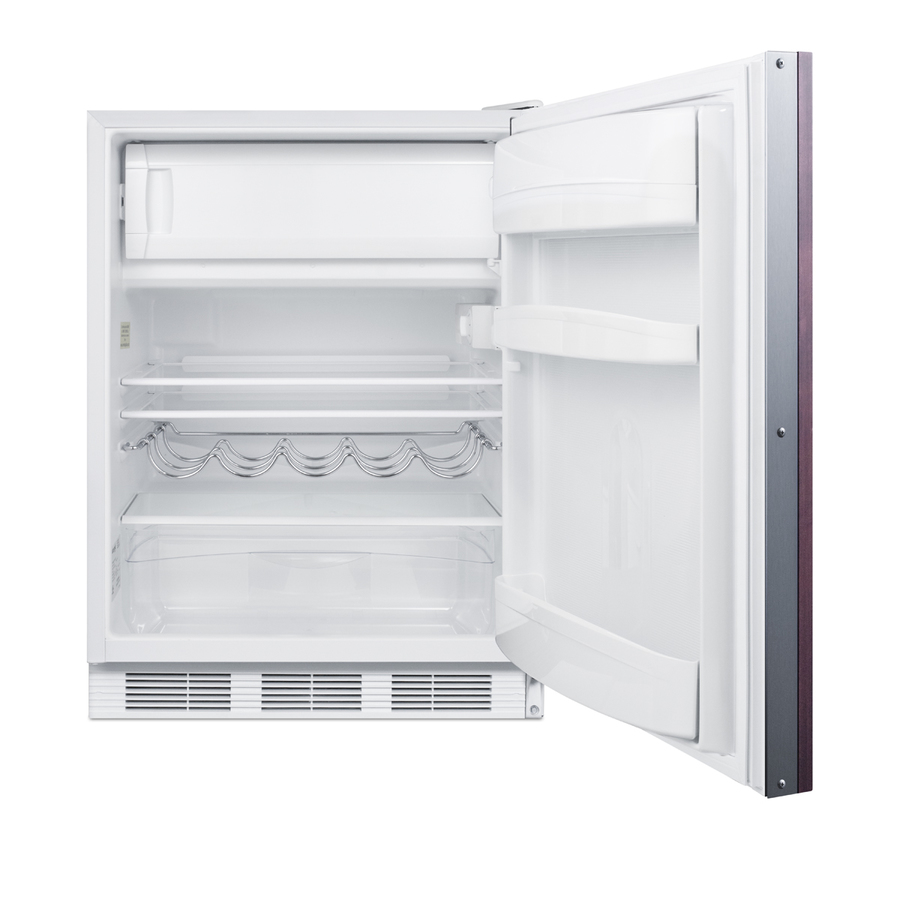

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Clear crisper drawer

Get the longest life and best taste out of produce by storing greens in a bottom crisper

Door storage

Store tall bottles and condiments right on the door for convenient access

Wine shelf

Removable scalloped wine shelf is included to store champagne and wine bottles

Interior light

Automatically illuminates when you open the door

Hidden evaporator

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Fully finished white cabinet

Allows the unit to be used freestanding

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration. The CT661BIADA Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage under lower ADA counters.

Sized with a 24” footprint, the CT661WBIIFADA refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32” height and front-breathing design makes it ideal for installation under lower counters complying with ADA guidelines for height restriction. The fully finished cabinet also enables freestanding use. This unit comes in a white exterior finish. The integrated stainless steel door frame is designed to accept overlay panels (sized 23 5/16" W x 28 1/4" H), allowing you to customize the front to seamlessly match your own cabinetry style. Customers provide their own handle.

Inside, the CT661WBIIFADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. These models include automatic interior lighting and an adjustable dial thermostat.

With its ideal dimensions and user-friendly features, the CT661WBIIFADA is the perfect refrigerator-freezer for any ADA compliant setting in need of versatile storage under the counter. For this unit in a black finish, see the CT663BKBIIFADA.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
