24" Wide Built-In Refrigerator-Freezer

SKU: CT661WBISSHV

Unique dual evaporator system ensures better cooling in each section

Estimated Time to Ship:

3 to 5 days

Find a dealer

Height:
ADA Adjustable

Refrigerator Type:
With Freezer Freezerless

Color: Stainless Steel/White

*Additional features may vary

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

This item can be ordered in one of our new vibrant door finishes: cobalt blue, lavender purple, emerald green, or saffron gold. Click the icon to explore our new palette!

33.25" H x 23.63" W x 23.0" D
(84cm H x 60cm W x 58cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.25" (84 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	23.0" (58 cm)
Depth with door at 90°	45.38" (115 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	Stainless Steel
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	365.0kWh/year
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101068367
Refrigerator-Freezer
Door Swing	RHD
Reversible	Factory Reversible
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Wine Bottle Shelving	Yes
Interior Light	Yes
Refrigerator - Interior Height	18.0" (46 cm)
Refrigerator - Interior Width	21.0" (53 cm)
Refrigerator - Interior Depth	18.0" (46 cm)
Refrigerator - Capacity	4.5 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	3
Freezer - Interior Height	5.25" (13 cm)
Freezer - Interior Width	19.0" (48 cm)
Freezer - Interior Depth	11.5" (29 cm)
Freezer - Capacity	0.6 cu.ft
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	92.0 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	4
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
Legs to raise unit height 6" high leveling legs	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	SS Hinges Stainless steel top and bottom hinges
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	LHD - Left hand door swing Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix

Lock

KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security	AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security
L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)

Interior

FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior

Handle

TBC Copper Towel Bar Handle Upgrade Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

Door

STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees	CDG-Emerald green door Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate	CDB-Cobalt blue door wrap Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

Slim undercounter dimensions

Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Stainless steel wrapped door

Durable design with lasting elegance

Professional stainless steel handle

Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry

Cycle defrost

This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Dual evaporator cooling

Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Adjustable glass shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Door shelves

Store tall bottles and condiments right on the door for convenient access

Crisper drawer

Get the longest life and best taste out of produce by storing greens in lower slide drawer

Wine shelf

Removable scalloped wine shelf is included to store champagne and wine bottles

Interior light

Automatically illuminates when the door is opened

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Fully finished white cabinet

Allows the unit to be used freestanding

Height Adjustable

Adjustable legs allow the unit to be sized from 32 1/2" to 34" high

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT brings quality and value under the counter with the industry’s largest collection of built-in refrigeration. The CT661BI Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage in any home kitchen.

Sized with a 24” footprint, CT661WBISSHV refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, a larger interior than many units in this size class. The front-breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This unit comes with a white cabinet and stainless steel wrapped door. A thin vertically mounted handle in brushed stainless steel completes the elegant look.

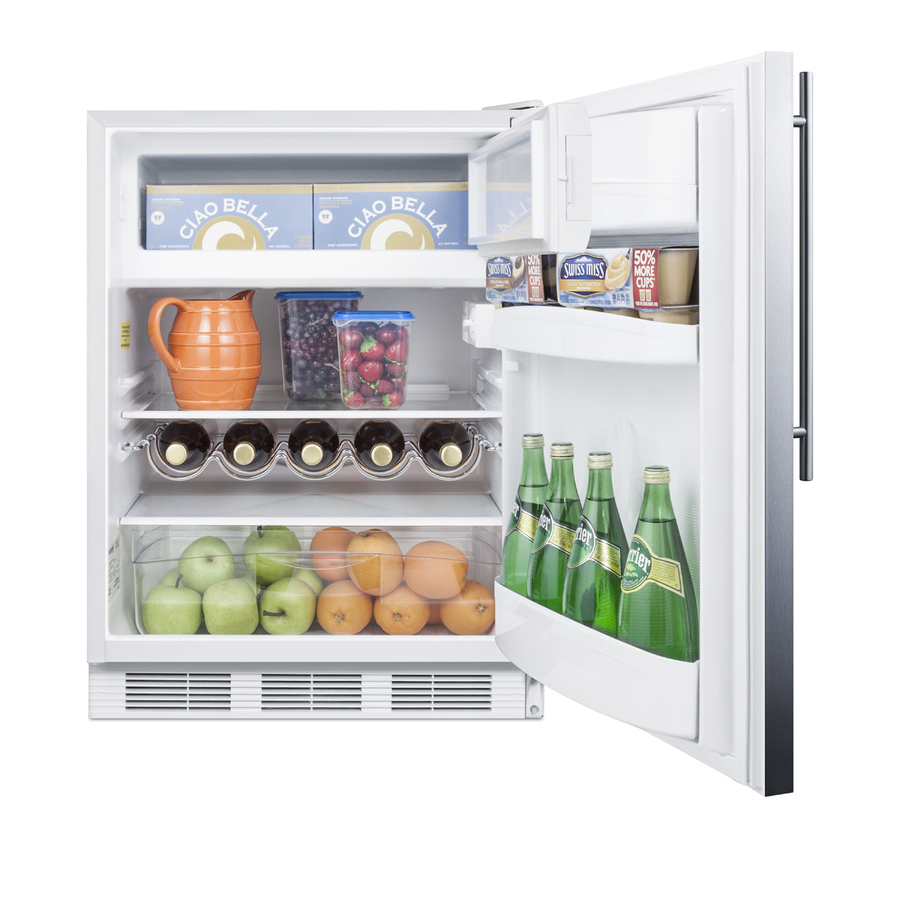

Inside, the CT661WBISSHV features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.

With its ideal dimensions and user-friendly features, the CT661WBISSHV is the perfect refrigerator-freezer for any home in need of versatile storage under the counter. For this unit in a black finish, see the CT663BKBISSHV.
