24" Wide Built-In Refrigerator-Freezer
3 to 5 days
*Additional features may vary
(84cm H x 60cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.25" (84 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.1 cu.ft. (144 L) |
| Defrost Type | Cycle |
| Door | Black Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 365.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068565 |
|
Refrigerator-Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Wine Bottle Shelving | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 18.0" (46 cm) |
| Refrigerator - Interior Width | 21.0" (53 cm) |
| Refrigerator - Interior Depth | 18.0" (46 cm) |
| Refrigerator - Capacity | 4.5 cu.ft |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 2 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.25" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Freezer - Capacity | 0.6 cu.ft |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 4 |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
AVAILABLE UPGRADES
| Exterior | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| Interior | ||||||||||||
|
||||||||||||
| Lock | ||||||||||||
|
||||||||||||
| Door | ||||||||||||
|
FEATURES
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
304 grade stainless steel in a high gloss neutral finish from our basalt collection; note: due to the reflective quality of our door finish, this color may appear different under different lighting and surrounding conditions
Door wipes clean with a dry cloth, while the dark basalt finish hides most smudges

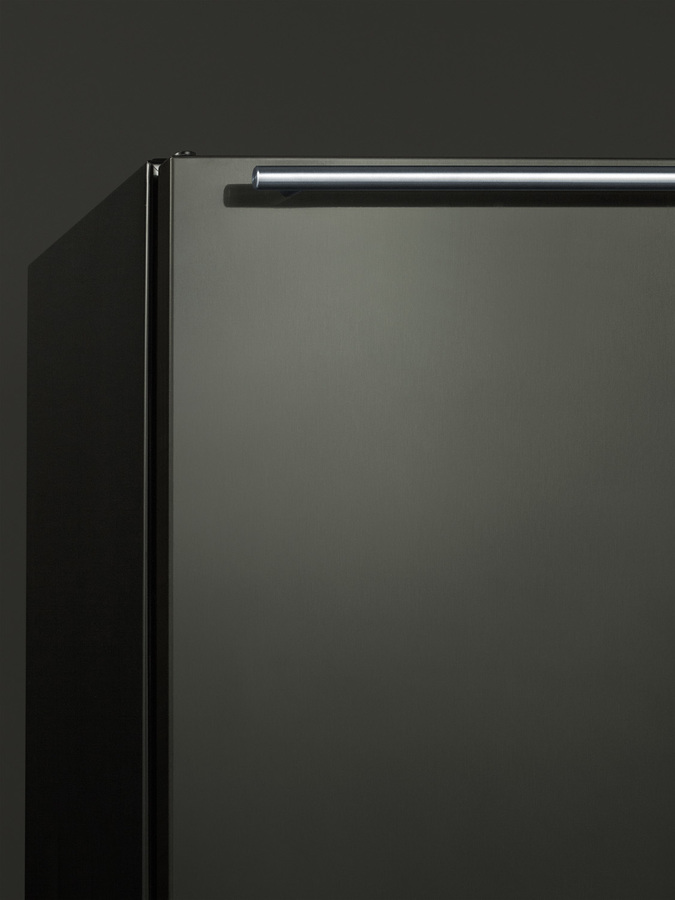

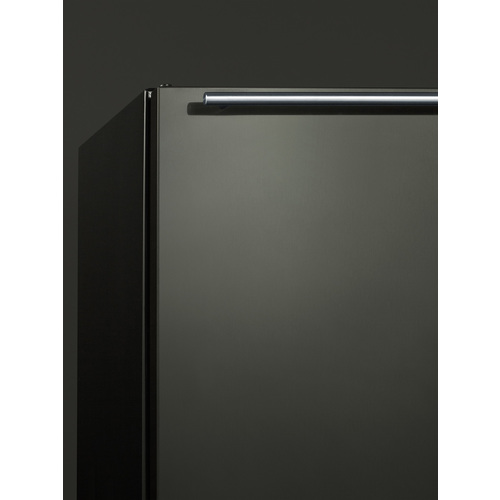

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
Combines an automatic defrost refrigerator with a manual defrost freezer to save unit energy and user maintenance
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
Store tall bottles and condiments right on the door for convenient access
Removable scalloped wine shelf is included to store champagne and wine bottles
Get the longest life and best taste out of produce by storing greens in lower slide drawer
Automatically illuminates when the door is opened
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Dial thermostat located inside for easy temperature management
User-reversible door swing for added flexibility
Allows the unit to be used freestanding
Adjustable legs allow the unit to be sized from 32 1/2" to 34" high
Environmentally friendly design does not contain ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
SUMMIT brings quality and value under the counter with the industry’s largest collection of built-in refrigeration. The CT663BBI Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage in any home kitchen. Sized with a 24" footprint, CT663BKBIKSHH refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, a larger interior than many units in this size class. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also enables freestanding use. The CT663BKBIKSHH comes in our new black stainless steel finish from our exclusive basalt collection. The wrapped door is made from 304 grade stainless steel with a high gloss finish in a neutral hue to perfectly accent or complement your kitchen design. The door is strongly resistant to most fingerprints and can easily be wiped clean with a dry cloth. Our signature thin handle in brushed stainless steel is mounted horizontally to complete the modern look. Inside, the CT663BKBIKSHH features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat. With its ideal dimensions and user-friendly features, the CT663BKBIKSHH is the perfect refrigerator-freezer for any home in need of versatile storage under the counter. NOTE: Black stainless steel may vary slightly in appearance from the image displayed, as it has a reflective quality that can be affected by surrounding colors and textures. Summit's black stainless steel comes with a high gloss finish and is not designed as a direct match to other brands.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
