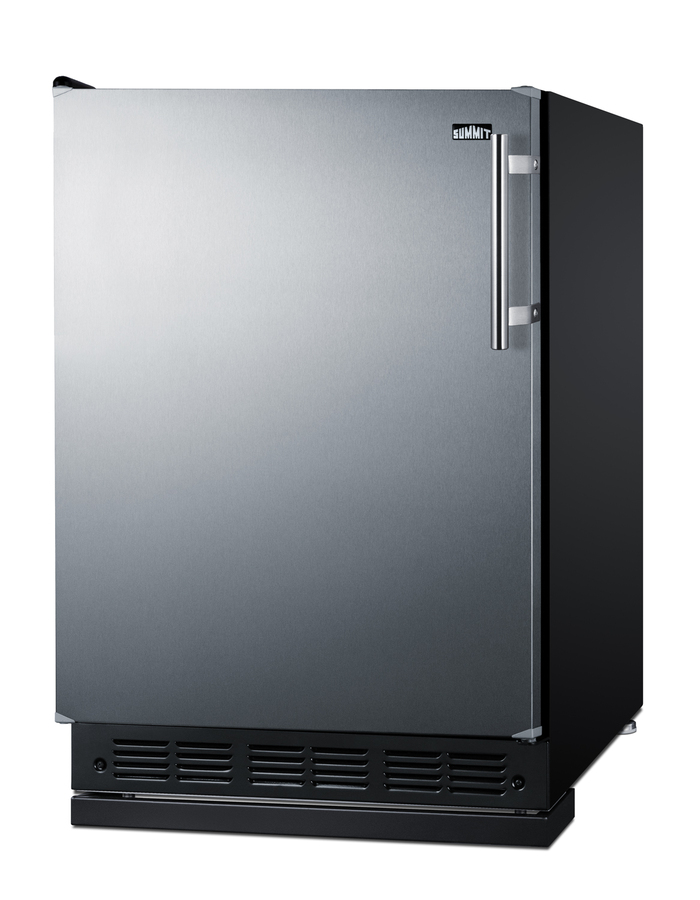

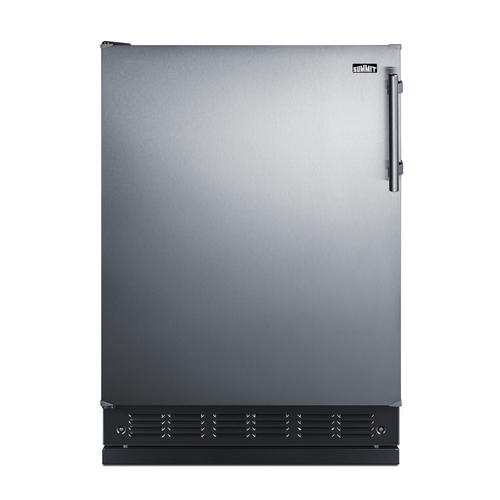

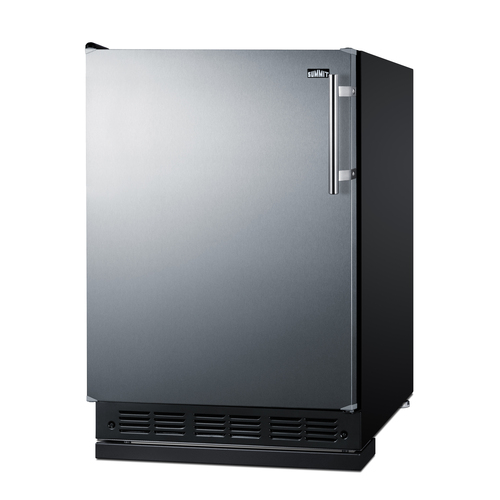

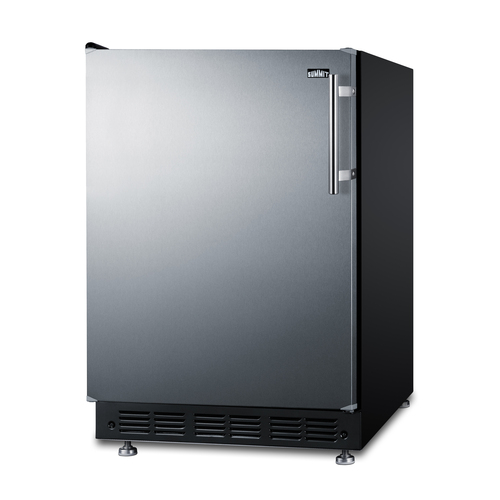

24" Wide Refrigerator-Freezer
2 to 4 days
*Additional features may vary
(85cm H x 60cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.13" (84 cm) |
| Height to Hinge Cap | 33.5" (85 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.38" (57 cm) |
| Depth with Handle | 24.0" (61 cm) |
| Depth with door at 90° | 44.25" (112 cm) |
| Capacity | 5.0 cu.ft. (142 L) |
| Defrost Type | Cycle |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 330.0kWh/year |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101103389 |
|
Refrigerator-Freezer
|
|
| Door Swing | LHD |
| Reversible | No |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Wine Bottle Shelving | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 18.0" (46 cm) |
| Refrigerator - Interior Width | 21.0" (53 cm) |
| Refrigerator - Interior Depth | 18.0" (46 cm) |
| Refrigerator - Capacity | 4.3 cu.ft |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 2 |
| Refrigerator - Full Door Shelves | 3 |
| Refrigerator - Temperature Range | 36°F to 46°F |
| Freezer - Interior Height | 5.25" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Freezer - Capacity | 0.7 cu.ft |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Sound Level | 32.6 |
AVAILABLE UPGRADES
| Lock | ||||
|---|---|---|---|---|
|
||||
| Door | ||||
|
||||
| Handle | ||||
|
||||
| Exterior | ||||
|
FEATURES
24" wide refrigerator-freezer designed and manufactured in Europe for residential use
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
5 cu.ft. of interior storage, larger than virtually any other refrigerator-freezer in this size class
Ideal 24" footprint for an easy fit

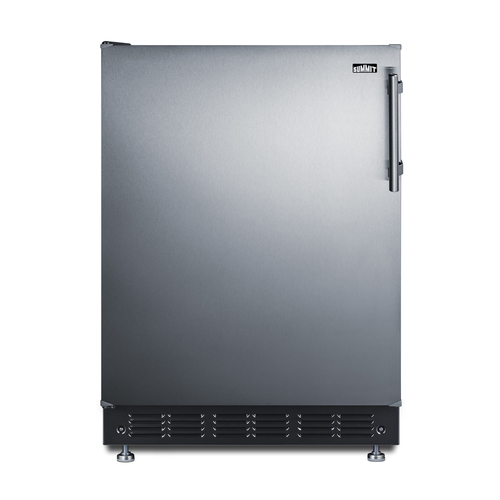

Adjustable legs allow you to set the height anywhere between 33.5" and 34.5" to best fit under your counter
Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height

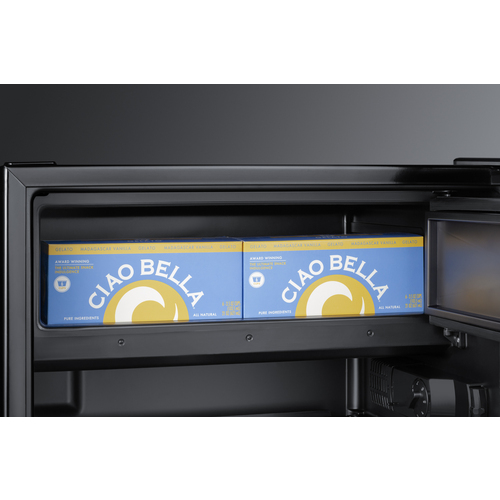

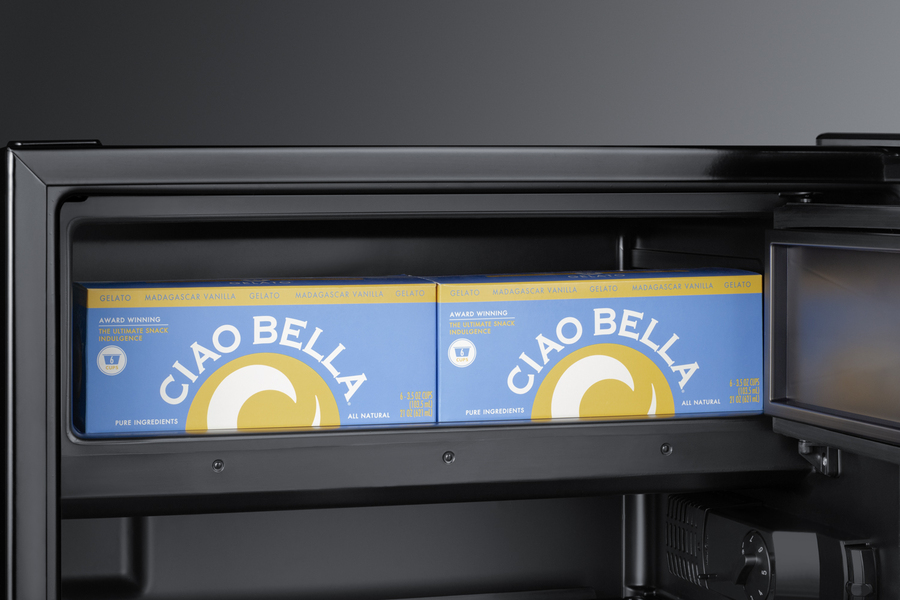

Interior .6 cu.ft. freezer compartment with reversible door
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

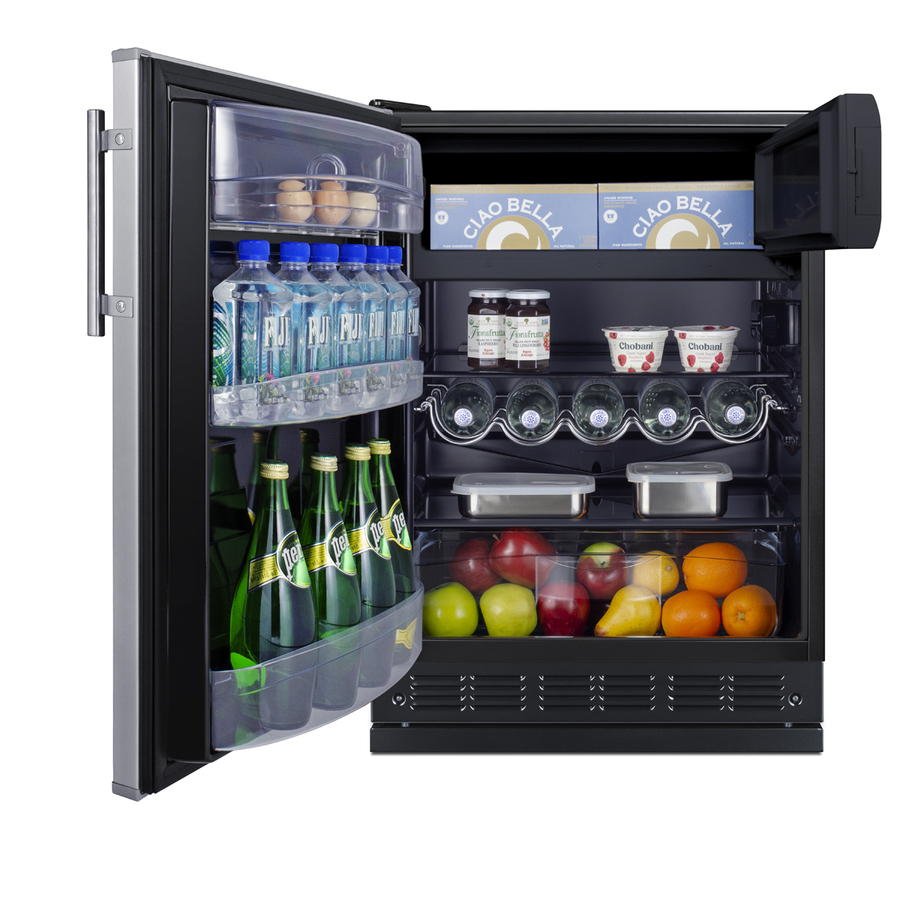

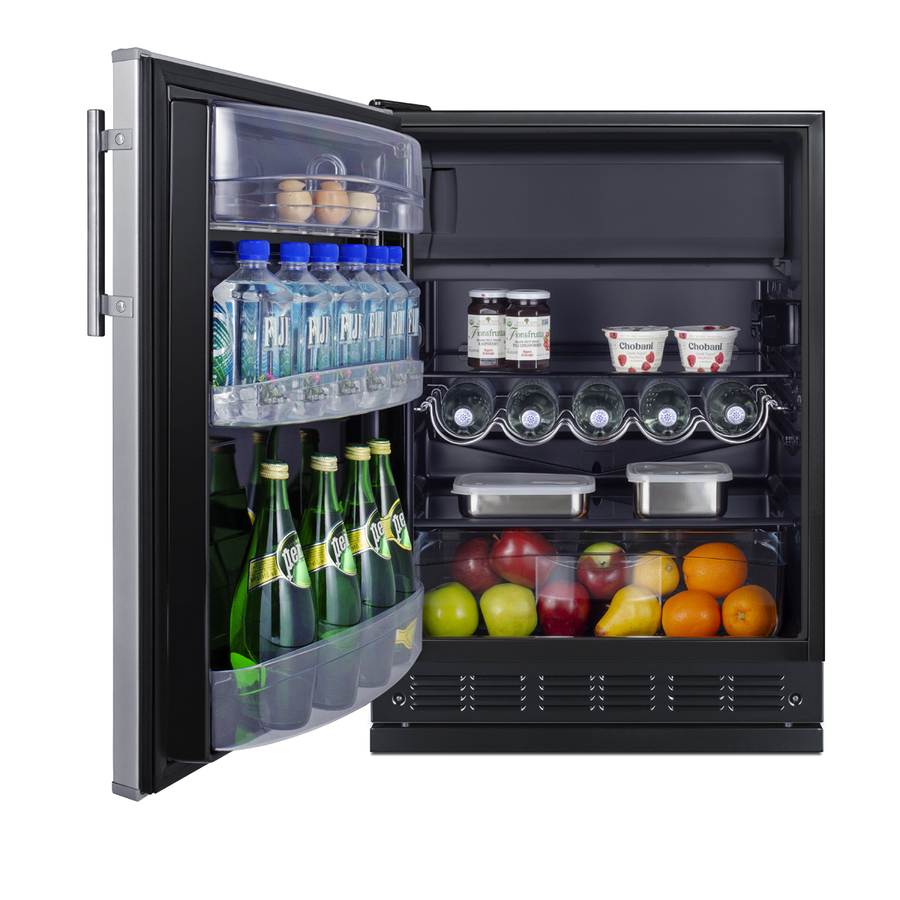

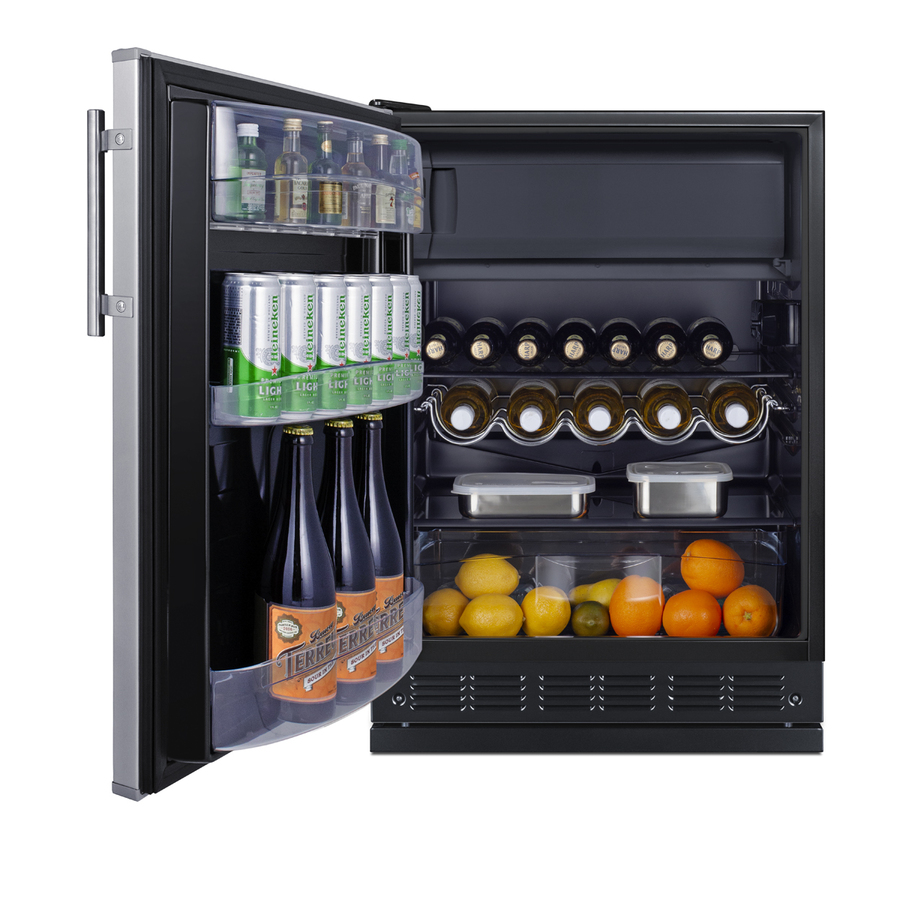

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

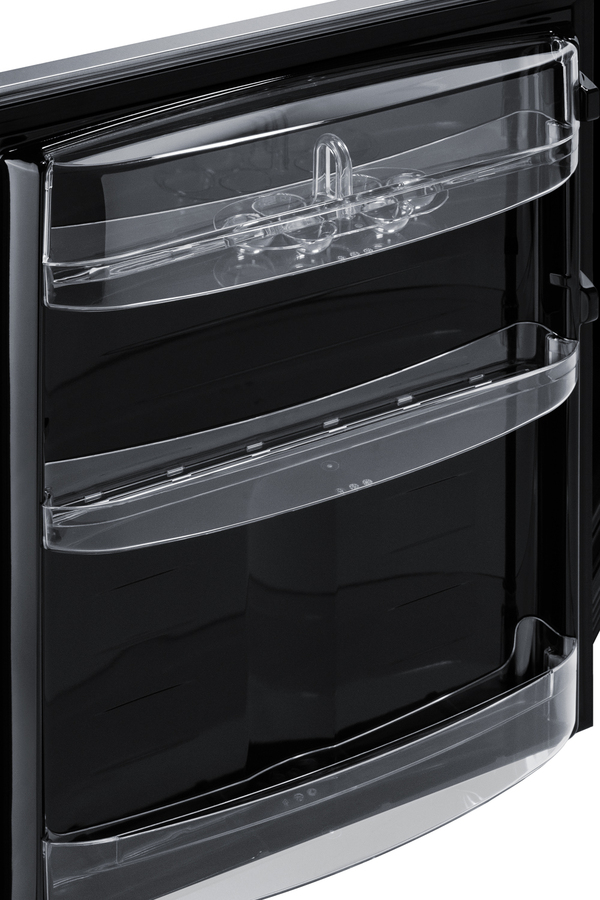

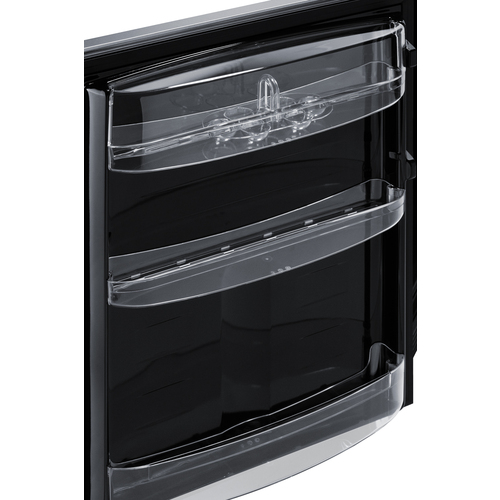

Store tall bottles and condiments right on the door for convenient access

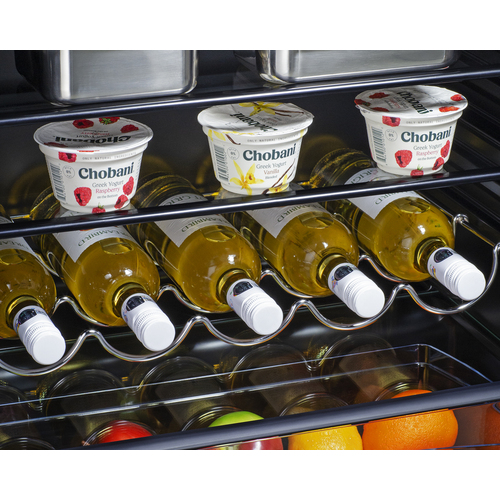

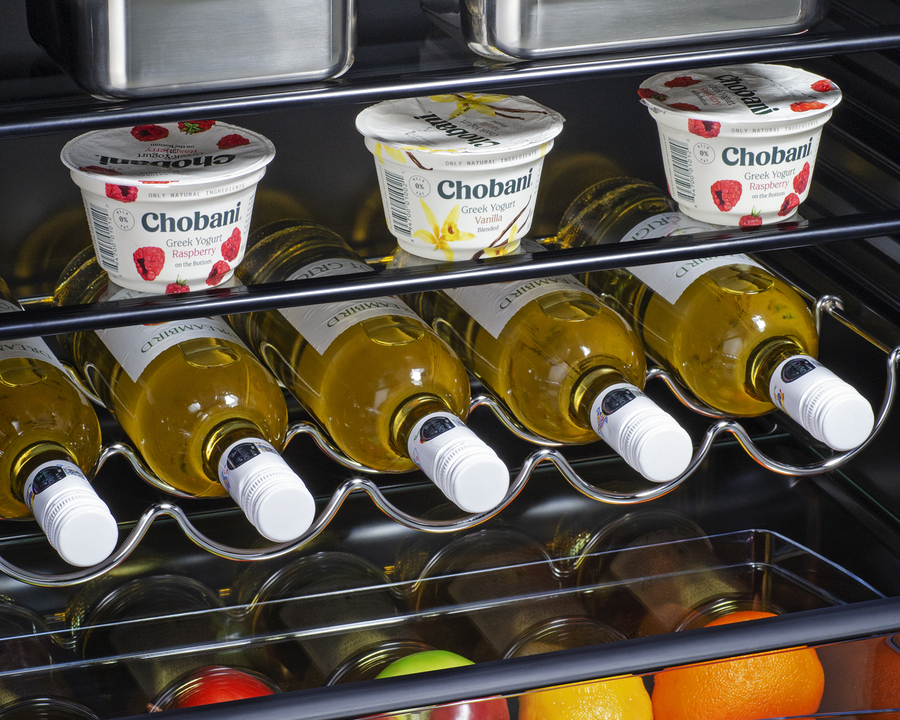

Removable scalloped steel shelf lets you keep wine and other bottles stored horizontally
Removable clear crisper drawer offers the ideal conditions for keeping produce at its best
Automatically illuminates when you open the door
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Attractive jet black finish inside to match the cabinet and kickplate

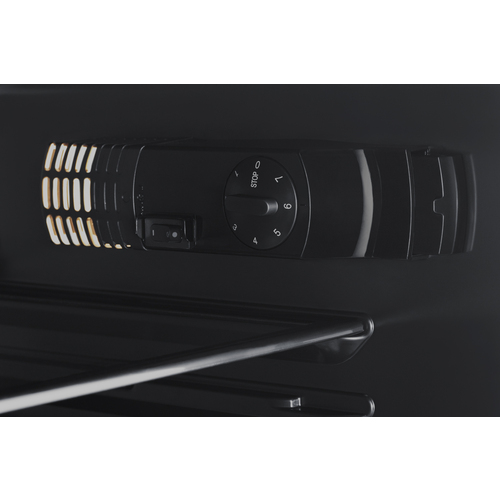

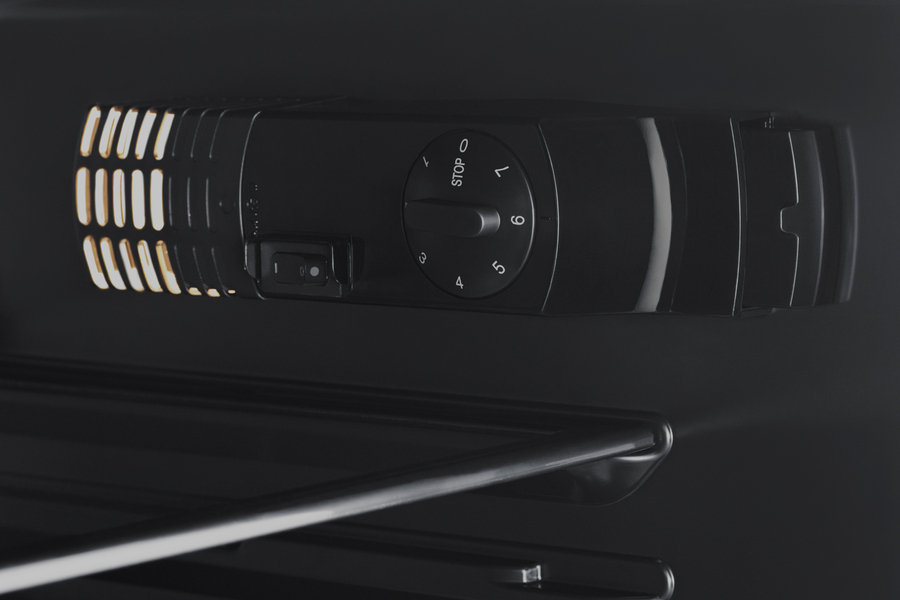

Simple and intuitive analog controls located inside for easy temperature management

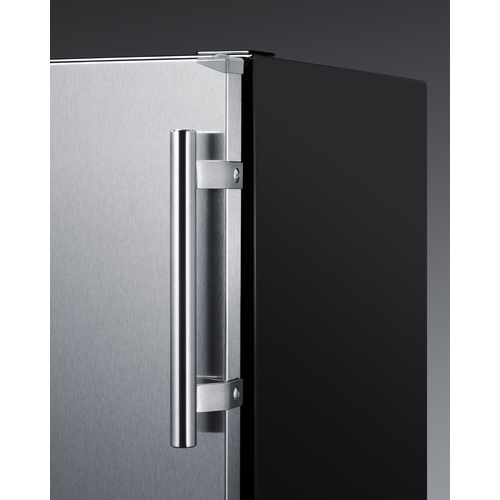

Stainless steel handle adds an attractive touch
Attractive finish in real stainless steel with a unique coating that lets you wipe off fingerprints easily to ensure a clean look
For this unit with the door opening from the other side, see model CT66BK2SSRS
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

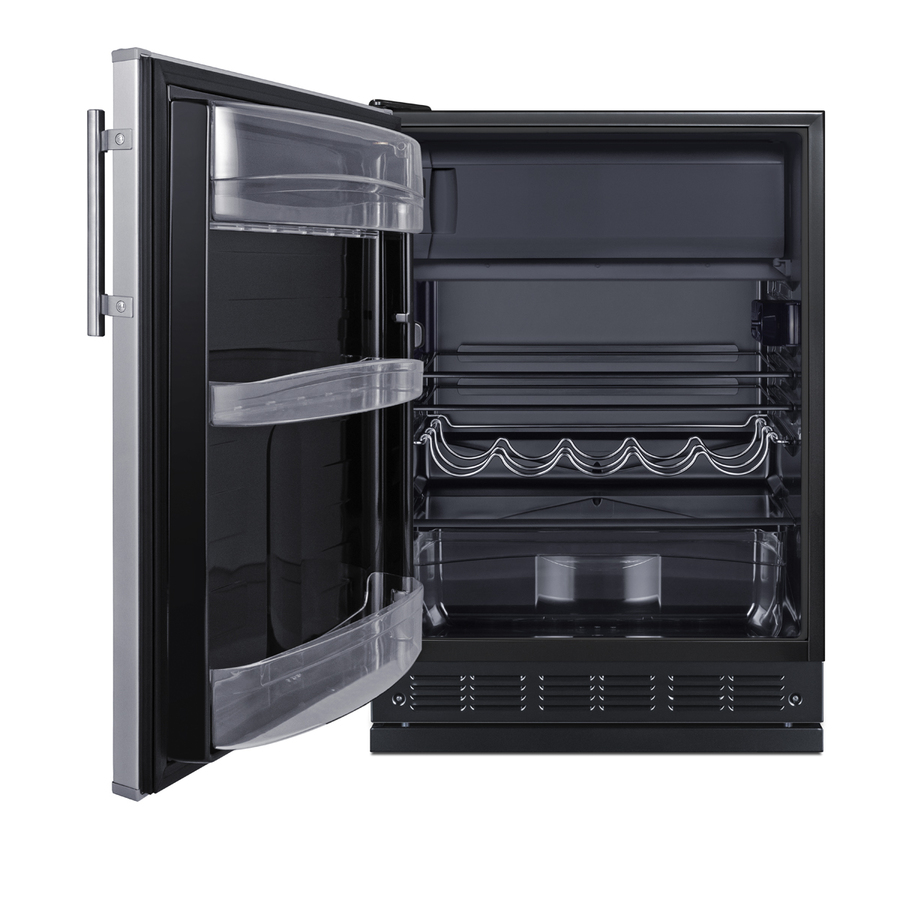

Summit's undercounter lineup of European-made refrigeration features counter height choices that offer the largest capacity in the industry, including fully featured refrigerators with freezer compartments to meet all of your storage needs. Sized with a 24" footprint, model CT66BK2SSRSLHD is an ENERGY STAR certified refrigerator-freezer designed for recessed installation or freestanding use in residential kitchens. The stainless steel door offers an elegant look for any kitchen, with a special coating that makes it easy to wipe off the surface for a fingerprint-resistant front. The stainless steel handle is side mounted for an easy grip and attractive look. This unit has a jet black exterior cabinet and runs quietly at less than 33 dB. Adjustable legs allow you to set the height between 33 1/2" and 34 1/2" for the perfect fit. We include a black steel leg shield for optional use if you find there is too much space between the front and floor when the unit is set at its taller height. Inside, the CT66BK2SSRSLHD offers a full 5 cu.ft. of storage, a higher capacity than virtually any refrigerator-freezer in this size class. It features a black interior liner and black trimmed adjustable glass shelves for spill-proof storage. We also include a removable scalloped steel rack ideal for holding bottles in a horizontal position. A large clear crisper makes it easy to store produce at its best and three clear door racks let you keep condiments in easy reach. A light automatically illuminates the interior when the door is open. Summit's European lineup features classic mechanical controls. The dial thermostat ensures an intuitive, trouble-free performance without any internal boards or chips. The advanced dual evaporator system allows separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The CT66BK2SSRSLHD is UL listed for residential use. With its large capacity, professional finish, and user-friendly features, this refrigerator-freezer is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in lower ADA height, as well as in freezerless configurations (model FF6BK2SSRSLHD). Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
