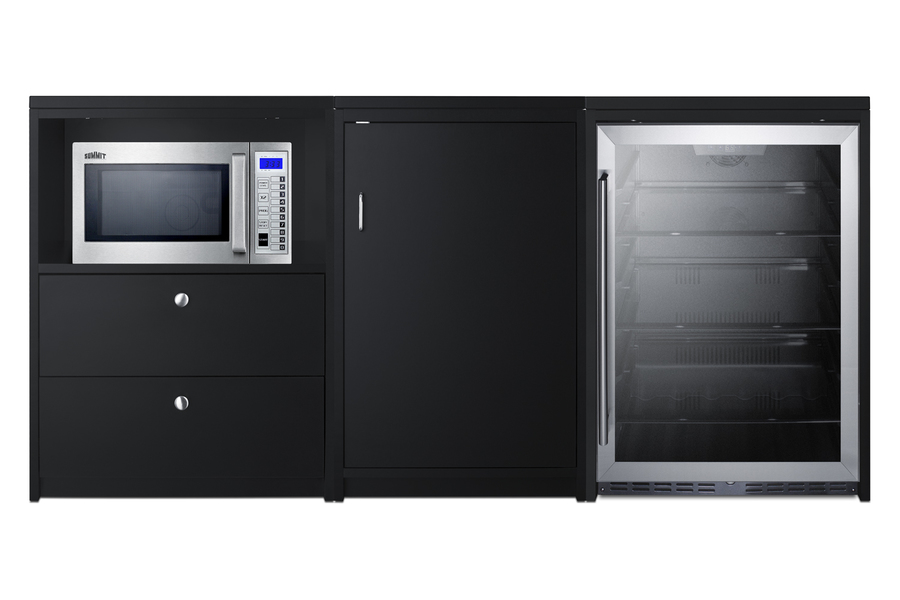

74" Wide Casework Suite with Beverage Center and Microwave, ADA Height
5 to 7 days
(86cm H x 188cm W x 61cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 34.0" (86 cm) |
| Nominal Width | 74.0" (188 cm) |
| Width | 74.0" (188 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Door | Black |
| Cabinet | Black |
| Parts & Labor Warranty | 90 Days |
| Compressor Warranty | 5 Years |
| UPC | 761101088648 |
|
Kitchenette
|
|
| Refrigerator Included | AL57G |
| Refrigerator Door Swing | Reversible |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Temperature Range | 36 to 43ºF |
FEATURES

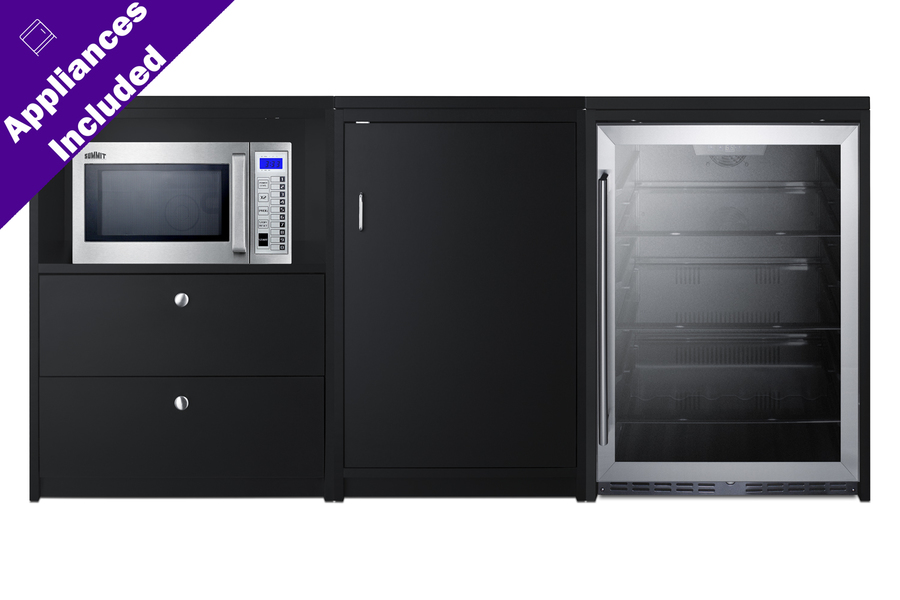

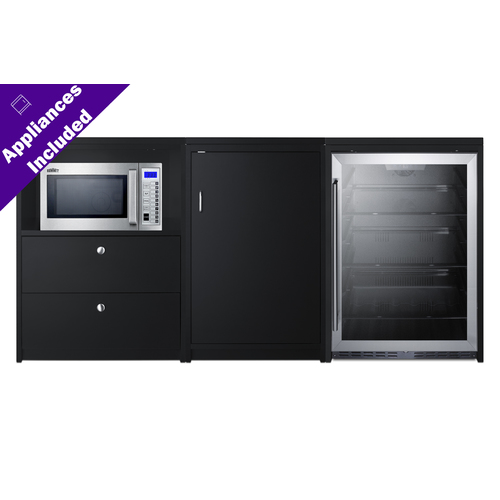

Includes AL57G glass door refrigerator, CWR4ADA refrigerator cabinet, SCM853 microwave, CWC5ADA trash bin cabinet, and CWM2ADA cabinet with drawers
34" high counters to meet ADA guidelines for accessibility
Engineered wood with laminate finish manufactured and assembled in the United States
Each cabinet piece ships fully assembled for fast setup
Innovative fastening system ensures lasting durability

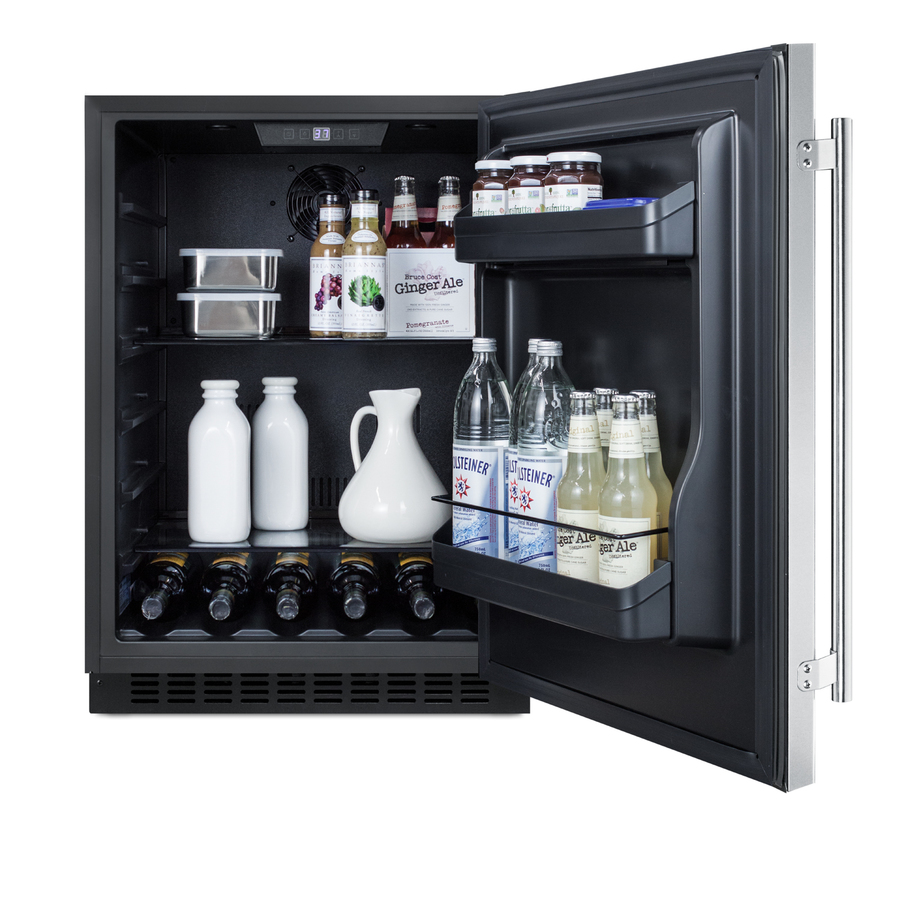

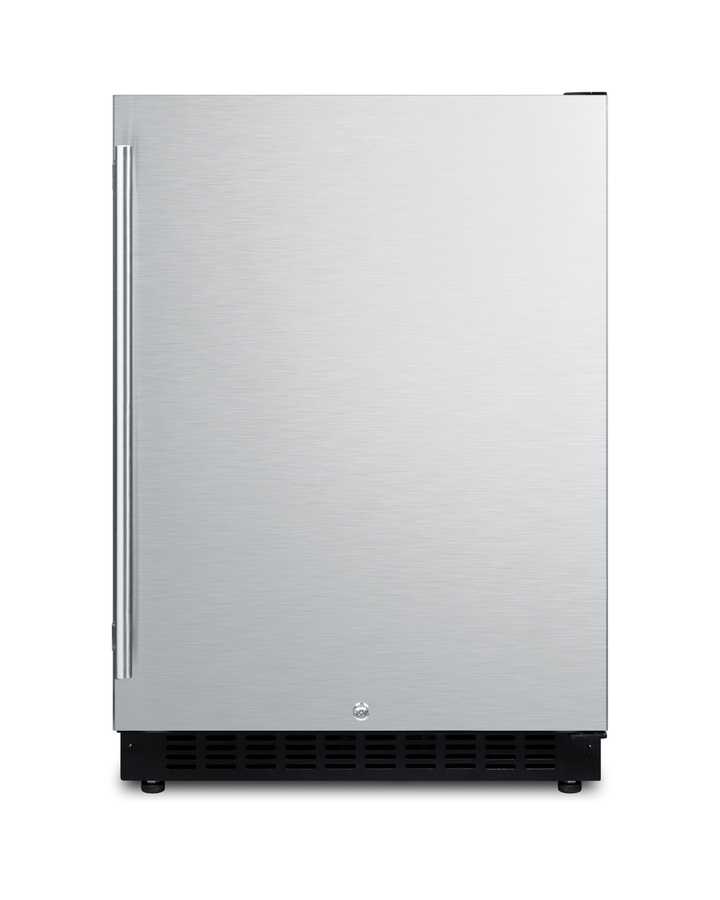

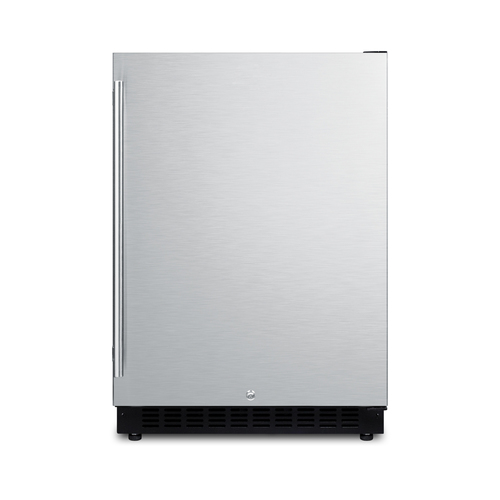

Includes our popular AL57G beverage refrigerator with digital controls, front lock, adjustable glass shelves, reversible stainless steel trimmed glass door, and no-frost operation

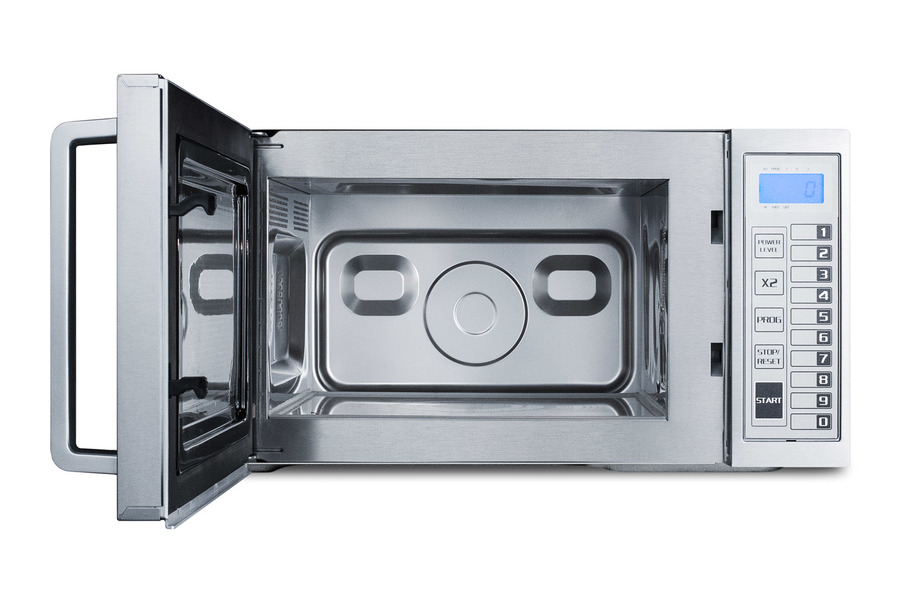

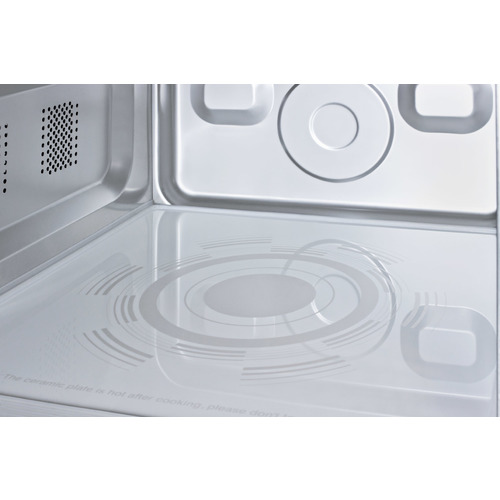

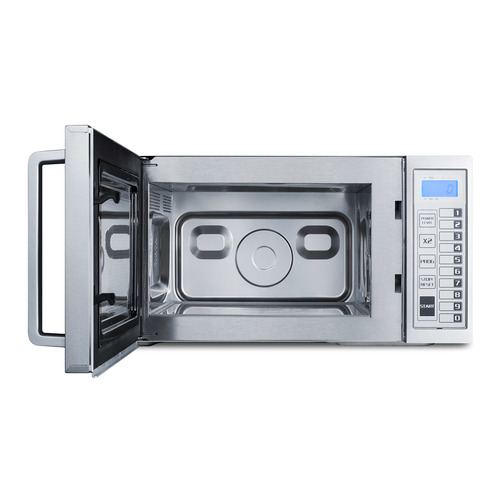

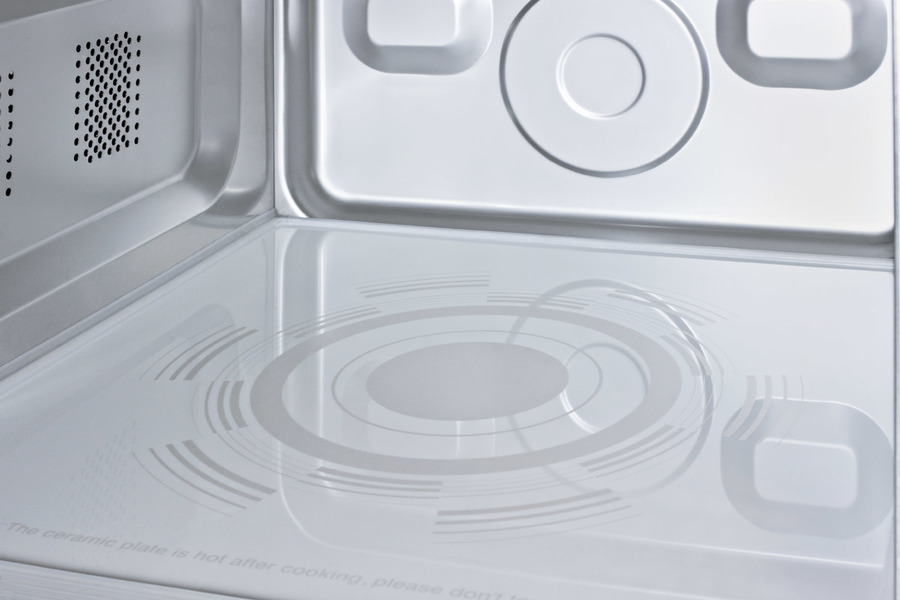

Ships with our fully featured 900W SCM853 microwave with one-touch cooking options, multiple power levels, and a glass turntable

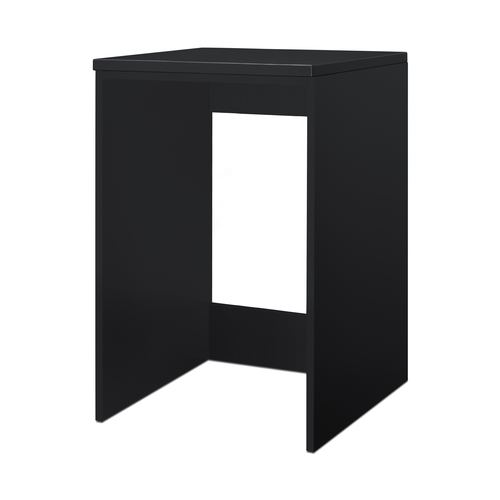

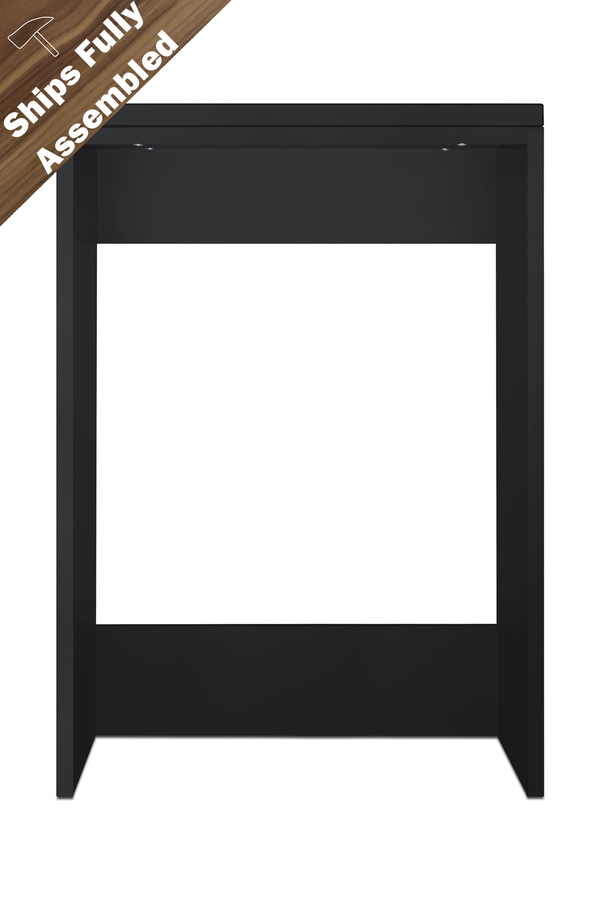

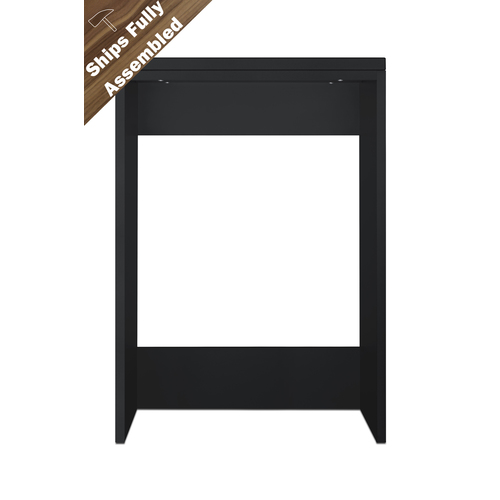

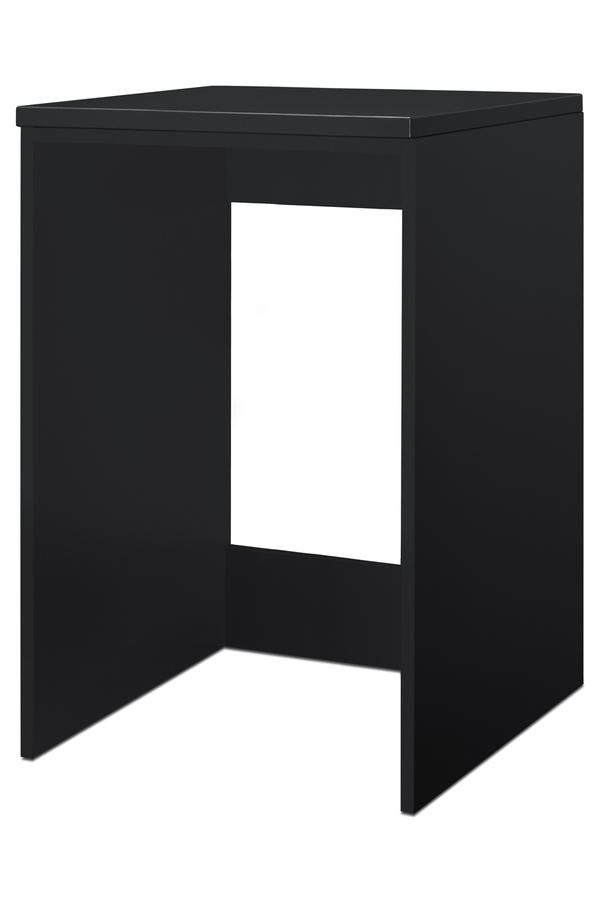

Slide the refrigerator into the CWR4ADA cabinet for a finished look

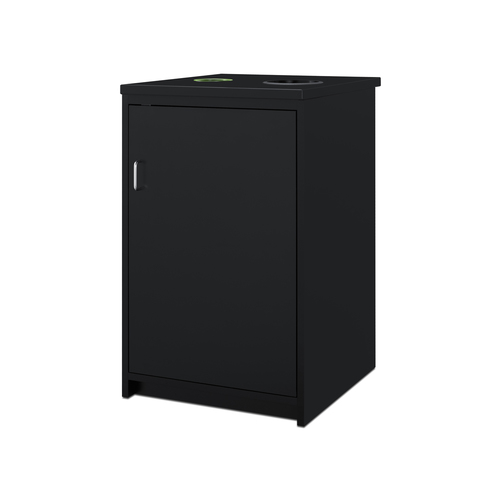

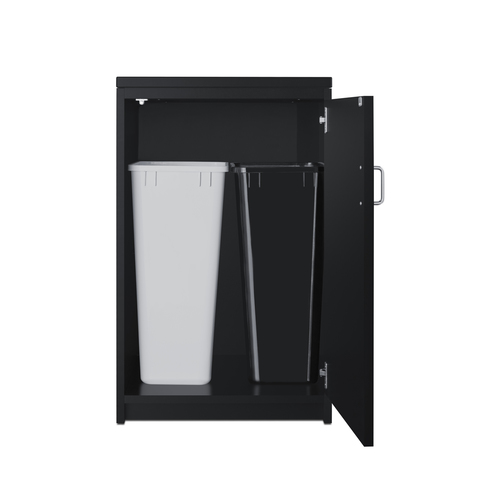

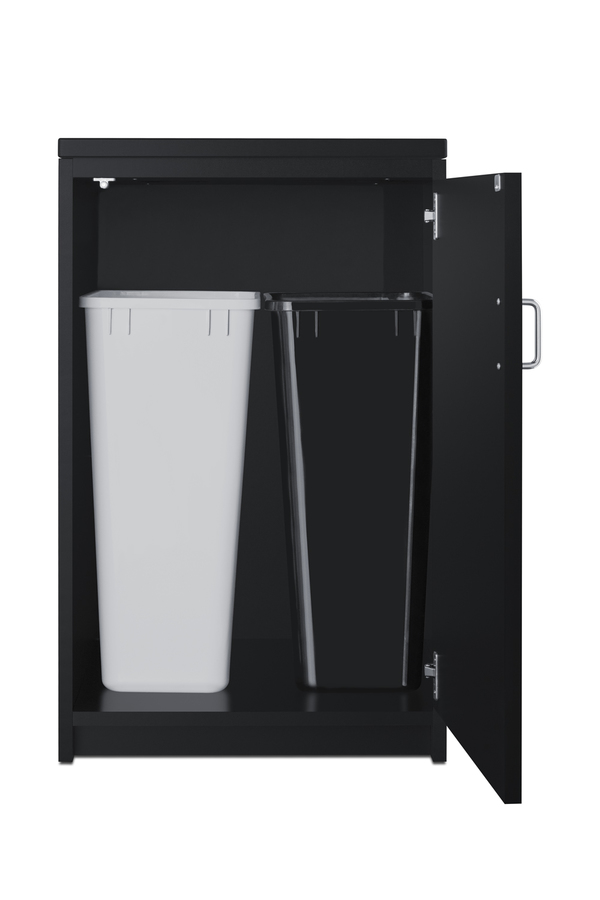

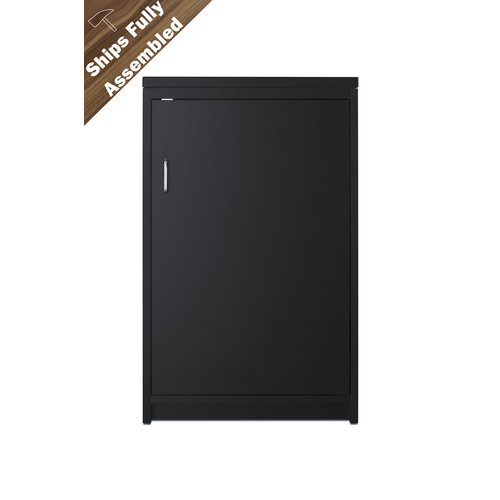

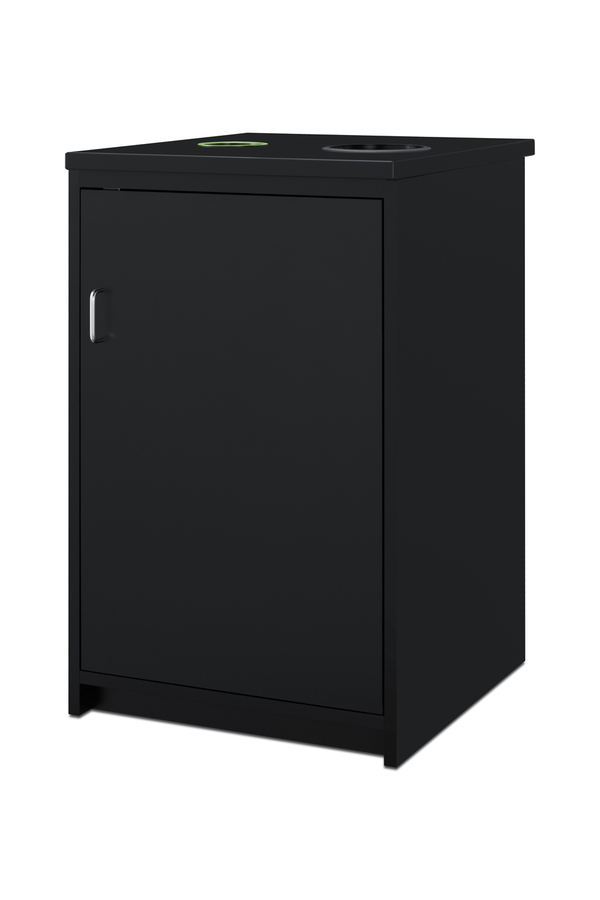

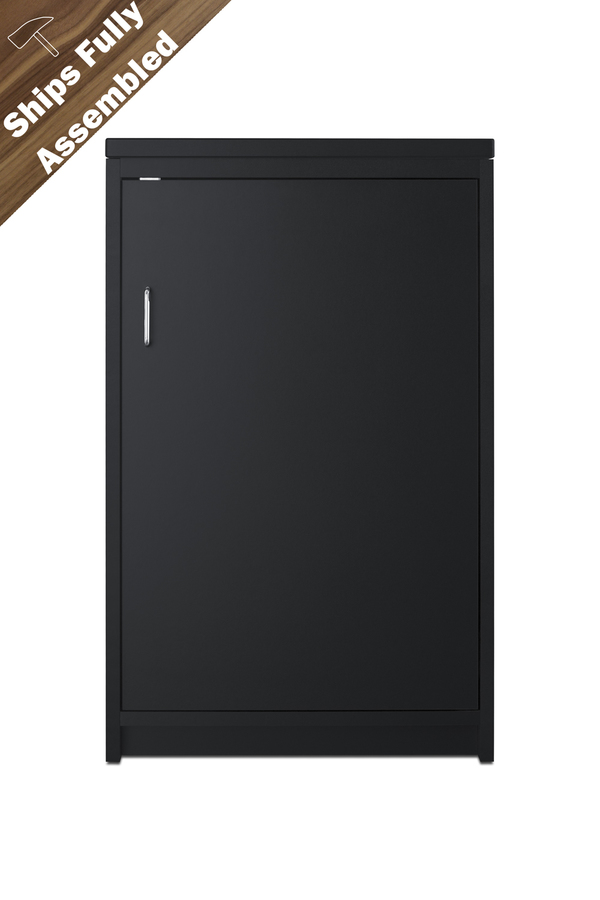

Our CWC5ADA cabinet includes two trash bins and built-in holes on the countertop to allow easy separation of rubbish and recyclables

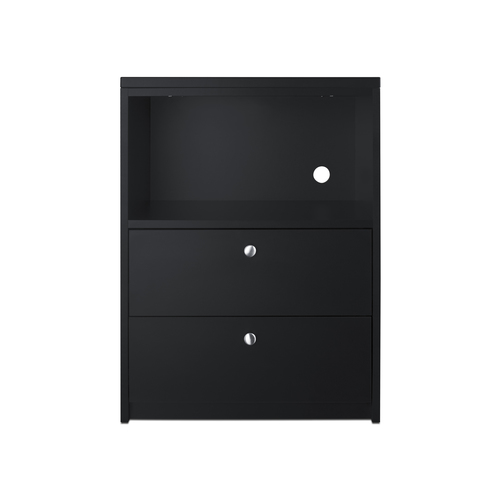

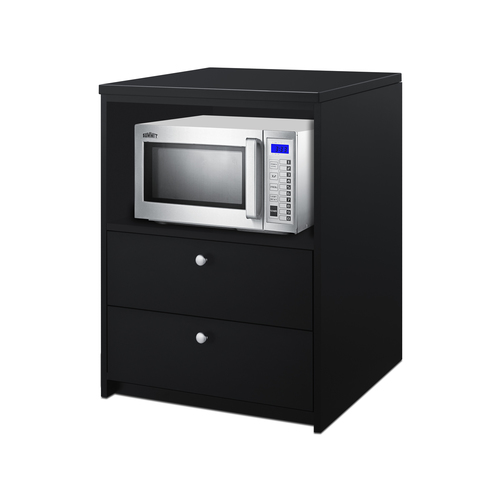

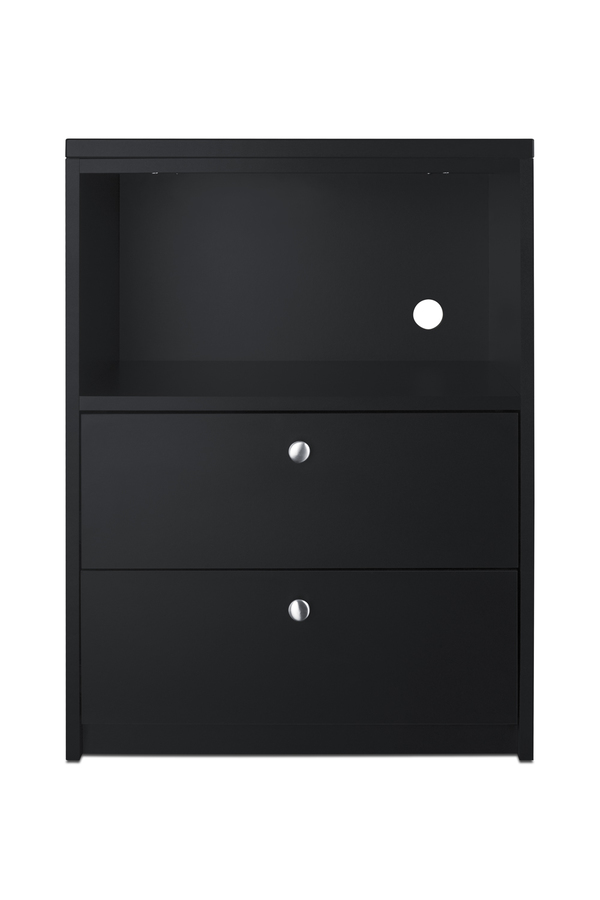

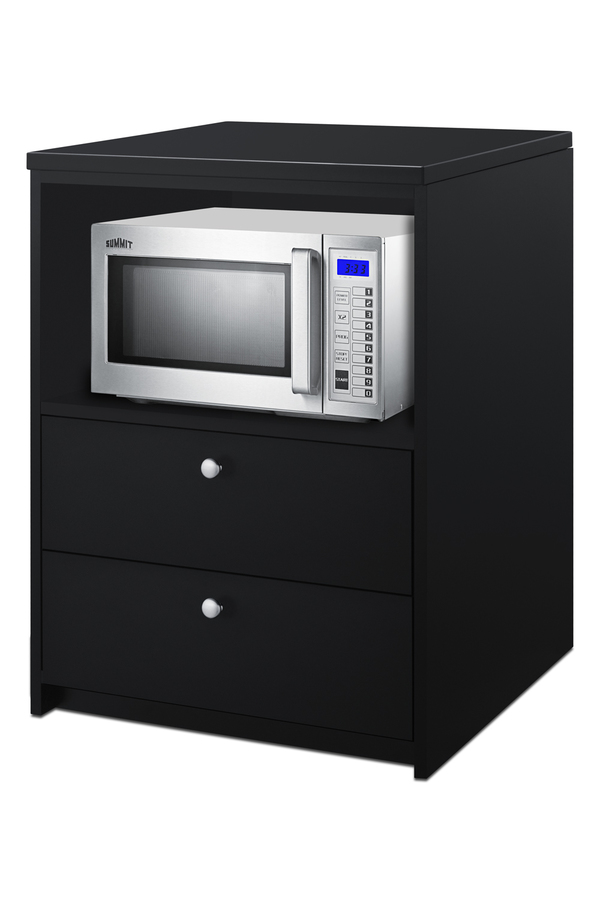

Our CWM2ADA is a 26" wide storage cabinet with two slide-out drawers and a cutout to hold the microwave or other small appliances
Cabinet includes a pre-installed hole to run the microwave cord through for easier setup
Sleek black laminate finish on the cabinet pieces suits any setting
Refrigerator and cabinets each include four levelers to accommodate uneven floors

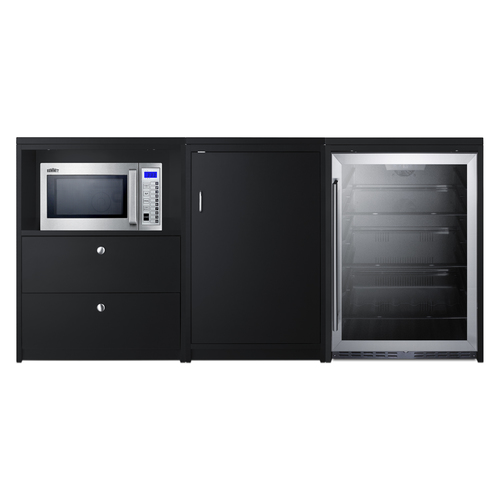

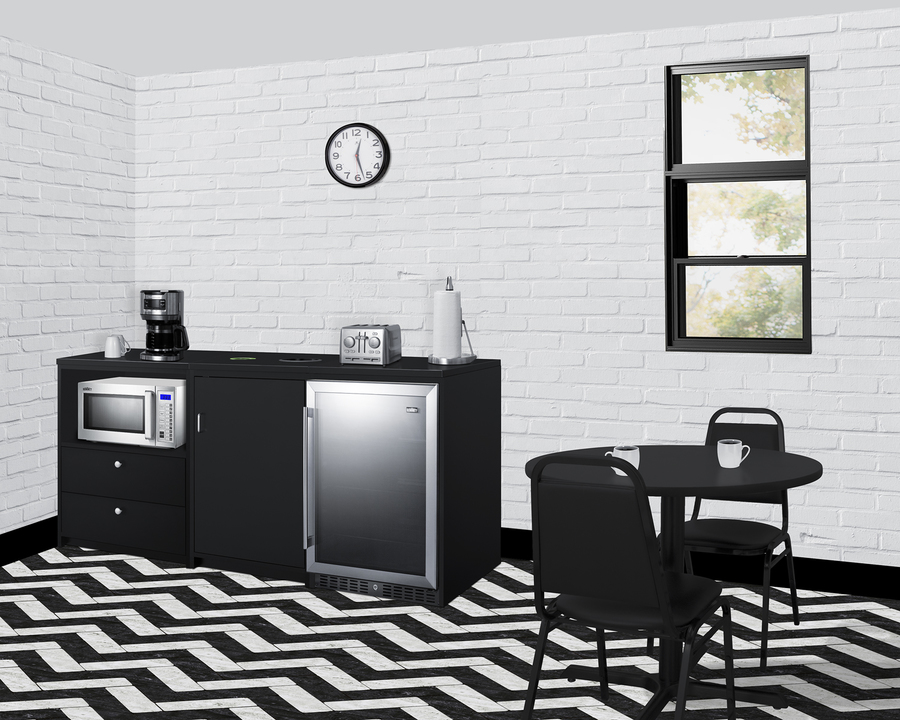

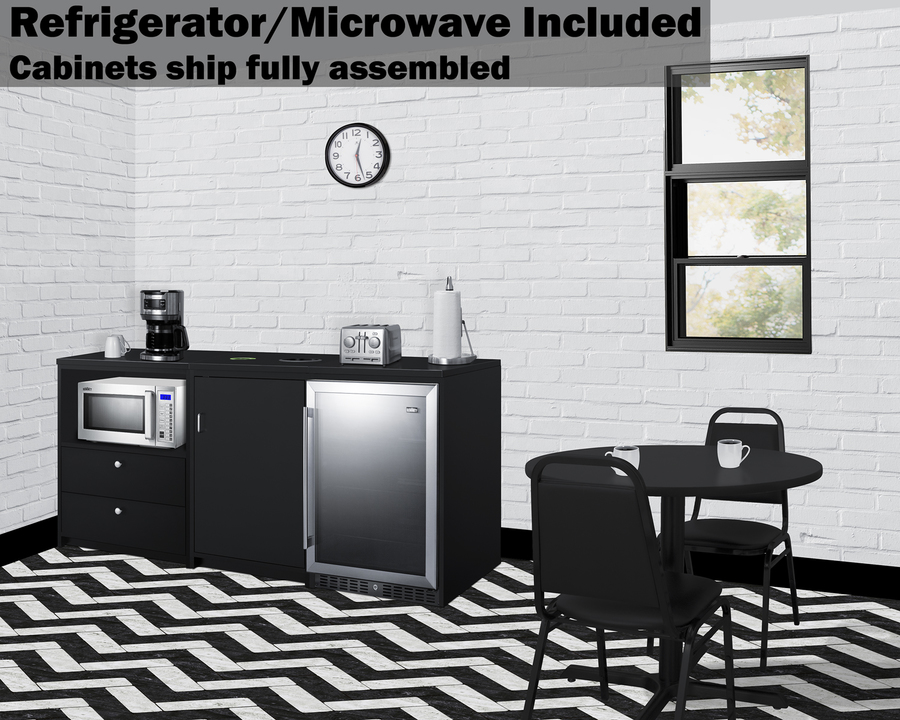

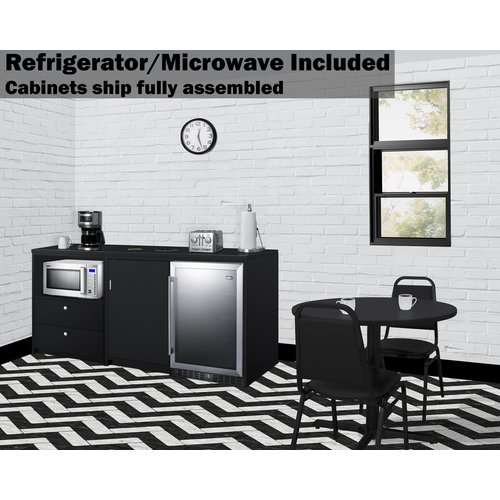

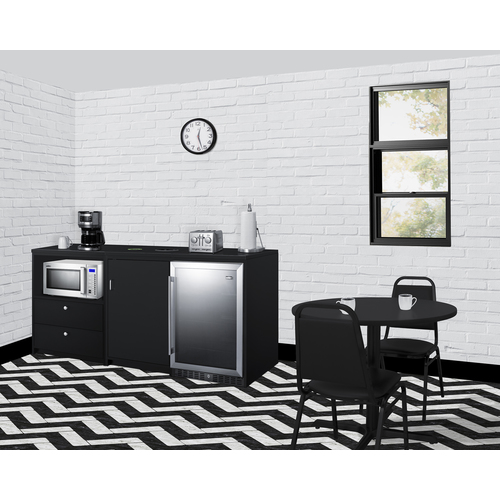

Image shown is a suggested layout, but individual pieces can be repositioned to your space's needs
DESCRIPTION
Summit's selection of American-made casework brings new convenience to break room design with fully assembled cabinetry that lets you create the perfect coffee station, office lounge, or refreshment center. The CWSUITE74R is comprised of five pieces: refrigerator cabinet (model CWR4ADA), Summit AL57G beverage center, storage cabinet CWM2ADA, and microwave SCM853. The cabinetry ships full assembled and individually packaged, allowing you to rearrange the layout to best suit the needs of your space. The cabinet height is 34" in order to comply with ADA guidelines for accessibility. Each cabinet piece is manufactured in the USA from engineered wood in a jet black laminate finish. The trash cabinet (CWC5ADA) includes two bins and two counter holes to allow easy separation of rubbish and recycling. The CWM2ADA cabinet includes two slide-out drawers. It features a pre-installed hole in the rear to let you run power cords through, accommodating the microwave as well as other small appliances, such as coffeemakers or toasters. The SCM853 microwave comes in complete stainless steel. Beverage refrigerator AL57G offers a full 4.8 cu.ft. of storage capacity, with no-frost operation, digital temperature control, adjustable glass shelves, and LED lighting. It comes with a user-reversible stainless steel trimmed glass door and front lock. In addition to this suite design, Summit offers more styles and sizes. You can also build your own by combining any combination of our modular casework cabinets and appliances. All furniture ships fully assembled. Browse the full Summit portfolio to create the perfect solution for break rooms, schools, welcome lounges, and more.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
