24" Wide Built-In Dishwasher, ADA Compliant (Panel Not Included)
01/31/2025
(82cm H x 60cm W x 55cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.5" (60 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 21.75" (55 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Dishwasher | Standard |
| Door | Panel-Ready |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Energy Usage/Year | 260.0kWh/year |
| Amps | 12.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101079615 |
|
Dishwasher
|
|
| Number of Cycles | 8 |
| Number of Racks | 2 |
| Rack Material | Wire |
| Silverware Basket | Yes |
| Delayed Start | Yes |
| China Setting | Yes |
| Interior Finish | Stainless Steel |
| Interior Height | 24.75" (63 cm) |
| Interior Width | 21.5" (55 cm) |
| Interior Depth | 20.0" (51 cm) |
| Decibel Rating | 47.0 dBA |
| Number of Options | 8 |
| Leveling Legs | Yes |
| Place Settings | 10 |
FEATURES
Uses less energy and water than national standards require to ensure more efficiency and lower utility bills
32.25" high to fit under lower counters following ADA guidelines
Advanced sound absorbing construction operates at 47 dB
Intuitive button controls with a digital display to ensure you select the proper cycle

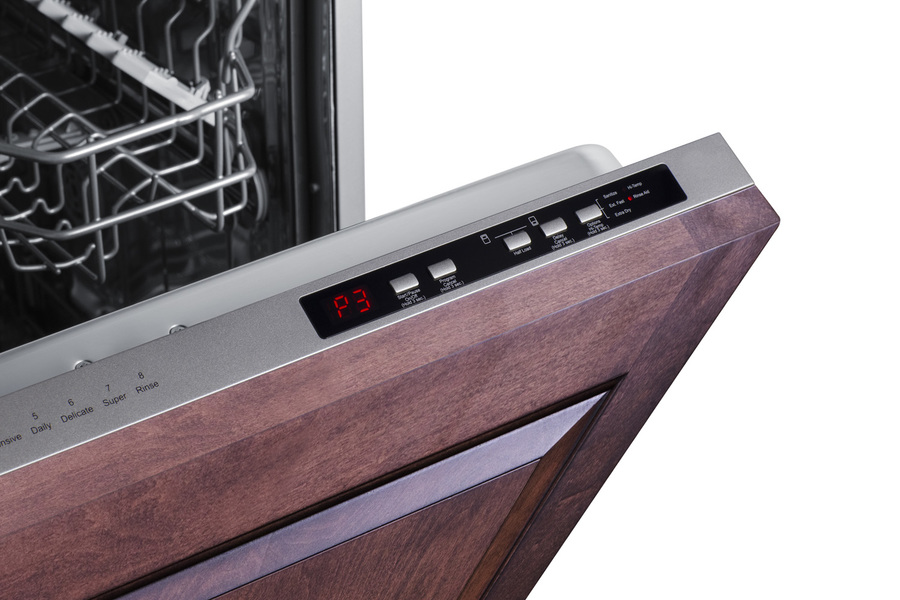

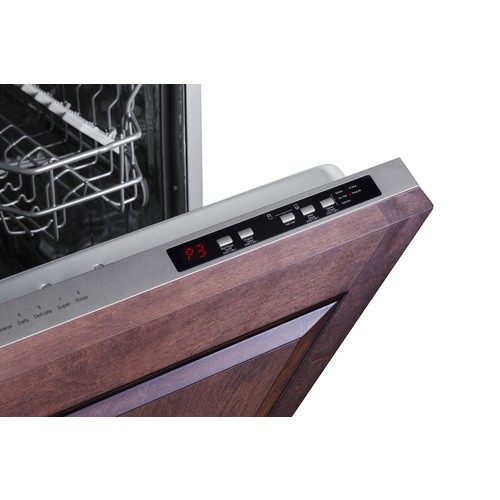

Touch controls are located on the top of the door, providing a cleaner look to better integrate into your kitchen

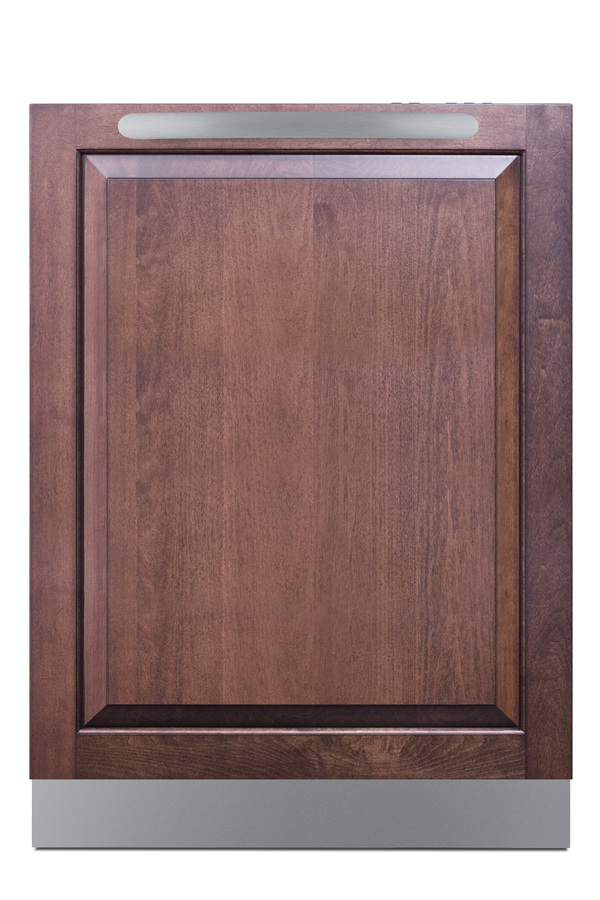

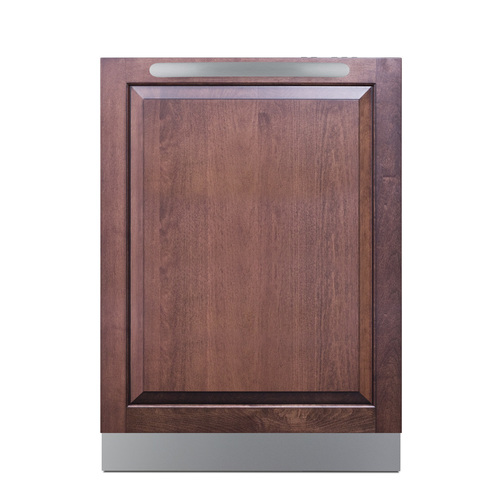

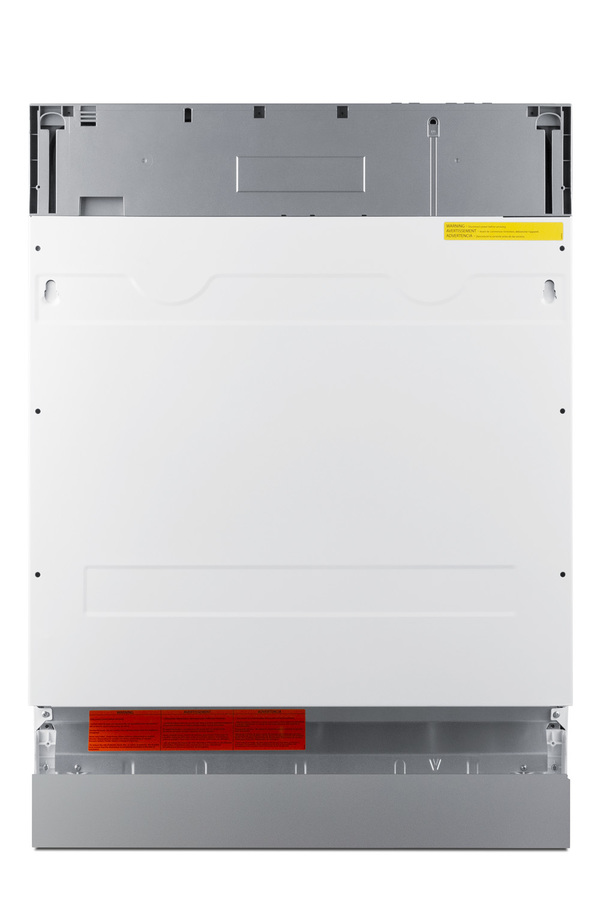

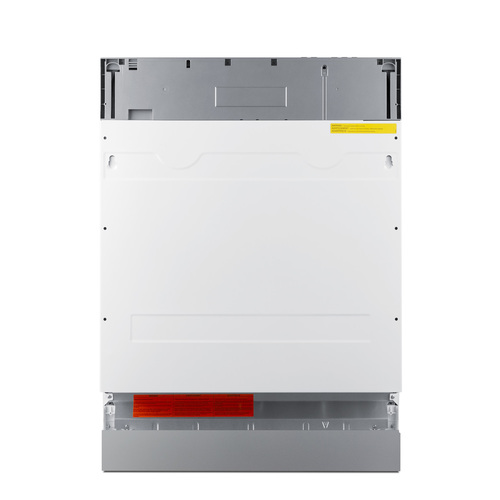

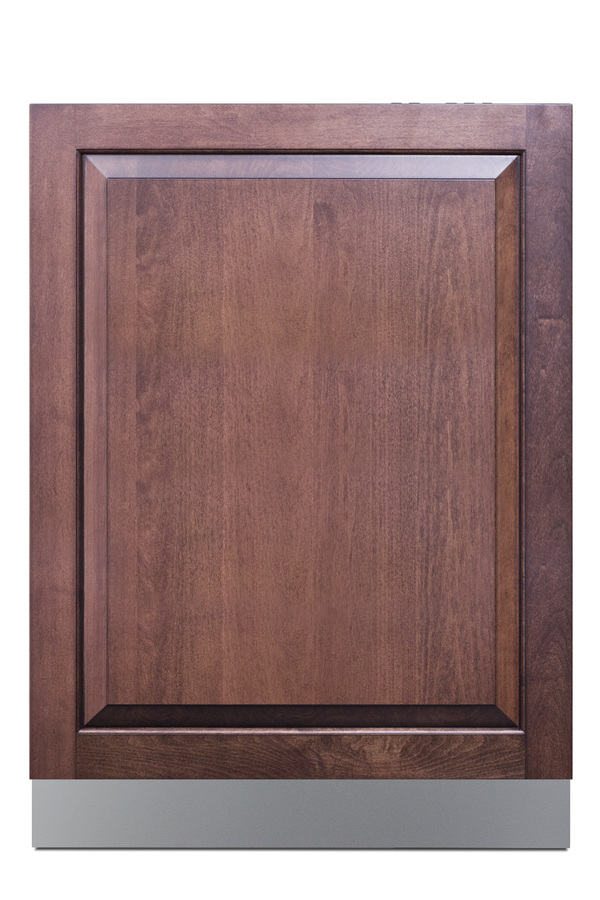

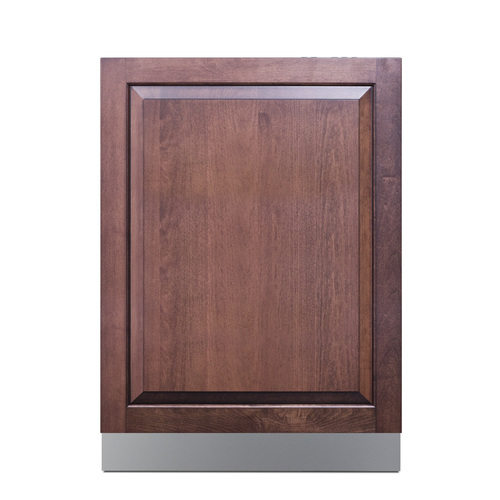

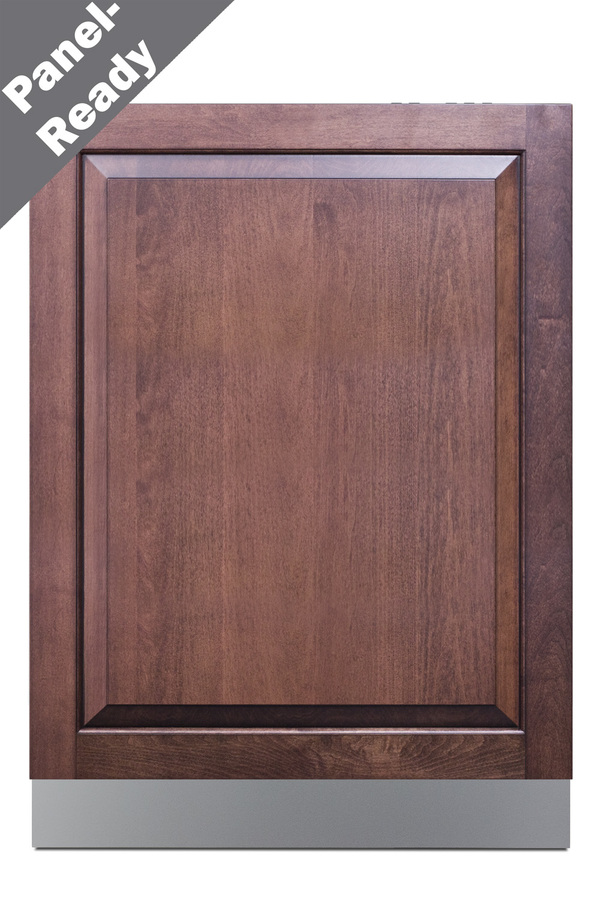

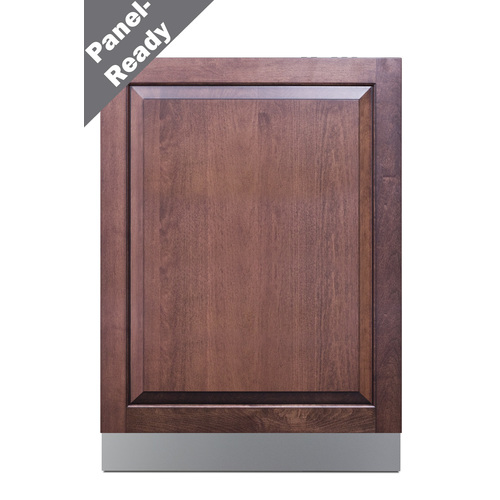

Unfinished door is designed to accept your own panel and handle, creating a seamless look to blend into your kitchen cabinetry
Durable interior ensures long-lasting use

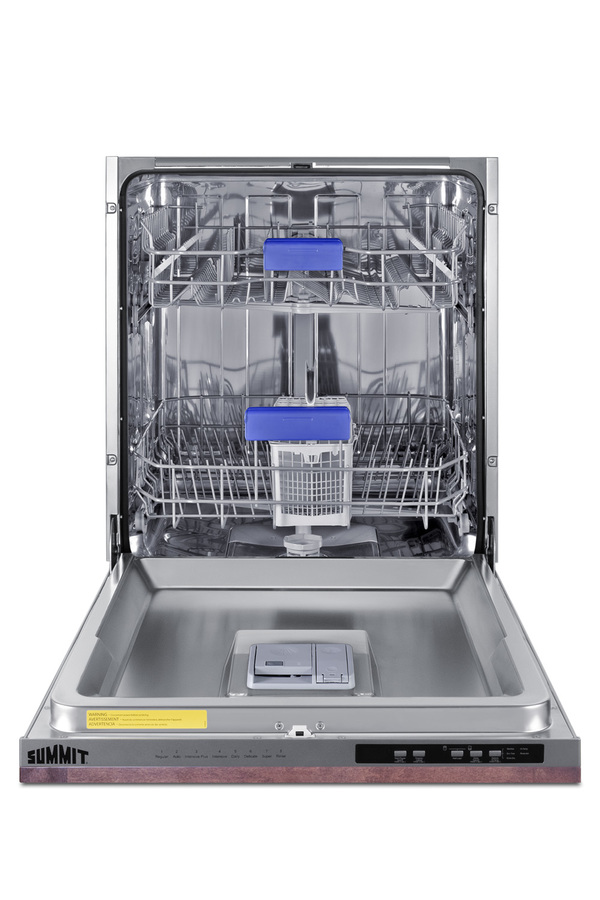

Two easy-gliding racks for easy loading and long-lasting durability

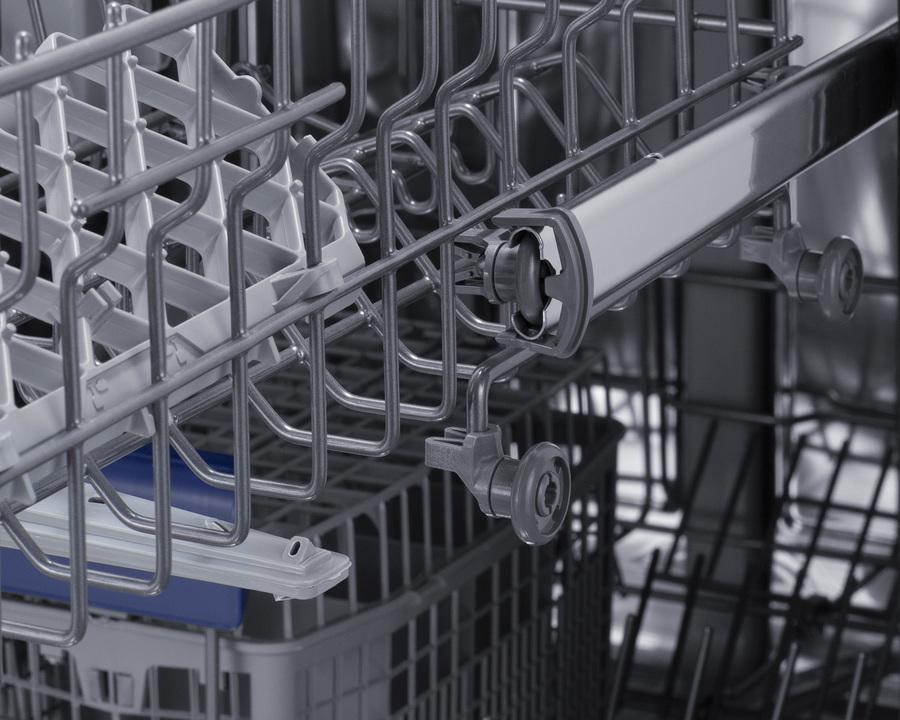

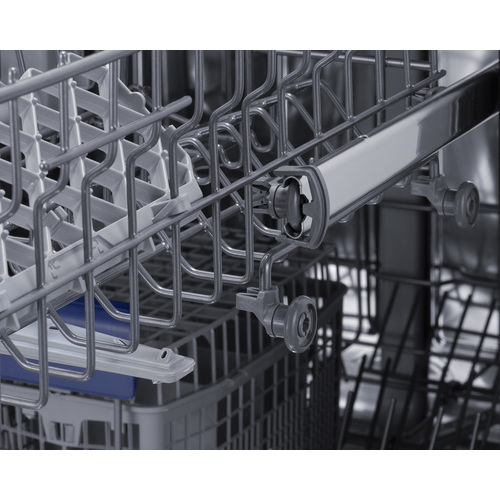

The upper rack can be repositioned to help accommodate taller items
Top rack includes side pieces that help to keep tall glasses safely in place, or alternatively, allow you to maximize capacity by stacking smaller cups or holding longer items
Lower rack includes two tines that can be folded down to make room for larger items, or raised to hold dishes in place

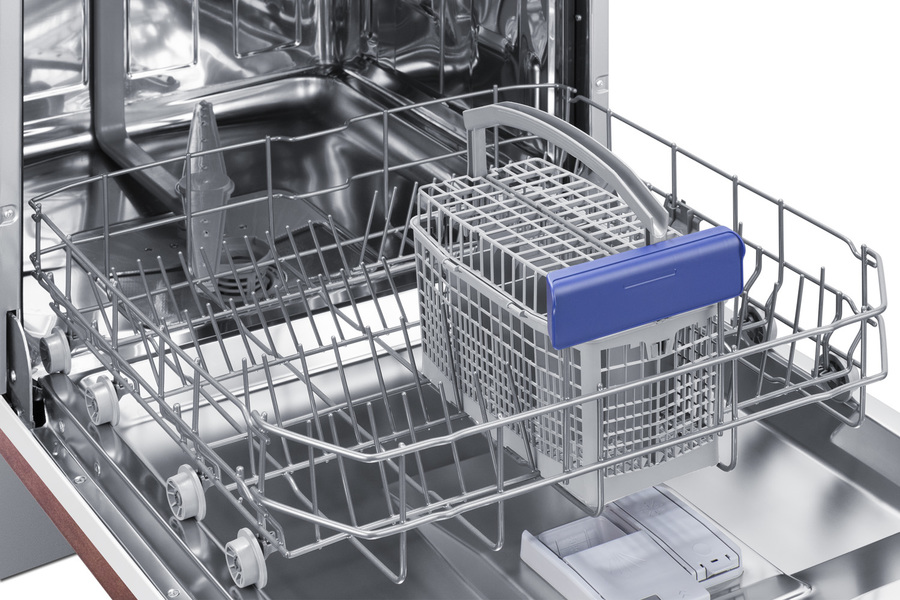

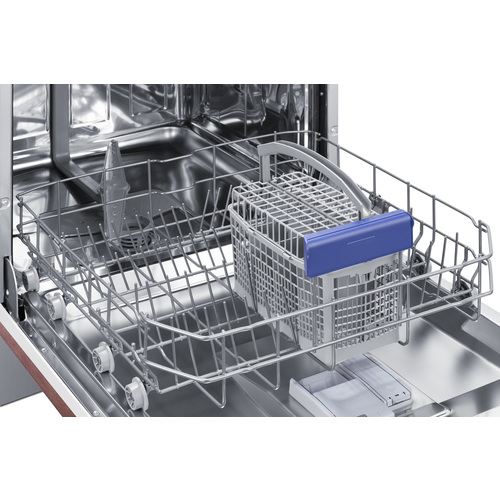

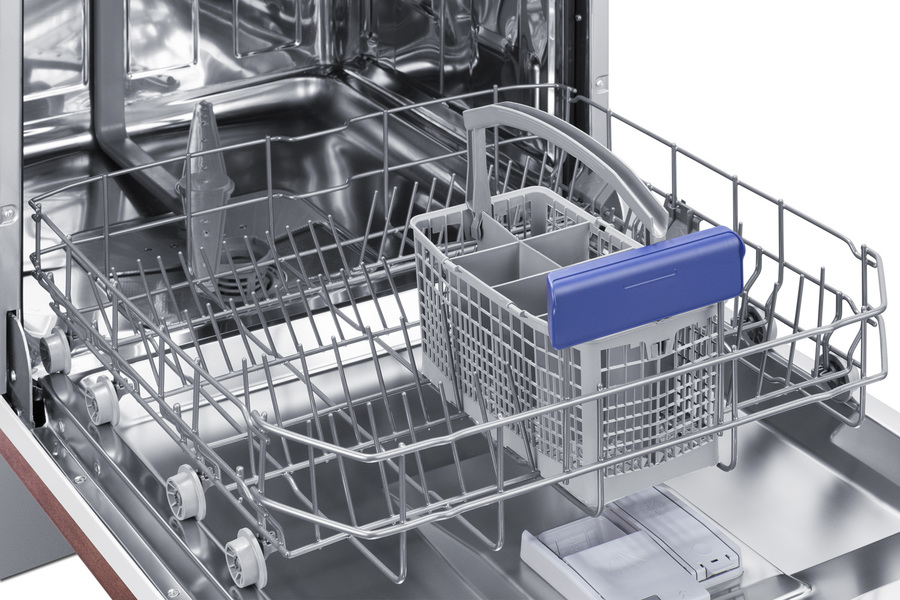

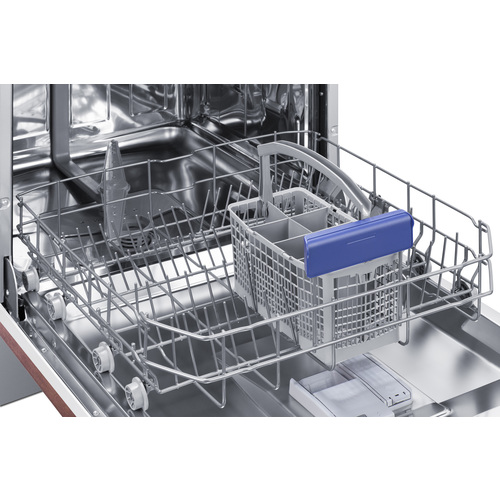

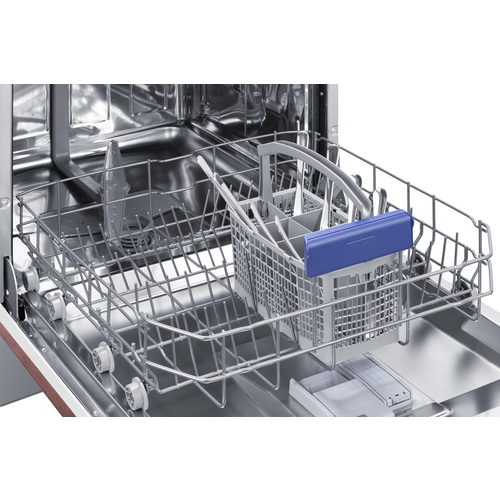

Convenient basket makes it easy to arrange your silverware, and is also removable to open up more space if washing larger pots or pans
Improved design to ensure both racks are properly cleaned
Settings include Regular, Auto, Intensive, Intensive Plus, Daily, Delicate, Super, & Rinse
Combine additional functions with your wash programs, including Sanitize, Extra Fast, Extra Dry, Hi-Temp, and Half Load
Can be combined with any wash program to operate more efficiently for smaller loads of dishes
Increases the water temperature in the final rinse for a cleaner wash

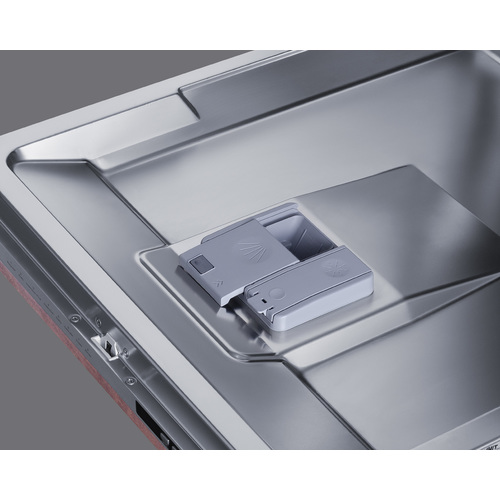

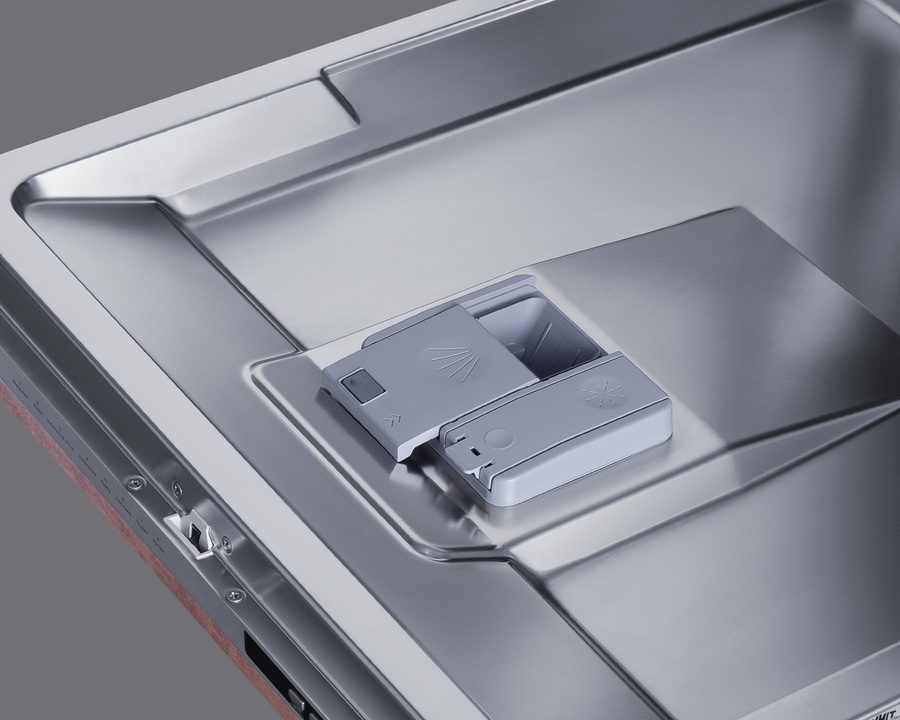

Conveniently located inside towards the top of the door, with a push button release for easy loading
Unit will self-adjust to the detergent type for optimum performance
Allows you to program a wash cycle for up to 19 hours in advance
Display screen will show when softening rinse aid needs to be adjusted
Washing will stop if the machine detects an issue with the water supply or inlet tap
Alert will flash if the dishwasher is taking in too much water or sensing a leak
If food particles build up in the bottom filter, it can easily be removed and emptied as needed
Includes three leveling legs that let you raise the unit to a standard 34" counter height, with an taller kickplate included to cover extra space
Includes a pre-installed power cord with 3-pronged plug
DESCRIPTION
Summit's European dishwashers offer true efficiency for the home, with ENERGY STAR certified performances and ultra quiet operation. Model DW245NTADA is a 24" wide dishwasher sized at 32.25" high for an easy fit under lower ADA compliant counters. The leveling legs allow you to raise the height up to 34". We include an extra kickplate that covers the front for a cleaner look and to help prevent dirt from going under the unit. This is a fully integrated dishwasher with an unfinished door designed to accept user-provided panels to create a seamless look that blends into your cabinetry. Users also provide their own handle. The control panel is located on top of the door to help ensure a seamless look with your kitchen. Advanced sound absorption ensures a quiet performance at just 47 dB. This unit offers eight wash programs to accommodate all of your cleaning needs, from an "intensive plus" setting for tough stains to a delicate function to safely handle fragile items. Five auxiliary functions let you further customize the wash and dry settings, with options that include sanitize, extra fast, extra dry, high temperature, and half load for added efficiency. The control panel features easy touch buttons and a digital display for intuitive operation. Additional features include a pause function, 19-hour delay start option, and indicators for rinse aid, water cutoff, and overflow. Inside, the DW245NTADA features stainless steel construction for true durability. Two spray arms help to ensure your full load is thoroughly washed. The upper slide-out rack can be set in two positions, allowing you to adjust the setup if washing particularly tall items. Side flaps can be used to stack smaller cups, keep glasses in place, or hold long utensils. The lower rack includes two fold-down tines that let you better accommodate oversized pots as needed. We include a removable cutlery basket to make it easier to load and unload silverware. In addition to this dishwasher, Summit offers more choices in alternate finishes, including white, black, and stainless steel. Browse the full line to explore our assortment.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
