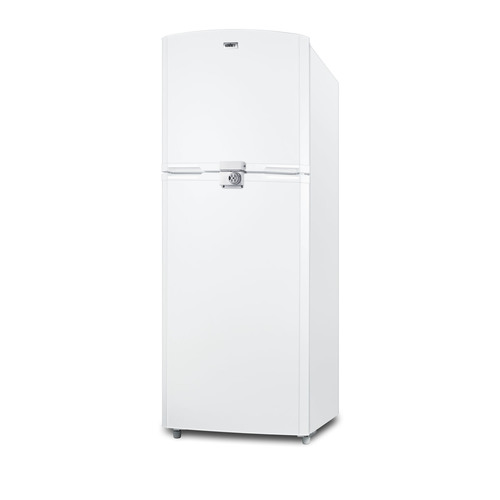

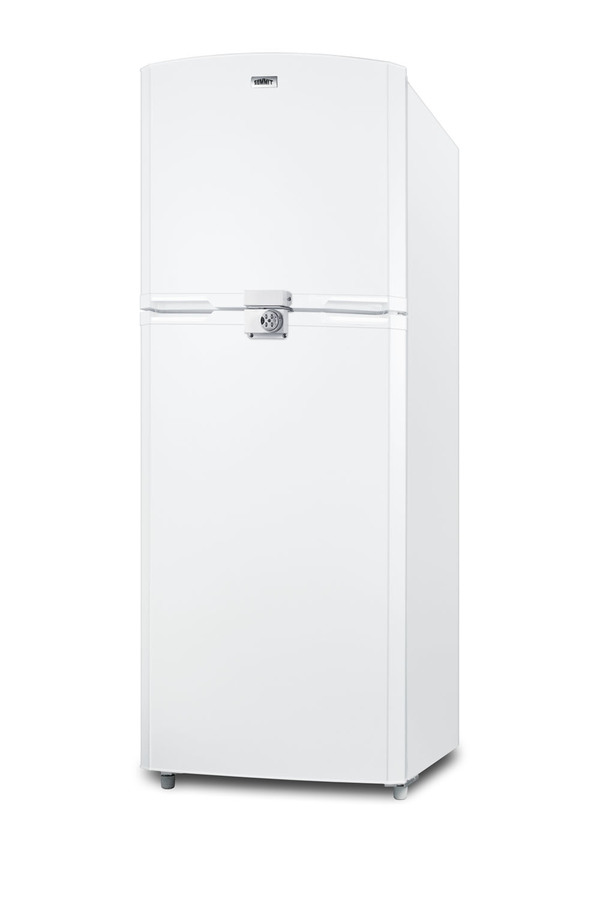

26" Wide Top Mount Refrigerator-Freezer

SKU: FF1427WLLF2

Made in North America, with a factory-installed combination lock that secures both sections

DISCONTINUED

69.25" H x 26.0" W x 26.25" D
(176cm H x 66cm W x 67cm D)

Overview
Height of Cabinet	69.25" (176 cm)
Width	26.0" (66 cm)
Width with Door Open	27.5" (70 cm)
Depth	26.25" (67 cm)
Depth with Handle	27.75" (70 cm)
Depth with door at 90°	49.5" (126 cm)
Capacity	12.9 cu.ft. (365 L)
Defrost Type	Frost-Free
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Energy Usage/Year	361.0kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	180.0 lbs. (82 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101086873
Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	37.88" (96 cm)
Refrigerator - Interior Width	21.0" (53 cm)
Refrigerator - Interior Depth	19.63" (50 cm)
Refrigerator - Capacity	8.97 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	3
Freezer - Interior Height	18.5" (47 cm)
Freezer - Interior Width	20.75" (53 cm)
Freezer - Interior Depth	16.0" (41 cm)
Freezer - Capacity	3.92 cu.ft
Freezer - Shelf Type	Glass
Freezer - Shelf Qty	1
Freezer - Full Door Shelves	2
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R134a
Refrigerant Amount	3.5 oz.
Level Legs	2
Wheels	2
Compressor Step Height	10.5" (27 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	7.0" (18 cm)

Handle

TB Set - Stainless steel towel bar handles pre-installed on unit Professional towel bar style handles in brushed stainless steel, mounted vertically on select refrigerator-freezers (specify RHD or LHD)	TBC Copper Towel Bar Handles Factory-installed towel bar handles made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handles Factory-installed full-length handles made from pure copper for antimicrobial protection

Exterior

LHD - Left hand door swing Door reversal to left hand swing

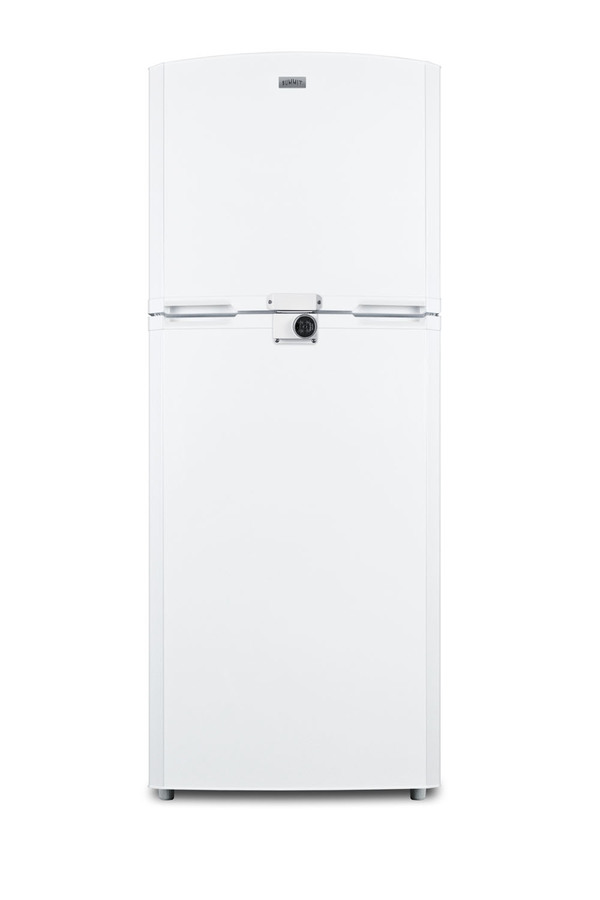

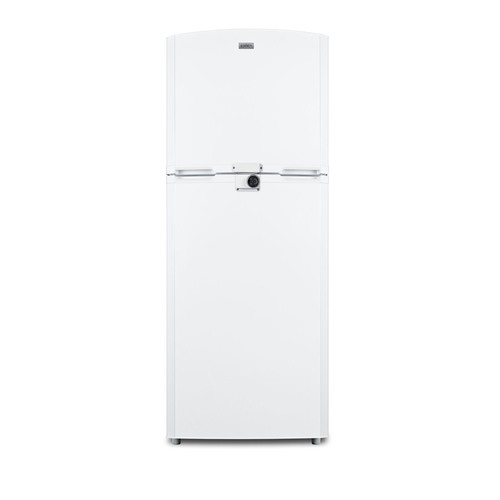

Factory-installed combination lock

Single dial combination lock secures both sections, with a key included to override the combination if needed

Frost-free operation

No-frost convenience for reduced user maintenance

Large capacity

Nearly 13 cu.ft. of interior capacity inside a uniquely slim 26" footprint

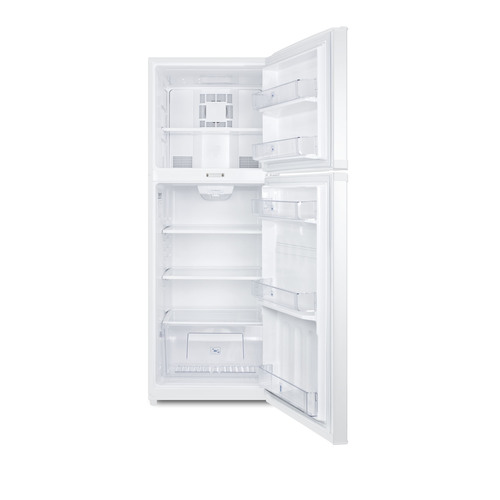

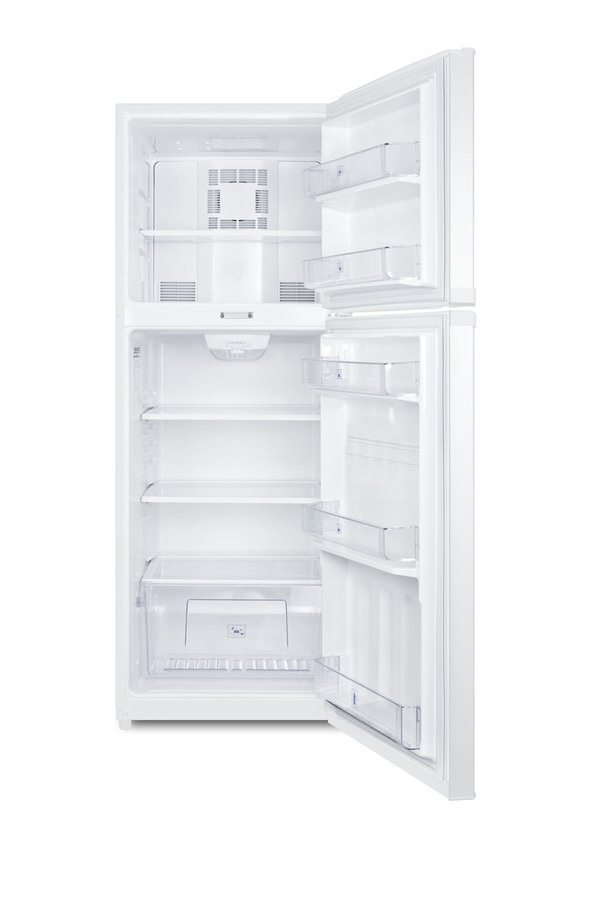

Adjustable glass shelves

Spill-proof shelves made from solid safety glass offer convenient and flexible storage in both the refrigerator and freezer compartments

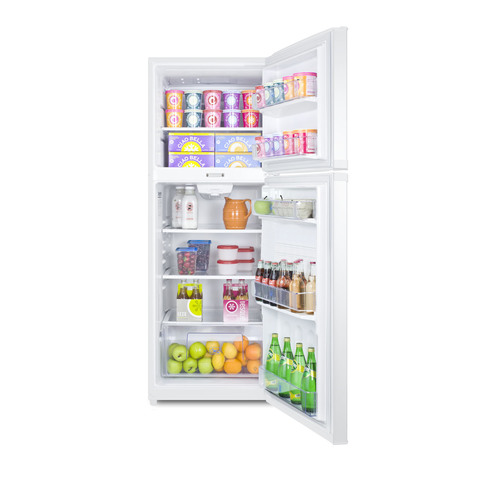

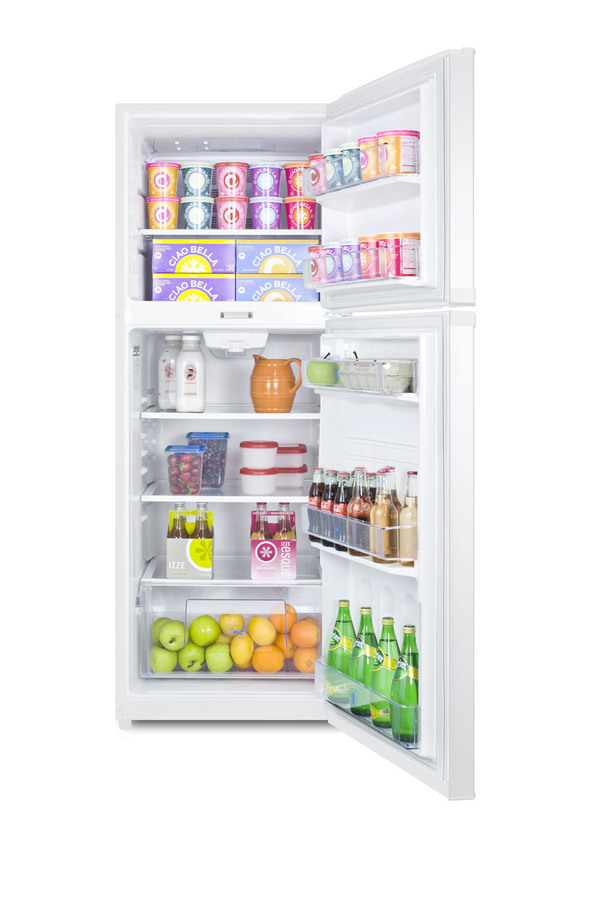

Door storage

Multiple door shelves in both the refrigerator and freezer compartments offer convenient storage for condiments and bottles

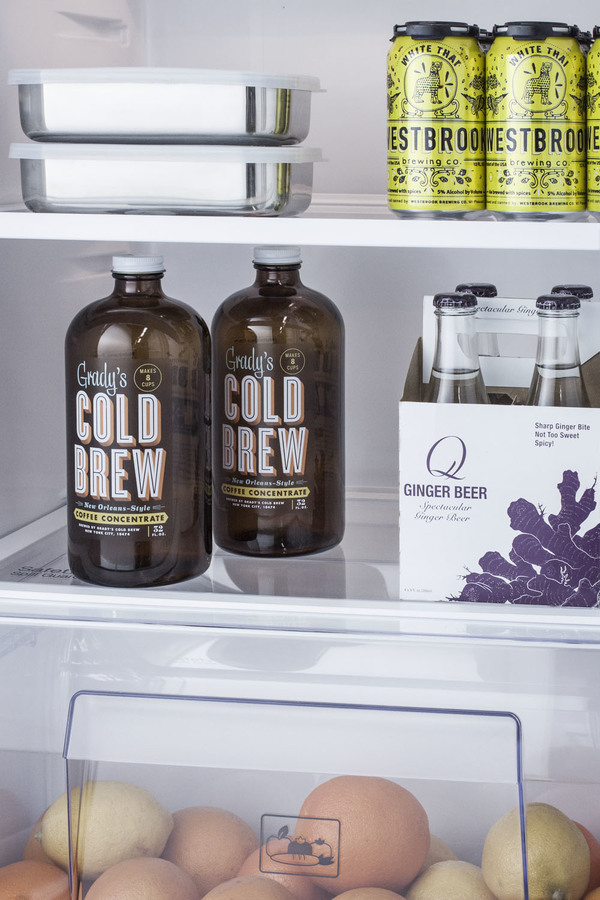

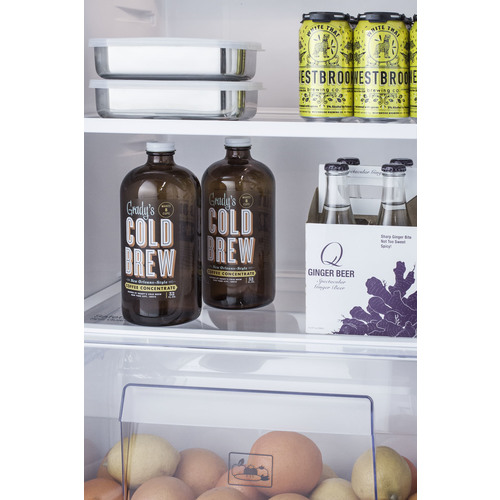

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing it in a convenient slide drawer

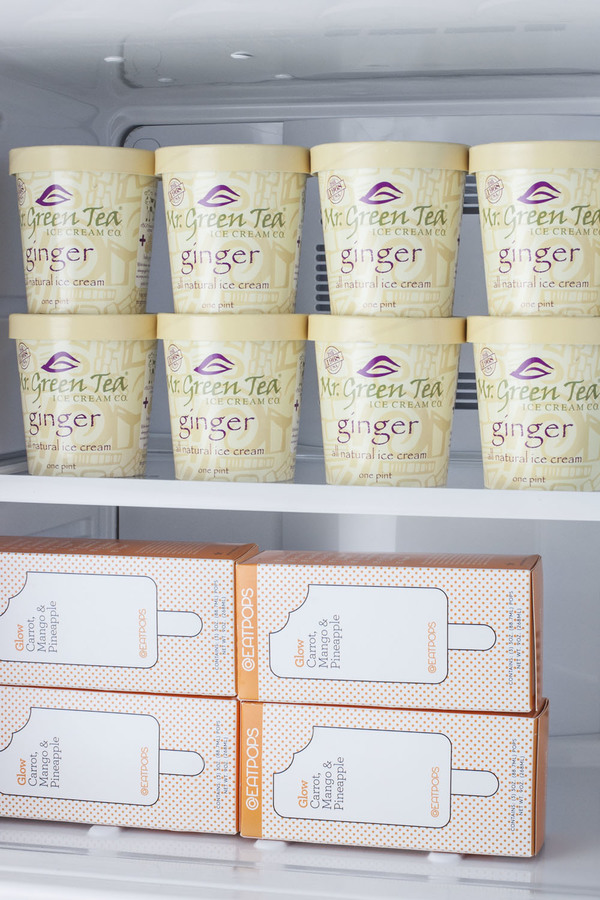

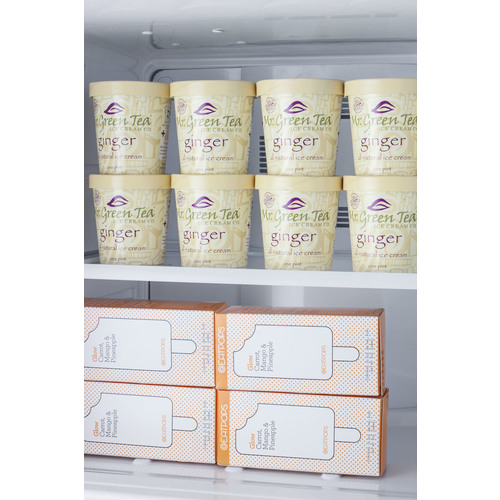

Full freezer shelf

Adjustable glass shelf included to accommodate a variety of sizes inside the top freezer compartment

Interior light

Automatically illuminates when you open the door of the fresh food section

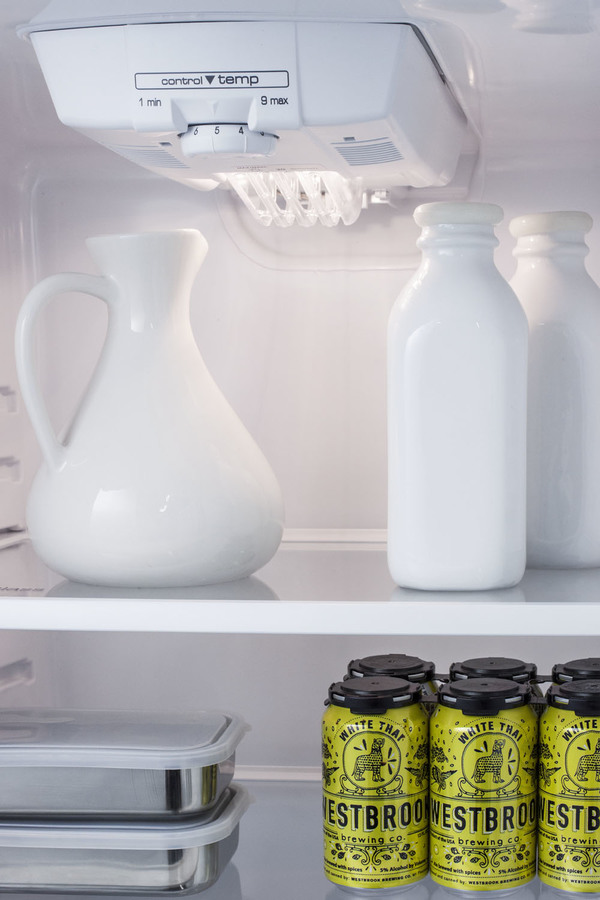

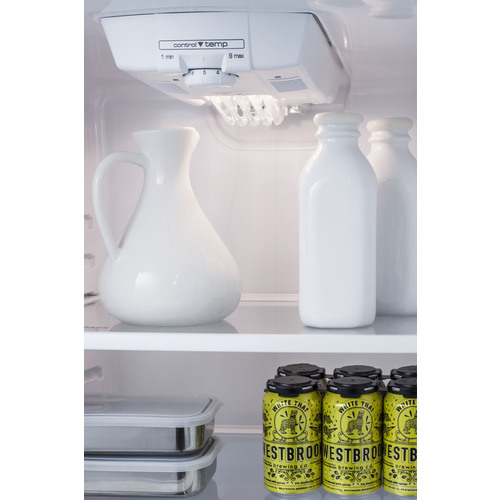

Adjustable thermostat

Dial thermostat offers easy temperature management

White finish

Classic white exterior for a clean look that suits all styles

Reversible doors

User-reversible door swing allows you to switch the configuration for a better fit in your kitchen

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

SUMMIT's thin-line collection of frost-free refrigerator-freezers brings quality and convenience to a variety of smaller kitchens, including break rooms and other institutional spaces.

The FF1427WLLF2 is a counter depth refrigerator-freezer ideal for use in apartments and other kitchens with space limitations. It features a classic white exterior finish perfect for any kitchen,with nearly 13 cu.ft. inside the unique 26" footprint. The frost-free interior includes adjustable glass shelves and door storage in both compartments, as well as an interior light and large crisper drawer in the fresh food section.

Made in North America, the FF1427WLLF2 brings reliable quality to unique kitchen spaces. This unit features a user-reversible door swing for flexible placement. A combination lock is factory-installed in the front to secure both sections. We include a key that can override the combination if needed. Additional choices are available in stainless steel, as well as bottom freezer configurations. Browse Summit's online catalog for our full assortment.

NOTE: Because of this unit's curved door style, the FF1427W requires an additional 1 1/2" of width to open the doors to a full 90º. Download the product brochure to view the line drawings and ensure this unit fits your space.

BROCHURE w/ DRAWINGS
FF1427WLLF2.pdf

TECHNICAL DRAWING (.dwg)
FF1427W-FF1427SS_REF._FRE.__A-C_2018_.dwg

USE & CARE
FF1427W_FF1427SS_Use___Care.pdf

MSDS INFORMATION
MSDS_R134a_PS.pdf

SUPPORT
LLF2_Instructions.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
