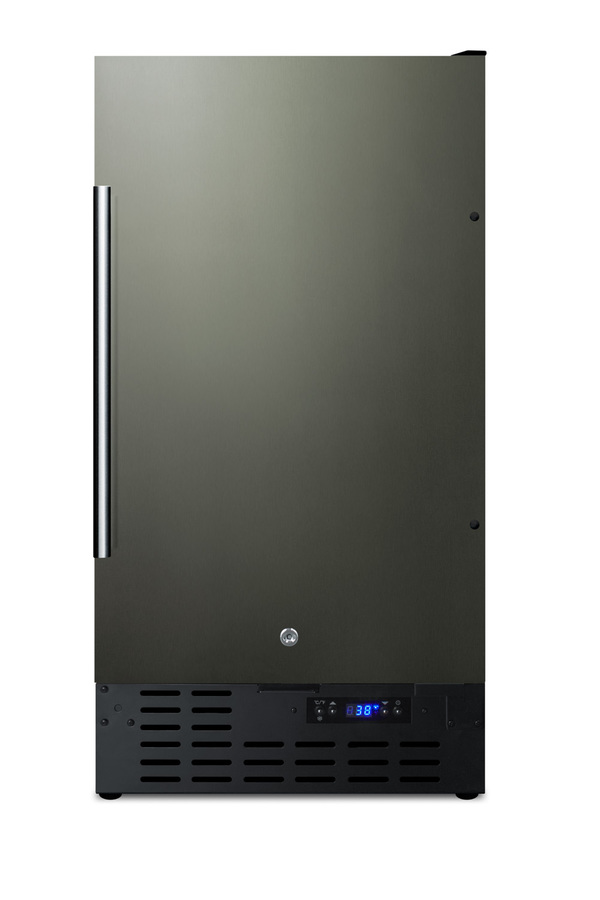

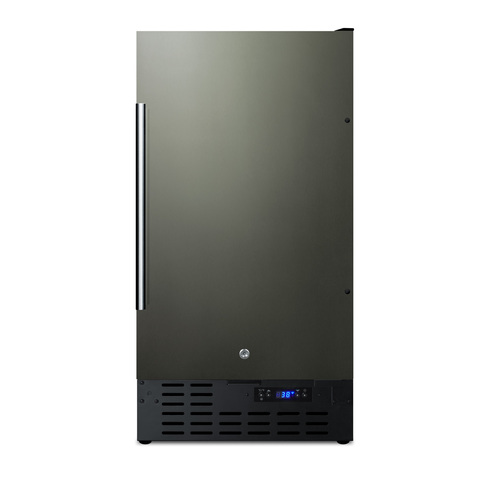

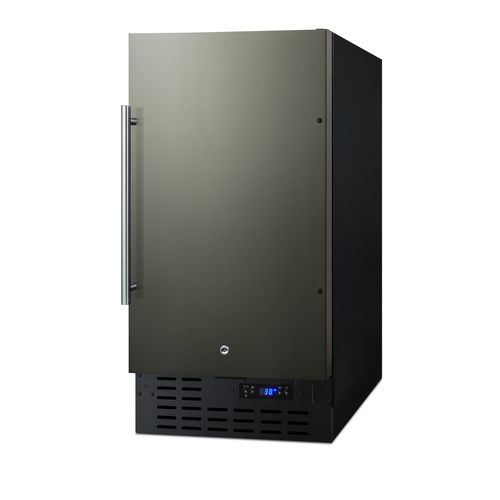

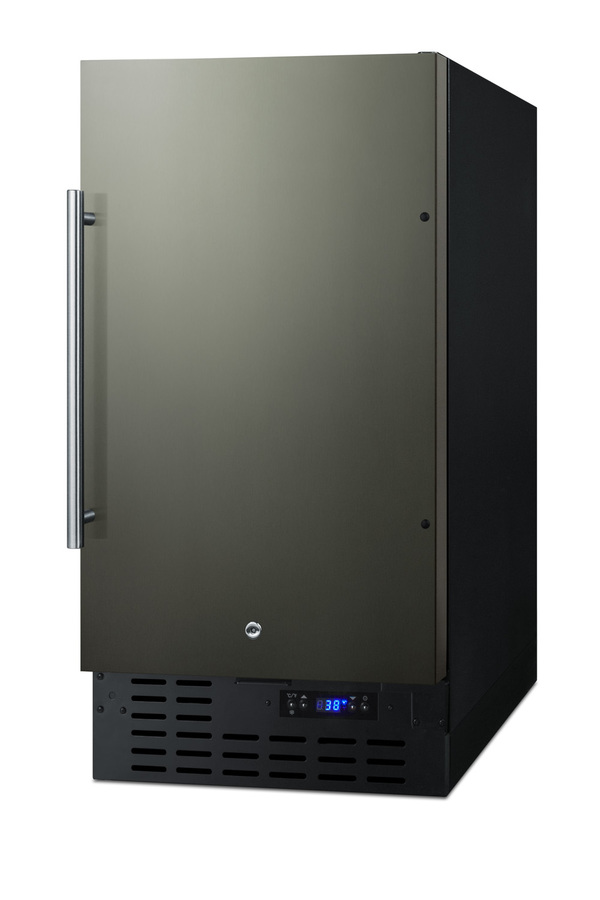

18" Wide Built-In All-Refrigerator, ADA Compliant
3 to 5 days
*Additional features may vary
(80cm H x 45cm W x 61cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.5" (80 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.75" (45 cm) |
| Width with Door Open | 18.5" (47 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Depth with Handle | 24.75" (63 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 2.7 cu.ft. (76 L) |
| Defrost Type | Automatic |
| Door | Black Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 250.0kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 103.0 lbs. (47 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101060064 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Chrome |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Sound Level | 33.1 dB |
|
Dimensions
|
|
| Interior Height | 23.5" (60 cm) |
| Interior Width | 12.75" (32 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
AVAILABLE UPGRADES
| Exterior | ||||
|---|---|---|---|---|
|
FEATURES
Make the best use of space by installing your appliance under the counter
32" height is designed to fit under lower ADA compliant counters

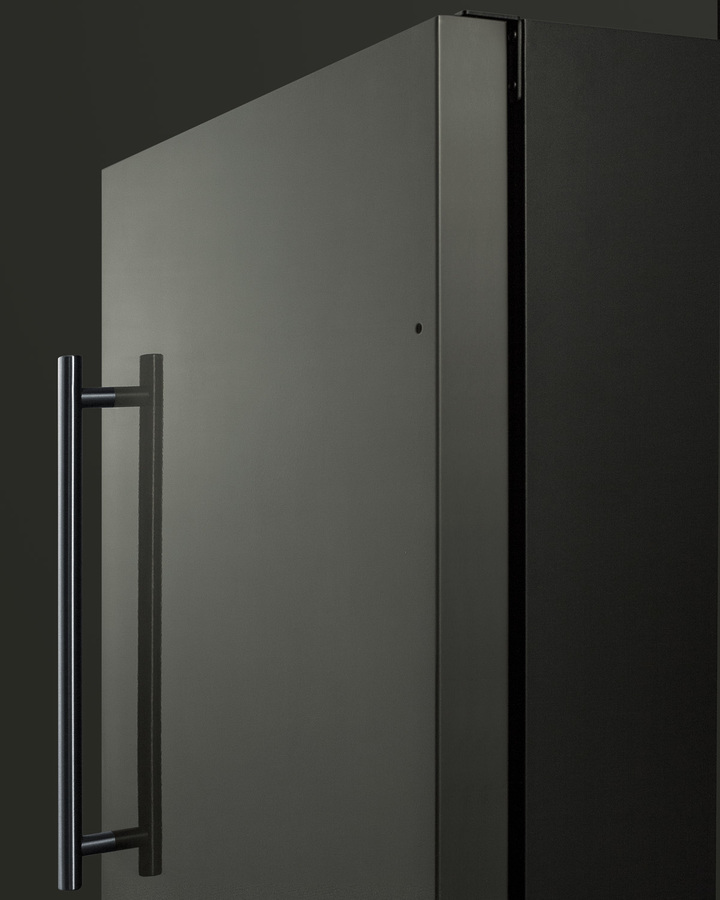

304 grade stainless steel in a high gloss neutral finish from our basalt collection; note: due to the reflective quality of our door finish, this color may appear different under different lighting and surrounding conditions
Door wipes clean with a dry cloth, while the dark basalt finish hides most smudges
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Keyed lock for a secure interior
Reduced maintenance with auto defrost system
Electronic controls for precise temperature management.
Automatically illuminates when the door is open
User-reversible door swing allows for more flexibility in placing the unit

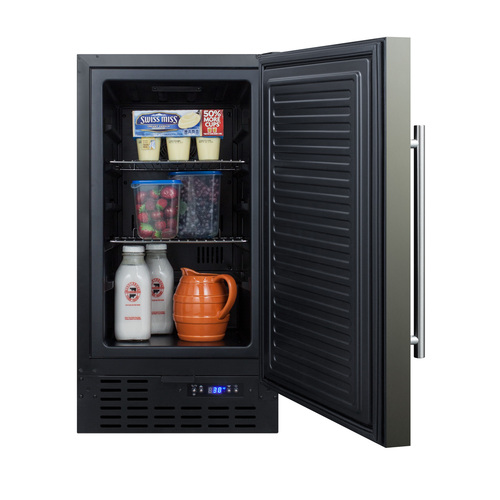

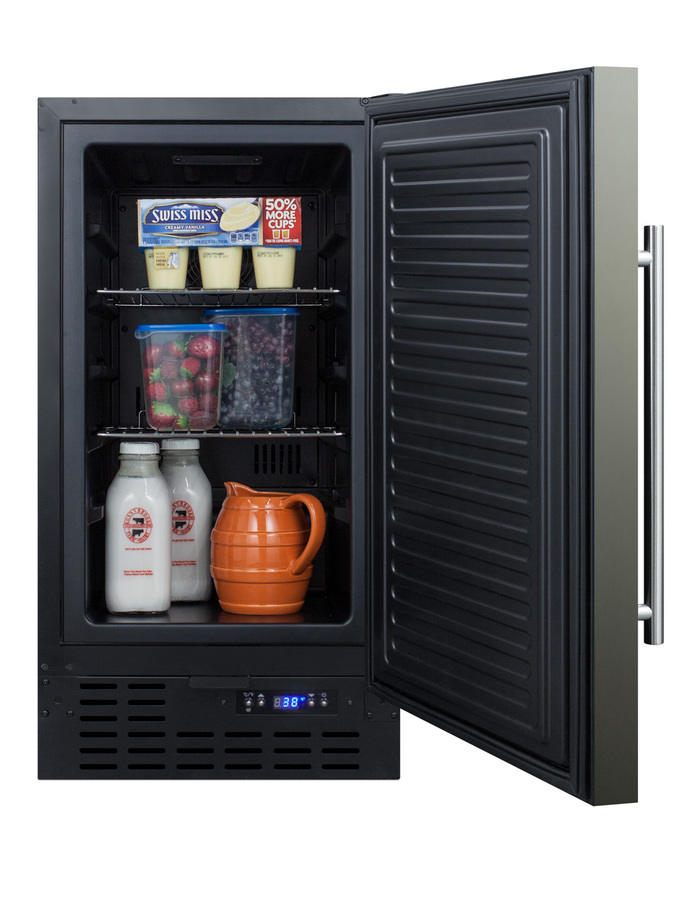

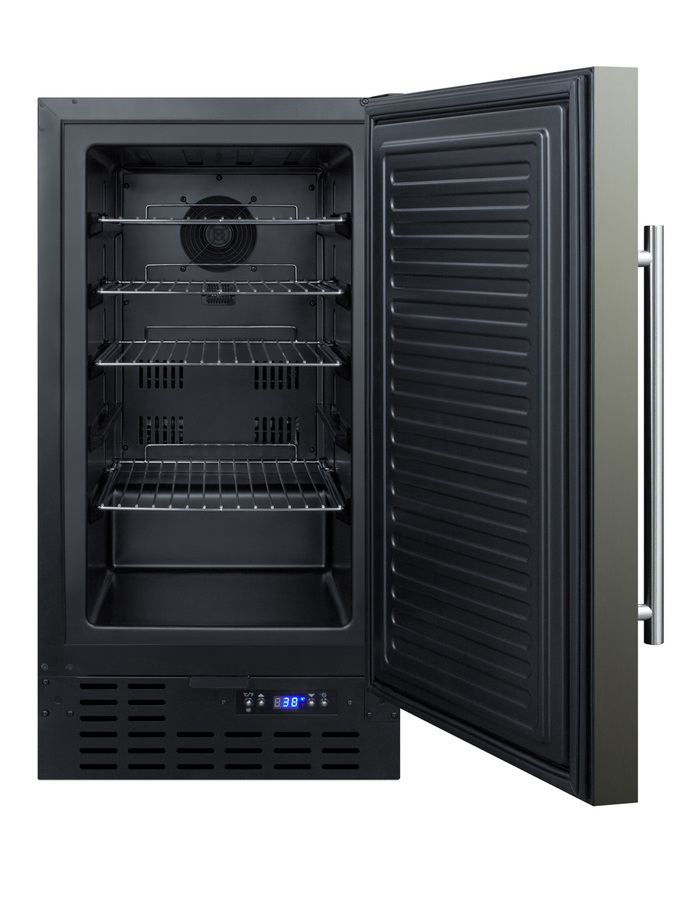

Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Space saving design
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

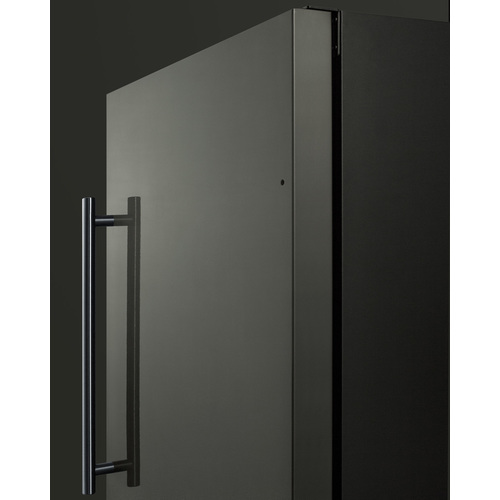

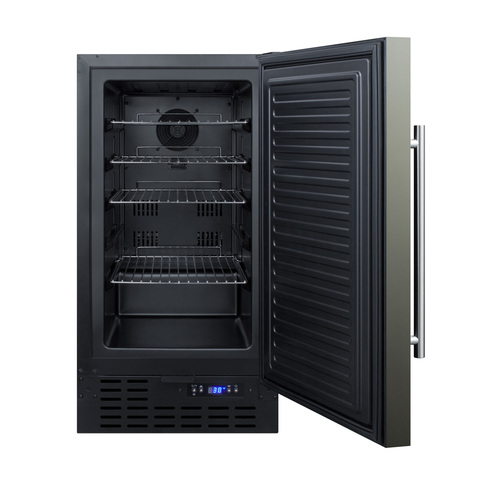

SUMMIT's selection of built-in undercounter refrigeration includes one of the industry's only complete 18" wide lines for use in ADA compliant settings. Sized just under 18" wide and 32" high, the FF1843BKSADA is the perfect all-refrigerator for space-challenged kitchens following ADA guidelines. The front-breathing design allows built-in installation, while the fully finished black cabinet also makes it possible to use the unit freestanding. The FF1843BKSADA comes in our new black stainless steel finish from our exclusive basalt collection. The wrapped door is made from 304 grade stainless steel with a high gloss finish in a neutral hue to perfectly accent or complement your kitchen design. The door is strongly resistant to most fingerprints and can easily be wiped clean with a dry cloth. A pro style handle in brushed stainless steel completes the look. The user-reversible door includes a factory installed lock for added security. Inside, the FF1843BKSADA utilizes automatic defrost operation for low maintenance use. Four adjustable chrome shelves accommodate a variety of sizes and LED lighting offers an efficient interior view. This unit includes a digital thermostat for optimum temperature management. Combine the FF1843BKSADA with its matching freezer, wine cellar, or beverage refrigerator. We also offer this model in black or with a panel-ready door. NOTE: Black stainless steel may vary slightly in appearance from the image displayed, as it has a reflective quality that can be affected by surrounding colors and textures. Summit's black stainless steel comes with a high gloss finish and is not designed as a direct match to other brands.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
