18" Wide Built-In All-Refrigerator, ADA Compliant
3 to 5 days
ADA
*Additional features may vary
(80cm H x 45cm W x 61cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.5" (80 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.75" (45 cm) |
| Width with Door Open | 18.5" (47 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Depth with Handle | 24.75" (63 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 2.7 cu.ft. (76 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 250.0kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 103.0 lbs. (47 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101047034 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Chrome |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Sound Level | 33.1 dB |
|
Dimensions
|
|
| Interior Height | 23.5" (60 cm) |
| Interior Width | 12.75" (32 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
AVAILABLE UPGRADES
| Exterior | ||||
|---|---|---|---|---|
|
FEATURES

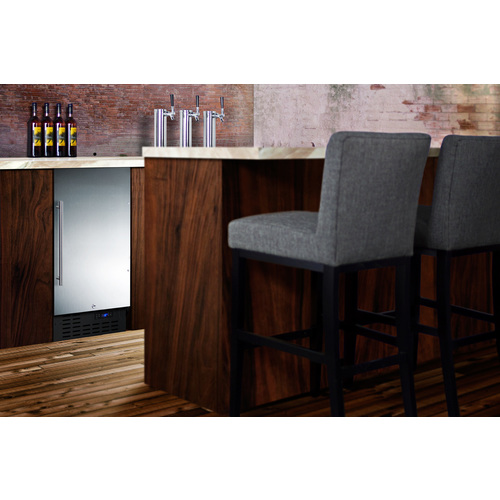

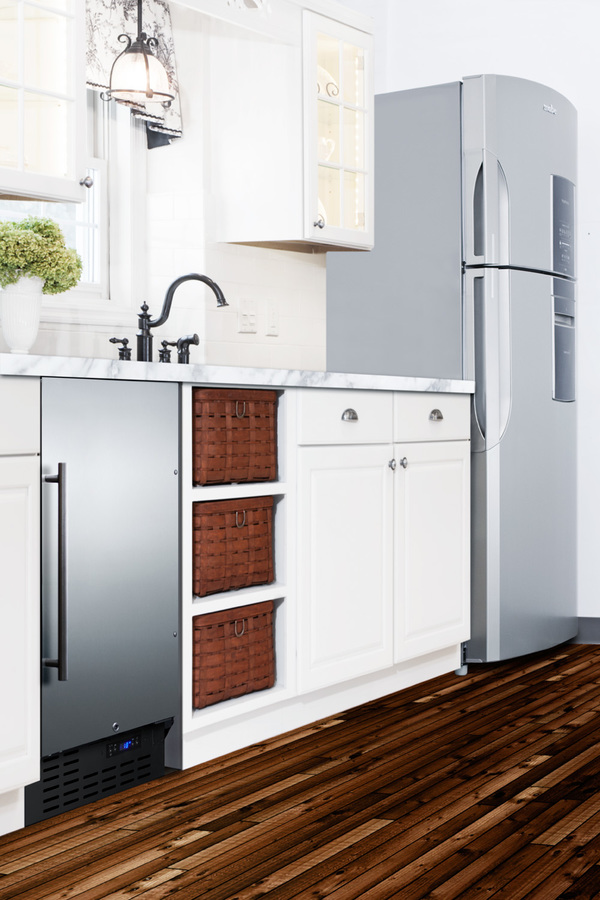

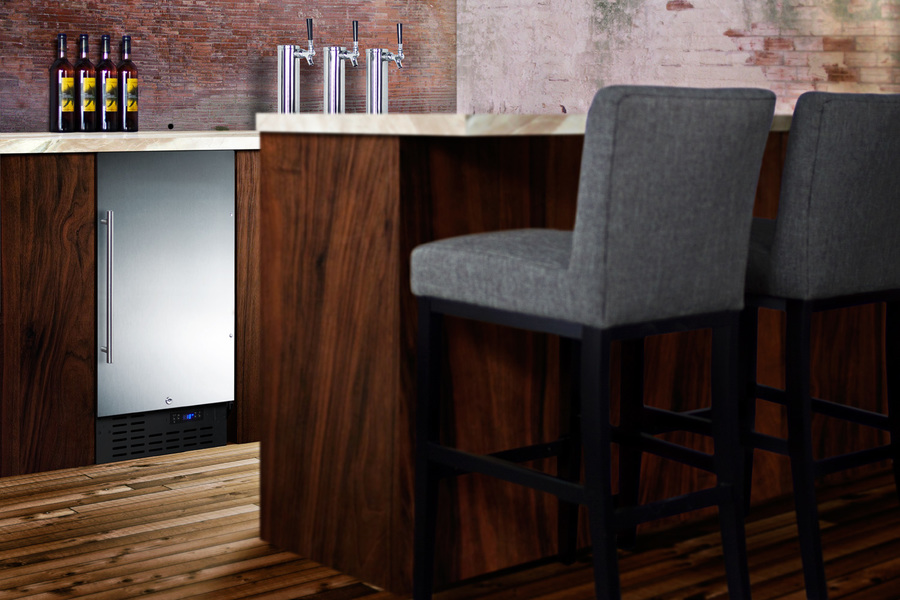

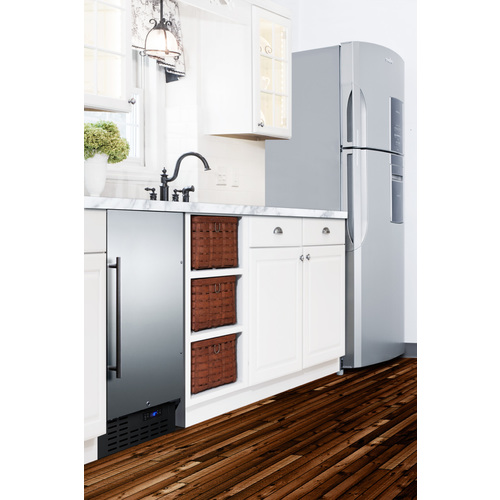

Make the best use of space by installing your appliance under the counter
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
32" height is designed to fit under lower ADA compliant counters
Durable design with lasting elegance
Keyed lock for a secure interior
Reduced maintenance with auto defrost system
Electronic controls for precise temperature management.
Automatically illuminates when the door is open
User-reversible door swing allows for more flexibility in placing the unit

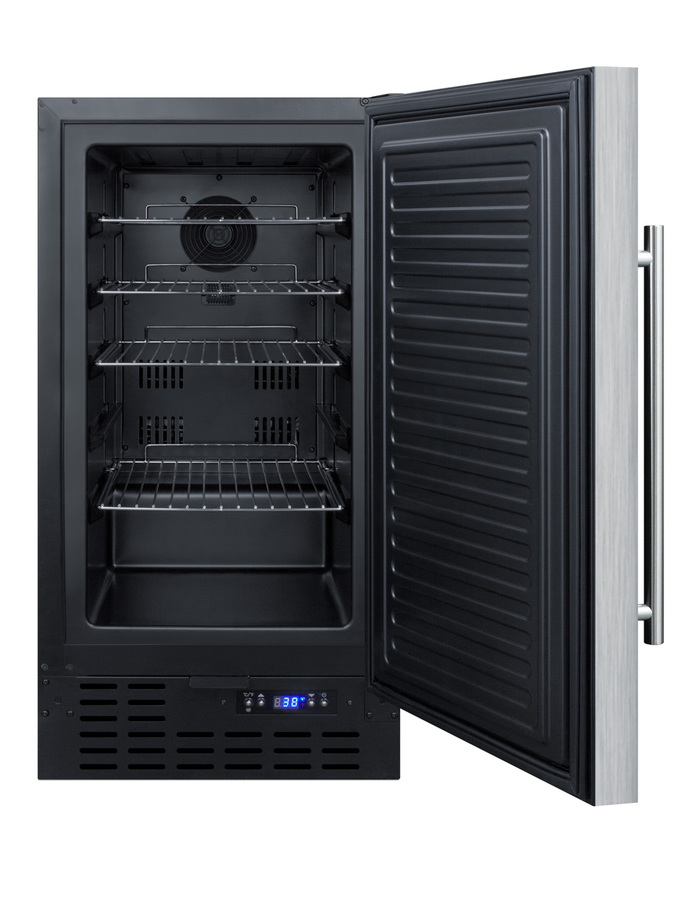

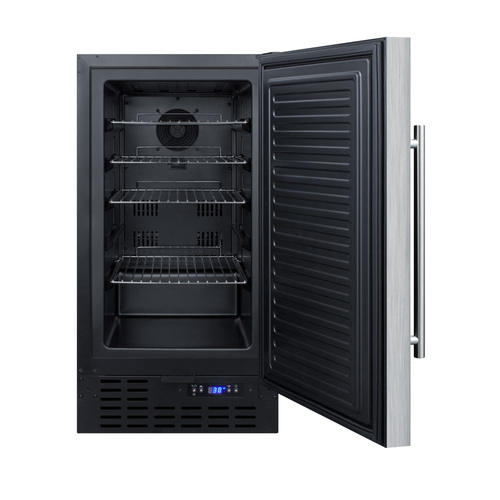

Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Space saving design
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

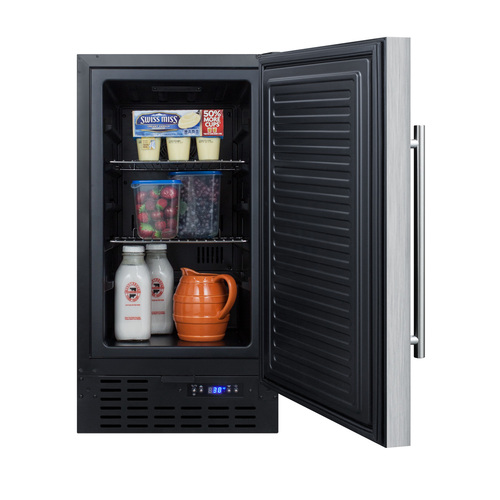

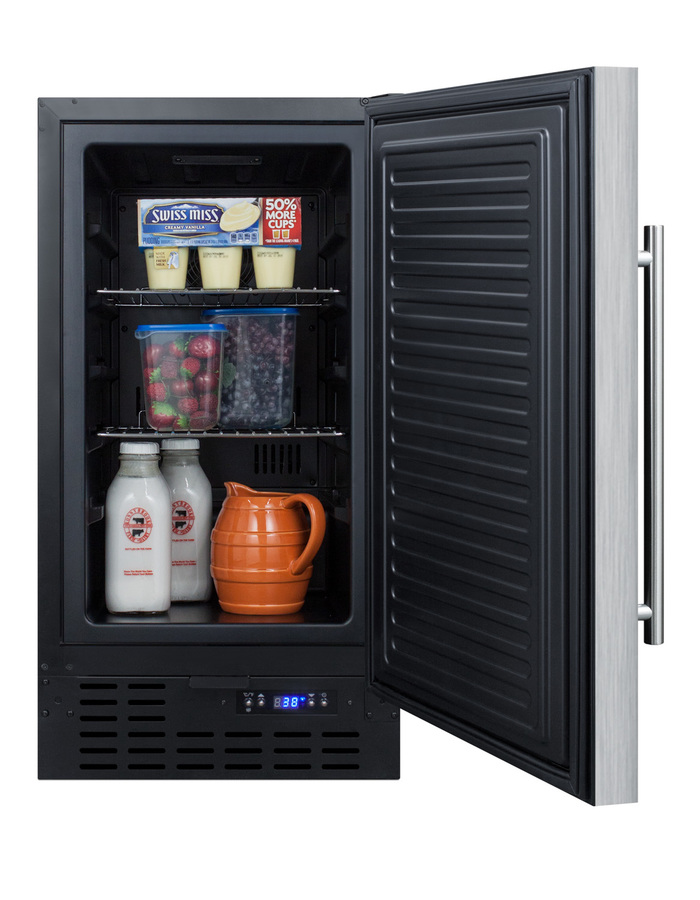

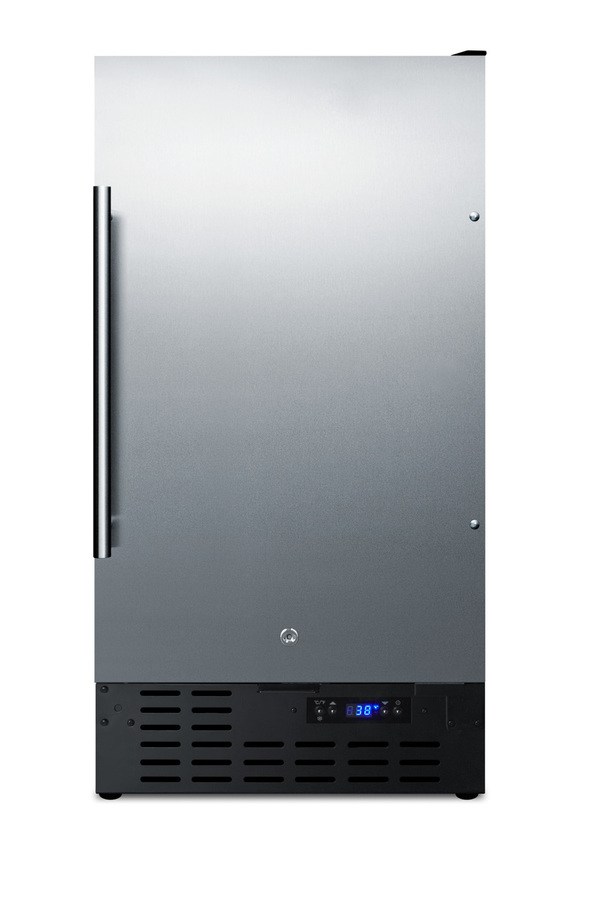

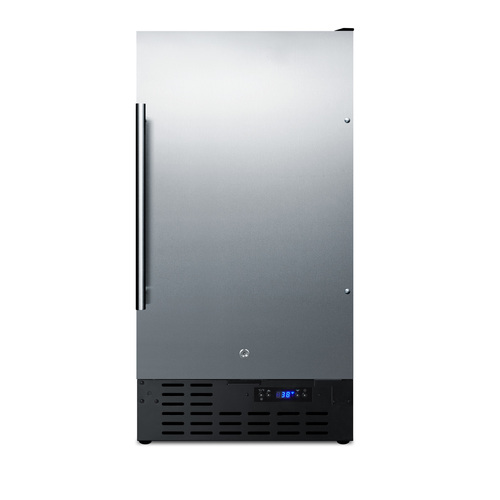

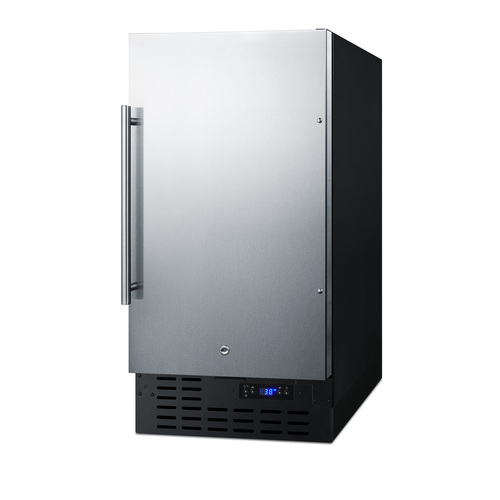

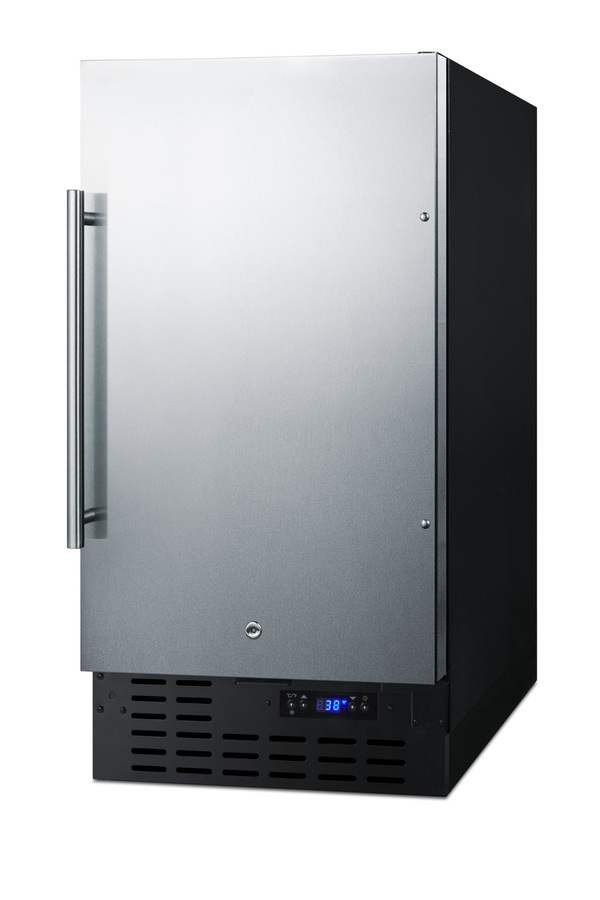

SUMMIT's selection of built-in undercounter refrigeration includes one of the industry's only complete 18" wide lines for use in ADA compliant settings. Sized just under 18" wide and 32" high, the FF1843BSSADA is the perfect all-refrigerator for space-challenged kitchens. It comes with a black cabinet and stainless steel wrapped door with a pro style handle. This unit can be used built-in or freestanding. The user-reversible door includes a factory installed front lock. Inside, the FF1843BSSADA utilizes automatic defrost operation for low maintenance use. Four adjustable chrome shelves accommodate a variety of sizes and LED lighting offers an efficient interior view. This unit includes a digital thermostat for optimum temperature management. Combine the FF1843BSSADA with its matching freezer, wine cellar, or beverage refrigerator. We also offer this model in black or with a panel-ready door.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
