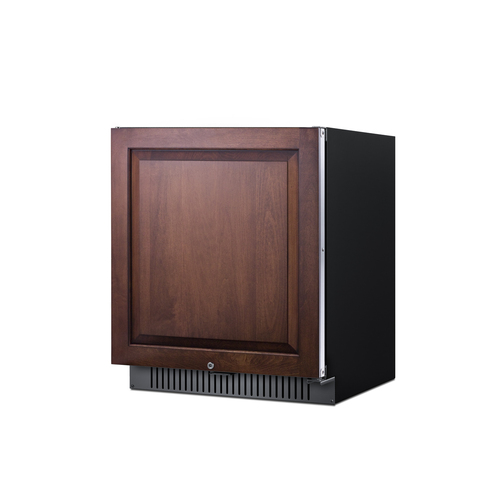

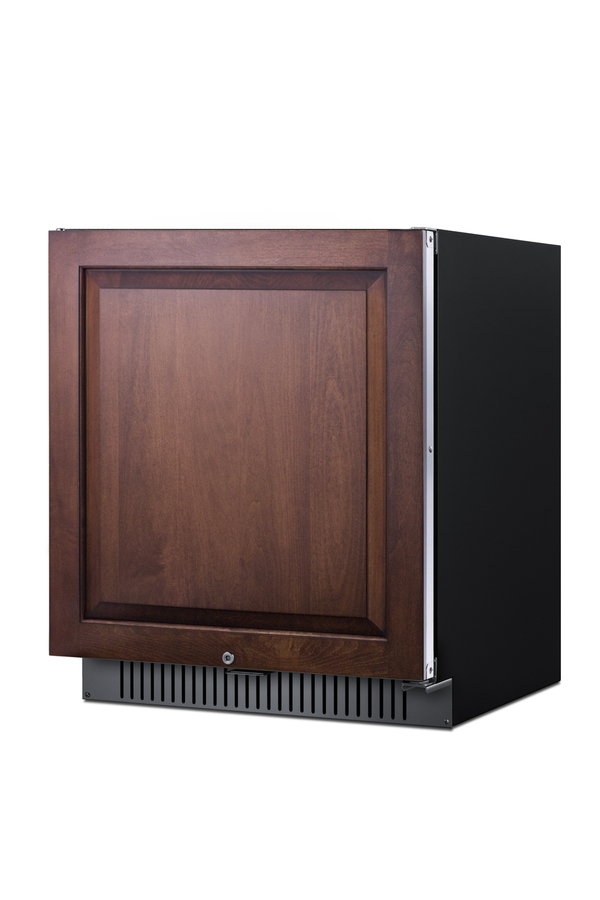

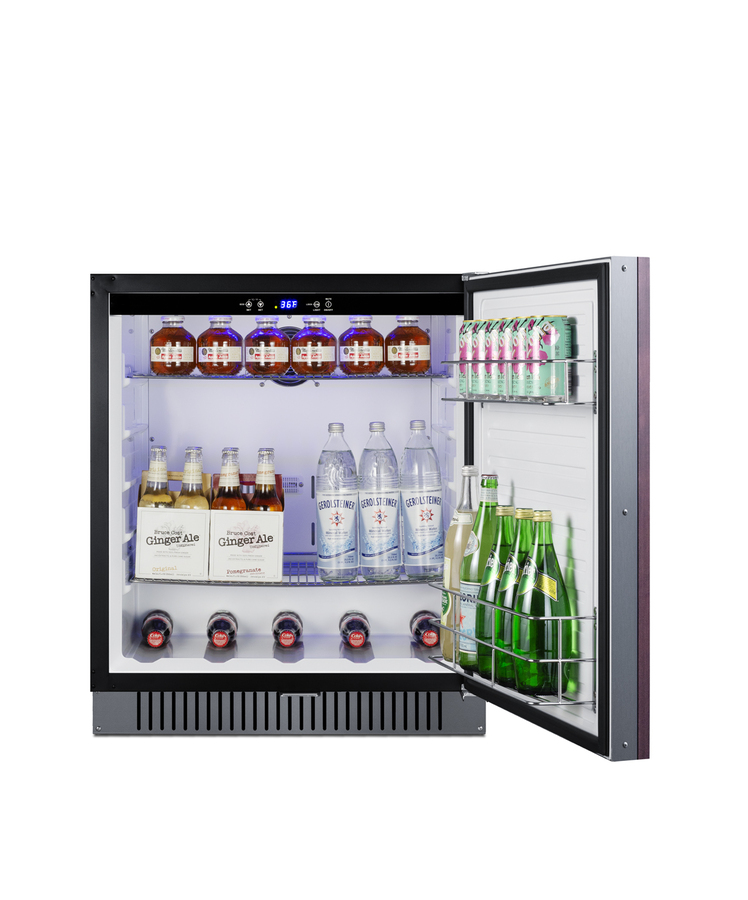

27" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)
2 to 4 days

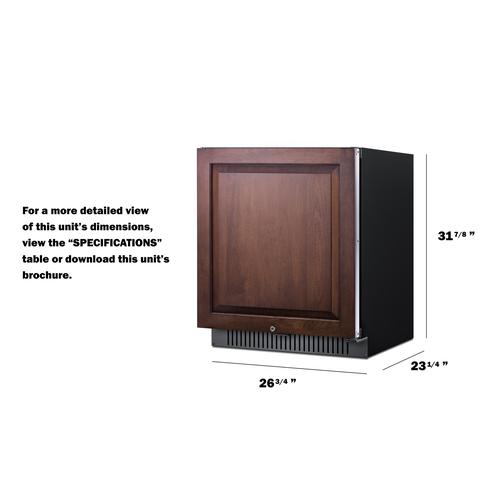

(81cm H x 68cm W x 59cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.88" (81 cm) |
| Nominal Width | 27.0" (69 cm) |
| Width | 26.75" (68 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.25" (59 cm) |
| Depth with door at 90° | 48.5" (123 cm) |
| Capacity | 4.98 cu.ft. (141 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 235.0kWh/year |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 101.0 lbs. (46 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101148984 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 46ºF |
| Sound Level | 40.5 dB |
|
Dimensions
|
|
| Interior Height | 23.25" (59 cm) |
| Interior Width | 22.5" (57 cm) |
| Interior Depth | 16.88" (43 cm) |
| Compressor Step Height | 4.25" (11 cm) |
| Compressor Step Width | 22.5" (57 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES

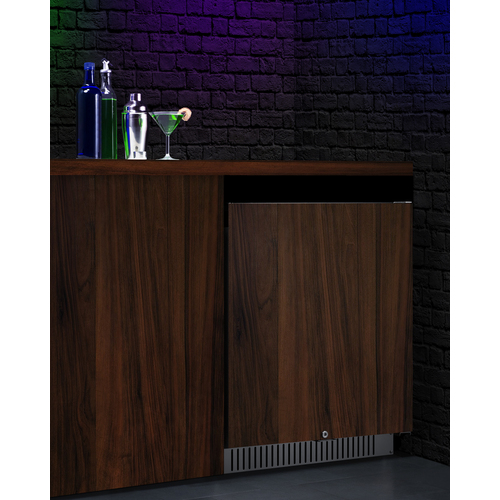

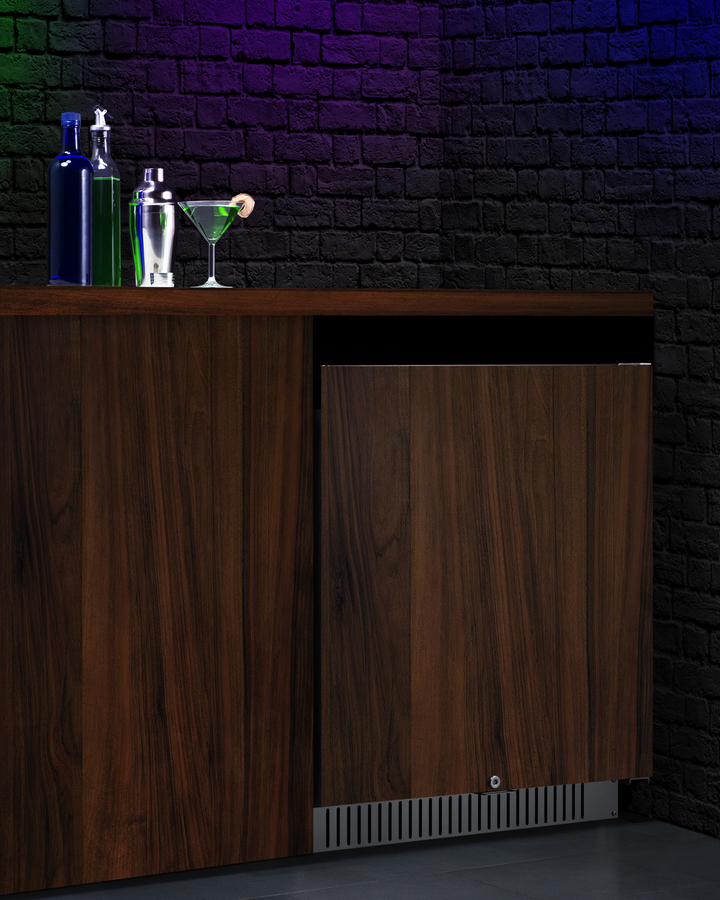

Uniquely sized for built-in installation under counters in residential or commercial kitchen settings
32" height allows easy installation under lower ADA compliant counters
Weatherproof construction allows safe use in outdoor settings
ETL-S listed to NSF-7 commercial standards
Shallower fit than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces
Front-breathing design allows the unit to be built-in under counters

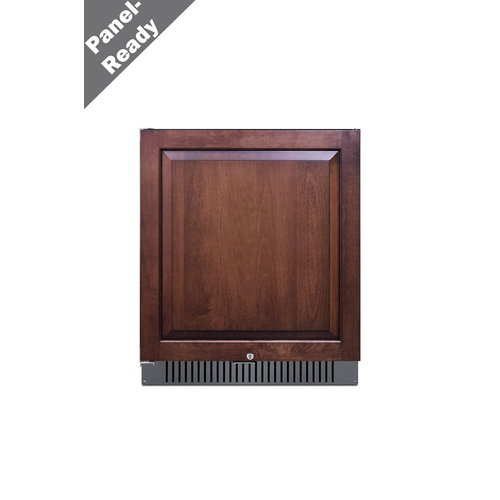

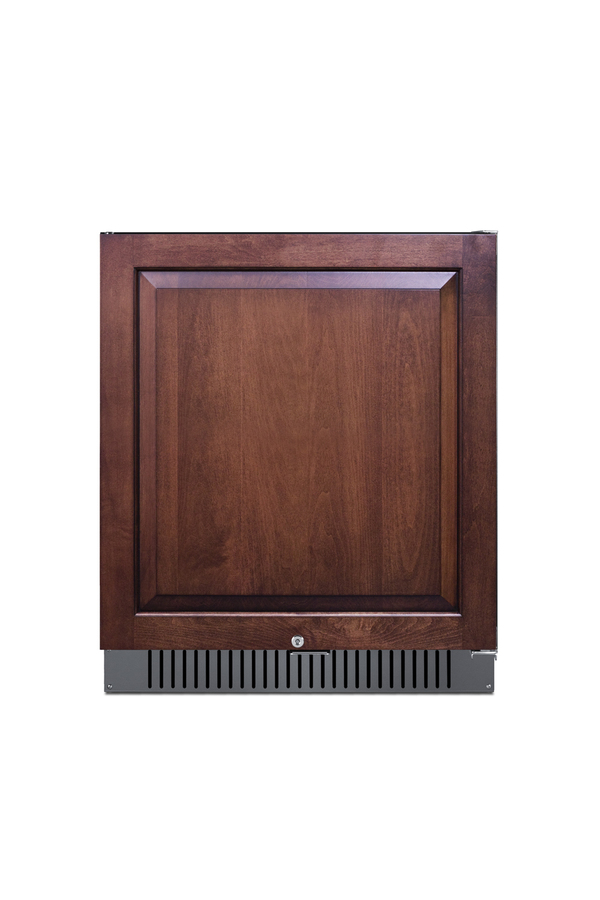

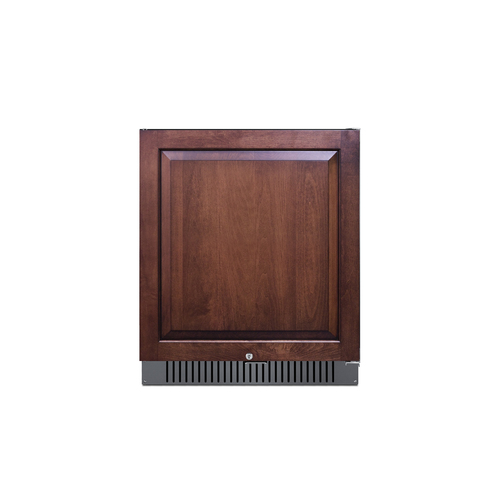

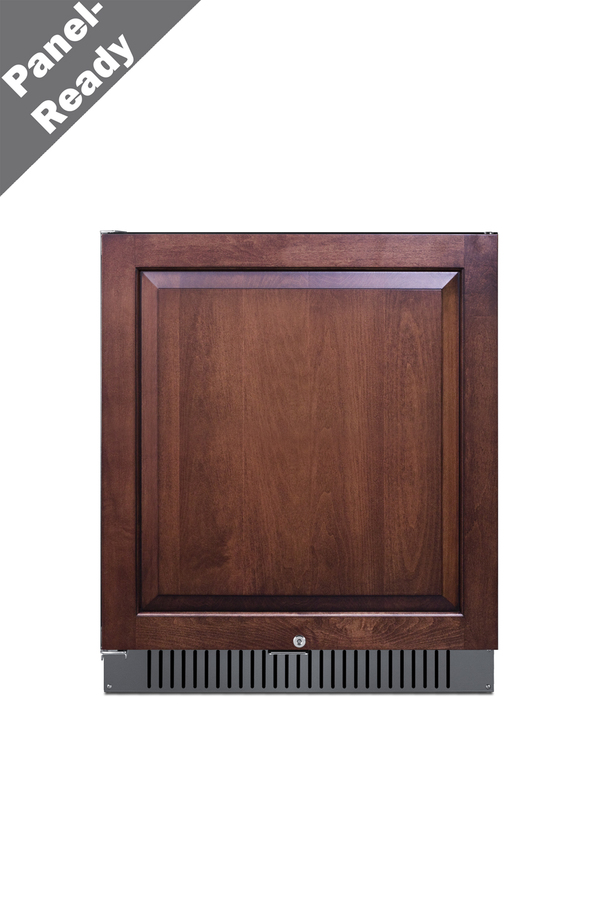

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design (recommended panel size: 26 9/16" W x 27 9/16" H at 3/4" thickness)

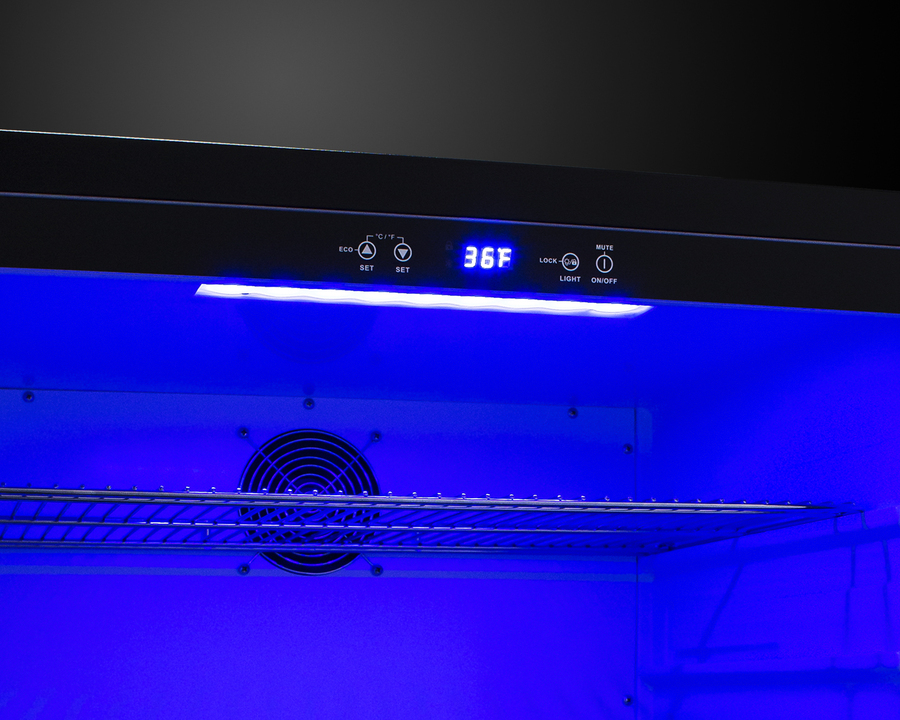

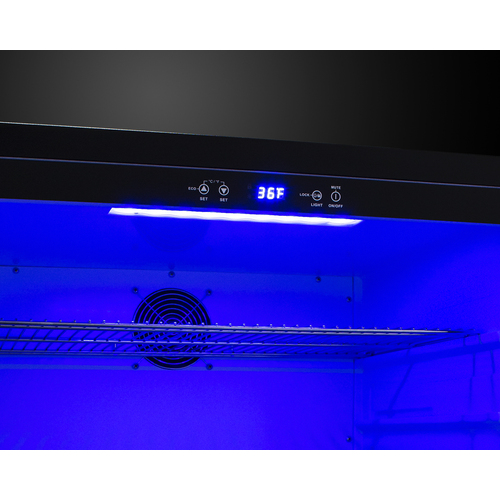

Easy and intuitive digital controls located inside the refrigerator
Keyed lock for a secure interior (2 keys included)
Bright interior finish offers maximum visibility, especially helpful in restaurants and other dimmer settings

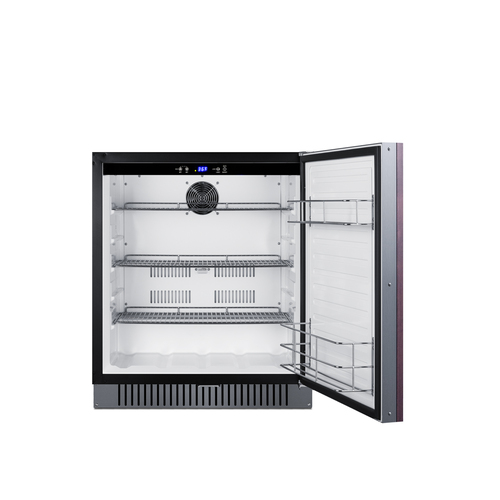

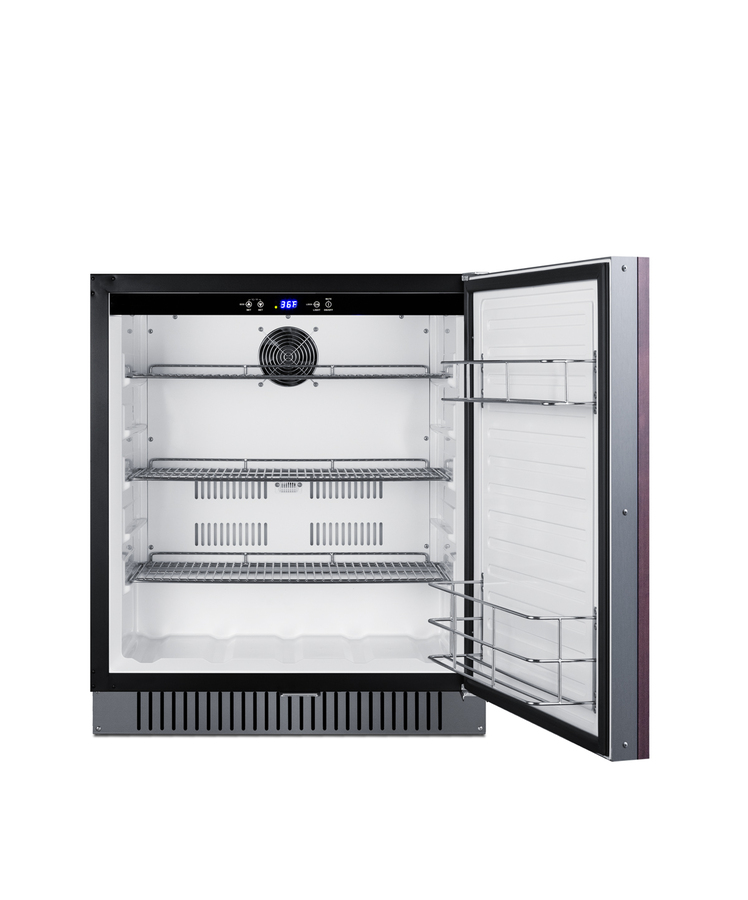

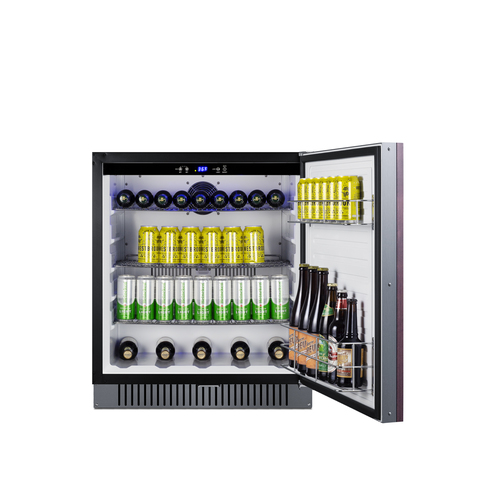

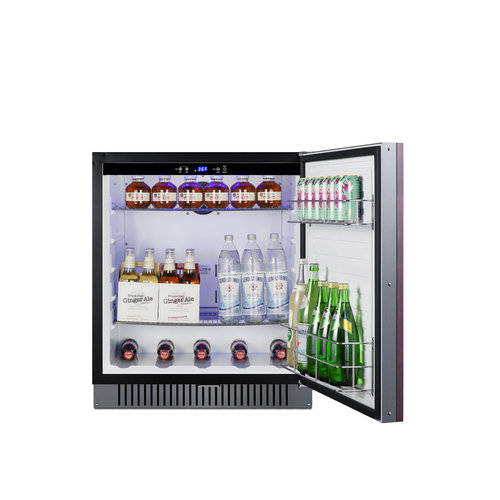

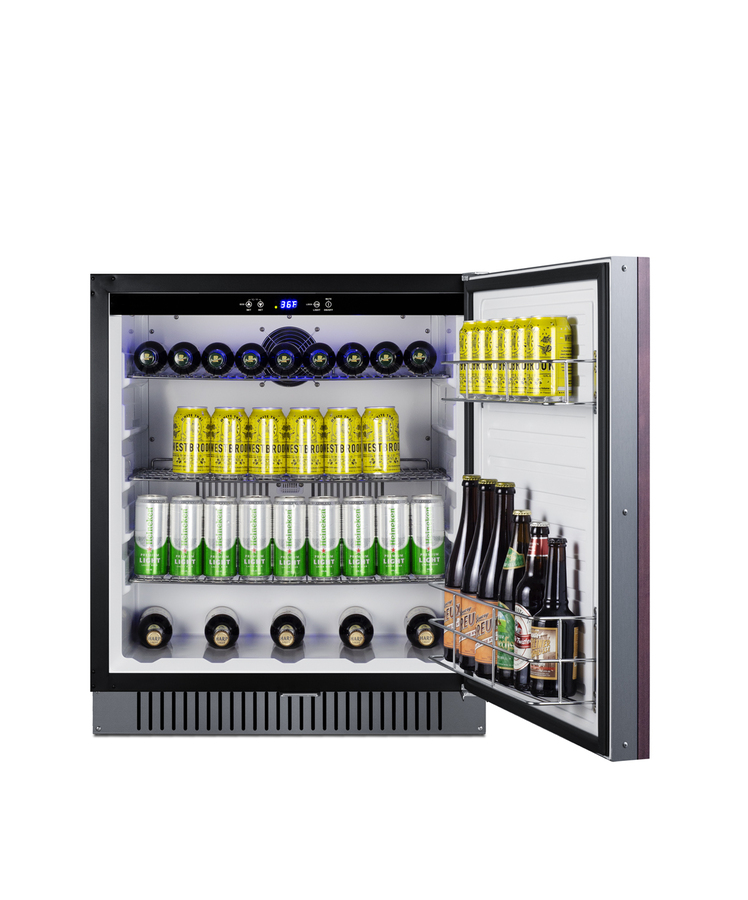

Durable commercial shelving lets you rearrange the interior as needed to accommodate a variety of sizes
Two racks offer the perfect storage solution for tall bottles and condiments
Floor features bottle slots that help to keep them in place as needed
Reduced maintenance with auto defrost system
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Dimmable LED lighting (with 3 brightness settings) in an attractive blue hue
Alarm sounds if temperature goes out of recommended range after 2 hours
Optional feature disables alarms, interior light, and displays for up to 96 hours
Space-saving design with no exposed coils for easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit is expanding its popular lineup of built-in undercounter ADA height refrigeration with new luxury choices for 27" wide spaces in residential or commercial kitchen spaces. Model FF27BSSADAIFLHD is an all-refrigerator sized just under 27" wide and under 24" deep for an easy fit under in any kitchen with limited depth. The 32" height makes this perfect for use under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 26 9/16" W x 27 9/16" H at 3/4" thickness). The sealed back and right angle plug help to ensure an easy fit. We include a factory-installed lock on the door and two keys for optional security as needed. The refrigerator interior comes in a clean white finish, perfect for providing full visibility. The LED lighting can be adjusted between three levels of brightness to best suit your preferences. Additional features include a 96-hour Sabbath mode setting, high/low temperature alarm, and a child lock to secure the digital control panel. Adjustable chrome shelves make it easy to rearrange the interior as needed for the optimum storage. The door includes two racks ideal for holding condiments and the floor is slotted to keep bottles in place. The FF27BSSADAIFLHD is ETL-S listed to NSF-7 commercial standards and is also approved for residential use. The weatherproof construction allows use in indoor or outdoor kitchens. Additional 27" wide choices ADA compliant choices are available in drawer style (SPR275OS2DADA). Browse the full Summit line to explore endless options for ADA compliant spaces.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
