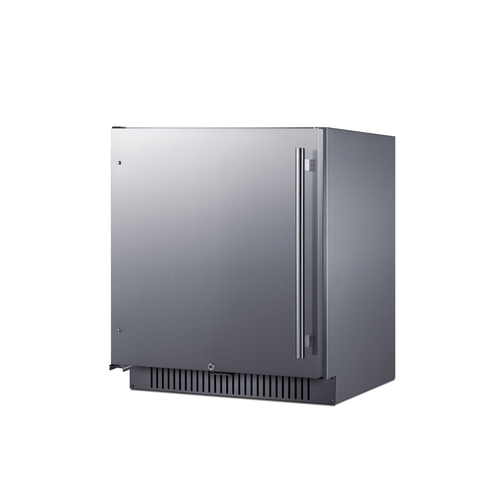

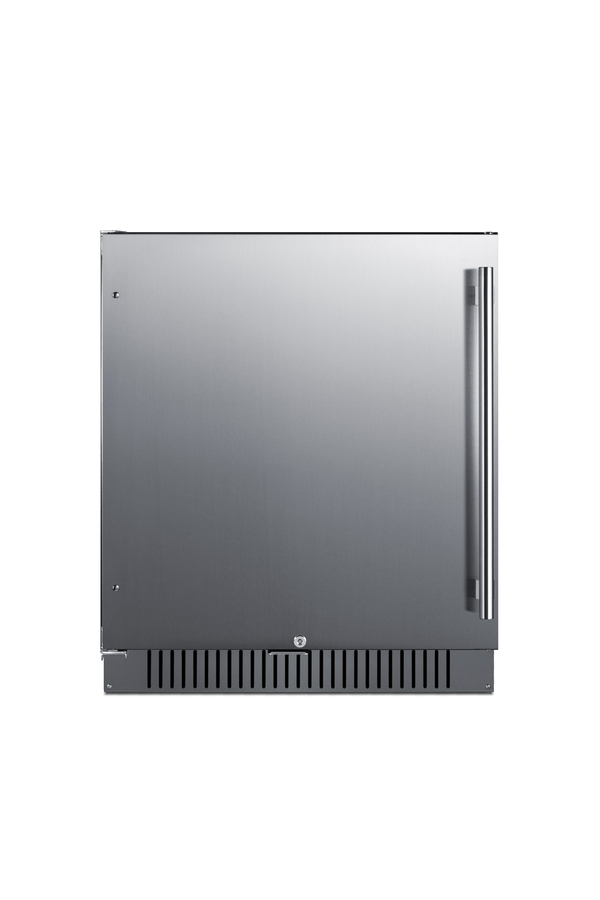

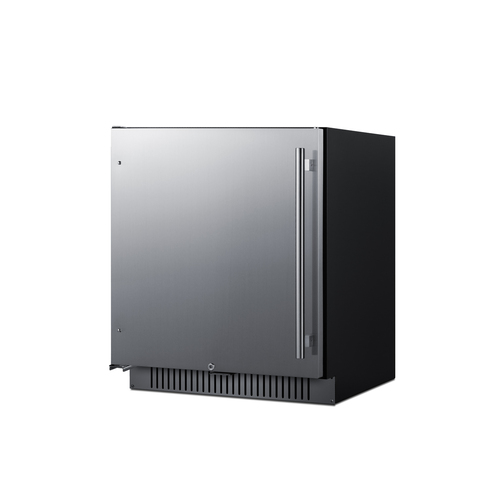

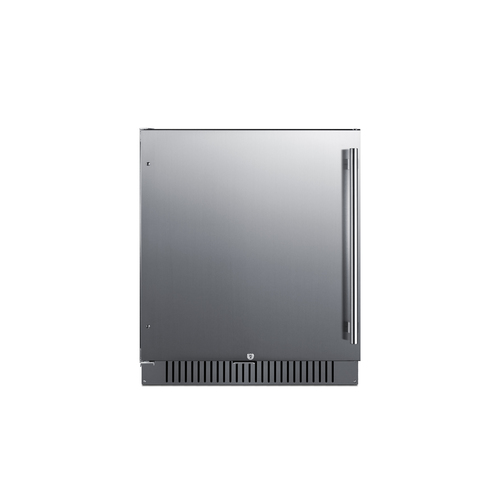

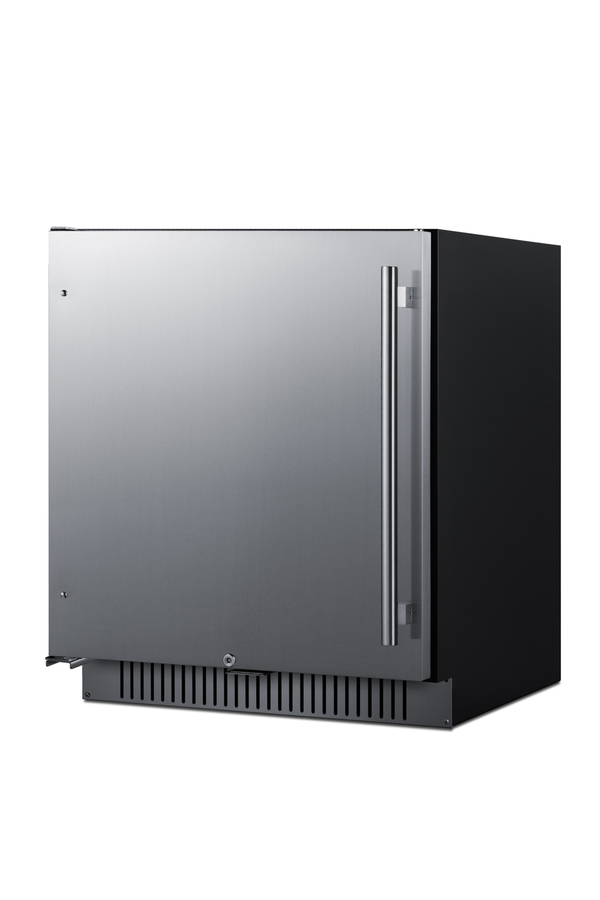

27" Wide Built-In All-Refrigerator, ADA Compliant

SKU: FF27BSSADALHD
Uniquely sized at 27 inches wide with a deluxe interior for user-friendly storage in home or commercial settings
Estimated Time to Ship:

2 to 4 days

Door Swing:
RHD LHD
Color: Stainless Steel/Black

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

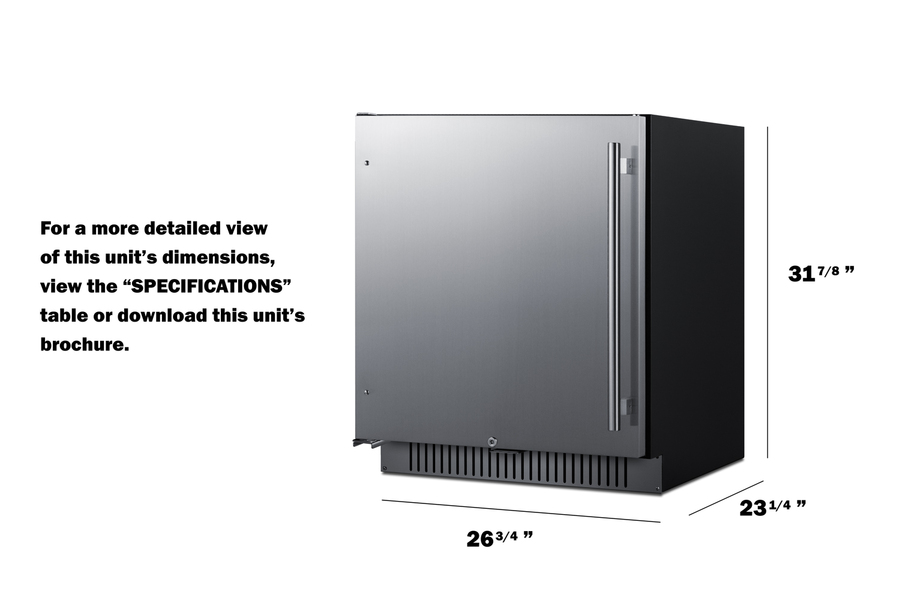

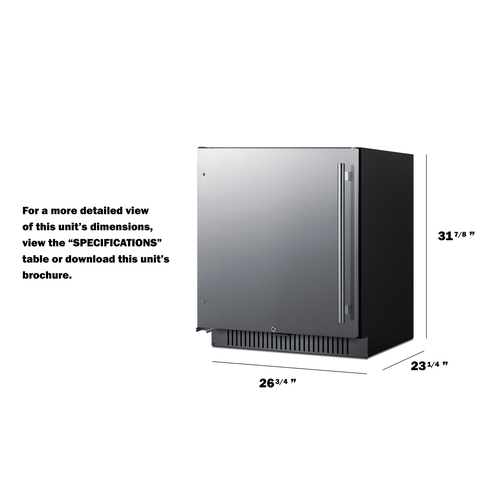

31.88" H x 26.75" W x 23.25" D
(81cm H x 68cm W x 59cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.88" (81 cm)
Nominal Width 27.0" (69 cm)
Width 26.75" (68 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.25" (59 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 48.5" (123 cm)
Capacity 4.98 cu.ft. (141 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 235.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 101.0 lbs. (46 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101094571
Refrigerator Features
Sabbath Mode Yes
Door Swing LHD
Shelf Type Chrome
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 46ºF
Sound Level 40.5 dB
Dimensions
Interior Height 23.25" (59 cm)
Interior Width 22.5" (57 cm)
Interior Depth 16.88" (43 cm)
Compressor Step Height 4.25" (11 cm)
Compressor Step Width 22.5" (57 cm)
Compressor Step Depth 4.5" (11 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

27" wide undercounter all-refrigerator

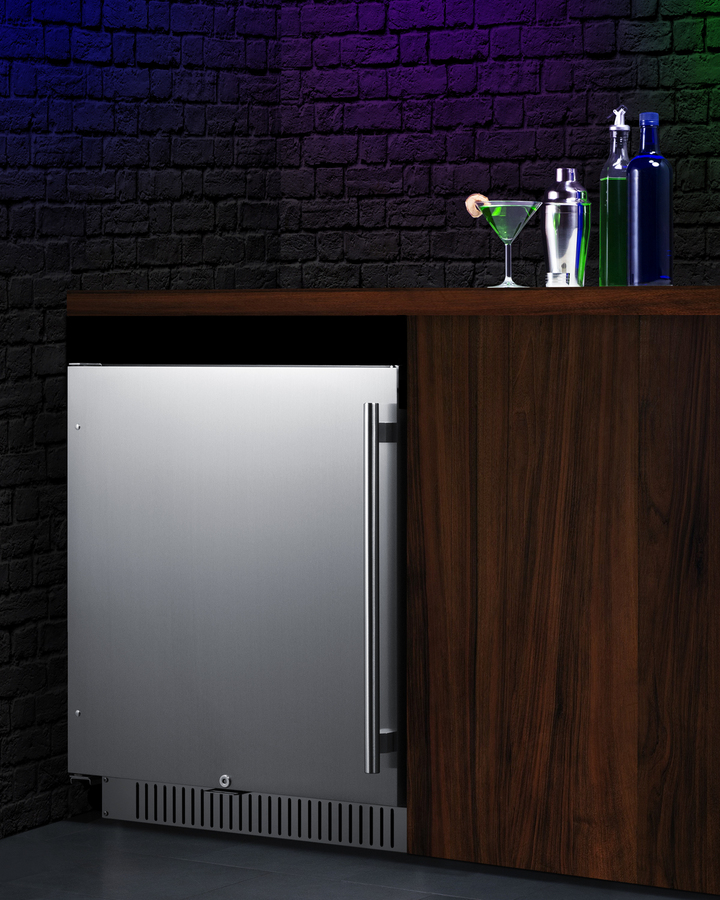

Uniquely sized for built-in installation under counters in residential or commercial kitchen settings

Indoor/Outdoor compatible

Weatherproof construction allows safe use in outdoor settings

ADA Compliant height

32" height allows easy installation under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 commercial standards

Less than 24" deep

Shallower fit than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces

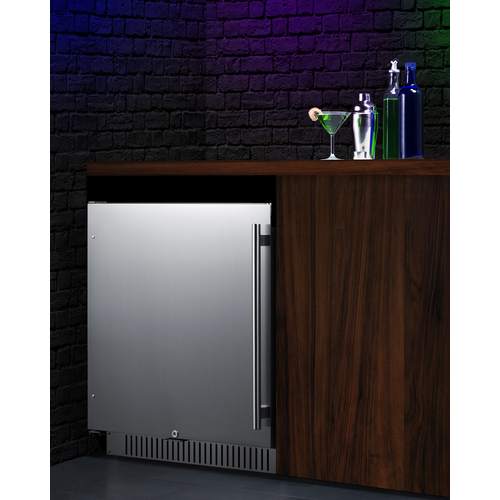

Built-in capable

Front-breathing design allows the unit to be built-in under counters

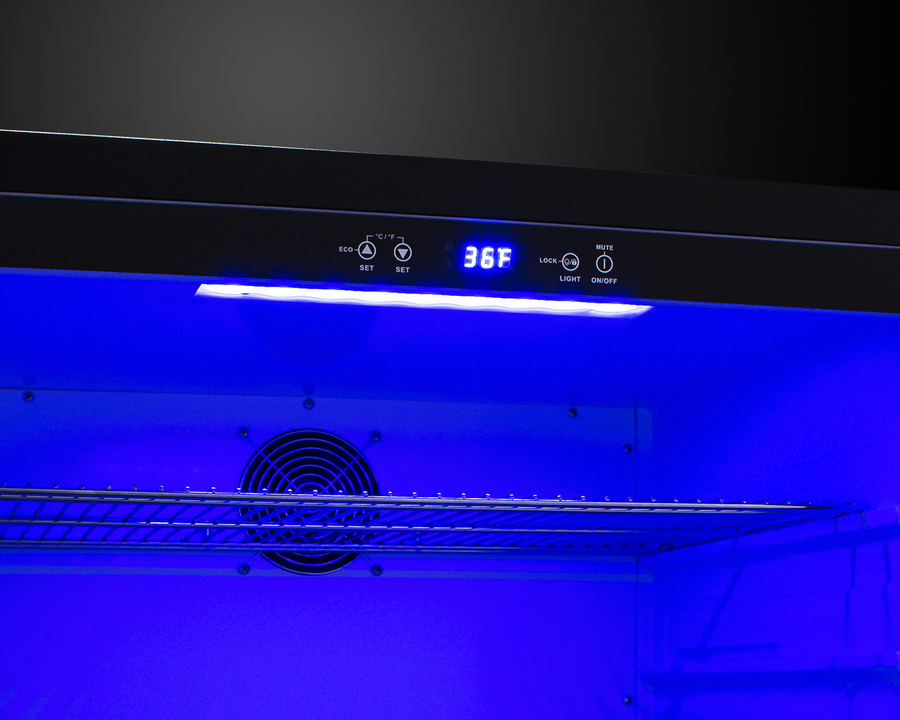

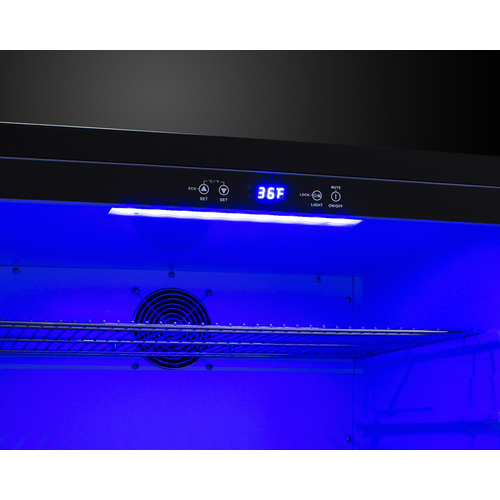

Digital control panel

Easy and intuitive digital controls located inside the refrigerator

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Stainless steel door

Durable construction with a stylish look

White interior

Bright interior finish offers maximum visibility, especially helpful in restaurants and other dimmer settings

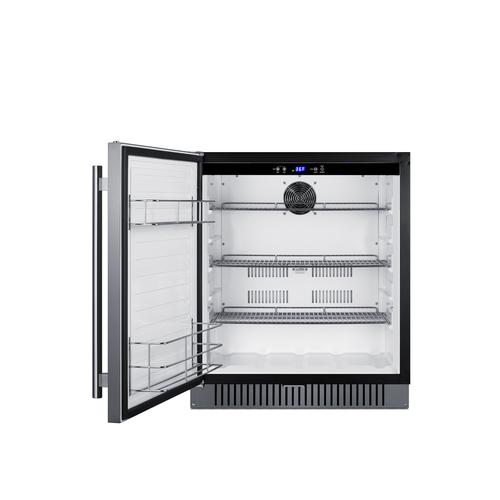

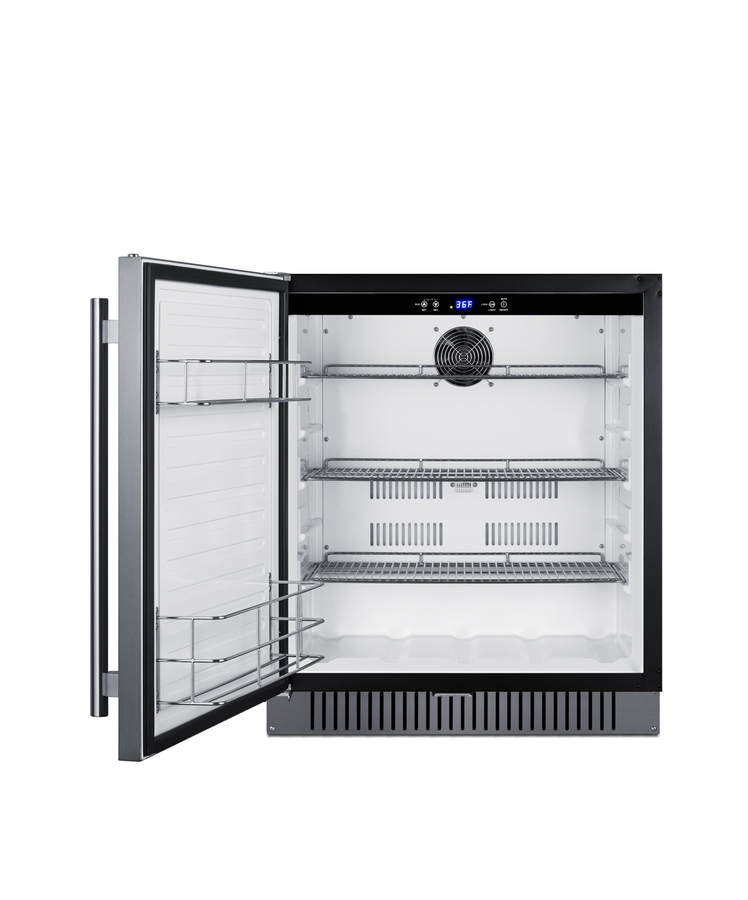

Adjustable shelving

Durable commercial shelving lets you rearrange the interior as needed to accommodate a variety of sizes

Door storage

Two racks offer the perfect storage solution for tall bottles and condiments

Slotted floor

Floor features bottle slots that help to keep them in place as needed

Automatic defrost

Reduced maintenance with auto defrost system

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Interior lighting

Dimmable LED lighting (with 3 brightness settings) in an attractive blue hue

Professional handle

Stainless steel handle adds style to any setting

Temperature alarm

Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Integrated hinge

Flat stainless steel hinge ensures no added height is needed when installing under a counter

Sealed back

Space-saving design with no exposed coils for easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet

Allows unit to be used freestanding

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit is expanding its popular lineup of built-in undercounter ADA height refrigeration with new luxury choices for 27" wide spaces in residential or commercial kitchen spaces.

Model FF27BSSADALHD is an all-refrigerator sized just under 27" wide and under 24" deep for an easy fit under in any kitchen with limited depth. The 32" height makes this perfect for use under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The door comes in a stainless steel finish with a vertical grain and a pro style handle. This unit has an integrated flat door hinge in stainless steel that does not add any additional height. The sealed back and right angle plug help to ensure an easy fit. We include a factory-installed lock on the door and two keys for optional security as needed.

The refrigerator interior comes in a clean white finish, perfect for providing full visibility. The LED lighting can be adjusted between three levels of brightness to best suit your preferences. Additional features include a 96-hour Sabbath mode setting, high/low temperature alarm, and a child lock to secure the digital control panel. Adjustable chrome shelves make it easy to rearrange the interior as needed for the optimum storage. The door includes two racks ideal for holding condiments and the floor is slotted to keep bottles in place.

The FF27BSSADALHD is ETL-S listed to NSF-7 commercial standards and is also approved for residential use. The weatherproof construction allows use in indoor or outdoor kitchens. Additional 27" wide choices ADA compliant choices are available in drawer style (SPR275OS2DADA). Browse the full Summit line to explore endless options for ADA compliant spaces.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
