19" Wide Refrigerator-Freezer, ADA Compliant

SKU: FF43BADA
Low maintenance timer-based defrost system and compact size for convenient use in hotels, dorm rooms, & offices
Estimated Time to Ship:

Door Swing:
RHD LHD

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
32.25" H x 19.0" W x 17.88" D
(82cm H x 48cm W x 45cm D)

Overview
Height of Cabinet 32.25" (82 cm)
Width 19.0" (48 cm)
Width with Door Open 19.38" (49 cm)
Depth 17.88" (45 cm)
Depth with Handle 20.25" (51 cm)
Depth with door at 90° 37.38" (95 cm)
Capacity 3.0 cu.ft. (85 L)
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 230.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101108124
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 22.5" (57 cm)
Refrigerator - Interior Width 15.0" (38 cm)
Refrigerator - Interior Depth 13.75" (35 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 2.75" (7 cm)
Freezer - Interior Width 12.5" (32 cm)
Freezer - Interior Depth 13.75" (35 cm)
Freezer - Shelf Type Plastic
Freezer - Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.71 oz.
High Side PSI 180.0
Low Side PSI 80.0
Compressor Step Height 7.75" (20 cm)
Compressor Step Width 15.0" (38 cm)
Compressor Step Depth 6.0" (15 cm)

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

19" Wide Compact Refrigerator-Freezer

Slim-fitting refrigerator with freezer compartment for easy storage in hospitality settings

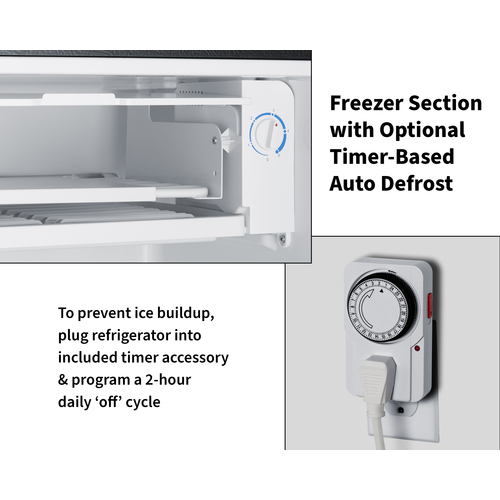

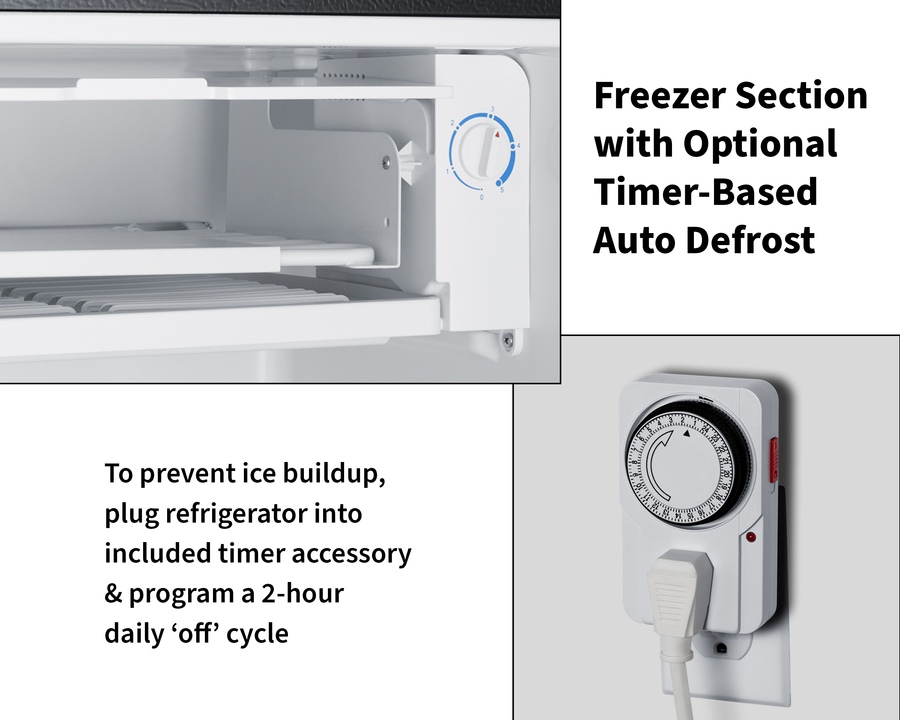

Timer-based automatic defrost

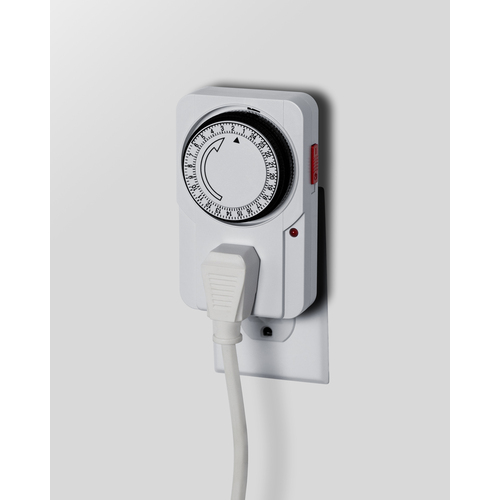

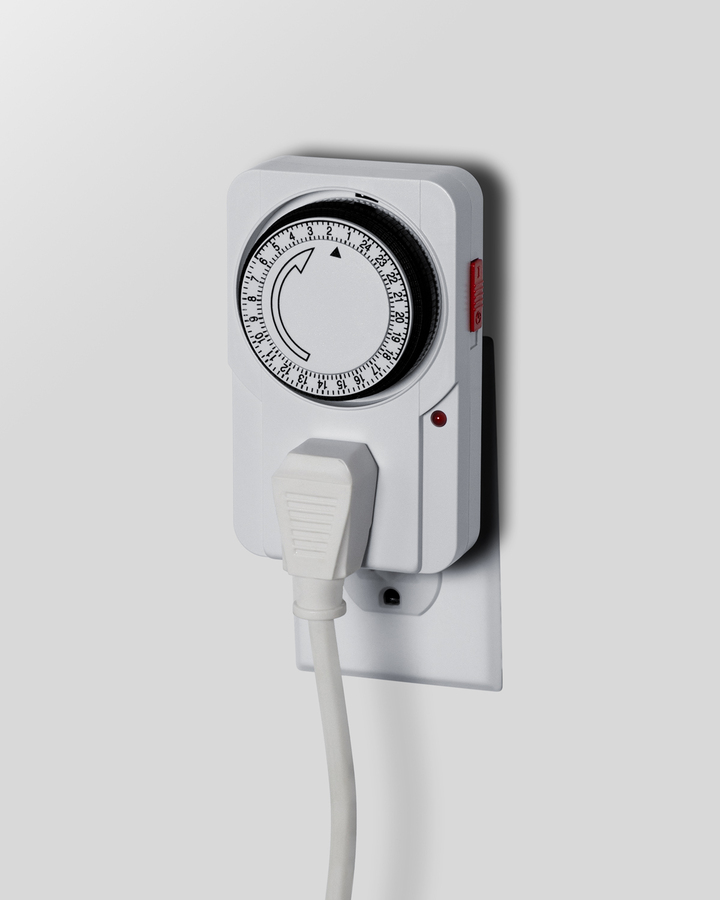

Ships with a convenient timer accessory that lets you program a 2-3 hour 'off' period to ensure the freezer compartment does not build up ice and require defrosting. The unit can also function without the timer in standard manual defrost mode.

ADA-Compliant

32.25 inch height is designed to meet ADA guidelines for lower counter height

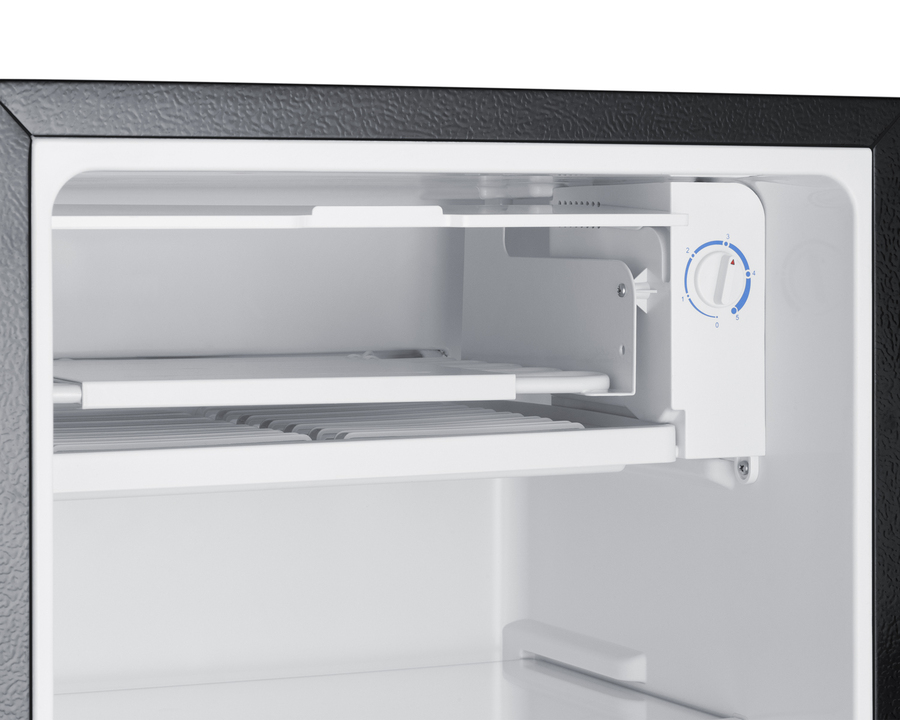

Freezer compartment

Interior freezer compartment offers convenient storage for ice packs and ice cubes

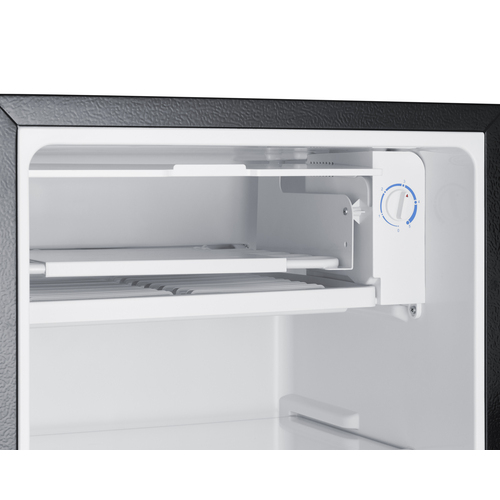

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Adjustable shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Door storage

Store large bottles right on the door for easy access

Crisper drawer

Removable clear drawer ideal for organizing non-perishable items

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Sealed back

Space-saving design with no exposed coils for easier cleanability

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures a wide selection of ADA height refrigerator-freezers for hospitality settings, including timer-based automatic defrost options.

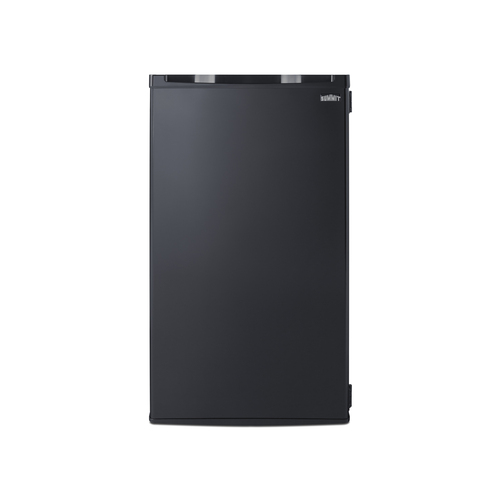

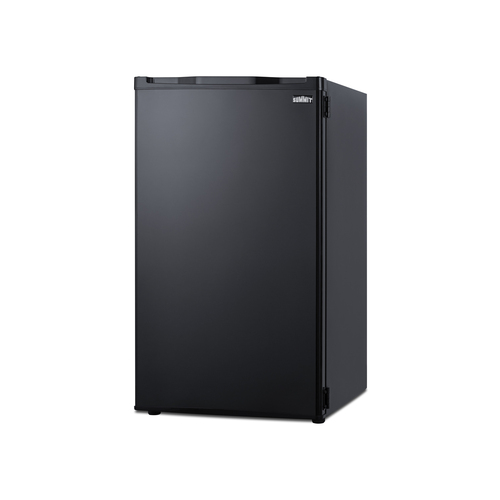

Model FF43BADA is a freestanding refrigerator sized at just 19" wide and 32.25" high for use in ADA compliant settings. The compact size is ideal for hotels, dormitories, offices, and other spaces. It comes with a textured black cabinet and user-reversible door for versatile placement.

This unit includes a large refrigerator section and interior ice compartment. To use this as a low maintenance auto defrost refrigerator-freezer, plug the refrigerator into the included timer accessory and plug the timer into your wall socket. The timer allows you to program an "off" period that will power off the unit and restore power after the set time is over. This helps to prevent ice buildup in the freezer compartment. We recommend setting the timer to run from 2 to 3 hours in the middle of the night. Alternatively, the refrigerator can be used without the timer and will function as a standard manual defrost refrigerator-freezer.

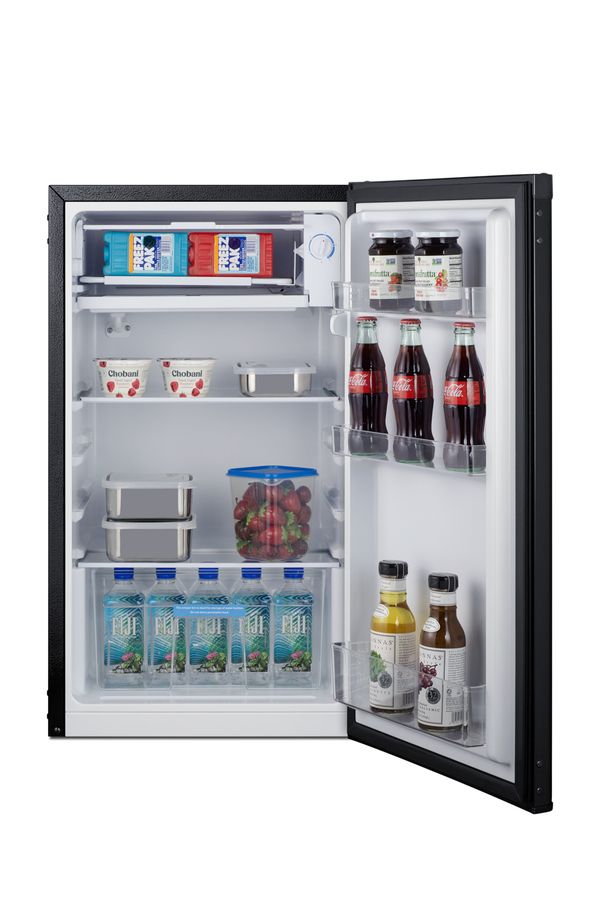

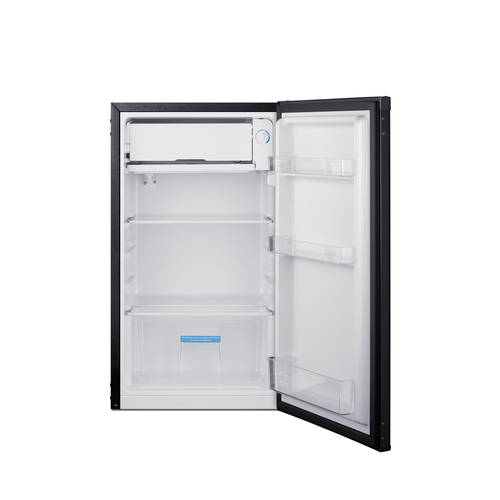

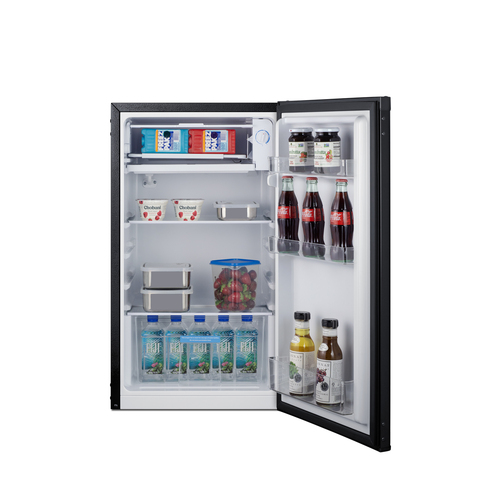

The FF43BADA refrigerator section includes adjustable glass shelves for spill-proof storage and three door racks ideal for storing condiments and cans. The lower crisper drawer is best suited for non-perishable items. The upper freezer compartment is designed to store ice packs and ice cubes. This unit offers a generous 3 cu.ft. of storage capacity. The dial thermostat offers easy temperature management.

With its slim-fitting footprint and low-maintenance design, the FF43BADA is the ideal solution for student housing, hotel rooms, offices, and other settings with limited space.

Download
BROCHURE w/ DRAWINGS
FF43BADA.pdf
Download
TECHNICAL DRAWING (.dwg)
FF43BADA.dwg
Download
ASSEMBLY DRAWING
FF43BADA-Assembly.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
