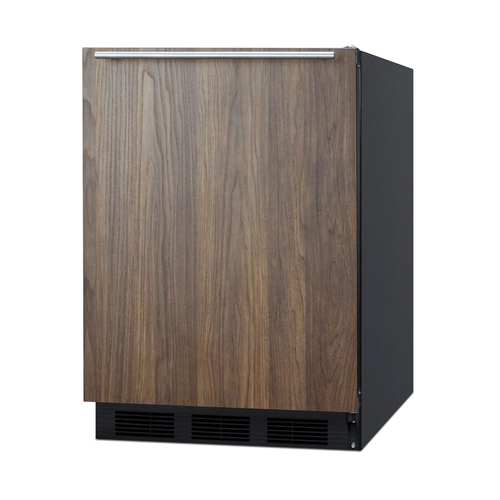

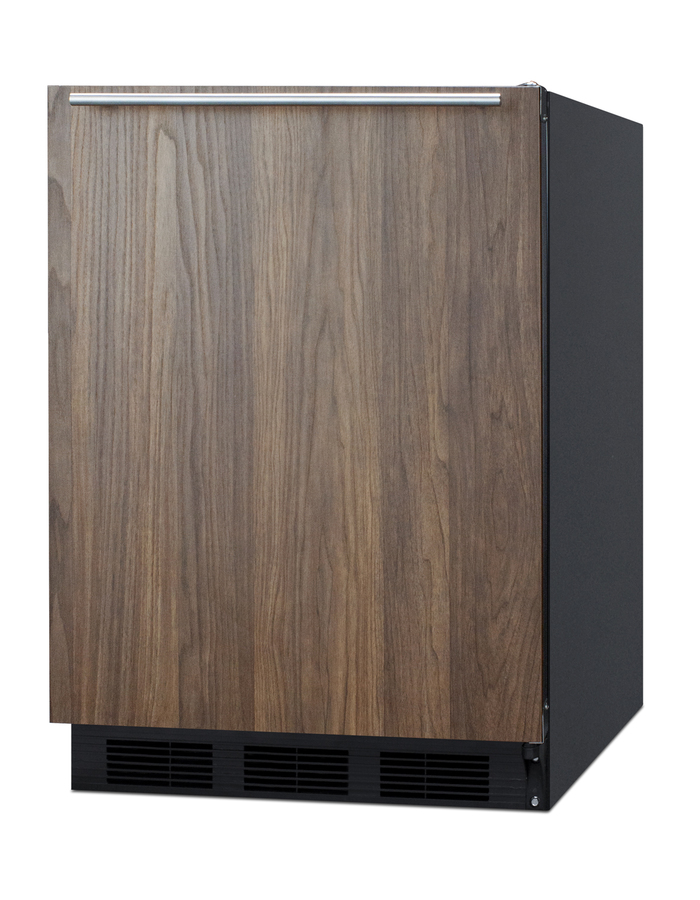

24" Wide Built-In All-Refrigerator With Wood Panel Door

SKU: FF63BKBIWP1

Walnut finish in engineered wood for a classic look under the counter

Estimated Time to Ship:

3 to 5 days

Find a dealer

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

33.25" H x 23.5" W x 23.75" D
(84cm H x 60cm W x 60cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.25" (84 cm)
Nominal Width	24.0" (61 cm)
Width	23.5" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.75" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	46.38" (118 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Walnut Wood
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	307.0kWh/year
Amps	1.4
Weight	150.0 lbs. (68 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101078205
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Wine Bottle Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	26.25" (67 cm)
Interior Width	21.0" (53 cm)
Interior Depth	18.0" (46 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	Legs to raise unit height 6" high leveling legs
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges Stainless steel top and bottom hinges	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
SSK - Stainless steel kickplate Stainless steel kickplate factory installed	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix

Lock

KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security	AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security

Interior

FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior

Handle

TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection	CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection

Door

STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Slim undercounter dimensions

Our unique 24" wide models offer full capacity in a slim fit

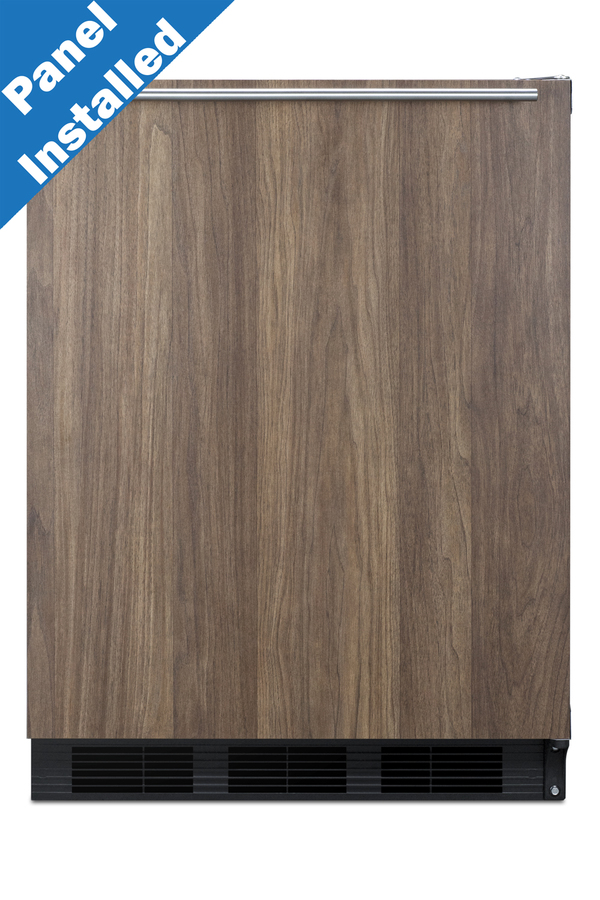

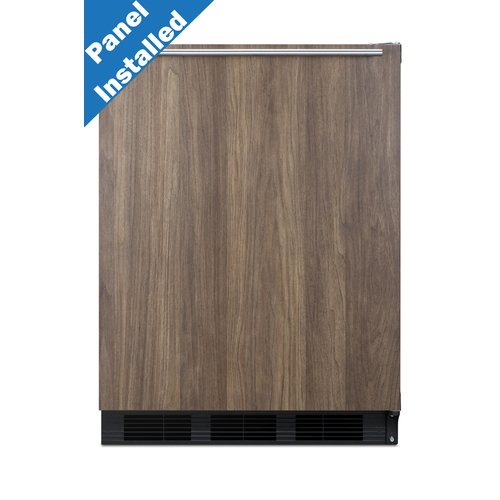

Pre-installed wood door panel

Door features engineered wood with a laminate finish in a walnut hue

Automatic defrost

Reduced maintenance with auto defrost system

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door storage

Store tall bottles and condiments right on the door for convenient access

Wine shelf

Removable scalloped wine shelf is included to store champagne and wine bottles

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing it in a convenient slide drawer

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Interior light

Automatically illuminates when you open the door

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Professional horizontal handle

Thin 14mm diameter on stainless steel handle set horizontally across the door

Right-hand door swing

Comes with a right-hand door swing (NOTE: For a left-hand door swing, please select 'LHD' when purchasing. The door is not user-reversible)

Fully finished black cabinet

Allows the refrigerator to be used freestanding

Height adjustable

Adjustable legs allow the unit to be sized from 32 1/2" to 34" high

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's line of wood-accented refrigeration solutions brings quality and style to any kitchen space.

Sized with a 24” footprint, the FF63BKBIWP1 has a black cabinet allowing for freestanding use, while the front-breathing system also affords built-in use. This unit comes with a pre-installed engineered wood panel door in a walnut finish for added elegance and durability. A stainless steel handle mounted horizontally affords easy opening. This unit comes with a right-hand door swing. (NOTE: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user-reversible.) Adjustable legs allow the unit to be sized from 32 1/2" to 34" high for added convenience.

Inside, the FF63BKBIWP1 refrigerator utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, while a large crisper drawer is ideal for keeping produce at its best. A removable wine shelf lets you keep bottles securely in place. The door includes three storage racks for condiments and tall bottles. The seamless interior also features a dial thermostat and automatic light.

Designed and constructed in Europe, the FF63BKBIWP1 refrigerator offers reliable cold storage in an attractive, elegant style, perfect for any home seeking reliable cold storage under the counter. This unit is also available in an ADA-compliant height (see FF6BKBIWP1ADA). Visit www.summitappliance.com to learn more.

BROCHURE w/ DRAWINGS
FF63BKBIWP1.pdf

TECHNICAL DRAWING (.dwg)
FF63BKBIWP1_REF.__A-C_2018_.dwg

USE & CARE
FF61WBI_FF63BKBI_Use___Care.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
