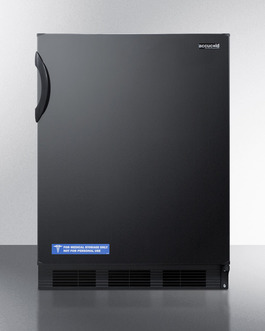

24" Wide All-Refrigerator

SKU: FF6B

Hidden evaporator for a clean seamless interior

DISCONTINUED- REPLACED BY FF6BK

33.25" H x 23.63" W x 23.5" D
(84cm H x 60cm W x 60cm D)

Overview
Height of Cabinet	32.63" (83 cm)
Height to Hinge Cap	33.25" (84 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	46.13" (117 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Black
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101023243
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	27.75" (70 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.0" (43 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	SS Hinges Stainless steel top and bottom hinges
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	Legs to raise unit height 6" high leveling legs
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Interior

FC - Internal Fan

FCGP internal fan with gel packs

Lock

KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security	AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security
L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)

Door

STO-Step-To-Open Door Pedal

Fully finished black cabinet

Allows the unit to be used freestanding

Slim counter height dimensions

Our unique 24" wide models offer full capacity in a slim fit

Automatic defrost

Reduced maintenance with auto defrost system

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Door storage

Store large bottles right on the door for easy access

Interior light

Automatically illuminates when you open the door

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Reversible door

User-reversible door swing for added flexibility

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The FF6 Series features high performing, perfectly sized all-refrigerators with automatic defrost and deluxe interiors designed for storage convenience.

The FF6B is a counter height all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a black exterior and user-reversible door swing.

Inside, the FF6B utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space to provide generous storage. Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. Additional features include automatic interior lighting, door storage, and a crisper drawer. This unit includes an adjustable dial thermostat.

With its ideal size and quality design, the FF6 is an attractive and reliable refrigerator for a variety of general purpose applications. For a built-in version of this unit, see the FF6BBI. For more finish options, browse the entire FF6 Series.

NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.

BROCHURE w/ DRAWINGS
FF6B.pdf

TECHNICAL DRAWING (.dwg)
FF6BREFRIGERATORA-C2000.dwg

USE & CARE
FF6W_FF7W__SCR600GL_SCR600BGL_User_Manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
