24" Wide All-Refrigerator, ADA Height
1 to 2 days
(82cm H x 60cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.88" (81 cm) |
| Height to Hinge Cap | 32.13" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101089768 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Crisper Qty | 1 |
| Crisper Finish | Opaque |
| Crisper Cover | Glass |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
|
Dimensions
|
|
| Interior Height | 26.0" (66 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 17.75" (45 cm) |
| Compressor Step Height | 6.75" (17 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
AVAILABLE UPGRADES
| Exterior | |||||||
|---|---|---|---|---|---|---|---|
|
|||||||
| Lock | |||||||
|
|||||||
| Door | |||||||
|
FEATURES
24 inch wide European refrigerator with a generous 5.5 cu.ft. interior capacity
ETL-S listed to NSF-7 commercial standards for use in bars, restaurants, and other foodservice environments
European construction with a classic design that's been the industry standard for over 30 years
Sized at 32" high (32.13" to hinge cap) to fit under lower counters complying with ADA guidelines

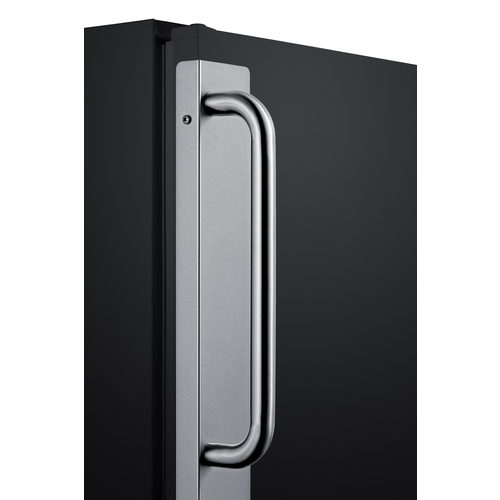

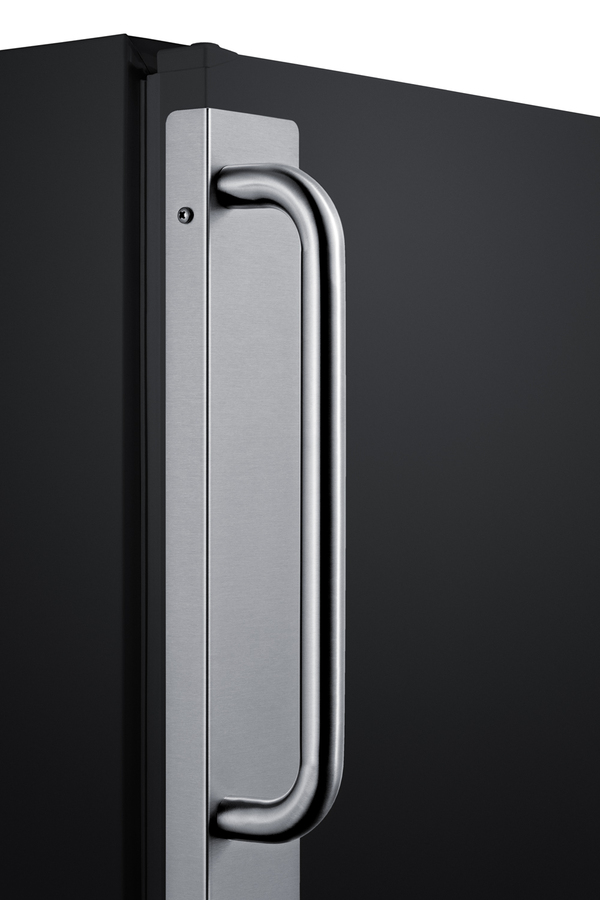

Curved handle in brushed stainless steel offers an easy grip, ideal for servers in busy commercial settings
Handle is mounted over a 304 grade stainless steel bumper to help protect the door
Perfectly sized and designed for freestanding or recessed installation in commercial settings
Spill-proof glass shelves offer cleaner storage with convenient adjustability to best accommodate your storage
Two door racks let you keep bottles and cans in easy reach for busy servers
Lower slide-out drawer offers additional storage, or remove to hold taller bottles as needed
Bright interior finish offers maximum visibility, especially helpful in restaurants and other dimmer settings
Automatically illuminates when you open the door
Reduced maintenance with auto defrost system
Cold wall design with hidden evaporator and seamless interior for reliable cooling
Flat front and corners help to ensure a better fit
Quality door gaskets ensure a tight seal for an efficient performance
For this unit with the door opening from the other side, see model FF6BK7BZLHD
Simple and intuitive dial thermostat located inside ensures easy temperature management with trusted reliability
We include a removable Beverage Zone decal; alternatively, add your own branding or ask our sales team about customized options
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit Commercial manufactures an extensive lineup of commercially approved European refrigeration to bring extra cold storage capability in a slim-fitting footprint. Our Beverage Zone series includes undercounter and ADA height all-refrigerators ideal for foodservice environments. Model FF6BK7BZADA is ETL-S listed to NSF-7 commercial standards. It comes in a jet black exterior finish with a front-mounted towel bar handle in brushed stainless steel, located at a convenient position for busy bar staff to access without reaching far down. The handle side of the door includes a factory-installed stainless steel corner guard for added protection in high traffic settings. At just under 24 inches wide and deep, this refrigerator offers a generous 5.5 cu.ft. storage capacity, larger than most units in this size class. The cabinet is sized under 32 inches (and 32 1/8 inch to the top of the hinge) in order to fit under lower ADA compliant counters. It can be used freestanding or with minimum clearance for recessed installation. Made in Europe, the Beverage Zone series utilizes automatic defrost with a hidden evaporator behind the rear wall for reliable, even cooling. Adjustable glass shelves offer spill-proof storage and a removable crisper drawer allows options for holding lemons, limes, and other serving extras. The door includes two racks ideal for holding smaller bottles and cans in place. This unit has a clean white interior with an automatic light for maximum visibility, especially helpful in bars, restaurants, and settings that may be dimly lit. Additional commercial and back bar refrigeration options are available in a range of sizes and finishes, including glass door beverage centers, shallow depth storage options, and much more. Browse the full Summit product line or contact our product specialists to find the right fit for your needs.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
