Compact All-Refrigerator

SKU: FFAR25L7CSS

Includes a digital thermostat for precise temperature control

Estimated Time to Ship:

3 to 5 days

Find a dealer

Installation Type:
Freestanding Built-In

Color: Stainless Steel

*Additional features may vary

This unit is designed for commercial use. It meets the U.S. Department of Energy (DOE) commercial energy standards but may not meet DOE residential standards.

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

20.75" H x 17.0" W x 19.13" D
(53cm H x 43cm W x 49cm D)

Overview
Nominal Height	21.0" (53 cm)
Height of Cabinet	20.25" (51 cm)
Height to Hinge Cap	20.75" (53 cm)
Nominal Width	17.0" (43 cm)
Width	17.0" (43 cm)
Width with Door Open	17.75" (45 cm)
Nominal Depth	20.0" (51 cm)
Depth	19.13" (49 cm)
Depth with door at 90°	34.25" (87 cm)
Capacity	1.7 cu.ft. (48 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	55.0 lbs. (25 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101053615
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Chrome
Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Refrigerant Type	R600a
Refrigerant Amount	0.6oz.
High Side PSI	270.0
Low Side PSI	103.0
Interior Light	Yes
Temperature Range	34°F to 43°F
Dimensions
Interior Height	16.5" (42 cm)
Interior Width	13.75" (35 cm)
Interior Depth	15.0" (38 cm)
Compressor Step Height	8.0" (20 cm)
Compressor Step Width	13.75" (35 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Handle

TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection	CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection

Stainless steel finish

Solid construction for lasting durability and a professional look

Automatic defrost

No-frost convenience for reduced user maintenance

Digital thermostat

Electronic controls offer more precision in temperature management, with a readout viewable in Celsius or Fahrenheit

Factory-installed lock

Keyed lock for a secure interior

Adjustable chrome shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

LED lighting

Interior LED lighting offers an energy efficient view in an attractive blue hue

Flat door liner

No door shelving allows the unit to accommodate deeper items

Sealed back

Space-saving design with no exposed coils in the rear offers easy cleanability

Commercial design

Meets UL-471 electrical standards

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT COMMERCIAL offers a quality line of compact refrigeration designed and constructed for reliable use in commercial applications.

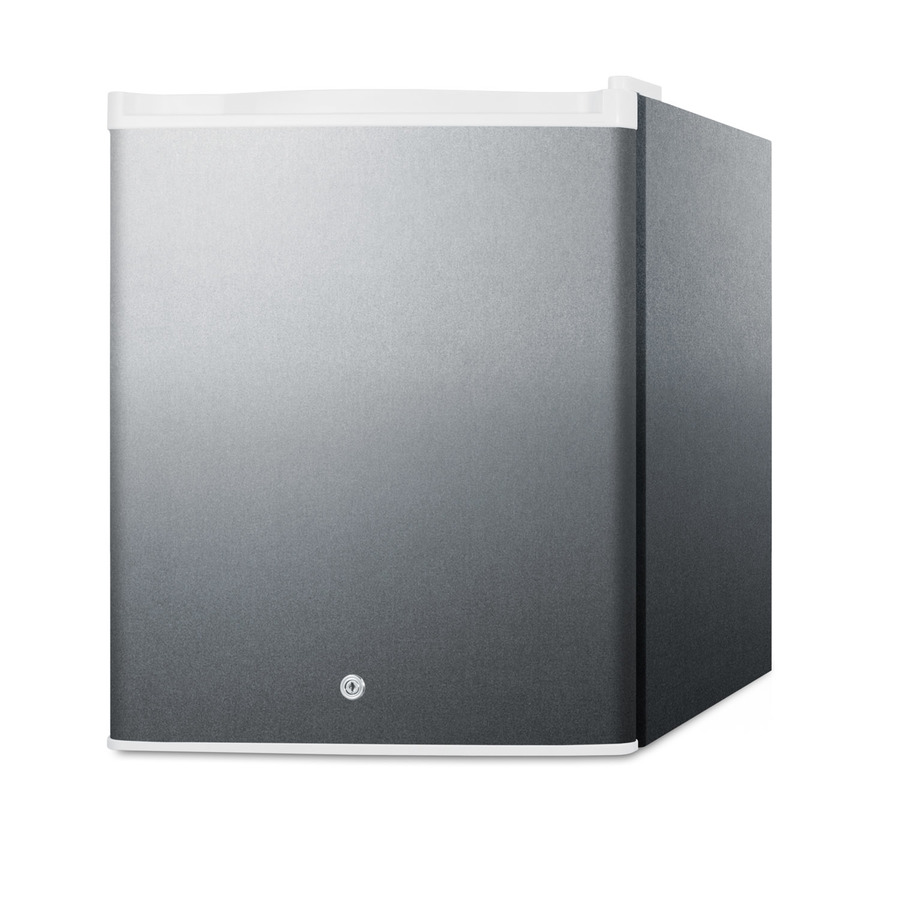

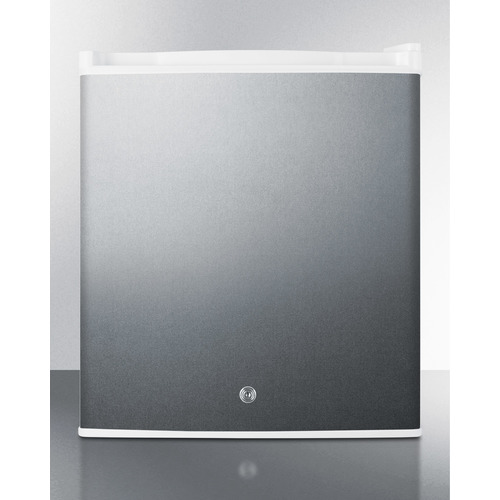

The FFAR25L7CSS is a compact all-refrigerator designed to meet UL-471 standards. It comes with a stainless steel door and fully wrapped stainless steel cabinet. A factory installed front lock offers keyed security, while the rear features a sealed metal cover for improved sanitation.

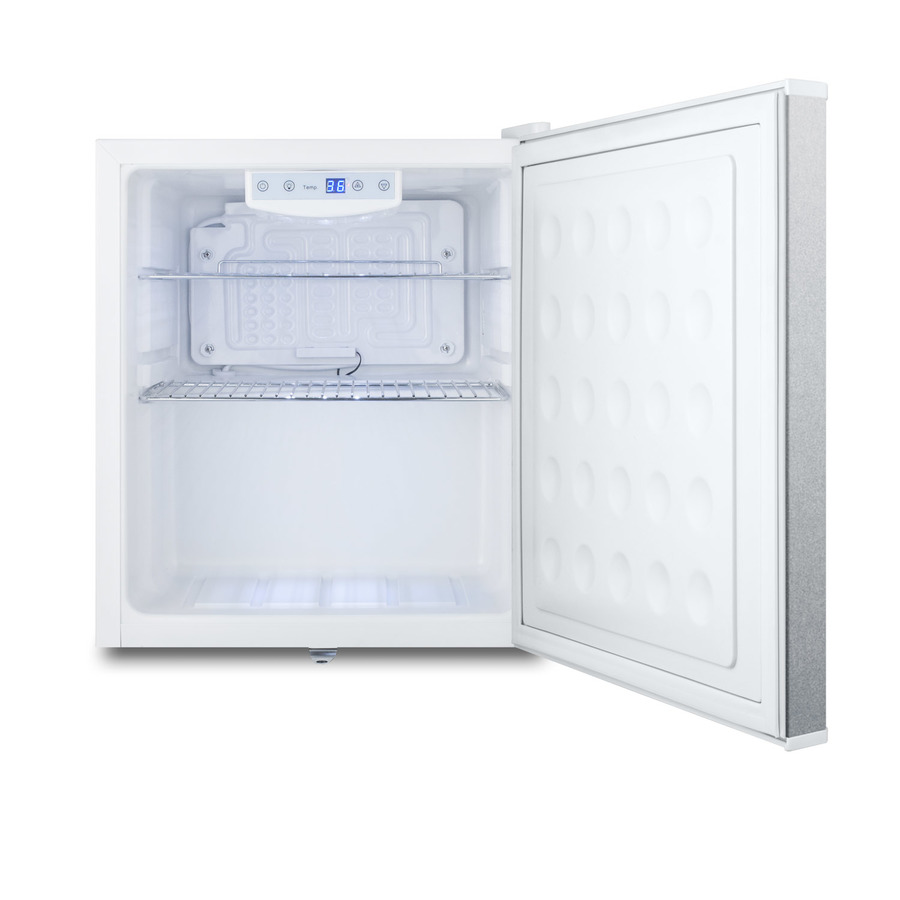

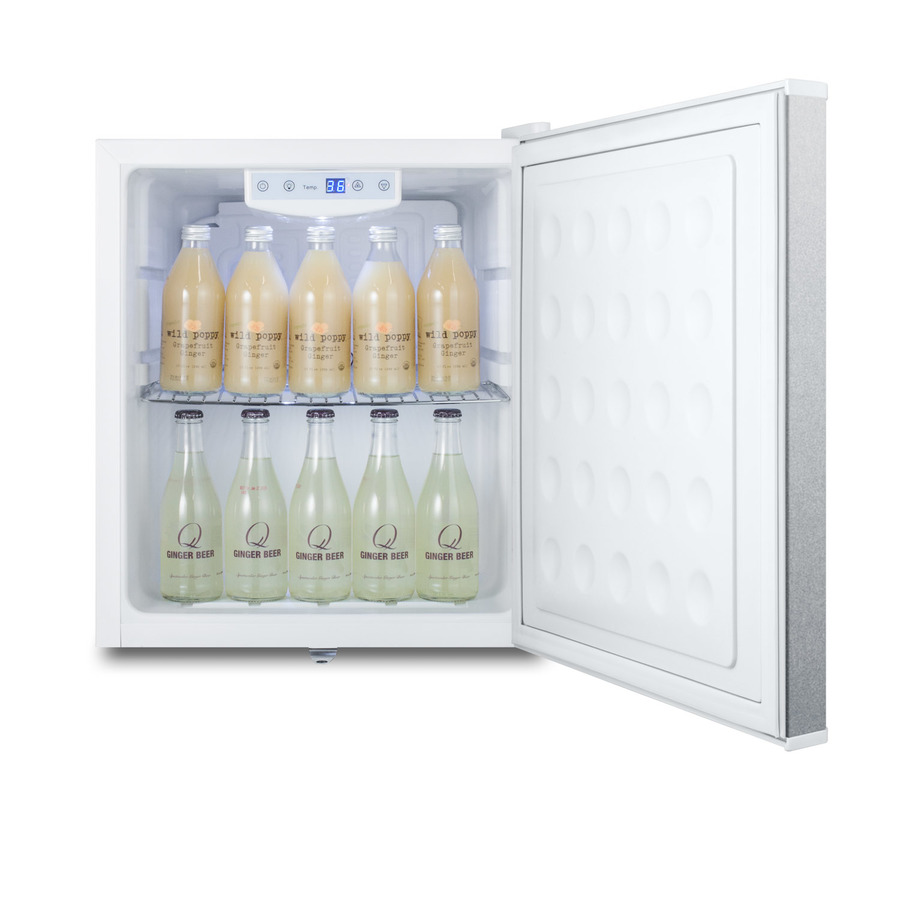

Inside, the FFAR25L7CSS utilizes automatic defrost operation for low maintenance use. Two removable chrome shelves offer convenient storage, while the flat door liner allows you to store deeper items. The digital thermostat is located inside and can be managed in Celsius or Fahrenheit. Interior LED lighting offers an attractive, energy efficient view of the interior in a soft blue hue.

With its ideal dimensions and user-friendly features, the FFAR25L7CSS offers added convenience to the usual compact refrigerator.

BROCHURE
FFAR25L7CSS.pdf

REVIT MODEL
QF_Summit_FFAR25L7_Compact_All_Refrigerator.rfa

USE & CARE
FFAR25L7_Manual_160413.pdf

MSDS INFORMATION
MSDS_R600a_C.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
