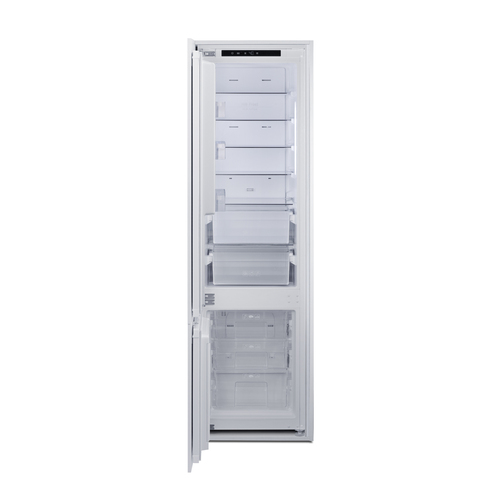

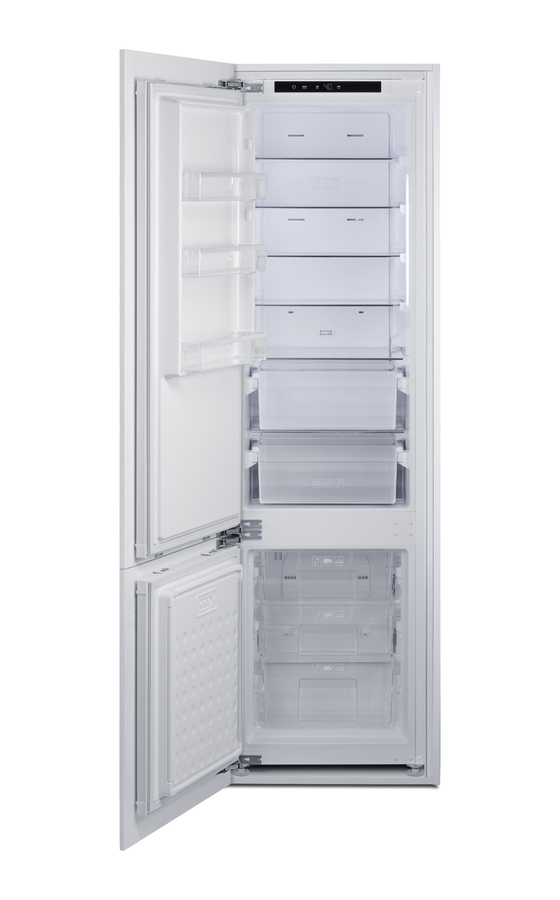

24" Wide Fully Integrated Bottom Mount Refrigerator-Freezer (Panel Not Included)
2 to 3 days
(194cm H x 54cm W x 56cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 76.38" (194 cm) |
| Width | 21.25" (54 cm) |
| Depth | 21.88" (56 cm) |
| Capacity | 10.77 cu.ft. (305 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 400.0kWh/year |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101150840 |
|
Refrigerator-Freezer
|
|
| Door Swing | LHD |
| Adjustable Shelves | Yes |
| Interior Drawers | Yes |
| Drawer Qty | 5 |
| Crisper Qty | 2 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 44.5" (113 cm) |
| Refrigerator - Interior Width | 17.25" (44 cm) |
| Refrigerator - Interior Depth | 16.25" (41 cm) |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 5 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 20.5" (52 cm) |
| Freezer - Interior Width | 16.25" (41 cm) |
| Freezer - Interior Depth | 10.0" (25 cm) |
| Freezer - Shelf Type | Plastic |
| Freezer - Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.34 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 4 |
FEATURES

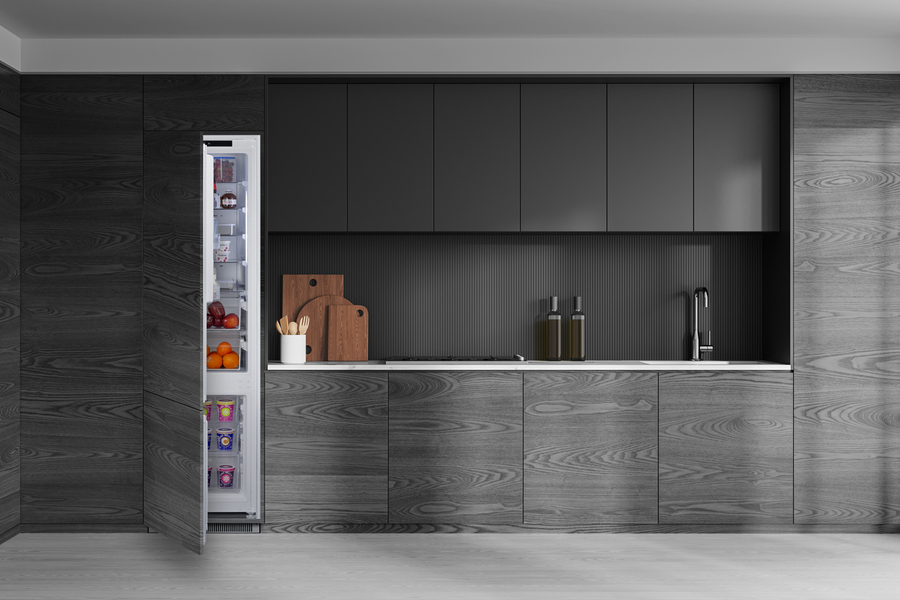

24" wide panel-ready refrigerator-freezer ideal for kitchens with an uninterrupted cabinetry design
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Make the best use of space by installing your refrigerator-freezer into the cabinetry for a concealed and streamlined kitchen design (cutout dimensions: 76 7/8" H x 21 3/4" W x 22 1/2" to 23 5/8" D)

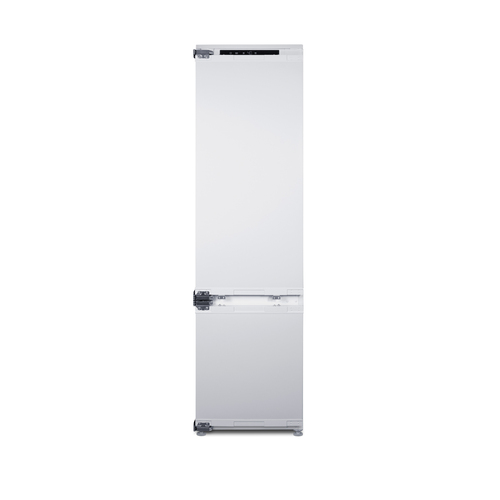

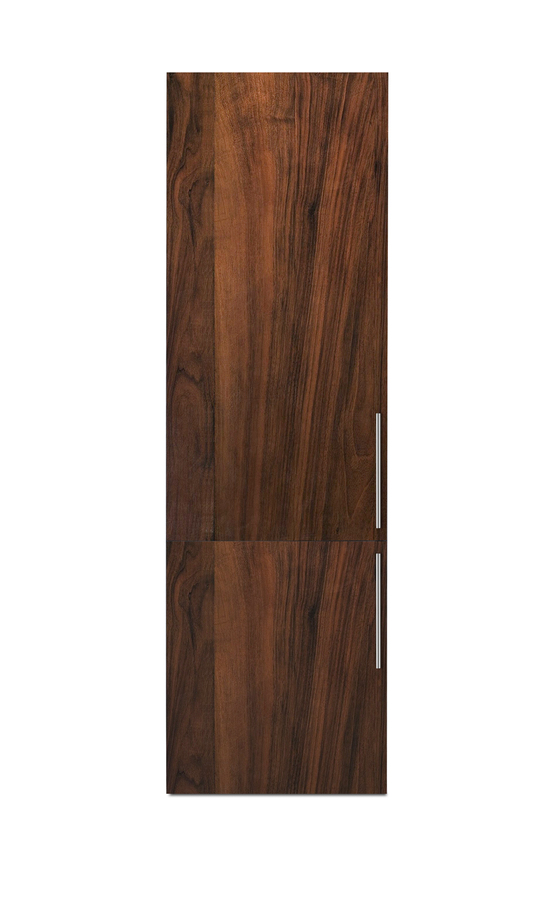

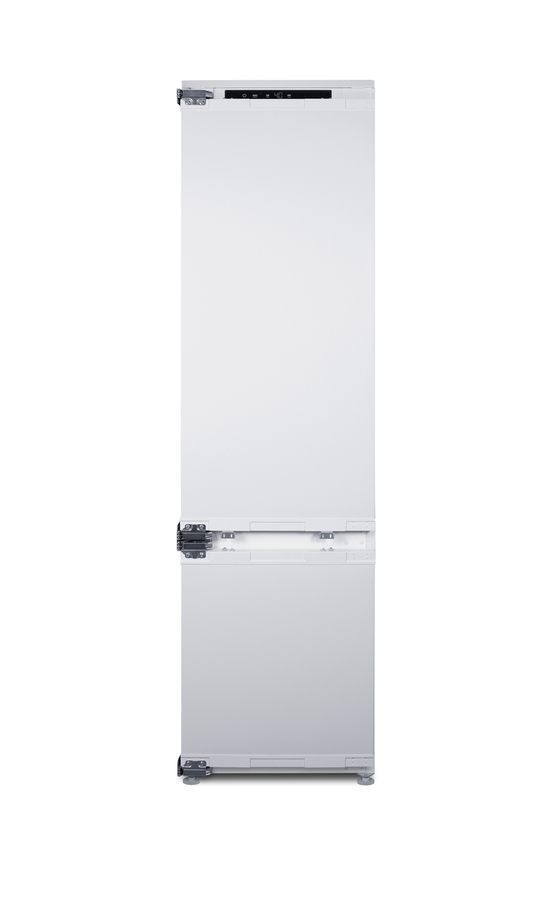

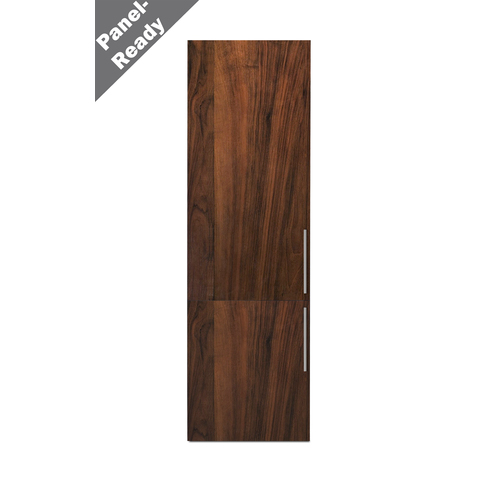

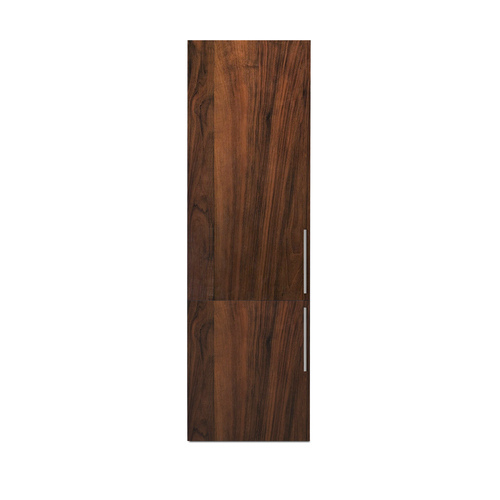

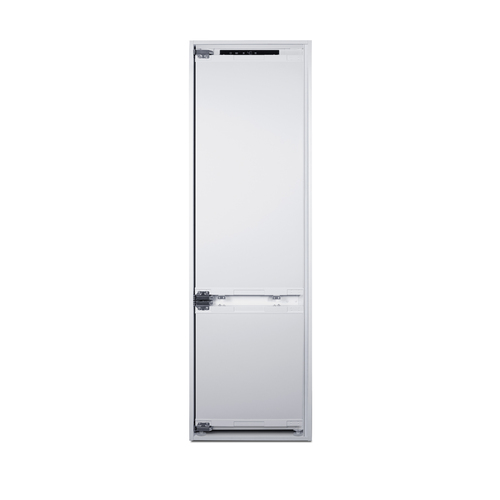

Doors are designed to accept custom panels for a seamless look that can be fully integrated into your cabinetry (refrigerator door panel: 50 1/2" H x 23 1/8" W; freezer door panel: 27 5/8" H x 23 1/8" W; both at 3/4" thick and max 33 lbs.)

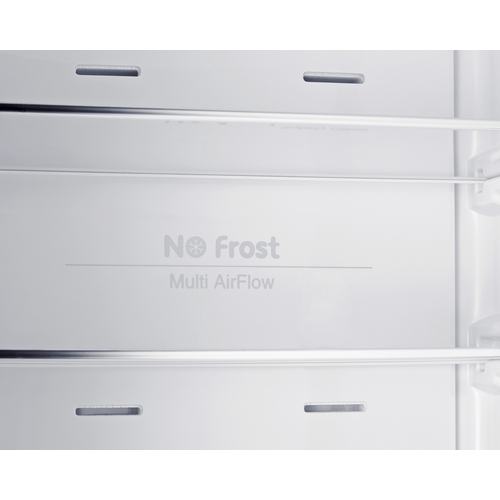

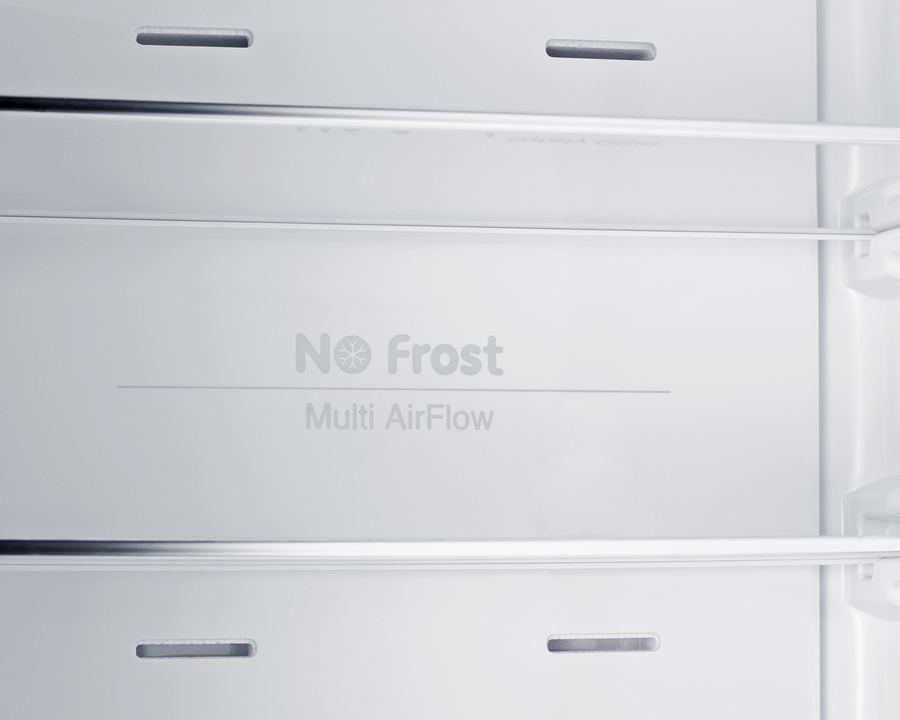

Frost-free operation for minimum user maintenance
10.7 cu.ft. interior offers generous storage in a slim counter depth fit

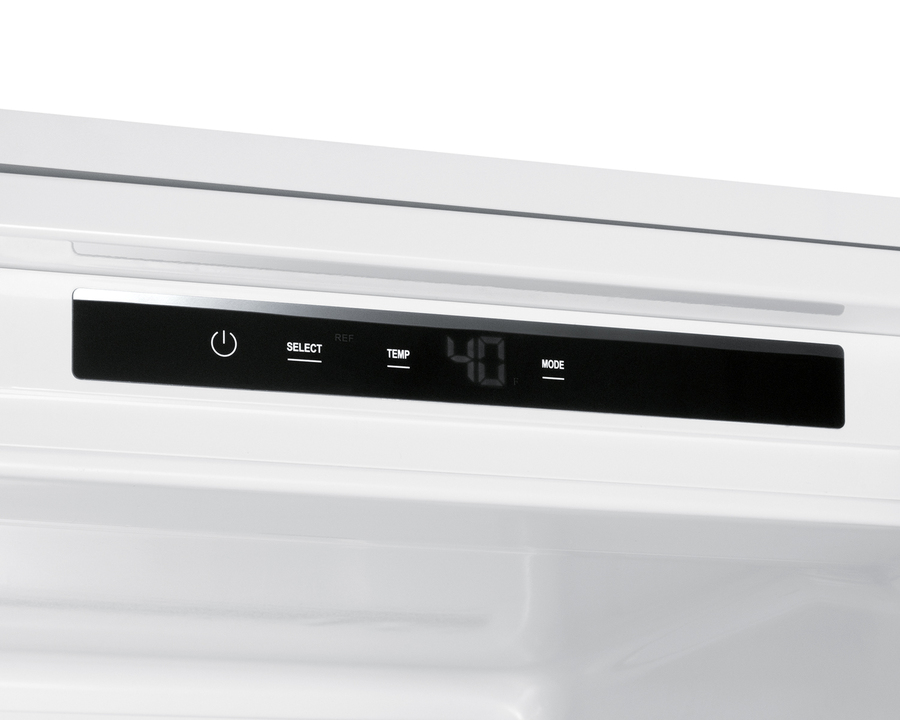

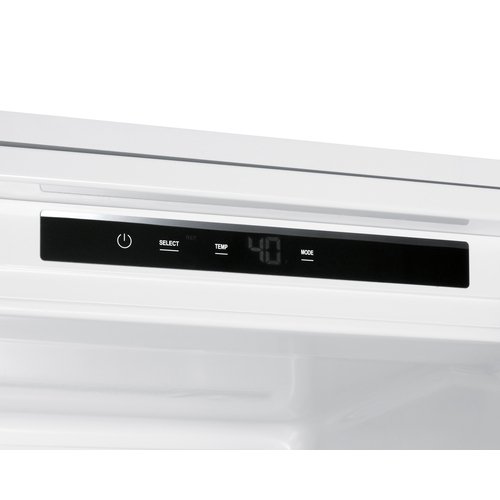

Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button

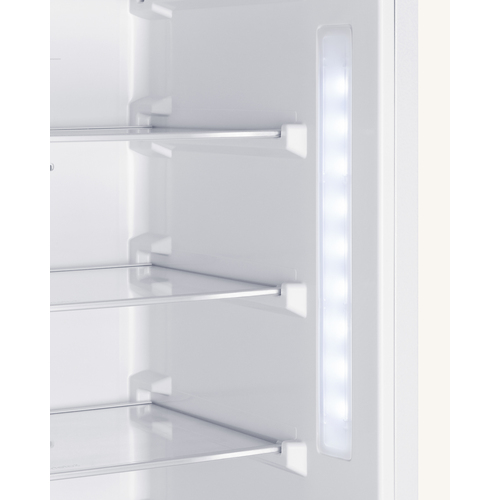

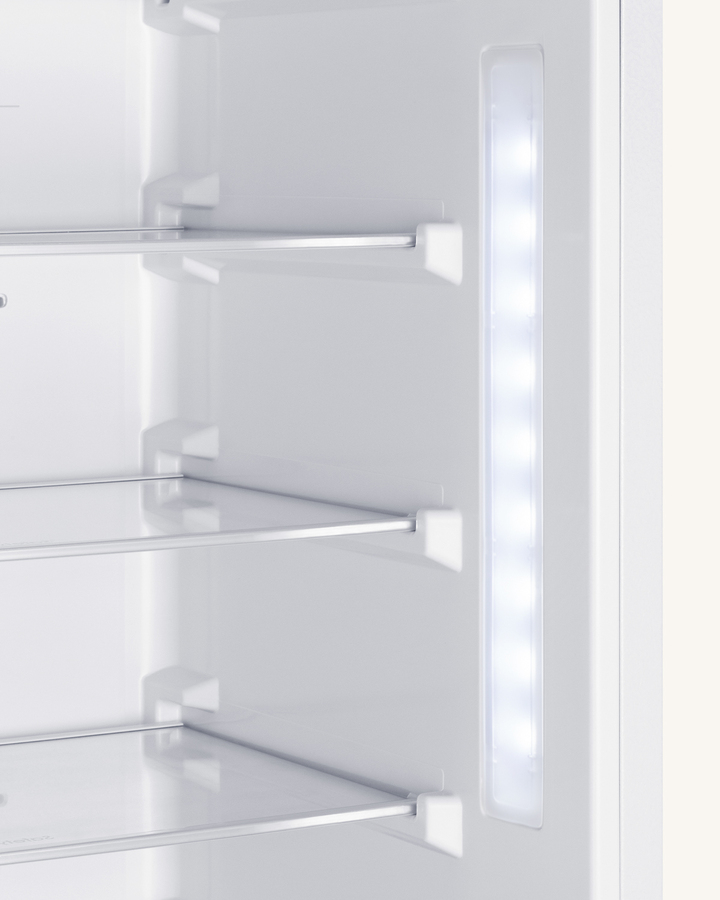

Energy efficient lighting located inside the walls to provide a better view of the interior
Audible alarm sounds if the door is left ajar
This setting is ideal for cooling fresh foods quickly. Function overrides current thermostat controls to ensure compressor operates continuously

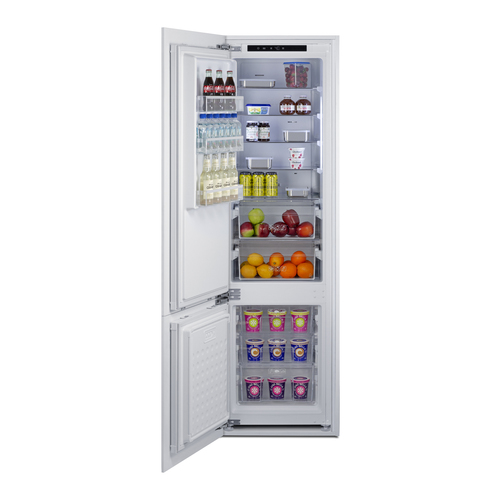

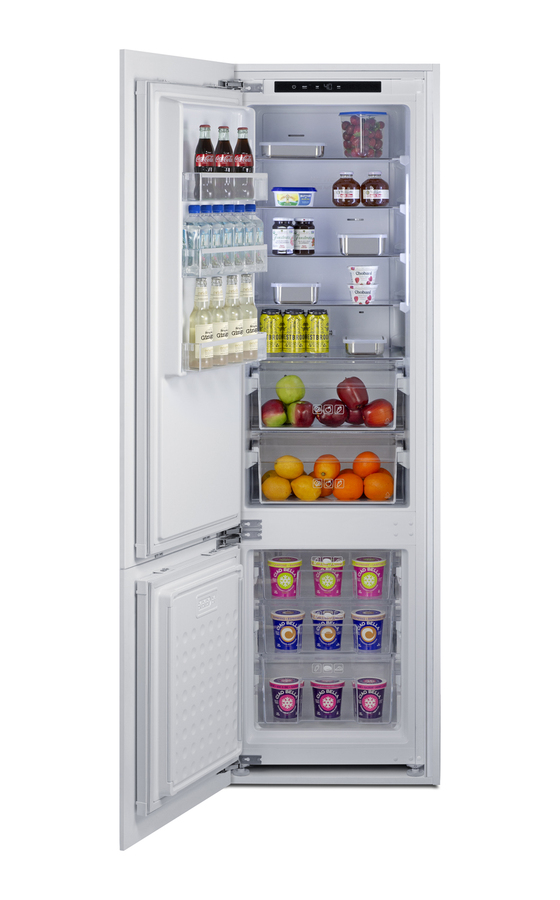

Store tall bottles and condiments right on the door for convenient access

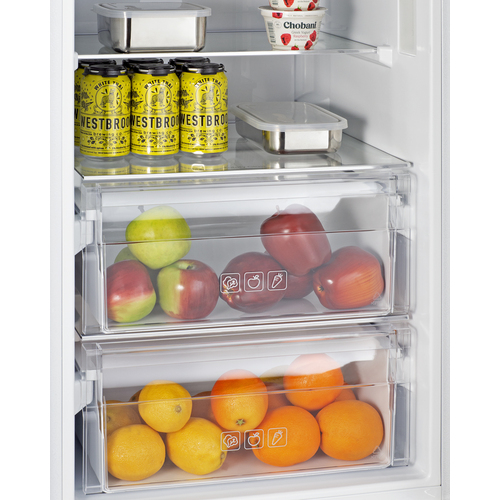

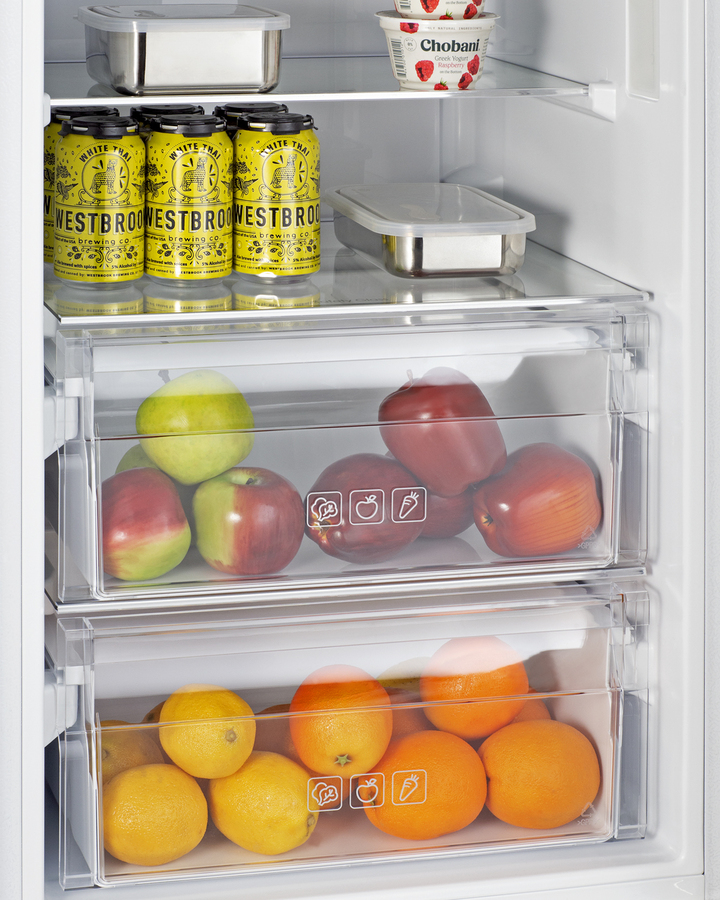

Refrigerator's two full-width crisper drawers are ideal storage spaces for fruits and vegetables
Unique freezer design keeps the cold inside, even when the door is opened
For this unit with the door opening from the other side, see model FFBF11NT
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
ETL/ETL-C and NRCAN registered for use in Canada
DESCRIPTION

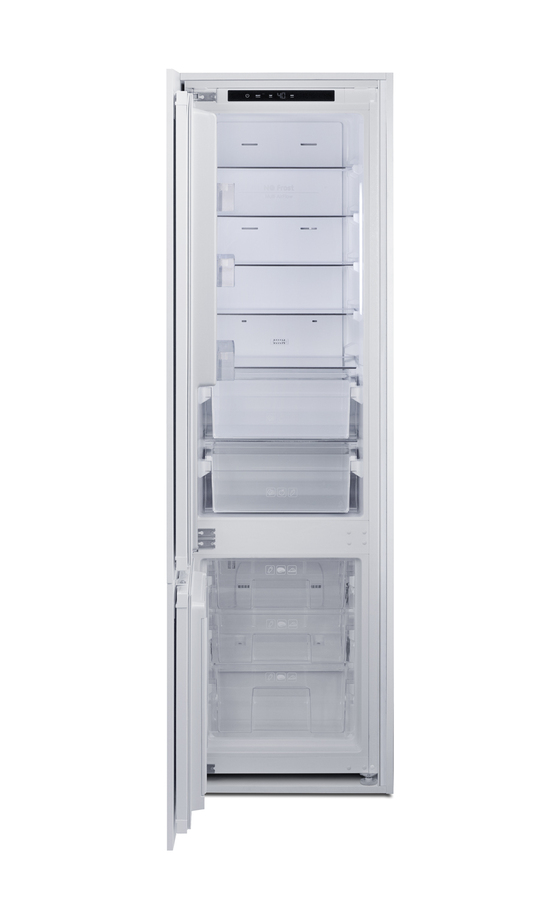

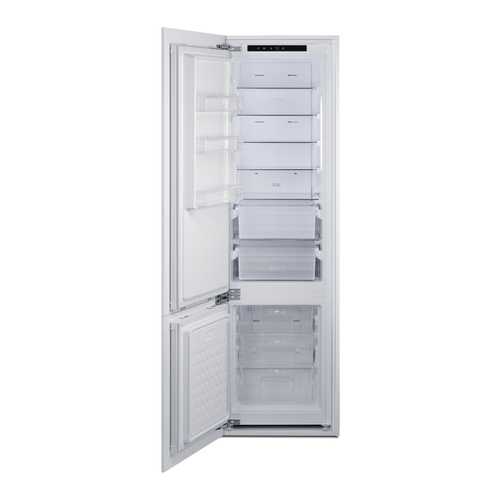

Summit brings endless inspiration to smaller kitchen spaces with our fully integrated counter depth refrigeration. Sized for 24" openings, the FFBF11NTLHD is an ENERGY STAR certified bottom mount refrigerator-freezer. The unfinished fronts are designed to accept custom panels (refrigerator door: 50 1/2" H x 23 1/8" W; freezer door: 27 5/8" H x 23 1/8" W; both at 3/4" thick and max 33 lbs.). This allows you to create a seamless look that blends the refrigerator into adjacent cabinetry. Customers provide their own handles. This unit is intended to fit cabinet openings sized at 76 7/8" H x 21 3/4" W x 22 1/2" to 23 5/8" D. Inside, the FFBF11NTLHD utilizes frost-free operation for decreased user maintenance. The refrigerator section features digital controls to ensure easy temperature management and a Fast Cooling function, excellent for cooling newly loaded foods quickly. This unit includes four adjustable glass shelves and two crisper drawers for easy and fresh storage. The refrigerator door consists of three full-width adjustable racks best to accommodate containers, bottles, and other condiments. Additional features include an open-door alarm and attractive LED lighting in the walls. The freezer, like the refrigerator, includes a Fast Freeze function that is ideal for freezing fresh groceries. There are three transparent slide-out drawers to offer convenient storage while protecting stored items when the door is open. With its uniquely slim fit and panel-ready front, the FFBF11NTLHD is the perfect integrated refrigeration solution for kitchens with an uninterrupted cabinetry design. Explore summitappliance.com to browse our complete series of uniquely sized panel-ready refrigerators.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
