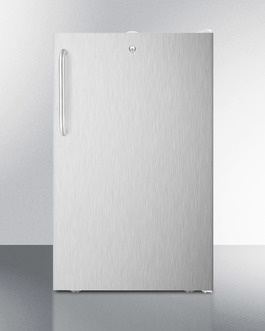

20" Wide All-Freezer

SKU: FS407L7SSTB

Slim 20" fit with interior basket drawers for optimum cold storage

DISCONTINUED- REPLACED BY ADA305AFSSTBC

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

34.0" H x 19.25" W x 21.38" D
(86cm H x 49cm W x 54cm D)

Overview
Height of Cabinet	33.5" (85 cm)
Height to Hinge Cap	34.0" (86 cm)
Width	19.25" (49 cm)
Depth	21.38" (54 cm)
Depth with door at 90°	39.5" (100 cm)
Capacity	2.8 cu.ft. (79 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.6
Voltage/Frequency	115 V AC/60 Hz
Weight	64.0 lbs. (29 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101041490
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	26.38" (67 cm)
Interior Width	14.0" (36 cm)
Interior Depth	16.75" (43 cm)
Thermostat Type	Dial
Refrigerant Type	R134a
Refrigerant Amount	3.0 oz.
High Side PSI	210.0
Low Side PSI	105.0
Level Legs	2
Interior Drawers	Yes
Drawers Qty	4

Exterior

SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Slim 20" width

2.8 capacity inside a slim footprint

Commercially listed

ETL-S listed to NSF standards for commercial use

Fully finished white cabinet

Allows the unit to be used freestanding

Factory installed lock

Top-mounted for convenient security

Stainless steel wrapped door

304 grade stainless steel on the cabinet and door

Professional towel bar handle

A curved stainless steel handle provides generous room for a comfortable grip

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Manual defrost

Efficient performance with reliable temperature stability

-20º capable

Low temperature capability ideal for certain sensitive items

Adjustable thermostat

Rear mounted to prevent accidental adjustments

Pull-out drawers

Four clear baskets for convenient and separated storage

Flat door liner

Easy to clean, with more depth for storage

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Matching refrigerator available

Pair with FF511L7SSTB for a complete set

Accucold by Summit Appliance offers a quality selection of 20" wide commercial all-freezers with the counter height FS407L7 series.

The ETL-S listed FS407L7SSTB is a counter height all-freezer, with manual defrost operation and 2.8 cu.ft. capacity. Four pull-out drawers with clear fronts offer convenient storage solutions. The adjustable thermostat is located in the rear of the model and a hospital grade (green dot) cord offers additional safety in high traffic areas.

Designed for freestanding use, the FS407L7SSTB has a white cabinet with a professional style stainless steel wrapped door and curved towel bar handle. A top-mounted lock adds convenient security.

Sized just under 20" wide, the freestanding FS407L7SSTB can be paired with our FF511L7SSTB auto defrost all-refrigerator to create a matching set. For a built-in version of this model, see the FS407LBI7SSTB.

BROCHURE
FS407L7SSTB.pdf

USE & CARE
FS407L_FS408BL___BI_AccuCold_Manual.pdf

MSDS INFORMATION
R134a_MSDS_T.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
