30" Wide 5-Burner Gas Cooktop

SKU: GC5272BTK30

Made in Italy with sealed burners and continuous cast iron grates

Estimated Time to Ship:

Next day shipping

Find a dealer

Width:
27 Inch 30 Inch

Color: Black

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

4.0" H x 30.0" W x 20.63" D
(10cm H x 76cm W x 52cm D)

Overview
Nominal Height	4.0" (10 cm)
Height of Cabinet	4.0" (10 cm)
Nominal Width	30.0" (76 cm)
Width	30.0" (76 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.63" (52 cm)
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	35.0 lbs. (16 kg)
Parts & Labor Warranty	1 Year
UPC	761101056739
Gas Cooktop
Ignition	Spark
LP Convertible	Yes
Number of Burners	5
Controls	Dial
Surface	Painted
Grate Material	Cast Iron
Cutout Height	6.0" (15 cm)
Cutout Width	21.77" (55 cm)
Cutout Depth	18.63" (47 cm)
Burner #1 BTU	11000.0
Burner #2 BTU	6100.0
Burner #3 BTU	10000.0
Burner #4 BTU	6100.0
Burner #5 BTU	3550.0
Power Cord Included	Yes

Sealed Sabaf® burners

Quality burners with cast iron caps ensure lasting durability and easier cleanup

Continuous cast iron grates

Solid grates make it easy to slide cookware to different burners

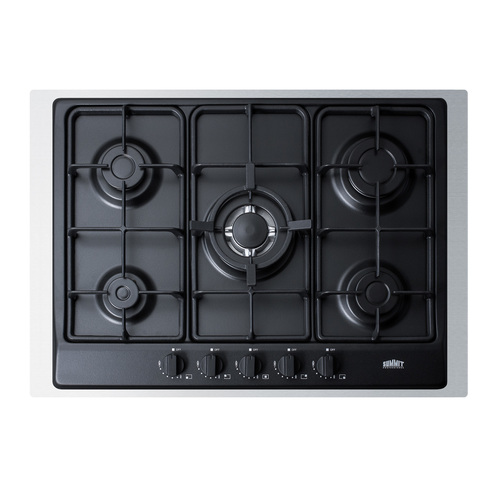

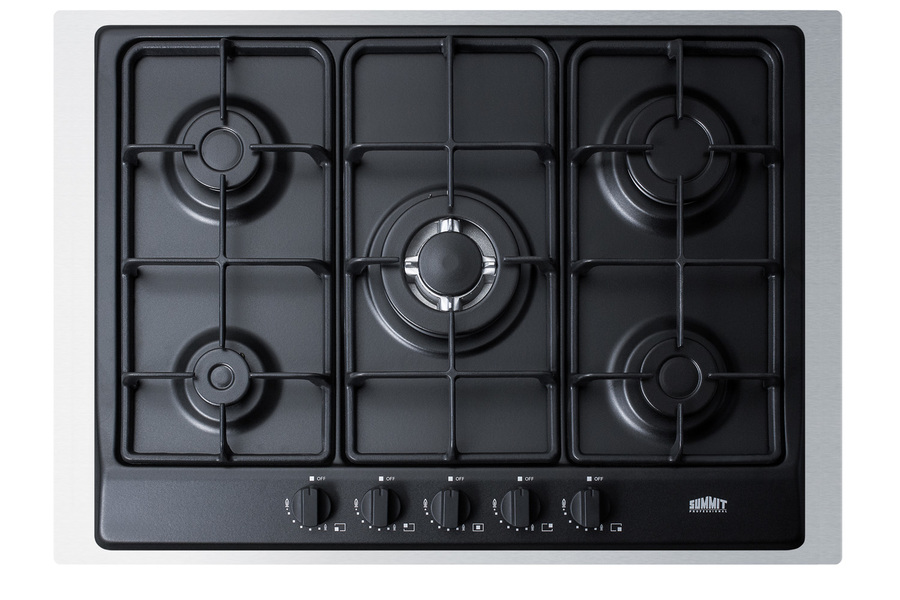

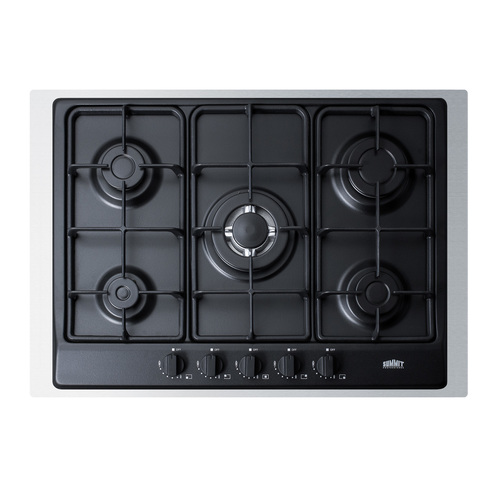

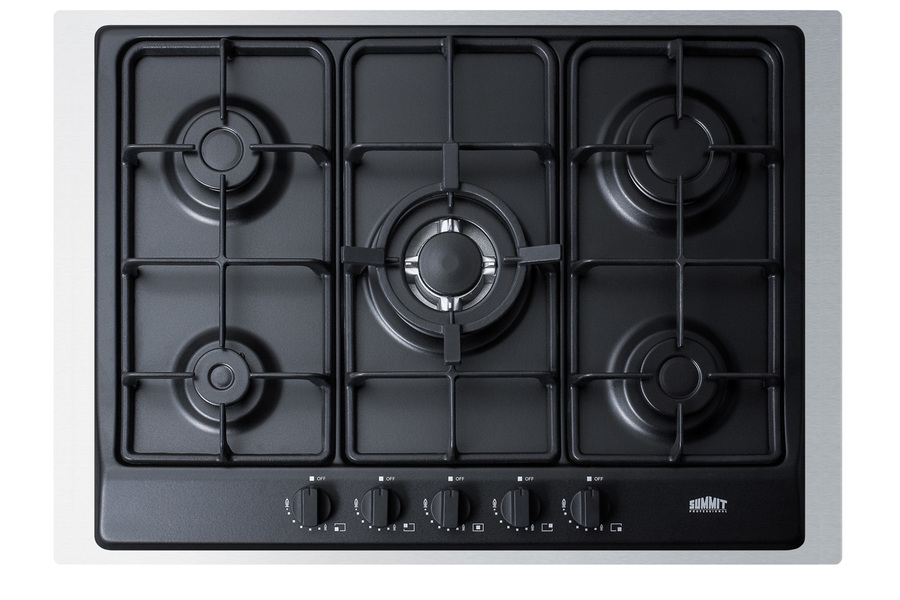

Trim Kit for 30" wide applications

Ships with a seamless stainless steel exterior trim kit that allows users to install this cooktop in 30" wide cutouts

Ultra rapid burner with dual flame

Center burner features a 4,400 to 11,000 BTU output with a dual ring flame for powerful but even heating

Wok ring included

Removable wok ring included to safely hold a wok over the flame when cooking on the center burner

Fast burner

Rear right burner features a wide range output from 2,500 to 10,000 BTUs

Two semi-rapid burners

Front right and rear left burners offer 1,500 to 6,100 BTU output to handle most cooking needs

Auxiliary burner

Front left burner operates between 1,200 and 3,550 BTUs to best handle dishes and sauces that require low heat

Steel surface in black matte finish

Durable cooktop surface features a unique black finish in matte style, color-matched with the knobs and grates

Curved design

Gently curved surface offers a uniquely modern look for the kitchen while also containing spills for easier cleanup

Centralized controls

Conveniently located controls offer easier and safer cooking, preventing users from reaching over hot burners to adjust the temperature

Color-matched knobs

Knobs come in a matte black finish for a seamless look

Conversion kit included

Unit is preset for natural gas but can be converted to LP with included kit

Push-to-turn knobs with safety cut-off

Safety feature requires you to turn the knob to the "full-on" position before pushing down, waiting for the ignition, and adjusting to your preferred heating level

Thermocouple flame failure protection

Automatically turns gas off after 12 seconds if flame is extinguished

Power cord included

Standard 3-pronged 115V cord included for the electronic ignition

Designed for built-in installation

Fits counter cutout sizes that are 21.77" wide by 18.63" deep, with a trim kit that allows the cooktop to fill 30" wide openings

Made in Italy for SUMMIT, our deluxe gas cooktops offer the ideal cooking experience for modern kitchens.

The GC5272BTK30 comes with an enamel steel surface in a stunning black matte finish, with color-matched knobs centrally located for easy use. The cooktops is uniquely sized at 27" wide, but ships with a stainless steel trim kit that allows the cooktop to be placed in standard 30" wide counter openings.

Continuous cast iron grates are designed to hold up to heavy duty pots and pans, making it easy to side cookware from one burner to another. This unit is equipped with thermocouple flame failure protection to ensure gas will turn off if the flame is extinguished. It utilizes electronic spark ignition and comes with a pre-installed 115V power cord. For added safety, the knobs require a gentle push-to-turn motion to ignite.

Five sealed Sabaf burners provide a range of cooking power to help accommodate a variety of heating needs. The center ultra rapid 11,000 BTU burner includes a dual flame and removable cast iron wok stand to offer more even heating for large cooking vessels. The right rear burner offers a 10,000 BTU cooking performance, ideal for boiling pots of water or cooking large dishes. The front right and rear left semi-rapid 6,100 BTU burners meet most general cooking needs, while the auxiliary 1,200 to 3,550 BTU front left burner allows you to achieve more precision in gentle heating.

The GC5272BTK30 comes preset for natural gas operation. We include a conversion kit that lets you adjust for LP gas connections. This unit is also available in white (GC5271WTK30) and stainless steel (GC527SSTK30).

BROCHURE
GC5272BTK30.pdf

USE & CARE
GC527_Gas_Cooktop_Manual.PDF

USE & CARE
GC527TK30_Trim_Kit_Instructions.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
