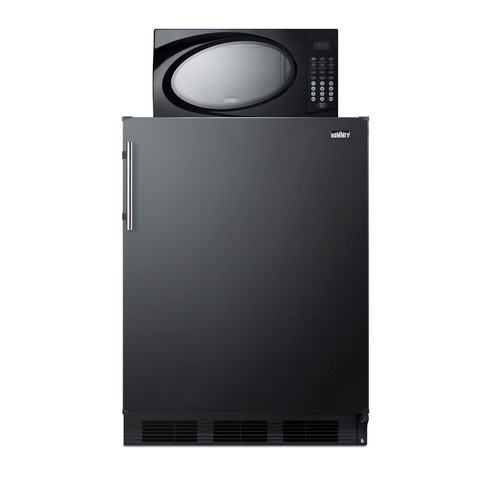

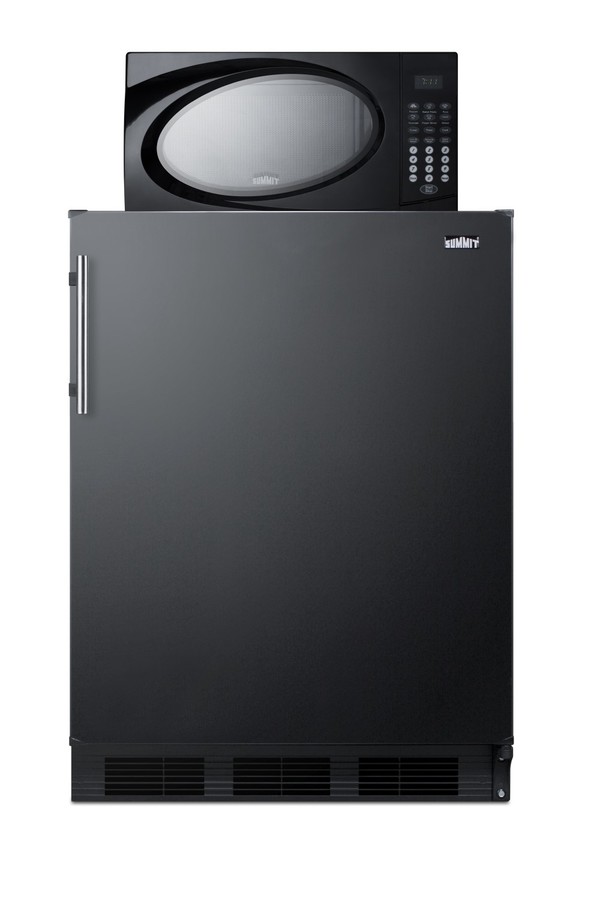

Microwave/Refrigerator-Freezer Combination

SKU: MRF663B

DISCONTINUED- REPLACED BY MRF34BSSA

45.0" H x 23.63" W x 24.0" D
(114cm H x 60cm W x 61cm D)

Overview
Height of Cabinet	45.0" (114 cm)
Width	23.63" (60 cm)
Depth	24.0" (61 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	Black
Cabinet	Black
Weight	140.0 lbs. (64 kg)
Parts & Labor Warranty	1 Year
UPC	761101049809
Microwave-Refrigerator
Refrigerator Included	CT663B
Refrigerator Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Glass
Shelf Qty	2
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Full Door Shelves	3
Wine Bottle Shelving	Yes
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R134a
Refrigerant Amount	2.6 oz.
High Side PSI	285.0
Low Side PSI	70.0
Refrigerator Interior Height	19.5" (50 cm)
Refrigerator Interior Width	20.5" (52 cm)
Refrigerator Interior Depth	17.0" (43 cm)
Freezer Interior Height	5.0" (13 cm)
Freezer Interior Width	19.0" (48 cm)
Freezer Interior Depth	11.5" (29 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.5" (52 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	2
Microwave Controls	Digital
Specialized Cooking Buttons	Yes

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

Thin-line design

Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

CT663B Refrigerator-freezer

Cycle defrost refrigerator-freezer made in Europe with cold wall interior, adjustable glass shelves, door storage, crisper, and a scalloped bottle shelf

Adjustable shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Zero degree freezer

Keep ice cream frozen and freezer burn-free in a freezer that reaches and maintains zero degrees

Reversible door

Refrigerator-freezer door swing can be reversed by user

Mid-size microwave

Touchpad mid-sized microwave with one-touch cook options and variable controls

Allocator box

Plug the refrigerator-freezer, microwave, and a third appliance into this allocator box for safe operation that limits total power consumption to 10 amps

Ships fully assembled

No assembly required before use

SUMMIT offers the industry's widest variety of refrigerator-microwave combination units, with sizes that fit your space and designs to serve your needs.

Model MRF663B combines a mid-sized microwave with SUMMIT's popular European CT663B refrigerator-freezer in a jet black finish. The complete unit has a conveniently slim 24" footprint for an easy fit in any tight spot and a generous 5.1 c.f. storage capacity.

SUMMIT's own dual evaporator system separately cools the two compartments, allowing for a zero degree freezer that keeps ice cream frozen with manual defrost. Automatic defrost operation reduces maintenance in the fresh food section. Additional features include a clear crisper, adjustable thermostat, adjustable shelves and reversible door.

The MRF663B also includes a black touchpad microwave fully featured for easy heating. One-touch cook options and variable controls allow easy use.

All of SUMMIT's combination refrigerator-microwaves are shipped fully assembled and ready to use. Plug the microwave, refrigerator-freezer, and a third appliance (such as a coffee maker) into our power allocator box and use its cord for safe one-plug operation. This system protects your circuit breaker and power line by limiting overall power use to 10 amps.

In addition to those models listed in our MRF series, SUMMIT can custom-build refrigerator-microwave combination units to your individual specifications. Contact us today for more information.
